Carbon trimbars

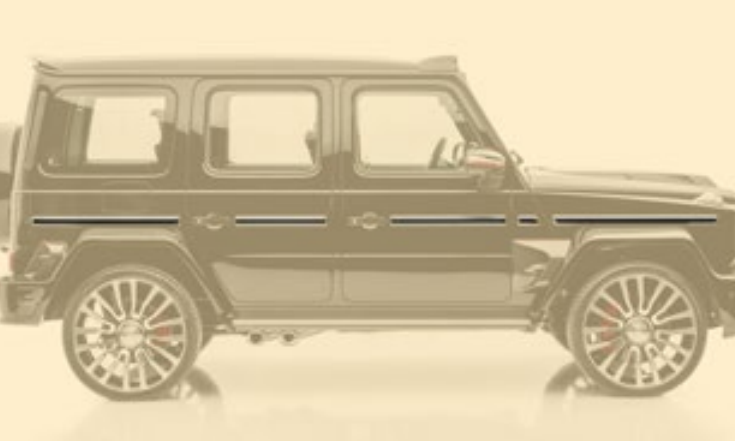

Mansory Carbon Trimbars for Mercedes-Benz G-class W465 Gronos
The factory G-class wears a wide black-plastic strake along each flank, running between the front and rear wheel arches as the lower body cladding. On a Mansory Gronos build for the W465 that plastic clashes with the carbon arches, doors and rocker covers above and below it. The Carbon trimbars close that visual gap: a pair of full-length carbon-fibre bars, one per side, that overlay the OEM cladding with the exact same surface footprint and the same fastener pattern, but in continuous 2x2 twill weave with a deep autoclave gloss.
What this part actually replaces
This is the long horizontal lower-flank cladding only. It is not the wheel arch (handled by the Gronos arch flares), not the rocker (handled by the carbon side skirt), and not the door skin. The trimbars sit between those, fastening into the same factory clip channel and screw bosses that carry the OEM strake, so the donor body shell is not modified to fit them.
Layup engineering
A trimbar is the longest single carbon panel on the Gronos kit, which creates two engineering problems: fibre continuity and thermal growth. Mansory addresses the first by laying the visible 2x2 twill as a single continuous skin from the front edge to the rear edge of the panel, with no splice line under the lacquer. The structural sub-laminate underneath uses unidirectional carbon orientated longitudinally, so axial stiffness is dominated by 0deg fibres while the visible twill carries the cosmetic load. The second problem - a long carbon strip locked to a steel G-class flank that expands and contracts with cabin and ambient temperature - is solved with engineered expansion tolerances at the fastener slots: every other clip seat is a slotted hole rather than a round one, so the panel can grow and shrink along its length without bowing or stress-cracking the lacquer.
OEM clip pattern preserved
The back face of the trimbar reproduces the factory clip-and-stud pattern one-to-one. Plastic snap-clips of the same Mercedes part number are used at the body-shell interface, so the part installs with the same procedure a dealer technician already knows: align, press, torque the captive M6 studs at each end, done. No drilling, no bonding, no body filler. Removal for service - for example to access the side-impact reinforcement or the fuel-line routing on diesel cars - is the same procedure in reverse and leaves no trace on the bodywork.
Weather-strip seal at the door interface
Where the trimbar meets the lower edge of the front and rear doors, a co-extruded EPDM weather-strip seal is bonded into a recessed channel on the upper edge of the carbon panel. The seal does two jobs: it stops the high-pressure water column from a jet wash from being driven up behind the panel, and it absorbs the small panel-gap variation between individual donor cars. Two W465 shells off the same line will not have identical door gaps to the millimetre; the EPDM lip closes that delta silently. Without this detail a long flat carbon strip on a long flat steel flank tends to whistle at motorway speed - the seal kills the whistle.
Finish and lacquer
The visible face is finished with the same UV-stabilised polyurethane clear used across the rest of the Gronos kit, so under sunlight the trimbars do not yellow on a different schedule from the arches above them. Standard delivery is high-gloss; satin and Mansory's signature raw-style matte are available on request and are quoted per project. A custom paint match - body-colour over carbon, carbon top-half with body-colour bottom-half, or a painted accent stripe - is also available; in that case the trimbar ships as a primed cosmetic surface ready for the customer's paint shop.
How it pairs with the rest of the kit
The trimbars are the horizontal anchor of the lower bodyside. They line up visually with the rear panel below the tail lights and with the carbon treatment of the doors. Customers commonly specify them together with the rear door panel, the D-pillar cover and the carbon mirror housings, which together give the W465 a continuous carbon line from the A-pillar mirror through the doors and trimbars to the rear quarter. On its own, the trimbar pair already changes how the car reads - it removes the single largest plastic surface from the side view.
Lead time, build process and provenance
Carbon trimbars are made-to-order in Brand-au-Stetten, Germany. Lead time from confirmed order to dispatch is 10 to 14 weeks. The process starts with a CNC-machined master tool, a hand-laid prepreg schedule, a vacuum-bagged autoclave cure, then trim, drill, bond-in of the weather-strip and fastener inserts, lacquer, and finally a paired QC where left and right bars are checked together for surface match before they are boxed. Each pair carries a Mansory traceability number and ships with an authenticity certificate.
Worldwide delivery and installation
The pair ships in a single foam-cradle crate, EUR-priced, made-to-order, worldwide delivery. Door-to-door in Europe is typical 5-7 working days after the kit leaves the factory; UK customers add HMRC clearance; UAE and HK clear via the customer's nominated agent. Installation is a two-hour job at any competent body-shop because the OEM fastener pattern is preserved - no painting required if the customer keeps the standard carbon finish.
Browse the full collection
The trimbars are one of dozens of individually orderable carbon parts from the Gronos build. The full Mansory collection at hodoor.world lists every body, interior and wheel option from current Mansory programmes, including matching trimbars for other G-class generations.
Frequently asked questions
Q: Are the trimbars an overlay over the OEM plastic, or a replacement?
A: They are a replacement. The OEM black plastic strake comes off (it is clipped, not bonded) and the carbon trimbar takes its place using the same fastener pattern. There is no double-skin and no added weight beyond the carbon panel itself.
Q: Will I see a splice line in the carbon weave on a long bar like this?
A: No. The visible 2x2 twill is laid as a single continuous skin from front edge to rear edge of each panel. There is no cosmetic splice, no joggle, and no lacquer-line in the surface.
Q: Does the long carbon strip distort with temperature?
A: It would, if it were rigidly bolted at every point. The trimbar uses slotted fastener seats at alternate clip positions so the panel is free to grow and shrink along its length under thermal cycling without bowing or cracking the lacquer.
Q: Can I have the trimbars painted in body colour rather than left as carbon?
A: Yes. We can supply them as a finished carbon part, as a primed cosmetic surface ready for your paint shop, or fully painted at the factory in Mansory's paint cell. Painted variants are quoted per project and add 1-2 weeks to the lead time.
Q: Does the seal at the top edge make any difference at speed?
A: Yes - it stops wind-noise whistle. A long flat carbon panel on a long flat steel flank, without an upper-edge seal, tends to generate a tonal whistle in the 90-130 km/h band. The bonded EPDM lip closes that gap and silences it, while also stopping pressure-washer water from being driven up behind the panel.
Visual reading from three metres away
The trimbar is the panel that decides whether the lower flank reads as monochrome carbon or as a black-plastic stripe interrupted by carbon. From three metres - the distance at which most photographs of the car are taken - the eye groups the arches, the trimbar and the rocker into a single horizontal band. If that band is twill carbon throughout, the W465 reads as a fully-realised Mansory build; if the trimbar is left as the OEM strake, the band breaks visually and the eye keeps registering the factory G-class shape underneath the kit. This is the cosmetic reason Mansory specifies the trimbar as a separately-available part rather than a hidden line-item: customers who order the arches almost always come back for the trimbar in a second order.
Why the long-strip layup matters
A trimbar is roughly two metres of continuous panel. Most carbon body parts in this size class are produced in two halves and butt-jointed under the lacquer because two-metre tooling is expensive and slow to cycle. Mansory uses single-piece tooling, which is the reason the visible twill runs without a splice and the reason the lead time is 10 to 14 weeks rather than the 4 to 6 weeks of a generic carbon overlay. The structural advantage is also non-trivial: a butt-jointed long panel has a stiffness discontinuity at the joint that, over thousands of thermal cycles, eventually telegraphs through the lacquer as a faint visible line. The single-piece layup does not have that failure mode.
Compatibility notes
The trimbars are dimensioned for the W465 G-class - the current generation - in Gronos specification. They will not fit the previous W463A or W463 generations; trimbars for those bodies are available separately and use different fastener layouts. Within W465 they are compatible with all engine variants (G500, G63, electric G580). On right-hand-drive cars the trimbar pair is the same - the panel is symmetric across the longitudinal axis of the car - so the same kit ships to UK and UAE as to EU customers.
Order and consult
To order the carbon trimbars, confirm donor details, or specify a custom finish, contact us by WhatsApp at wa.me/447488818747 or by email at [email protected]. We will confirm the part against your VIN, lock the lead time and arrange made-to-order production with worldwide delivery. If you are also looking at the matching carbon door handle with logo we will quote both items together so they ship in one consolidated crate.
