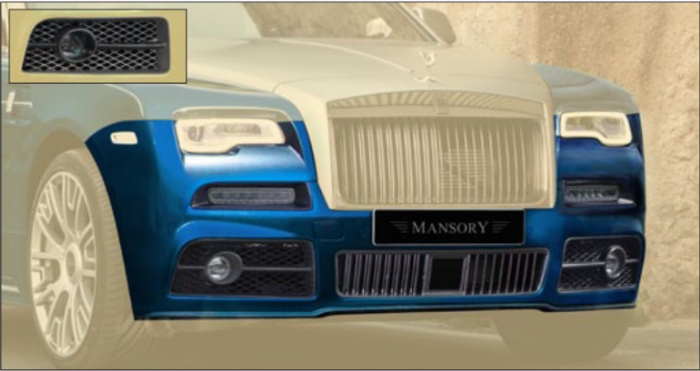

Front bumper - LED + FOG light Mansory Carbon for Rolls-Royce Dawn

Mansory Carbon Front Bumper with LED Fog Light for Rolls-Royce Dawn

This Mansory carbon front bumper is the most theatrical face of the coachbuilt Dawn programme: a complete OEM-replacement panel that swaps the factory front clip for a sculpted carbon assembly with LED fog-light pods nested into the lower outer corners. It belongs at the heart of the Mansory Body Kit for Rolls-Royce Dawn, dropping in beneath the Pantheon grille and continuing the carbon vocabulary established by the engine bonnet, side skirts and rear deckwork. Unlike the slim-DRL counterpart, this version places its photonic accent low and wide, giving the drophead a watchful, jewelled stance once the soft top is folded and the Spirit of Ecstasy steps forward. Owners specify it when they want presence after dusk without abandoning the calm gravity of Goodwood-built coachwork.

Construction & Materials

The bumper is laid up as a single coachbuilt shell with bonded sub-structures for the central air aperture and the two fog-light housings. Mansory's atelier uses prepreg sheets cured under autoclave pressure, with internal reinforcement around the crash absorbers and tow-eye threading. The outer surface is finished to match the surrounding Rolls-Royce coachwork — usually a deep-gloss two-pack lacquer over visible weave, though body-colour overpaint is available for owners who prefer carbon as substrate rather than statement.

• Weave: 3K twill on the outer skin, with 2×2 plain reinforcement around the fog-light pods
• Cure cycle: autoclave prepreg at controlled ramp, post-baked for dimensional stability
• Wall thickness: 1.8–2.4 mm across the visible faces, thicker laminate at mounting bosses
• Component mass: roughly 8.6 kg ready to fit, before paint and wiring loom
• Mounting hardware: stainless studs, captive nuts and EPDM isolators bonded into the laminate
• Finish: Mansory deep-gloss lacquer, hand-flatted between coats; satin and body-colour options available
• LED hardware: twin sealed fog-light pods with polycarbonate optics and silicone-gasketed bezels
• OEM compatibility: keeps factory parking-sensor cut-outs, washer-jet nozzles and tow-hook access

Design & Visual Function

The visual idea is theatre at the lower corners. Where the slim-DRL sibling pulls the eye into a horizontal sliver, this fog-light version drops two vertical jewels into the bumper's outer flanks, balancing the upright Pantheon grille with two grounded points of light. Mansory shapes the surround so the carbon weave wraps cleanly around each pod, with a faint paint-break detail separating the lacquered shell from the matte gasket — a signature coachbuilt touch that reads as bespoke rather than aftermarket.

Functionally the lower corners do real work for the twin-turbocharged V12. The 6.6-litre engine relies on side-mounted intercoolers fed through the front bumper, and Mansory has tuned the central aperture and outer ducts so cooling-air mass flow at motorway speed remains close to OEM. The fog-light pods sit just outboard of the intercooler ducts, cradled in a small carbon eyebrow that smooths airflow over the housing rather than tripping it into turbulence. The result is calm air entering the heat exchangers, calm air leaving the wheelarch via the air-outtake splitter, and no perceptible change to the Dawn's signature waftability.

Aesthetically the part is engineered to live with the Pantheon grille and the Spirit of Ecstasy. The carbon's vertical accents pick up the grille's vanes, the chrome surround stays untouched, and the bonnet pinstripe (when illuminated) finds an answering glow at bumper level once the fogs are lit. Specified with the soft top down on a cooling summer evening, the lower-corner illumination becomes the second act of arrival after the bonnet mascot — a coachbuilt curtain-call rather than a motorsport flourish.

Compatibility & Fitment

Designed for the Rolls-Royce Dawn drophead convertible across the full 2015–2023 production window, including Black Badge. The Dawn is a soft-top-only car — there is no coupé variant — and this bumper is sculpted around the drophead's specific front-end geometry. It retains the OEM parking-sensor pattern, headlight washers, ambient bonnet pinstripe path and tow-eye access. Despite shared underpinnings with Wraith, the front clip, headlight cut-outs and bumper interface are Dawn-specific; the part is not a fit for Wraith, Ghost or Phantom. Owners running a Black Badge car keep all darkened brightwork around the grille; this bumper carries no chrome of its own and therefore lives comfortably with both standard and Black Badge trim packages.

Installation & Reversibility

Realistic workshop time is 5–7 hours for an experienced fitter. The OEM bumper comes off through its factory fasteners, the parking-sensor harness and washer line transfer across to the Mansory shell, and the new bumper bolts to the same crash-structure brackets. The fog-light pods need a clean wiring tap into the OEM front fog-light feed, or, where the donor car never had factory fogs specified, into the side-marker / DRL feed via a dedicated relay; an experienced auto-electrician will fold this into the same visit. Paint-break and primer prep are handled by the body shop before fitment so the bumper leaves the booth as a finished panel, not a raw shell. The whole job is fully reversible: the original bumper, harness and brackets store flat in a padded crate, ready to refit if the car ever returns to factory specification. Mansory-trained installers and Rolls-Royce-certified body shops are the right address; this is not a kerbside DIY part.

Pairing within the Mansory Dawn programme

Three siblings sit naturally beside this bumper. The front bumper slim DRL is the alternative photonic treatment — a single horizontal blade of light rather than two corner pods — and an owner specifies one or the other, never both. The front grill frame wraps the Pantheon surround in matched carbon, lifting the upper face so it answers the bumper's lower drama. To finish the front clip with measured aggression, the front lip II tucks under the central aperture; the deeper front lip III is the more sculpted alternative for owners chasing a longer chin. Choose grille frame plus lip II for restrained theatre; grille frame plus lip III when the car is being shown rather than driven daily.

Maintenance & Durability

The Dawn is a drophead, so the lacquered weave on this bumper sees direct sun whenever the soft top is stowed. Treat the panel as you would any high-end coachbuilt finish: pH-neutral shampoo, two-bucket method, plush microfibre, and either a high-grade carnauba refreshed seasonally or a properly prepped ceramic coating for owners who prefer one application a year. Avoid alkaline wheel cleaners drifting onto the lower face, ammonia-based glass products around the fog-light bezels, and any abrasive sponge or compound on the lacquer. The fog-light optics are polycarbonate; clean them with the same gentle chemistry rather than glass-specific solvents. The LED modules are sealed automotive-grade units — expect a long, untroubled service life with negligible draw at standstill. If a lamel chips on a kerb strike, the panel is repairable by any specialist who works with lacquered carbon; localised re-laminate, sand, lacquer and polish back into the surrounding finish.

Lead Time & Warranty

Mansory builds these bumpers to order from the atelier, so plan on 4–8 weeks from confirmed specification to dispatch. Each panel is hand-finished, weighed, inspected and serial-marked before it leaves the workshop. A 12-month warranty covers manufacturing defects in laminate, finish and LED hardware.

FAQ

Q: Does this fit a Black Badge Dawn the same as a Standard car?
A: Yes. The bumper bolts to identical crash-structure points across both trims and works comfortably with the darkened brightwork that Black Badge cars carry around the Pantheon grille and Spirit of Ecstasy.

Q: How is this version different from the slim-DRL front bumper?
A: The shell geometry is the same; the photonic treatment is the differentiator. This part houses two LED fog-light pods at the lower outer corners; the slim-DRL sibling carries a single horizontal light blade higher in the bumper face. They are mutually exclusive specifications.

Q: Will the bumper compromise twin-turbo V12 cooling?
A: No. The central aperture and outer ducts are tuned to maintain intercooler mass flow within OEM tolerance, and the fog-light pods sit outboard of the cooling path so they do not block charge-air feed.

Q: Can the fog lights be wired into a car that never had factory fogs specified?
A: Yes. An experienced installer adds a dedicated relay tapped into the OEM marker-light or DRL feed, keeping switching tidy and the car's electronics undisturbed.

Q: Is the panel reversible if the Dawn returns to factory specification?
A: Fully. The OEM bumper, harness and brackets store flat and refit to original mount points without modification to the body-in-white.

Pair this bumper with the front grill frame and a measured front lip for a coherent coachbuilt face. Specify finish, lacquer depth and fog-light optic via WhatsApp +44 7488 818 747 or [email protected].
