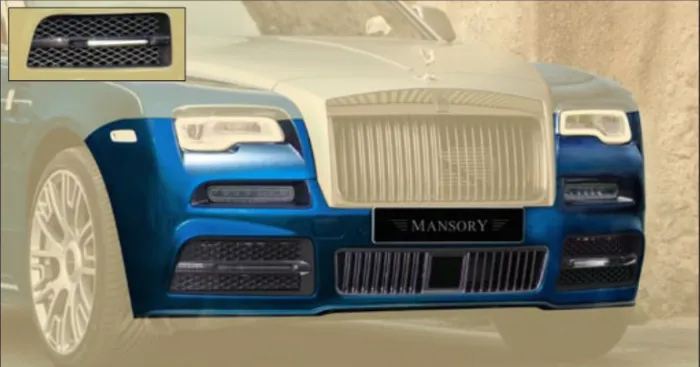

Front bumper - slim DRL Mansory Carbon for Rolls-Royce Dawn

Mansory Carbon Front Bumper with Slim DRL for Rolls-Royce Dawn

This is the Mansory front bumper specified with the slim daytime running light signature — a single ribbon of light tracing each side of the lower fascia, drawn so thin it reads almost as a graphic line rather than a lamp. Within the Mansory Body Kit for Rolls-Royce Dawn it is the contemporary counterpart to the fog-light bumper variant: where one speaks the language of long-distance lamps and chrome scoops, the slim-DRL piece argues for editorial restraint. Specified by Dawn drophead owners who want the soft-top theatre, the rear-hinged coach doors and the Spirit of Ecstasy framed by a daytime light signature that is unmistakably new-decade. The piece replaces the OEM front bumper end-to-end and is engineered around the 6.6L twin-turbocharged V12's intercooler airflow brief.

Construction & Materials

The bumper is laid up as a multi-zone carbon shell. The visible surfaces — the apron face, the DRL surrounds, the lower scoop walls — are dressed in a 3K twill cosmetic veil over a structural prepreg substructure. Hidden zones (mounting flanges, sensor cradles, the inner duct walls) use a heavier biaxial carbon for stiffness without adding visible bulk. Curing is autoclave at controlled ramp, which gives the lamel a hard glassy depth instead of the soft sheen typical of vacuum-bag-only parts.

• Surface weave: 3K twill cosmetic veil, weft aligned to the Pantheon grille verticals so the eye reads one continuous geometry from grille to apron.
• Substructure: prepreg biaxial carbon, autoclave cure at staged ramp for void-free interior walls.
• Wall thickness: 2.4–3.1 mm in cosmetic zones, stepped to 4.6 mm at duct entries and mount bosses.
• Weight: ~6.7 kg complete, against ~10.4 kg for the OEM Dawn front bumper assembly.
• Slim DRL housings: machined polymer cradles bonded inboard, sealed against moisture intrusion, cable exits routed to an OEM-pattern sub-loom.
• Hardware: stainless captive nuts, OEM-pattern park-sensor cradles transferred over from the original bumper without re-drilling.
• Finish: deep-gloss UV-stable lacquer matched to Rolls-Royce coachwork, or open-pore satin on request; bespoke two-tone paint break along the upper apron edge available to order.
• Optional: forged-look weave panels in the lower scoops for a fractured-light cosmetic against the calm twill of the upper face.

Design & Visual Function

The visual brief for this bumper is the opposite of nostalgia. Where a fog-lamp fascia leans on round lenses and chromed surrounds — heritage motifs in modern carbon — the slim-DRL piece is drawn as a single contemporary edge. The light strip is narrow enough to disappear into the apron at first glance and only resolves as a deliberate signature once you are within a few metres of the car. It is a daytime presence detail: a Dawn parked at a hotel forecourt at noon will read as a coachbuilt object first and a Mansory commission second, with the DRL ribbon doing the work that chrome detailing used to.

Functionally the bumper is also a thermal-management piece. The Dawn's 6.6L twin-turbocharged V12 is a long V at the front of a heavy car; intercooler airflow and brake cooling matter on a 2.56-tonne convertible specified for slow waftability and, occasionally, for harder driving in Black Badge tune. The lower scoops feed cool air toward the side-mounted intercoolers; the inboard ducts open a path to the front brake rotors that the OEM bumper deliberately damps for cabin quiet. The slim-DRL geometry frees more clear inlet area than the fog-lamp variant — there are no round lamp bezels intruding on the upper inlet — so the airflow brief is, marginally, the cleaner of the two siblings on a hard summer drive.

Aesthetic harmony with the rest of the Dawn is preserved by the weave alignment. The Pantheon grille verticals continue, optically, into the twill of the apron face; the chrome lower surround of the grille is not interrupted; the bonnet pinstripe sightline reads cleanly down to the carbon edge. With the soft top folded and the deck behind the seats opened to sky, the slim DRL adds a deliberate light-graphic to the front three-quarter view that the OEM apron, by design, deliberately understates.

Compatibility & Fitment

Engineered for the Rolls-Royce Dawn (2015–2023, all variants including Black Badge). Drophead convertible only — there is no Dawn coupé. The bumper retains OEM Rolls-Royce parking sensors, the front camera (where fitted), washer-jet provision, and the bonnet pinstripe sightline. Soft-top stowage geometry behind the cabin is unaffected; coach-door swing radius is unaffected. The Dawn shares cues with the Wraith but the front clip, headlight aperture and bonnet shut-line are Dawn-specific, so this part is not a fit for Wraith. It is also not a fit for Ghost or Phantom platforms. The slim-DRL housings accept the Mansory-supplied LED modules; the wiring sub-loom taps into the OEM front-marker / DRL feed via a documented connector.

Installation & Reversibility

Allow 5–7 hours at a Rolls-Royce-certified body shop or a Mansory-trained installer. The work splits into three blocks: (1) careful removal of the OEM bumper with sensor and washer disconnects, (2) transfer of OEM hardware — sensors, brackets, sub-frames — into the new carbon shell, (3) DRL wiring tap-in to the OEM front-light feed, then alignment and torque. Paint or lacquer prep is done before the carbon leaves the workshop where the bumper was finished; on-car you are working with a finished panel. Allow a further 60–90 minutes for DRL alignment so the light line reads symmetrical from front-elevation photographs. Fully reversible: the OEM bumper bolts straight back on without modification to the chassis or any front structural element. Not recommended as a driveway DIY because of the LED splice.

Pairing within the Mansory Dawn programme

The natural visual pairing is the front grill frame, which carries the Pantheon vertical geometry up into the carbon surround and frames the Spirit of Ecstasy in matching weave. For a yet sharper road stance, layer the Front lip III below the apron; the slim-DRL light line and the lip's leading edge end up on parallel optical planes, which photographs unusually well from low three-quarter. If you are hesitating between this piece and the front bumper with LED fog light, treat it as a personality choice rather than a hierarchy: fog-lamp variant for owners who want the heritage cue of round lenses; slim-DRL variant for owners who want the apron read as a single contemporary edge with no bezels.

Maintenance & Durability

A Dawn is an open-top car and lacquered weave on the front apron lives directly under sun for months at a time. UV degradation on cheap lacquers shows as a yellow cast at the edges of the panel within a few seasons; the autoclave-cured UV-stable lacquer specified here is engineered against that. A ceramic coating of 9H or above is recommended at handover and renewed on a 12–18 month cycle. Hand wash only with pH-neutral shampoo and a clean microfibre mitt. What kills lacquered carbon: alkaline traffic-film removers used at strength, ammonia-based glass cleaners over-sprayed onto the apron, abrasive sponges, and brushed automatic car-washes. The slim DRL modules are sealed Mansory units rated for typical luxury-car service intervals; if a chip or stone-strike damages a lamel, the affected zone can be re-laminated and re-lacquered in section, rather than replacing the bumper. Power draw at standstill from the DRL feed is negligible and routed through the OEM lighting circuit, so battery health on a parked drophead is unaffected.

Lead Time & Warranty

Lead time is 4–8 weeks from order confirmation. Each bumper is finished bespoke to the buyer's specified RR coachwork colour or to a documented contrast spec, and we will not start cure until the colour reference is signed off. A 12-month warranty covers manufacturing defects in the carbon laminate, the DRL housings and the lacquer. Chip damage, stone strike, road-debris impact and any post-fit modification by a third party fall outside the warranty.

FAQ

Q: How is this different from the fog-light bumper?
A: The fog-lamp variant carries round LED fog lenses with chromed bezels — a heritage motif in carbon. The slim-DRL piece replaces those with a thin daytime-running-light ribbon, freeing inlet area and giving the apron a contemporary edge with no round bezels at all.

Q: Does it fit Black Badge Dawn?
A: Yes. The bumper geometry is identical across Standard and Black Badge. The Black Badge specification's darkened brightwork pairs especially well with this variant because there is less chrome-on-chrome contrast at the front to compete with.

Q: Will it fit a Wraith?
A: No. The Dawn front clip, headlight aperture and bonnet shut-line are Dawn-specific. The two cars look related but the front-end metalwork is not interchangeable.

Q: Can I have raw weave instead of lacquer?
A: Open-pore satin is offered to order, which preserves the dry tactile weave reading while still sealing against UV. Fully unsealed raw weave is not supplied for an open-top apron — the lacquer is what gives the panel its long service life under sun.

Q: Are the DRL strips legal as primary daytime running lights?
A: They are wired off the OEM DRL feed and follow the OEM brightness curve. Local homologation rules vary and your installer should confirm against the regulation that applies where the car is registered.

Q: How much weight is saved?
A: Roughly 3.7 kg over the OEM bumper assembly. On a 2.56-tonne car the dynamic effect is small; the value is mostly in the visual and thermal brief.

Specify alongside the front grill frame and Front lip III for a coherent front-end commission. Quote, lead time, finish samples and bespoke colour-match via WhatsApp +44 7488 818 747 or [email protected].
