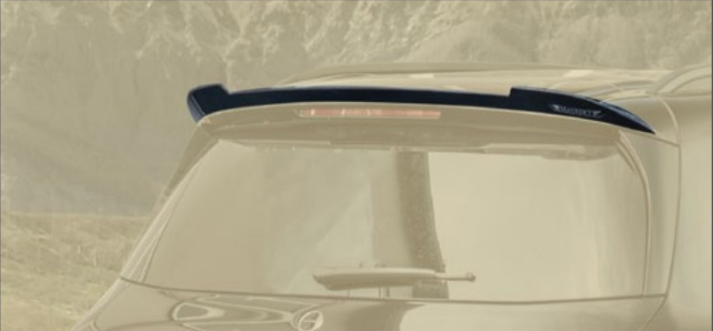

Roof spoiler Mansory Carbon for Mercedes GLS X167

Roof Spoiler Mansory Carbon for Mercedes GLS X167

The Mansory carbon roof spoiler sits on the trailing edge of the panoramic glass roof, above the tailgate, and is the part that finally resolves the long upright silhouette of the Mercedes-Benz GLS X167. On a 5.21-metre, ~2.49-tonne luxury seven-seater the temptation is to over-style the rear; Mansory does the opposite — a low, theatrical carbon cap that picks up the angle of the C-pillar and lets the rest of the GLS read as a coachbuilt limousine on stilts. Specified together with the Mansory Body Kit for Mercedes GLS X167, the roof spoiler is what closes the visual loop between the front-protective-frame, the fender flares and the lower diffuser. It works equally on the inline-6 EQ Boost GLS 450, on the V8 BiTurbo GLS 580 with 9G-TRONIC and AIRMATIC, and on the AMG GLS 63 with its Panamericana grille and four central exhausts.

Construction & Materials

Mansory builds this part as a single shell — no joins, no overlapped sub-pieces, no plastic ABS substrate. The weave is read from below as well as above, because on a tall GLS the underside of the spoiler is visible from a few metres back, so the lay-up is symmetrical and finished both sides.

• Pre-preg twill 3K carbon (200 g/m²) on the visible upper face, with a deeper-pile 2K plain understructure for stiffness across the span.
• Autoclave-cured at 120 °C and 6 bar — flat, lacquer-stable, no print-through after a summer of UV exposure.
• Wall thickness 2.0–2.4 mm with localised 4 mm doublers under the screw-mount tabs.
• Net weight ~1.4 kg — saves nearly 0.6 kg against the Mercedes accessory ABS-and-paint roof spoiler if one is fitted.
• Mounting hardware: pre-bonded stainless studs at two outboard tabs, plus a continuous bead of 3M VHB high-modulus tape along the contact footprint.
• Finish options: Mansory deep-gloss two-pack lacquer (default), exposed-weave with UV clear, or matte satin clear with anti-static additive.
• Edge treatment: hand-feathered, no laser-cut sharp lip, so the trailing edge resolves cleanly into airflow.
• Internal channel: drain path moulded into the underside so any water that runs off the panoramic glass exits cleanly past the spoiler — never trapped against the hatch seal.

Design & Visual Function

A roof spoiler on a luxury SUV is the most over-claimed aero part in the aftermarket, and Mansory treats it accordingly. The downforce contribution at legal motorway speeds is mild — a few kilos at the rear axle, useful mostly to clean the wake behind the upright glass and stop the tailgate hatch from generating low-pressure lift. What the part really does is visual: it lengthens the roofline by a hand's-width, drops the apparent height of the rear quarter, and gives the eye somewhere to land before it reaches the rear-protective-frame at the bottom of the car.

The drainage path of the panoramic glass roof is preserved deliberately. Mercedes routes water from the glass perimeter into channels along the C-pillars; the Mansory shell sits proud of those channels with a 6 mm air gap on the leading edge, so water sheets off the glass, runs under the spoiler, and exits past the hatch without ever pooling. The hatch sweep is the second clearance check — when the tailgate cycles open through its full ~85° arc the spoiler stays static on the roof, and the bottom of the spoiler shell is profiled so the hatch glass passes under it without contact.

Weave alignment is set against the upright body lines of the GLS rather than against the rake of the roof glass. Look at the spoiler from directly behind and the twill marches in parallel with the rear screen mullions, the hatch shutline and the inboard edge of the rear-protective-frame at the lower body. That coherence — top to bottom of the rear three-quarter view — is the whole reason this part is specified, and it is what makes the spoiler read as part of a coachbuilt programme rather than a bolt-on.

Compatibility & Fitment

Fits the Mercedes-Benz GLS X167 from MY2020 onwards, including the post-MY2024 facelift shape. All trims are covered: GLS 450 (3.0L inline-6 with EQ Boost mild-hybrid), GLS 580 4MATIC (4.0L V8 BiTurbo with EQ Boost, 9G-TRONIC), and AMG GLS 63 4MATIC+ (4.0L V8 BiTurbo, ~603 hp, AMG Track Pace). The roof itself is dimensionally common across trims — even the AMG GLS 63 with Panamericana grille and four central-mounted exhausts shares the same panoramic glass aperture and rear-screen geometry, so the spoiler shell is one part across the range. Cars optioned with panoramic glass roof are explicitly supported; the drainage channel along the glass perimeter is retained and the spoiler footprint sits clear of the perimeter seal. AIRMATIC ride-height changes do not affect roof-line clearance — the spoiler is a static body part. The high-mounted central brake light in the OEM hatch is unobstructed; this card covers the plain roof spoiler with no integrated lighting (for an integrated brake-light element at the rear, see the dedicated diffuser part below).

Installation & Reversibility

Total fit time is 2–3 hours including primer cure on the contact areas. The procedure: clean the rear edge of the roof with isopropyl, mark the centreline against the third brake-light datum, dry-fit the shell to confirm both outboard tabs land on the recessed body returns. Once dry-fit is clean, drill two M5 pilots through the OEM body returns where Mercedes already provides reinforced pad-up zones for accessory carriers. Apply primer to the bonded contact areas, lay a continuous bead of 3M VHB high-modulus structural tape along the footprint, locate the shell, and torque the two outboard stainless studs to 6 Nm. Cure undisturbed for 24 hours before any wash cycle. The reversibility window is the first 30 minutes — after that, the VHB has set and removal will require a controlled fishing-line cut and a heat-gun pass at 60–80 °C; paint underneath the bond line is recoverable but the bond pads benefit from a light flat-and-polish if the part is removed. Recommended installer: any Mercedes-certified body shop. DIY is reasonable for a confident owner with a torque wrench; the only attention point is centreline alignment, which the shell rewards getting to within ±1 mm.

Pairing within the Mansory GLS X167 programme

The roof spoiler is best specified as part of the rear-three-quarter set rather than alone. The natural sibling pairings are rear-hatch-emblem-mansory-carbon-for-mercedes-gls-x167 on the tailgate (so the Mansory wordmark answers the spoiler at the bottom of the hatch glass), diffuser-with-brake-light-mansory-carbon-for-mercedes-gls-x167 at the lower bumper to close the rear with an integrated brake-light element, and rear-protective-frame-mansory-for-mercedes-gls-x167 as the protective-frame answer at the bottom of the car. Done that way the rear elevation reads top-to-bottom — spoiler, emblem, diffuser, frame — as one bespoke composition. If the brief is wider, fenders-extension-mansory-carbon-for-mercedes-gls-x167 brings the same visual rhythm forward along the car's flanks.

Maintenance & Durability

A roof spoiler lives in the harshest UV exposure on the whole car — flat horizontal surface, no shadow, no overhang. Lacquered Mansory carbon is rated for that exposure but rewards a ceramic coat applied within the first month of ownership; an 8H-grade ceramic over the lacquer roughly doubles the timeline before any haze becomes visible. Avoid alkaline traffic-film removers, ammonia-based glass cleaners (bound to drift onto the spoiler when the rear screen is washed), and abrasive bug-sponges. Use the two-bucket method with a pH-neutral shampoo; rinse from front to back so water exits past the spoiler down the OEM channel. The flat upper face is a good candidate for a sacrificial PPF top-layer if the GLS sees regular motorway use behind lorries — stone chips can pit lacquer over a few years. If a chip does appear, the lacquer is repairable with a localised flat-and-polish; deeper damage into the weave is a workshop job, not a panel-replacement job.

Lead Time & Warranty

Lead time is 4–8 weeks from order confirmation. Each shell is laid up to order — Mansory does not warehouse lacquered carbon parts because the lacquer life starts on the day of cure. The part ships in a foam-lined crate sized for the spoiler shell. Warranty is 12 months against manufacturing defects (delamination, lacquer failure under normal exposure, mounting-tab pull-out under correct torque). UV-haze on lacquered carbon and stone-chip damage are not covered and are mitigated by the ceramic-coat / PPF advice above.

FAQ

Q: Will the spoiler block panoramic-roof drainage?
A: No — the shell sits with a 6 mm air gap on the leading edge and the underside is moulded with a drain channel. Water from the panoramic glass exits past the spoiler exactly as it does on a stock roof.

Q: Does the hatch still open through its full sweep?
A: Yes. The spoiler is profiled so the tailgate glass passes under it through the full ~85° arc with clearance to spare.

Q: Will it fit my AMG GLS 63 with Panamericana grille and four central exhausts?
A: Yes. AMG-specific differences are at the front grille and rear bumper; the roof aperture is shared across GLS 450 / 580 / AMG GLS 63, so the spoiler is one part across the trim range.

Q: How much weight does it add to the roof?
A: ~1.4 kg net. If you are replacing a Mercedes accessory ABS-and-paint roof spoiler, you save roughly 0.6 kg; specified onto a bare roof, the addition is ~1.4 kg, which AIRMATIC self-levelling absorbs without recalibration.

Q: If I scuff the lacquer, can it be repaired?
A: Yes — light marks polish out with a flat-and-polish pass. Deeper damage that reaches the weave is repairable at any Mansory-trained body shop and does not require a full shell replacement in most cases.

Pair the roof spoiler with rear-hatch-emblem, diffuser-with-brake-light and rear-protective-frame for the full rear-three-quarter Mansory composition. To specify lacquer-vs-raw weave, confirm trim (450 / 580 / AMG GLS 63), and confirm panoramic-roof option, contact us via WhatsApp +44 7488 818 747 or [email protected].
