Hi-performance roof spoiler Mansory for Lamborghini Urus Venatus

High-Performance Roof Spoiler — Mansory for Lamborghini Urus Venatus

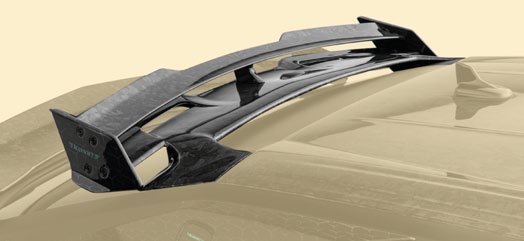

The high-performance roof spoiler is the more aero-driven of two roof-edge options Mansory offers within the Mansory Body Kit for Lamborghini Urus Venatus S programme. Mounted along the trailing edge of the panoramic roof, this large carbon blade extends the roofline rearwards and adds a measurable downforce contribution at autobahn cruising speeds — a meaningful complement to the rear-decklid spoiler and the larger performance-wing EVO when an owner specifies the full motorsport-derived rear aero package. With the twin-turbocharged 4.0 V8 BiTurbo pushing the Urus, Urus S and Performante toward 300 km/h on the right stretch of road, the rear axle benefits from any organised airflow leaving the roof. This is the cleaner, larger spoiler — the alternative roof-spoiler-with-side-flaps adds end fins for vortex management; both are siblings in the same family.

Construction & Materials

The high-performance roof spoiler is laid up as a single closed shell over a male buck shaped to the precise curvature of the Urus panoramic-roof trailing edge. Mansory uses aerospace-grade prepreg, autoclave-cured under heat and pressure to eliminate voids and lock in the dimensional accuracy that a bonded roof part demands.

• Autoclave-cured aerospace prepreg, 2×2 3K twill on the visible outer skin, plain-weave inner laminate for stiffness
• Wall thickness 1.7–2.2 mm at the leading edge, tapering to ~1.4 mm along the trailing tip; internal closing rib runs span-wise for torsional rigidity
• Finished mass approximately 2–3 kg complete with bonding pads and hardware
• Mounting via 3M VHB structural double-sided tape on the contact face plus two concealed M5 screws into existing roof-rail returns
• OEM contact zones must be primer-prepped (alcohol degrease, abrade, primer flash-off) before VHB activation; full instructions supplied
• Finish: Mansory deep-gloss UV-stable lacquer over visible weave; satin / matte clear available on bespoke order; primed-for-paint version on request
• UV-stable resin system rated for prolonged direct sunlight without yellowing
• Edge geometry CNC-trimmed for a sub-millimetre fit against the OEM glass and rear-pillar trim

Design & Visual Function

Visually, the high-performance roof spoiler reads as a single confident line — a clean, large carbon blade that sits above the rear glass and continues the hexagonal Lamborghini design DNA toward the rear without breaking it up with end fins. Where a small OEM-style cap merely tidies the roof drainage, the Mansory blade deliberately extends rearward, throwing a sharper shadow on the C-pillar carbon panel and pulling the eye along the roofline. The proportions were drawn so the spoiler harmonises with the rear-decklid spoiler immediately below the rear glass and the much larger performance-wing EVO at decklid level — the trio reads as a tiered three-step rear aero stack rather than a collection of standalone parts.

Functionally, the spoiler contributes downforce at the rear axle by extending the upper surface of the roof and creating a small but useful pressure delta at speed. Combined with the V8 BiTurbo's appetite for sustained high-load running, the contribution is most felt on long autobahn pulls and through fast sweepers where rear-axle confidence matters. The Urus runs entirely passive rear aero — no active surfaces — so well-engineered carbon parts like this one carry their workload across the entire speed range.

Within the Mansory roof-area family, the choice between this high-performance spoiler and roof-spoiler-with-side-flaps is essentially a personality choice with a small functional accent. The high-performance variant is the cleaner, larger, more confident single-blade silhouette — it is what most owners specify when they want maximum visual extension of the roofline without additional aero furniture. The side-flaps variant adds vertical end fins that organise the wingtip vortex into a tighter, more contemporary structure — visually busier, more aggressive, more obviously motorsport-cued. Pick high-performance for the cleanest large-spoiler statement; pick side-flaps for visual edge and end-fin theatre. Some clients combine the high-performance roof spoiler with the performance roof logo immediately ahead of it, building a layered carbon roof that reads from windshield to trailing edge as a single composition.

Compatibility & Fitment

The high-performance roof spoiler is fitted across the Lamborghini Urus, Urus S and Urus Performante (2018–present). The Venatus tooling spans the line — the slug uses generic Venatus naming, but the part retrofits across the entire programme regardless of model-year facelift status. The OEM panoramic roof drainage channels are entirely unaffected: the spoiler bonds and screws to the rear roof edge outside the drain line, leaving water management in OEM hands. Tailgate-sweep clearance through the full opening arc has been verified on bench and in vehicle — the spoiler clears the rising tailgate at every position. The roof-mounted shark-fin antenna sits ahead of the spoiler footprint and is unaffected. Adaptive air suspension self-levelling, six driving modes (Strada, Sport, Corsa, Sabbia, Terra, Neve), 8-speed ZF and rear-wheel-steering geometry are all untouched — this is a passive carbon part with no electrical or sensor interaction.

Installation & Reversibility

Allow two to three hours for a clean fit. The workflow: protect the surrounding paint with low-tack tape, mark the spoiler position with reference lines from the trailing roof edge and the OEM glass joint, dry-fit and check shadow gap at both sides, alcohol-degrease and abrade the contact area, apply primer per the supplied data sheet, allow flash-off, peel the 3M VHB liner, present the spoiler from one end working along the line, press firmly along the entire contact strip, then drive the two concealed M5 screws into the prepared anchor points. A body shop is preferred because primer prep and VHB application reward clean discipline. Reversibility is good — the screws back out and the VHB releases with patience, heat and a fishing-line technique; primer residue can be polished off the OEM finish.

Pairing within the Mansory Urus Venatus programme

The natural duo question is between this high-performance roof spoiler and the roof spoiler with side flaps — same family, two personalities, pick one. From there, owners building a complete rear aero stack pair the spoiler with the rear decklid spoiler and the larger performance wing EVO at decklid level — the three-tier rear stack. For the layered carbon roof composition, add the performance roof logo ahead of the spoiler and the C-pillar panel framing the rear glass.

Maintenance & Durability

Roof carbon lives in the harshest UV position on the car — flat to the sky, no shadow, hours of cumulative exposure. Mansory's UV-stable lacquer system handles this in service, but the owner contribution matters: a quality ceramic coating refreshed annually doubles the time the lacquer keeps its depth and reduces water-spotting from rain showers and washes. Avoid alkaline wheel cleaners and ammonia-based glass products near the spoiler — both will dull the lacquer over time. Use pH-neutral shampoo, a soft mitt, and a separate microfibre kept exclusively for carbon. Touchless car washes are preferred; if a hand wash is unavoidable, work top-down so dirty grit is carried away from the roof rather than dragged across it. If a stone strikes the leading edge during a motorway run, repair is straightforward — a Mansory-trained body shop or a quality composite specialist can refinish or, in worse cases, swap the panel under warranty workflow.

Lead Time & Warranty

Lead time is typically four to eight weeks from order confirmation. Each spoiler is laid up to bespoke specification, autoclave-cured, finished, inspected and packed in custom carbon-rated transit packaging. A 12-month warranty against manufacturing defects covers delamination, lacquer integrity and bonding-substrate adhesion under normal use. Photographic verification on receipt is recommended.

FAQ

Q: How much downforce does it actually contribute at speed?
A: Mansory does not publish a specific kg figure for the roof spoiler in isolation, because real-world rear-axle downforce on the Urus depends heavily on which other rear-aero parts (rear-decklid spoiler, performance-wing EVO) are also fitted. What owners report is a tangibly more planted rear axle on long high-speed autobahn pulls and through fast sweepers — the most noticeable gain comes when the spoiler is fitted alongside the larger rear wing.

Q: What is the visual difference vs the side-flaps version?
A: The high-performance variant is one clean, large carbon blade — a single confident line continuing the roof. The side-flaps version adds two vertical end fins for vortex management, giving a busier, more obviously motorsport-cued silhouette. High-performance is the calmer, larger statement; side-flaps is the more aggressive contemporary look.

Q: Will it foul the tailgate sweep when the boot opens?
A: No. Tailgate-sweep clearance through the full opening arc has been verified — the spoiler clears the rising tailgate from fully closed to fully raised. The spoiler footprint sits forward of the tailgate's upper sweep envelope.

Q: Can it be painted body-colour instead of left as visible weave?
A: Yes. A primed-for-paint version is available on bespoke order, ready for a body shop to flat, prime, base-coat and clear in any factory or custom Lamborghini colour. The visible-weave finish is far more popular on this part because the trailing edge of the roof is one of the prime locations to show off carbon, but the option exists.

Q: What is the lead time?
A: Typically four to eight weeks from order confirmation through to dispatch-ready. Each piece is autoclave-cured to bespoke specification.

Pair the high-performance roof spoiler with the rear-decklid spoiler and the performance-wing EVO for a full three-tier rear aero stack, or use it solo for a clean roofline statement. To configure your specification, contact us via WhatsApp +44 7488 818 747 or [email protected].
