High front protective frame Mansory Carbon for Mercedes G-class G500 / AMG G63 W463A

High front protective frame Mansory Carbon for Mercedes G-class G500 / AMG G63 W463A

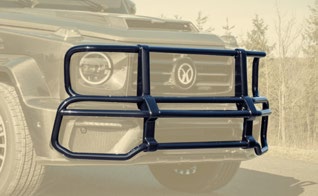

The high front protective frame is the tall, expedition-spec tubular hoop in the Mansory W463A programme — the part you see wrapping the upper grille of every G700-style build that wants the look of a Dakar truck without the weight penalty of welded steel. It bolts to the OEM crash-structure pick-ups of the 4th-generation G-class and adds a continuous radius across the front fascia, ready to carry an auxiliary light bar. Inside the wider Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 it sits with the wide front mask, the high roof wing and the roof panel as a coherent off-road / expedition silhouette.

Construction & Materials

The frame is laid up as a structural tubular composite, not a cosmetic shell. Mansory uses a multi-axial carbon stack — outer 3K twill skin for the visual layer, inner unidirectional reinforcement along the bend axis, and a closed-cell foam mandrel pulled after cure to keep the tube hollow and dimensionally true. The result is a hoop that behaves in bending much closer to a thick-wall aluminium tube than to a fairing.

Forged-look carbon is offered for owners who prefer the marbled chip pattern over a directional weave; on a tubular part it has the practical advantage of disguising the seam line where the two halves of the bend are bonded after demoulding.

• Weave: 3K 2x2 twill outer skin, optional forged-carbon variant; UD reinforcement along the principal bending axis
• Cure: prepreg autoclave at 120 deg C / 6 bar, post-cure 80 deg C for 6 h to stabilise the lacquer
• Wall thickness: nominal 6 mm structural wall on the tubular sections, locally thickened to 8 mm at the OEM mount lugs
• Weight: 7.0–9.0 kg complete with stainless hardware (vs ~22 kg for an equivalent steel bull-bar of the same projected area)
• Hardware: M10 stainless A4 bolts into the OEM crash-beam threaded inserts; no welding, no chassis drilling
• Finish: 2K clear lacquer with UV inhibitor; satin and full-gloss available; matte black painted-over carbon offered for stealth builds
• Light-bar provisions: pre-laminated stainless inserts with M8 threaded tabs on the upper crossmember, sized for Hella Black Magic and equivalent 20–30 in light bars
• Edges: all radii continuous, no sharp returns, profile drawn to clear the ECE pedestrian-impact envelope used by Mansory's TUEV-friendly catalogue

Design & Visual Function

Geometrically the high frame is the taller of the two protective-frame variants in the W463A kit. Where the low frame sits below the headlights and emphasises width, the high hoop rises to the top of the grille, breaks the slab front of the G-wagen into two distinct planes, and gives the car the "expedition truck" profile that G700-style and Mansory Gronos builds made famous. On a black-on-black G63 the hoop reads as a continuous carbon ribbon; on a Designo White car it becomes the dominant graphic element of the front end.

Functionally it is a real bull-bar in the off-road sense: a sacrificial structure ahead of the grille that takes a brush, branch or low-speed animal strike before the radiator core support does. The 6 mm structural wall is sized for impact energy absorption rather than aesthetic mass — a thin cosmetic tube would shatter on first contact with a kangaroo or a fence post. The carbon construction lets it carry that load at a fraction of the steel-bar weight, which matters because every kilogram added ahead of the front axle steals approach geometry and accelerates front-tyre wear.

Approach angle is preserved at 30 deg or better when the hoop is fitted at OEM ride height; the bend radius is drawn to fall away from the lower grille, not into it, so the line of attack on a steep ramp is set by the front bumper edge as it is from the factory. With a 30 in light bar fitted along the upper crossmember the projector beam clears the bonnet line by ~120 mm — enough to avoid the bonnet acting as a reflector at night, which is a genuine problem on roof-mounted bars at low pitch angles.

Compatibility & Fitment

Designed for the Mercedes-Benz G-class W463A — the 2018+ 4th-generation platform (Mercedes internal model code, not the AMG body-styling pack). Fits G500, G550, G400d, G350d and AMG G63 (M177 4.0 V8 biturbo) in both LHD and RHD. The pre-2018 W463 (the original boxy car, 1979–2018) is NOT compatible — completely different front crash structure, different mounting points, different bumper geometry. The W464/W465 Gronos uses its own dedicated frame and is not interchangeable. The high and low protective frames cannot both be fitted at the same time on this kit; they share the same OEM bolt locations, so the choice is one or the other. Distronic radar and 360 camera modules retain their factory positions behind the grille; the hoop does not block the radar cone or the camera aperture. Cars with the AMG-style night package keep their black trim — the frame mounts ahead of the grille, not on it.

Installation & Reversibility

Fitment is bolt-on to OEM threaded inserts on the front crash beam, with no drilling of the chassis or the inner wing. A two-person job: ~3.5 to 4.5 hours in a properly equipped workshop, including bumper removal, dry-fit, torque sequence and a re-torque pass. Tools needed: T30 and T40 Torx, 13/15/17 mm sockets, torque wrench to 50 Nm, plastic trim tools for the upper grille clips. Mansory supplies a printed torque diagram with the kit; bolts are torqued in a cross-pattern to 35 Nm and re-checked at 50 km. Reversibility is full — remove eight M10 bolts, reinstall the OEM trim, no holes, no scars. Recommended fitter: Mansory-trained installer or a body shop with composite-bonding experience; DIY is feasible but the bumper removal sequence on a W463A with parking sensors and 360 cameras catches first-timers out.

Pairing within the Mansory G-class W463A G500/G63 programme

The high frame is most often specified alongside its sibling parts in the upper-front and roof zone. The natural counterpart is the low front protective frame — owners cross-shop the two, and the choice usually comes down to whether the car is going to wear a roof light bar (high frame wins, the visual masses balance) or stay clean on the roof (low frame wins, the front stays grounded). Above the windscreen the roof panel with 3 Hella position lights closes the expedition silhouette and gives the high hoop a visual partner at the top of the car. To finish the front fascia, the wide front mask with performance grill reframes the grille opening so the hoop reads as part of an integrated face rather than a bolt-on accessory.

Maintenance & Durability

Lacquered carbon on a frontal part takes more abuse than any other carbon piece on the car — stone chips, insect strike, fuel-station bug spray, jet-wash detergent at close range. Wash with a pH-neutral shampoo and a soft mitt; avoid traffic-film removers and wheel cleaners on the lacquer (most of them are alkaline and will haze a 2K clear within a season). A ceramic coat (9H or graphene) is the right move on a frontal carbon part — it raises the surface energy threshold so insect residue lifts off in a rinse rather than etching the clear. Carnauba waxes are fine cosmetically but offer almost no chip protection. Treat stone chips with a UV-cure clear pen within a week of the strike; left open, water tracks under the lacquer and lifts the edge in a 2 mm halo. Expected lacquer life with a ceramic top-coat and reasonable garaging is 7–10 years before recoat. What kills carbon: ammonia-based glass cleaners on the clear, abrasive sponges, dishwasher detergent (alkaline plus surfactant strips lacquer in minutes), and parking under sap-dropping trees in summer.

Lead Time & Warranty

Lead time is typically 3–5 weeks from confirmed order to dispatch — the tubular layup and the post-cure cycle take longer than a flat panel, and the upper-crossmember inserts are bonded in a separate jig before final assembly. Rush slots exist for matched-set orders (high frame plus roof panel plus wide mask) and trim down the schedule by ~one week. Warranty is 12 months against manufacturing defects: delamination, weave drift, voids visible through the lacquer, hardware corrosion. Impact damage and stone-chip wear are excluded — that is what the part is there to absorb.

FAQ

Q: Can the high frame and low frame be fitted at the same time?
A: No. Both parts use the same OEM threaded inserts on the front crash beam. The choice is one or the other — high for the expedition / light-bar look, low for a wider, more grounded front graphic.

Q: Will it fit a 2018 G500 and a 2024 AMG G63?
A: Yes — both are W463A and share the same front crash structure. The same frame and the same hardware ship for both engine variants.

Q: Does the hoop carry a light bar, and what size?
A: Yes. Pre-laminated M8 stainless tabs on the upper crossmember accept Hella Black Magic and equivalent 20 in to 30 in LED light bars. Anything longer than 32 in starts to overhang the headlight covers and is not recommended.

Q: Does it block the Distronic radar or the 360 camera?
A: No. The hoop sits ahead of the grille and is profiled to leave a clear cone for the radar emitter behind the central grille slat, and clear vertical sight for the front 360 camera. Mansory bench-tests the radar return on every batch.

Q: 3K twill or forged carbon — which is better?
A: Functionally identical. Twill reads as a directional, technical pattern and matches the rest of the kit if you have specified twill bonnet and mask; forged carbon reads as a marbled, organic chip pattern and disguises the bond seam at the apex of the hoop. Twill is the more common spec on G700-style builds.

Pair the high front protective frame with a roof panel and a wide front mask for the full expedition silhouette of a Mansory W463A. To configure the spec, confirm finish and request a matched-set lead time, reach us on WhatsApp +44 7488 818 747 or [email protected].
