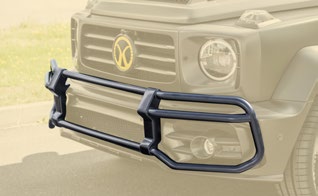

Low front protective frame Mansory Carbon for Mercedes G-class G500 / AMG G63 W463A

Low front protective frame Mansory Carbon for Mercedes G-class G500 / AMG G63 W463A

The Mansory low front protective frame is the urban-spec sibling of the high bull-bar variant and slots directly onto the lower face of the Mansory wide-bumper for the Mercedes-Benz G-class W463A G500 and AMG G63. Unlike a roo bar, it does not climb up to the headlamps — it hugs the bumper apron between the corner intakes and the splitter line, taking kerb hits, valet bumps, supermarket trolleys and stone strikes without involving the painted bodywork. Owners pick it as part of Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 when they want the protective intent of a frame without losing the W463A's clean front graphic, ADAS sensor field of view, or daily-driver parking comfort.

Construction & Materials

The frame is laid up as a one-piece carbon shell over a tubular CFRP core. Mansory uses a twill-faced surface ply for visual depth, with multiple unidirectional plies underneath running along the load axis (front-to-rear push) and across the splitter line (lateral kerb load). The cured assembly is taken out of the autoclave, trimmed on a five-axis router, and given a UV-stable two-pack lacquer that holds gloss under the kind of summer light that turns ordinary clearcoats milky within two seasons.

Hardware is supplied as a bolt-on fitment using OEM tow-eye and lower bumper-beam threaded inserts on the W463A — no tapping, no welding, no permanent modification. The contact pads behind the frame are EPDM rubber, not foam, so they don't compress and don't telegraph fastener torque into the carbon shell.

• Surface weave: 3K twill, 2x2 with optional 2K plain-weave or forged-look composite finish on request
• Cure: autoclave cycle, ~6 bar, controlled ramp to mitigate residual stress at corner radii
• Wall thickness: 2.4–3.0 mm at the visible face, locally thicker at the mounting bosses
• Weight: approximately 4.3–4.7 kg fully assembled (varies with finish ply and bracket spec)
• Mounting hardware: stainless M10 bolts into OEM tow-eye threads + reinforced lower bumper-beam captive nuts
• Finish options: high-gloss clear lacquer (default), satin matte, or "raw" weave protected with a low-sheen 2K
• Trim edge: machined chamfer with sealed end-grain to stop wick-through moisture ingress
• Aero-trip strip: thin EPDM lip moulded along the bottom face to stabilise underbody airflow

Design & Visual Function

Geometry is the headline difference between the low and high frames. The low version sits beneath the grille line, wrapping the bumper face from one side intake to the other. It does not block the radar window in the centre lower fascia, so adaptive cruise, distronic and emergency-brake assist on G500 and AMG G63 packages keep their target acquisition and tracking exactly as Mercedes calibrated them. Owners running the AMG package with the lower mesh insert keep cooling flow to the intercooler scoops because the frame's cross-tubes are spaced to bracket — not occlude — the lower opening.

Visually, the frame extends the carbon graphic of the wide-bumper down to the splitter zone, finishing the front mass cleanly. From a three-quarter angle, the diagonal supports throw a hard shadow line along the bumper that elongates the front overhang and makes the W463A read more like a built-down rally truck and less like a tall box. Compared with the high bull-bar variant, the low frame keeps the approach angle clean for ramps and steep driveways — there's no overhanging crown that catches on inclined surfaces.

The aero-trip strip on the lower edge is small but functional. It anchors a stable separation line under the bumper, reducing the random vortex shedding that contributes to front-axle lift at autobahn speeds in a tall, blunt vehicle. It won't make a G-class slippery, but it does measurably trim drag versus a fully exposed lower bumper edge — useful on a vehicle whose Cd is dictated by its silhouette.

Compatibility & Fitment

Designed exclusively for the Mercedes-Benz W463A generation (2018+, 4th-gen platform — Mercedes internal model code, often called "new-gen" G). Fits G500, G550, G400d, G350d and AMG G63 (M177 4.0 V8 biturbo). It does not fit the pre-2018 W463 ("old box") because the lower bumper structure, tow-eye position and crash-beam height are different. W464/W465 Gronos use a separate frame with different mounting hardpoints. Both LHD and RHD cars are supported — the frame is symmetrical about the centreline. Check that you have the Mansory wide-bumper or wide-front-mask up front; the low frame is dimensioned around that lower outline, not the OEM AMG bumper.

Installation & Reversibility

The frame ships pre-assembled with brackets torqued in. Fitment is bolt-on through OEM threaded inserts — no drilling, no cutting. A competent body shop with the front lower fascia partially dropped will fit and torque it inside about 90 minutes. DIY is realistic for someone comfortable working on the lower bumper, but plan for two people on the lift to support the frame while bolts are started. Reversibility is total: remove the bolts, refit the OEM tow-eye covers, no body damage. Keep the supplied EPDM pads and stainless hardware bagged together for resale value — Mansory carbon parts retain market value strongly when the original mounting kit is intact.

Pairing within the Mansory G-class W463A G500/G63 programme

The low frame is a foundational front-end choice that pairs cleanly with several other Mansory pieces. Owners torn between aesthetics typically also evaluate the high front protective frame, which sits taller and hides more of the grille — a more aggressive, expedition-leaning silhouette that costs you a bit of approach-angle clearance and obstructs the centre radar window. Buyers committing to the full front-end programme add the widebody kit so the low frame visually anchors a complete carbon perimeter, and finish the face with the wide front mask with performance grill to harmonise the lower frame line with the upper grille graphic.

Maintenance & Durability

Lacquered carbon at bumper height takes the worst of road salt, road tar, brake-pad iron and stone chips. Wash with pH-neutral shampoo (no dishwasher detergent — it strips lacquer surfactants), dry with a soft microfibre, and treat the surface twice a year. A ceramic coating is preferable to carnauba on lacquered carbon at this height because it resists tar bonding and makes road salt easier to flush off. Avoid ammonia-based glass cleaners spraying onto the carbon; they fog the lacquer over time. Stone chips are repairable — small chips can be filled with matched 2K lacquer; larger gouges are addressed by sanding the affected zone, re-laminating a thin glass-clear layer and refinishing. Expected lifespan with proper care is well past a decade of visible quality before the lacquer needs a refresh.

Lead Time & Warranty

Lead time on the low front protective frame is typically 2–4 weeks from confirmed order, depending on weave choice and finish. Forged-look and satin matte runs are batched separately and may sit at the longer end. The part carries a 12-month manufacturing-defect warranty covering delamination, voids, fitment issues and lacquer failure under normal use. Warranty does not cover impact damage, stone chips, or finish degradation from chemical contamination — those are wear items on a part that lives at bumper height by design.

FAQ

Q: Does the low frame block adaptive cruise or emergency-brake radar?
A: No. The frame is designed around the centre lower-fascia radar window. The cross-tubes bracket the radar zone rather than crossing it, so distronic, AEB and lane-keep stay calibrated.

Q: How does it compare with the high front protective frame for parking practicality?
A: The low frame keeps approach angle, parking-camera view and supermarket parking comfort intact. The high frame extends taller and forward, which is dramatic visually but does add overhang and slightly narrows the camera field.

Q: Can I fit it to my pre-2018 W463 (old G-wagen)?
A: No. The W463A bumper architecture is different. The pre-2018 cars need a different frame designed for their crash beam height and tow-eye position.

Q: What finish should I choose — gloss, satin or raw?
A: Gloss reads as the loudest, matches lacquered Mansory bonnet panels, and shows weave depth under direct sun. Satin sits more aggressive and hides micro-scratches better. Raw 2K weave is the most "performance" look and pairs naturally with forged-look composite parts.

Q: Will it fit if I keep the OEM AMG bumper instead of the wide-bumper?
A: The low frame is dimensioned for the Mansory wide-bumper or wide-front-mask outline. Fitting it on an OEM AMG bumper produces gaps along the lower edge — the geometry isn't right. Plan to run it with the wide-bumper or the wide front mask.

Pair the low front protective frame with a wide-bumper widebody and the wide front mask for a coherent, daily-usable carbon front end — or step up to the high frame if expedition presence matters more than ramp-angle clearance. To confirm finish, lead time and chassis-specific fitment for your G500 or AMG G63, contact us via WhatsApp +44 7488 818 747 or [email protected].
