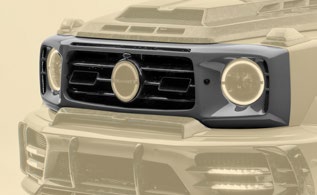

The wide front mask with performance grill sits at the very tip of the Mansory W463A widebody programme — the literal air gate deciding how much atmosphere reaches the M177 4.0 V8 BiTurbo radiator stack and intercoolers. Unlike the standard-track mask, this version is projected to meet the Mansory widebody arches and ships with the open performance grill instead of the closed louvre. Part of the wider Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 system — a face that says more cooling, more aggression and visually closes the wide-flare front end without the shoulder gap a standard mask leaves on a wide-track car.

The Front Mask as Cooling Gate

Treat the front mask less as a styling part and more as a calibrated orifice. Behind it sits — in order — the condenser, the main aluminium radiator, the transmission cooler and the charge-air coolers feeding the M177's twin turbos. Each heat exchanger has a published pressure-drop curve; the mask defines the upstream stagnation pressure and the spill-around losses. The OEM grill is a conservative compromise: enough open area for hot-day towing, plenty of structure for crash regulation, mesh fine enough to keep gravel out of the condenser fins. The Mansory performance grill swings the compromise the other way — open-area ratio rises, cell pitch goes up, and the carbon mask is shaped with sharper inlet radii so flow attaches cleanly instead of separating at the lip.

The tradeoff is honest: more flow means more debris ingestion and more bug load. In return, you reclaim cooling margin at sustained autobahn speeds, on long climbs, and on the kind of repeated full-throttle pulls where the M177's intercoolers heat-soak fast on the closed OEM grill.

• Weave: 3K twill on the visible face, 2K plain on the inner reinforcement ribs
• Cure: autoclave at 6 bar / 125 °C for the carbon shell, RTM for the grill bezel
• Wall thickness: 2.6–3.0 mm at the centre, 4.5 mm at the bumper-bolt bosses
• Weight: ~3.4 kg complete (mask + grill + mesh + bezel) vs ~5.1 kg OEM steel/plastic equivalent
• Mounting: OEM bumper bolts, two new M6 captive nuts for the performance-grill bezel, no drilling on the chassis side
• Finish: UV-stable two-stage clear lacquer, optional matte top coat, paint-prep primer underneath if a body-colour blend-in is requested
• Mesh: laser-cut 1.2 mm stainless wire, hexagonal cell, electrostatically powder-coated satin black
• Hardware: stainless A2-70 fasteners, EPDM gaskets at the headlight-edge interface to kill drumming

Performance Grill: Open-Area & Pressure Drop

Two grill geometries are routinely confused: the hex-mesh performance grill (this card) and the blade-louvre OEM grill. Hex mesh — wires woven on roughly a 12 mm centre with ~1.2 mm wire — sits at an open-area ratio close to 78–80 %. The OEM blade louvre with slats and chrome surround lives closer to 52–55 %. The delta sounds modest until you fold in the velocity-squared term in the pressure-drop equation: at 200 km/h dynamic pressure approaches 1.9 kPa, and the drop across an OEM-ratio grill is in the 250–300 Pa range. Cut it nearly in half and that head is freed up for the radiator and condenser rather than burned at the grill.

In Cd-frontal-area terms, the practical effect on a heavy widebody G is not a meaningful drag reduction — the brick is the brick — but a cooler intake-air temperature in the second and third minute of sustained load. Coolant peak drops a few degrees, IAT2 sits lower, the ECU pulls less timing. It is not a magic bullet — intercooler pump health, condenser cleanliness and ambient temperature still dominate — but it is real, repeatable margin.

Wide-Track Geometry vs. Standard-Track

The most common point of confusion when buyers shop a "Mansory front mask" is which mask. There are two: the standard-track mask (non-widebody W463A — a stock G500 or G63 that has not been flared) and the wide mask (this one — geometrically pushed outboard to meet the Mansory widebody fender flares). They are not interchangeable. The wide mask projects ~40–55 mm further outboard at each lower corner, its inboard returns wrap the widened bumper face, and the lower lip carries a different splitter interface so it can run bare or accept the Mansory front spoiler.

Fit the wide mask onto a standard-track car and you get a visible gap at the wing-mask interface with the lower corners standing proud of the bumper. Fit a standard mask onto a widebody and the bumper face looks pinched between the wider arches. The wide mask is, structurally, only sensible if the car already runs the widebody arches — full kit or arches-only — and you want the front end to read as a continuous block from grill to flare to side.

Construction, Lay-Up & Sensor Cutouts

The mask is a sandwich: outer 3K twill aesthetic ply, two unidirectional plies at ±45° for torsion stiffness, an inner 2K plain ply for impact resilience. Bumper-bolt bosses are local thickness build-ups with chopped-strand reinforcement and stainless threaded inserts bonded with structural epoxy. The grill bezel — the carbon ring framing the mesh — is RTM-moulded separately, then bonded to the mask under controlled clamp pressure.

Sensor cutouts are pre-CNC-trimmed: parking sensors retain OEM positions, the front camera (where fitted, AMG package) keeps its orifice, and the radar window for distronic / active-cruise is unobstructed — the grill cell is locally enlarged in front of the radar emitter so the millimetre-wave beam is not attenuated. AMG cars with the Driving Assistance Plus pack keep full functionality.

Installation, Wiring & Sensor Recalibration

Allow 4–6 hours at a competent body shop. The bumper has to come off — no shortcut. Once off, the OEM mask and grill unbolt from the bumper carrier, the Mansory mask drops onto the same bolt pattern, parking-sensor harnesses transfer with their original retainers, and the camera (if equipped) is repositioned with the supplied bracket. The performance-grill bezel bolts to the mask via moulded-in M6 captive nuts — no drilling required.

Wiring is plug-and-play: no cut, no splice, no adapter. The radar module may benefit from a static recalibration via STAR / XENTRY after refit because the nominal mounting plane has shifted by a few millimetres relative to the bumper carrier. Park-assist sensors rarely need recalibration but a diagnostic sweep is worthwhile. Headlight aim is unaffected. Plan a full bumper realignment so the mask sits flush with the headlights and the wing-arch interface.

Pairing within the Mansory G-class W463A programme

The wide mask is the centrepiece of the front-end story but does not work alone. The fully-carbon front mask with performance grill is the alternative if you want exposed weave across the entire mask face (this card is the carbon-shell version; the fully-carbon variant runs carbon all the way through the surrounds). The carbon headlight covers with air intake sit immediately outboard and continue the flow story by feeding the wheel-arch and brake-cooling region. The Mansory carbon logo for the grill mask replaces the OEM tristar on the grill cross-bar with a milled carbon-and-aluminium emblem so the front end reads as a Mansory build, not a tuned Mercedes.

Maintenance, Bug-Removal Without Damaging Mesh

The performance grill catches more bugs than the OEM louvre — a feature of higher open area, not a defect. Clean it before residue cures: a soft brush, warm water and pH-neutral car shampoo handle most cases. For baked-on insect protein, soak a microfiber in dedicated bug remover (no ammonia-based household cleaners — ammonia attacks the clearcoat), lay it on the mesh for 5 minutes, then wipe along the cell axis, never against it. A pressure washer is fine at 60+ cm with a fan tip, never a turbo nozzle held close — concentrated stream dents wire.

The carbon mask itself responds well to a quarterly carnauba application or a one-shot ceramic coating. Avoid abrasive sponges and dishwasher detergent. UV is the slow-burn enemy — a covered storage spot, a regular wax cycle, and the mask stays deep-black with sharp twill resolution for years.

Lead Time & Warranty

Production lead time is typically 3–5 weeks from order confirmation. Each piece is QC'd for bond-line integrity at the bezel-mask join, sensor-cutout dimensional accuracy, and lacquer pinhole inspection before crating. Warranty is 12 months against manufacturing defects — delamination, voids, fitment outside spec, premature lacquer failure not caused by chemical attack. Stone-chip damage and bug-acid etching from delayed cleaning are owner-care items, not warranty claims.

FAQ

Q: Can I retrofit a finer debris screen behind the mesh?
A: Yes — a low-restriction stainless screen on the back of the bezel is a common owner mod. Keep cell size at 4–5 mm and pressure drop barely changes; finer than 3 mm and IAT2 starts to climb on long pulls.

Q: How much extra cooling does the performance grill actually give versus OEM?
A: On a heat-soaked G63 doing repeated full-throttle pulls in 30 °C ambient, expect coolant peak down a few degrees and IAT2 down noticeably on the second and third pull. Not a track-pack transformation — a useful margin on a heavy SUV that already runs warm.

Q: Will it fit a standard-track G500 without widebody flares?
A: No. The wide mask projects outboard to meet the Mansory widebody arches; on a standard-track car you get a visible gap at the wing interface and a mismatched bumper face. Order the standard-track mask instead.

Q: Do the parking sensors and radar still work?
A: Yes. Parking sensors transfer to pre-cut OEM positions. The radar window in the grill is locally enlarged so millimetre-wave attenuation stays within OEM tolerance. A static recalibration via STAR / XENTRY after fitment is recommended on Driving Assistance Plus cars.

Q: Should I leave it visible carbon or paint it body colour?
A: Both are valid. Visible 3K twill under clear lacquer is the Mansory house style and reads as a deliberate carbon front. Body-colour paint over the supplied primer makes the mask vanish into the bumper for owners who want widebody aggression without the carbon-show vibe — useful on dark exterior colours where the carbon would otherwise disappear anyway.

Pair with the carbon headlight covers with air intake and the Mansory grill logo, or step up to the fully-carbon front mask. For VIN compatibility, AMG-pack camera fitment and finish options: WhatsApp +44 7488 818 747 or [email protected].
