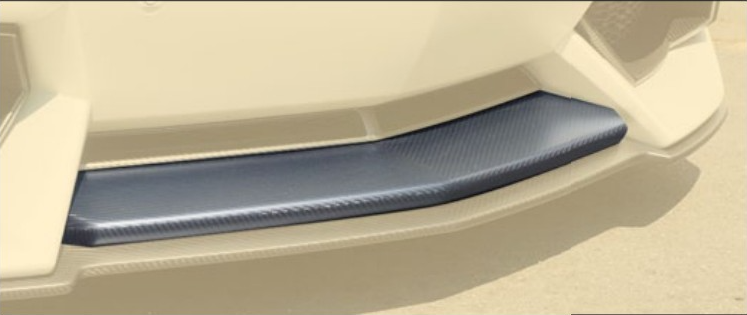

Front splitter cover Mansory Carbon for Lamborghini Aventador

Front Splitter Cover Mansory Carbon for Lamborghini Aventador

A front splitter cover operates at the lowest aerodynamic datum of the entire car — closer to the road surface than any other component except the diffuser at the rear. On the Lamborghini Aventador, which sits with a front ground clearance of approximately 130 mm in standard configuration, the splitter zone is where the car's aerodynamic character is most dramatically influenced: a well-designed cover directs incoming airflow either aggressively under the floor or divides it purposefully into front-brake-cooling and underbody channels. Mansory's carbon front splitter cover — part of the Mansory Carbon Fiber Body kit set for Lamborghini Aventador — provides a precision-formed carbon lower-bumper element that manages this critical zone with material quality and geometric accuracy that the factory treatment does not deliver.

Construction & Materials

The front splitter cover is one of the longest continuous carbon components in the Aventador programme by plan-view area — it spans the full width of the lower front bumper, from wheel arch to wheel arch, with a compound sweep that must match the bumper's lower edge in three dimensions simultaneously. Mansory achieves the required geometric accuracy through a full-contour female mould taken directly from an LP 700-4 bumper assembly, ensuring that the cover's upper edge mates flush to the bumper underside without shimming or trimming at installation.

• Weave: 3K twill on the visible underside and leading edge — the surfaces visible in approach view
• Upper face: 2K plain on the bumper-contact surface — dimensional priority over visual quality here
• Cure: Autoclave, 120 °C — required for the structural stiffness to resist aerodynamic bending across the unsupported span width
• Reinforcement: co-cured uni-directional carbon rib at mid-span — prevents centre sag under aerodynamic load at speed
• Wall thickness: 3.0 mm at outer edges (mounting flanges), 2.2 mm at mid-span
• Weight: approximately 1.8 kg — replacing a factory polyurethane cover of approximately 3.0 kg
• Finish: high-gloss UV-clear lacquer on visible surfaces; raw satin finish on upper (bumper-contact) face
• Mounting: stainless-steel M6 bolts into OEM bumper lower-bracket inserts; no new holes

The co-cured uni-directional rib at mid-span deserves specific mention. A flat carbon panel spanning the Aventador's 2,030 mm front track width, at the aerodynamic pressure load experienced above 180 km/h, would exhibit measurable elastic deflection without reinforcement — the rib eliminates this deflection, maintaining the splitter's geometry within ±1 mm of design intent at all speeds. This is the kind of structural detail that separates a Mansory production component from a cosmetic aftermarket add-on.

Design & Visual Function

In front-on photography — the shot that dominates social media for any Aventador specification — the front splitter cover occupies the lowest third of the visual frame. Its surface quality is immediately apparent: the 3K twill weave's diagonal diamond pattern at this scale creates a rich, textured lower panel that anchors the car's front graphic. Contrast this with the factory polyurethane cover, which is typically painted body colour or matte black and is perceptibly flat in all photographic lighting conditions.

Aerodynamically, the cover's role is to provide a clean, stiff lower boundary for the incoming airstream. Where the factory bumper's lower edge is rounded and relatively forgiving — designed for pedestrian impact standards as much as aerodynamic function — the Mansory splitter cover presents a sharper leading edge that generates a defined stagnation line. Air arriving above this line is directed around the front wheel arches into the brake-cooling apertures; air arriving below it is committed to the underbody path toward the diffuser. This cleaner flow separation reduces the turbulent mixing that otherwise occurs at the bumper lower edge and improves the effective pressure recovery in both channels.

The cover's visual language integrates specifically with the Mansory front add-on lip — together they create a layered front lower structure that reads as a two-plane system rather than a single flat bumper termination. This is the geometry that high-performance GT and prototype cars use to manage front-end aerodynamics, and its visual reference is deliberate.

Compatibility & Fitment

Designed for the Lamborghini Aventador LP 700-4 (2011–2016) and LP 720-4 50° Anniversario. Compatible with both the factory lower front bumper assembly and Mansory's carbon front bumper programme — the OEM lower-bracket mounting geometry is preserved. Coupé and Roadster share identical front lower bumper geometry. Aventador S (MY2017+) has a redesigned lower front section — the Mansory S programme covers that geometry. Sport-suspension cars should have their minimum ride-height verified before installation given the cover's proximity to the road surface.

Installation & Reversibility

Installation requires a lift, a metric bolt set, and two technicians. Remove the factory lower cover (typically 8–12 M6 bolts and several push-pin clips), dry-fit the Mansory cover, verify the upper edge gap against the bumper lower sill, then torque to specification. Installation time is approximately 2 hours including gap verification and final torque. The factory cover reinstates on the same bracket inserts — full reversibility with no permanent modifications to the bumper structure.

Pairing within the Mansory Aventador programme

The front splitter cover pairs most naturally with the front add-on lip — together they define the car's front aerodynamic lower plane as a coherent two-element system. Add the front bumper grill to continue the carbon material above the lip in the intake aperture zone, completing a full lower-front carbon specification. For owners advancing to a comprehensive front build, the front bonnet closes the visual loop from the splitter cover at the road surface to the leading edge of the clamshell above.

Maintenance & Durability

The front splitter cover's proximity to the road surface means it is the programme's most gravel-impacted component. Paint-protection film on the leading edge and the lower visible face is strongly recommended — the film is transparent on clear-lacquered carbon and resists stone chip damage that would otherwise require touch-in or lacquer respray within the first year of road use. The cover's structural rib is not visible from outside but should be inspected for crack propagation at the rib-to-panel adhesion zone every two years or after any kerb-contact incident that creates a visible surface mark. A surface mark with no flexural cracking in the rib zone is a cosmetic matter; crack propagation into the rib requires workshop assessment before further high-speed use.

Lead Time & Warranty

The front splitter cover is a large formed panel with a structural rib — Mansory schedules 3–5 weeks lead time from order. The panel carries a 12-month warranty against manufacturing defects including delamination at the rib-to-panel bond, lacquer voids on visible faces, and bracket-insert pull-through under normal mounting torque. Road contact damage (kerb scrape, speed-bump impact) falls outside warranty scope.

FAQ

Q: How close does the splitter cover get to the road surface at highway speed?
A: At standard LP 700-4 ride height and at highway aerodynamic load (200 km/h), the cover's leading edge is approximately 90–100 mm above the road surface. At lower speeds the car sits slightly higher due to reduced aerodynamic load, so ground clearance is greatest at low speed.

Q: Can the cover be fitted to an Aventador that has already been lowered on coilovers?
A: This depends on the static ride height achieved. Supply the car's static front ground clearance measurement and we will confirm whether the cover's geometry maintains safe clearance at that height. Cars lowered beyond the Mansory design ground clearance require a modified cover profile — available on special order.

Q: Does the structural rib add visible bulk to the underside of the cover?
A: The rib is co-cured into the upper (bumper-contact) face and is not visible from the normal viewing angle below the car. From a low inspection angle with a light directly underneath, the rib presents as a subtle ridge on the upper face — functionally normal, aesthetically unremarkable.

Q: Is there a weight penalty compared to the factory cover?
A: No — the Mansory cover is approximately 1.2 kg lighter than the factory polyurethane lower cover, despite its structural rib. Carbon fibre's specific stiffness advantage over polyurethane allows the rib to be thinner and lighter than an equivalent polypropylene substructure.

Place an order or ask technical questions via WhatsApp +44 7488 818 747 or [email protected].
