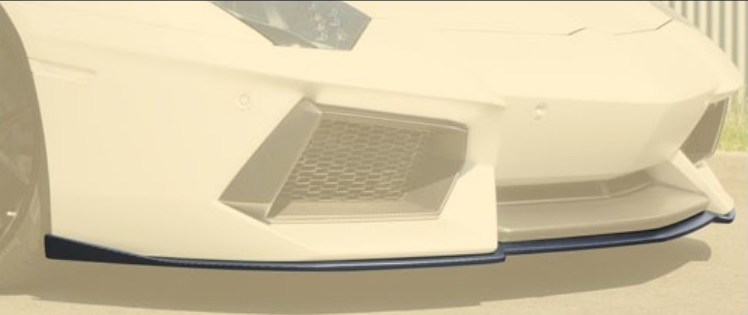

Front add-on lip Mansory Carbon for Lamborghini Aventador

Front Add-On Lip Mansory Carbon for Lamborghini Aventador

The front add-on lip occupies one of the most aerodynamically active areas on the Lamborghini Aventador: the trailing lower edge of the front bumper, where the boundary layer detaches and either rolls into a chaotic wake or is directed purposefully toward the underbody. Mansory's carbon add-on lip — an element within the Mansory Carbon Fiber Body kit set for Lamborghini Aventador — addresses this transition zone with a precisely profiled extension that clips onto the factory or Mansory front bumper, extending the front aerodynamic datum plane closer to the road surface and directing oncoming airflow into cleaner paths along the sill and beneath the floor. For owners who want a meaningful aero upgrade with minimal installation commitment, the front add-on lip delivers a measurable change in front axle behaviour without requiring bumper removal.

Construction & Materials

Unlike the large structural body panels in the Mansory Aventador programme, the add-on lip demands a specific material balance: stiff enough to maintain its geometry at speed and resist deflection under aerodynamic load, but with sufficient impact resilience at the leading edge to survive the low-speed stone strikes and kerb brush encounters that are an inevitable part of road use. Mansory resolves this with a 3K twill prepreg outer skin over a flexible-grade resin inner laminate — the outer skin delivers the visual quality and UV resistance of lacquered carbon, while the inner laminate's slightly lower resin modulus allows the lip to flex marginally under impact rather than shattering.

• Outer skin weave: 3K twill, 45 ° diagonal — continuous visual diamond pattern
• Inner laminate resin system: toughened epoxy — higher impact energy absorption vs standard aerospace-grade
• Cure: Autoclave, matched cycle to front bumper elements for thermal expansion compatibility
• Wall thickness: 2.5 mm at root (mounting flange), tapering to 1.8 mm at the leading edge
• Weight: approximately 0.9 kg — no measurable change to front axle load distribution
• Finish: high-gloss UV-clear lacquer as standard; raw visible weave (unlacquered) available
• Mounting: stainless-steel brackets and OEM-style plastic pop-clips; no drilling into bumper face
• Ground clearance: verified for LP 700-4 standard and sport suspension ride heights

The mounting flange geometry is developed from the LP 700-4 front bumper lower edge profile — the lip seats into the factory under-run channel and is retained by stainless brackets that engage existing bumper mount points. No adhesive bonding is required on the primary mounting, though 3M VHB tape on the contact flange is recommended for vibration damping on sustained-speed runs.

Design & Visual Function

The LP 700-4's factory lower front bumper is already aggressive in section but sits relatively high off the tarmac compared to the competition it replaced. The Mansory lip lowers the effective front aerodynamic datum by 22–28 mm, closing the gap between the bumper underside and the road surface. This reduction in frontal under-run area physically blocks the airstream from rushing under the car at the nose, redirecting it around the front arches and into the designed underbody channels — a process that reduces front lift at speed.

Visually, the lip sharpens the Aventador's nose profile considerably. From the driver's approach angle — standing 5 metres ahead of the car at normal viewing height — the lip extends the car's footprint forward, making the front track appear wider and the silhouette more planted. In side profile the tapered leading edge casts a shadow line that separates the bumper body from the road surface, defining the car's ride height as a deliberate design choice rather than a factory default. On builds that incorporate the Mansory front bonnet and front splitter cover, the lip completes a continuous front-end aero statement that reads cohesively from any viewing angle.

Owners who have photographed Mansory-spec Aventadors consistently note that the front lip adds visual "ground contact" to cars photographed from the front quarter — the effect that distinguishes a race-prepared machine from a standard road car in still imagery, even before any speed or blur is implied by the composition.

Compatibility & Fitment

Designed for the Lamborghini Aventador LP 700-4 (2011–2016) and LP 720-4 50° Anniversario. Compatible with both the factory front bumper and the Mansory carbon front bumper assembly; the mounting bracket geometry is common to both. The Roadster shares identical front bumper geometry — the lip fits without modification. Aventador S (MY2017+) uses a different lower bumper profile; the Mansory S programme covers that model. Sport-suspension cars with MagneRide lowering should verify approach-angle clearance before ordering.

Installation & Reversibility

Front add-on lip installation is one of the simplest procedures in the Mansory Aventador programme. With the car on a flat surface (no lift required), two technicians can complete the job in 60–90 minutes: insert the stainless brackets into the factory under-run channel, engage the OEM-style pop-clips, and verify the leading edge gap is even along the full width. The lip is fully reversible — clip removal restores the bumper to factory configuration in under 30 minutes. The only semi-permanent intervention is the 3M VHB flange tape; removing it leaves a residue that cleans up with isopropyl alcohol.

Pairing within the Mansory Aventador programme

The front add-on lip is the natural first upgrade in a staged Mansory Aventador build — its immediate visual and aero impact rewards owners who aren't yet ready to commit to a full body kit. Pair it with the front splitter cover to add a lateral carbon accent that integrates with the lip's lower bumper zone, extending the aerodynamic language across the full front fascia width. Add the designed diffuser at the rear to balance the front-axle load change the lip introduces — a complete front-rear aero pair that maintains the LP 700-4's factory handling balance while reducing overall lift. The front bumper grill continues the carbon theme across the bumper's intake apertures immediately above the lip.

Maintenance & Durability

The front add-on lip's leading edge is the programme's highest-impact surface — road debris, speed-bump brush, and steep-ramp scrape are the primary damage vectors. A paint-protection film along the leading 80 mm of the lip is the single most effective maintenance investment, extending lacquer life by 2–3 seasons in typical use. Inspect the pop-clip retention monthly on cars driven regularly — clip fatigue on a low-slung front lip can allow the outer section to lift at speed, which creates undesirable aerodynamic asymmetry. Replace fatigued clips with OEM-equivalent stainless hardware; Mansory supplies a replacement clip kit. Cleaning is straightforward with pH-neutral wash; avoid pressure-washing the bracket-to-bumper interface directly as sustained high-pressure water can dislodge the VHB tape from the flange.

Lead Time & Warranty

The front add-on lip is a medium-complexity formed panel. Lead time from order is 2–4 weeks. Mansory provides a 12-month warranty against manufacturing defects including delamination at the mounting flange, resin voids through the outer clear coat, and bracket-to-panel bond failure under normal operating load. Impact damage from road debris, kerb contact, or speed-bump scraping is a maintenance item and falls outside warranty scope.

FAQ

Q: Will the front add-on lip scrape on steep car park ramps?
A: The lip maintains the same approach angle as the factory bumper on standard LP 700-4 suspension. Cars with sport suspension at minimum ride height may experience contact on ramps steeper than approximately 8°. A front approach ramp (drive-up board) is the standard solution for very low cars on steep ramps — the same accessory used for the factory bumper.

Q: Can the lip be fitted to a factory bumper without the rest of the Mansory kit?
A: Yes. The mounting system is self-contained and works with the factory LP 700-4 bumper. The carbon will contrast visually against a painted bumper — some owners prefer this two-material look; others use it as the first step before fitting the full Mansory front bumper assembly.

Q: Is the lip stiff enough to maintain its shape at 200+ km/h?
A: Yes. The combination of autoclave-cured carbon outer skin and toughened epoxy inner laminate provides sufficient bending stiffness to resist aerodynamic load up to the Aventador's top speed. Mansory's test protocol includes sustained high-speed verification for all aero parts.

Q: Can the lip be colour-matched to the body?
A: The clear-lacquered carbon surface can be painted over with standard automotive paint after a light key-sand. This is a one-way process — the underlying carbon weave is no longer visible. Specify at order if a painted finish is required; Mansory can supply the panel pre-painted in any RAL or Lamborghini colour code.

Order or discuss your Aventador build with the team via WhatsApp +44 7488 818 747 or [email protected].
