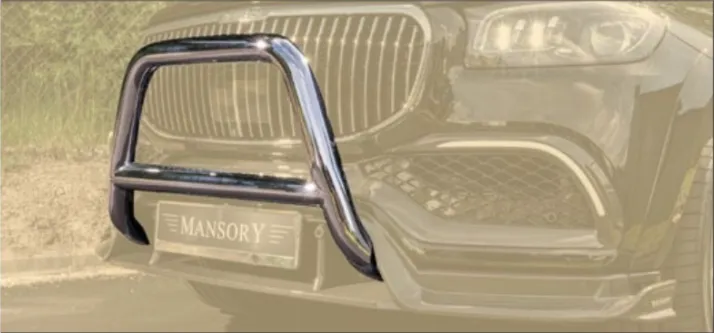

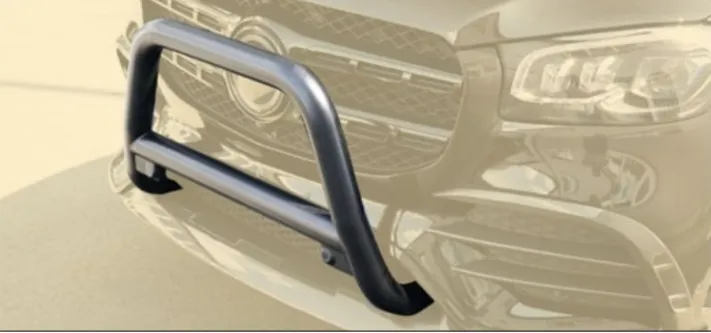

Front protective frame Mansory for Mercedes GLS X167

Mansory Front Protective Frame for Mercedes-Benz GLS X167

The Mansory front protective frame for the Mercedes-Benz GLS X167 is one of the most theatrical pieces in the entire Mansory GLS programme — a bull-bar / underrun-style functional bumper-bar that wraps the lower face of the car, sitting proud of the OEM bumper without obscuring the grille fan or the front sensor cluster. It belongs to the wider Mansory Body Kit for Mercedes GLS X167 and is unusual for a luxury seven-seat SUV: a piece that is genuinely functional in city traffic and on rough estate driveways while telegraphing the same urban-toughness vocabulary that Mansory has been refining since the original Brabant-style protective bars on G-Wagen and SLS. It pairs with the rear protective frame as a duo, and on AMG GLS 63 cars it is detailed to clear the Panamericana grille and the four central exhausts behind. AIRMATIC self-levelling and 9G-TRONIC drive modes remain untouched.

Construction & Materials

This is the part of the Mansory catalogue where the word "carbon" is intentionally absent from the slug — and for good reason. A protective frame must take a hit. Pure carbon-fibre would shatter on a kerb-strike or a low-speed bumper kiss; the brief here is structural, not cosmetic. Mansory's solution is a hybrid build: a structural steel-cored or aluminium tube backbone bent to a bespoke geometry, then sleeved or skinned with a carbon shroud at the visible faces, and powder-coat or matte-paint finished over the structural tubing for paint-and-frame coherence with the body.

• Structural backbone: bent steel-cored or aluminium tube, 38–45 mm diameter, wall thickness 2.5–3.0 mm depending on segment
• Carbon shroud: 3K twill carbon skinning at visible end-caps and centre fairings, vacuum-laminated over the metal core
• Finish: powder-coat satin black as standard, with optional matte-paint or gloss-paint colour-match to the body (Obsidian Black, Selenite Grey, Diamond White, designo specials)
• Mounting hardware: stainless-steel brackets bolted directly to the OEM front crash-rail attachment points — no chassis welding, no drilling of structural members
• Parking-sensor cutouts: pre-machined cones to preserve the OEM PARKTRONIC field of view and avoid false-positive alerts
• Fastener kit: marine-grade stainless A4-70 bolts, captive nuts, anti-vibration washers, OEM-spec torque values supplied
• Weight: ~12–18 kg complete, depending on configuration and finish
• UV / corrosion protection: powder-coat is salt-rated; carbon shrouds finished with marine-grade UV clear lacquer

Design & Visual Function

The geometry is the story. Mansory's design team works back from the GLS X167's approach angle and the AIRMATIC ride-height envelope: the frame must never reduce approach angle when the air suspension is at its standard setting, and it must clear ramps and steep driveway entries when AIRMATIC raises the car to its highest setting. The bull-bar profile sits a fraction below the bumper's lower edge, with a centre fairing that mirrors the grille fan above and outer wings that flow into the corner intake openings. From three-quarter angles the car gains visual mass at the leading edge — exactly the urban-toughness language that defines Mansory's GLS programme.

Functionally, this is a deflection bar, not a rally-spec bumper. At urban speeds — kerb-strikes, bumper-to-bumper city traffic, valet abuse, the occasional shopping-trolley misadventure — the frame absorbs the contact and protects the painted bumper skin and the foam crash-absorber behind it. Repair economics shift dramatically: scratching a powder-coat tube costs a touch-up; scratching an OEM bumper means a full respray and blend.

On AMG GLS 63 cars the frame is detailed to clear the Panamericana grille's vertical fins and the AMG-specific lower intake geometry — the centre fairing is shaped so the grille fan reads cleanly from straight on, not chopped or partially obscured. Standard GLS 450 and GLS 580 cars use the upright louvre grille; the same frame chassis fits both, with grille-specific fairing inserts to preserve grille presentation. Parking sensors keep their PARKTRONIC cone through the pre-machined cutouts, so the head-unit display does not throw constant ghost alerts.

Compatibility & Fitment

Fits Mercedes-Benz GLS X167 from MY2020 onwards, all engine variants — GLS 450 (3.0L inline-6 EQ Boost mild-hybrid), GLS 580 (4.0L V8 BiTurbo with EQ Boost), and AMG GLS 63 (4.0L V8 BiTurbo, ~603 hp). Both pre-facelift and the post-MY2024 facelift bumpers are catered for; specify model year and trim at order to receive the correct fairing inserts and grille-specific centre piece. Mounts to the OEM front crash-rail attachment points without chassis modification. AIRMATIC ride-height self-levelling, E-ACTIVE BODY CONTROL where fitted, the front camera, washer jets, ACC radar (mounted higher on the grille mask) and PARKTRONIC sensors all remain untouched. The frame does not alter cooling-pack airflow to the M256 inline-six or the M177 V8 BiTurbo intercooler circuit.

Installation & Reversibility

Workshop time is 4–8 hours at a Mercedes-certified body shop or a Mansory-trained installer. Sequence: front bumper removal (clips, fasteners, headlamp washer hose disconnect, foglamp connectors), inspection of OEM crash-rail attachment points, fitting of the Mansory mounting brackets to the crash-rail with the supplied stainless hardware to OEM-spec torque, dry-fit of the frame for fairing alignment, parking-sensor cone alignment check, then bumper refit. The whole installation is fully reversible — there is no drilling of structural members, no cutting of the OEM bumper, and the original mounting points carry the load. Removing the frame and brackets returns the car to factory specification with no visible trace.

Pairing within the Mansory GLS X167 programme

The natural and almost mandatory partner to this part is the rear protective frame — the front+rear duo is how Mansory presents the GLS X167 in its bull-bar configuration, and ordering them as a pair guarantees finish coherence (powder-coat batch, paint code, carbon-shroud weave alignment). Owners who want lower-face theatre under the frame typically also specify the front lip, which adds a carbon splitter element below the bumper line, and the front splitter for an even more aggressive lower edge. For full-face commitment, the fenders extension widens the wheel-arches to match the visual mass the frame adds at the front.

Maintenance & Durability

The frame is engineered for the GLS use-case: school run in the morning, motorway in the afternoon, occasional gravel and the inevitable underground-car-park pillar at the weekend. Powder-coat is genuinely durable — pH-neutral car shampoo, microfibre, no alkaline pre-wash, no traffic-film-remover near the carbon shroud sections. Salt and winter chemistry are handled by the marine-grade powder-coat, but a thorough rinse after salted-road exposure extends life noticeably. The carbon shroud sections benefit from PPF (paint-protection film) over the leading-edge faces if the car sees heavy stone-chip exposure on the motorway; ceramic coating over the shroud is also appropriate and simplifies bug and tar removal. Repair workflow if the frame is scratched: light scratches on powder-coat polish out with cutting compound; deep gouges are touched up with matched powder-coat aerosol; carbon shroud chips are repaired by a specialist with epoxy fill, lacquer top-coat and flat-and-polish. The whole frame can be unbolted, refurbished off the car, and refitted — far more economical than re-spraying an OEM bumper.

Lead Time & Warranty

Lead time is 4–8 weeks from order confirmation. Each frame is built to order — finish, paint colour, AMG vs standard fairing inserts, MY-specific bumper geometry — and is hand-finished before crating. A 12-month warranty covers manufacturing defects, fastener integrity, powder-coat adhesion and carbon-shroud lamination. Wear-and-tear from impacts, kerb-strikes, abrasive cleaning or non-OEM hardware substitution is naturally outside warranty cover.

FAQ

Q: Is this a rated impact bar or a cosmetic piece?
A: It is a deflection bar engineered for urban-speed contact — kerb-strikes, low-speed bumper kisses, valet abuse. It is not a rally-spec or off-road-rated bumper-bar; it is a luxury-SUV protection piece designed to save the OEM bumper skin and underlying foam absorber from cosmetic damage.

Q: Does it reduce my approach angle?
A: No. The geometry is plotted against the OEM approach angle in standard ride height, and AIRMATIC's lift mode raises the entire car so any ramp clearance you had before is preserved. The frame sits within the OEM bumper's existing lower envelope.

Q: How does it interact with AIRMATIC and E-ACTIVE BODY CONTROL?
A: It is mechanically passive — bolted to the crash-rail. AIRMATIC self-levelling, ride-height modes (Comfort, Sport, Off-Road, Off-Road+) and E-ACTIVE BODY CONTROL on top trims function exactly as factory. No sensors, valves or air-spring fittings are touched.

Q: Will my parking sensors still work?
A: Yes. The frame ships with pre-machined cone cutouts at every PARKTRONIC sensor position, and the supplied installation drawings show the exact alignment to keep the OEM sensor field-of-view clear. No PARKTRONIC error in the head-unit, no false-positive alerts.

Q: Can I colour-match the frame to my body paint?
A: Yes — the structural tube can be powder-coated to match Obsidian Black, Selenite Grey, Diamond White or any designo Mercedes colour code; the carbon shroud sections can be left as raw lacquered weave for contrast or painted over for full body-coherent finish. Specify at order.

Q: Does it fit AMG GLS 63 with the Panamericana grille and four exhausts?
A: Yes. The frame chassis is shared across GLS 450, 580 and AMG GLS 63; AMG cars receive AMG-specific centre fairing inserts shaped to clear the Panamericana grille fins. The four AMG central exhausts at the rear are a separate concern handled by the rear protective frame, which is detailed to clear them.

Pair the front protective frame with the rear protective frame for the full Mansory GLS X167 bull-bar duo, or extend into the lower-face programme with the front lip and front splitter. To configure finish, paint code and AMG vs standard inserts, contact the Hodoor desk on WhatsApp +44 7488 818 747 or [email protected].
