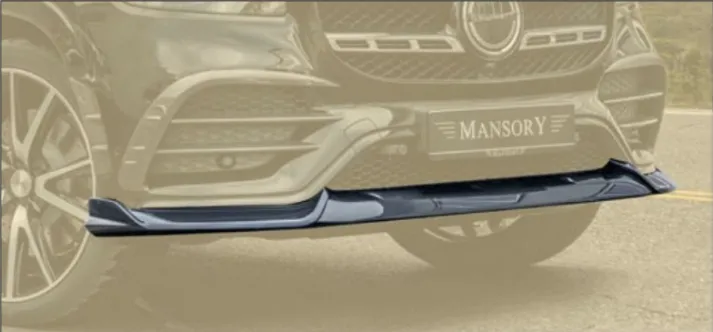

Front lip Mansory Carbon for Mercedes GLS X167

Front Lip — Mansory Carbon for Mercedes GLS X167

The Front Lip is the lower carbon accent piece in the Mansory programme for the Mercedes-Benz GLS X167 — a bespoke component that bolts to the underside of the factory front bumper and gives the lower fascia a defined, coachbuilt edge without rewriting the geometry of the car. Within the broader Mansory Body Kit for Mercedes GLS X167, this is the entry point to the front-end conversion: it sits below the OEM bumper lower edge, follows the contour of either the upright louvre face of the GLS 450 / GLS 580 or the AMG GLS 63 Panamericana arrangement, and adds Mansory presence to the lower fascia while leaving AIRMATIC ride-height behaviour, the 9G-TRONIC cooling apertures and the V8 BiTurbo intercooler intakes completely undisturbed. It is the calmer of two siblings — owners who want a deeper, more theatrical lower-edge piece move up to the front splitter; owners who want presence without aggression stay with the lip.

Construction & Materials

The lip is laid up as a single carbon shell over a CNC-machined master derived directly from the OEM GLS X167 bumper substructure. Mansory's bespoke carbon programme is autoclave-cured prepreg, not chopped fibre, and the visible face is laid against a tooling gel-coat so the weave reads cleanly across the full width of the car — important on a panel this long, because the human eye picks up weave drift instantly on horizontal SUV bodywork. The piece is finished in Mansory's house deep-gloss lacquer by default, with the option of an exposed-weave UV clear for owners who prefer a less reflective surface in keeping with a satin-paint specification on the rest of the car.

• Visible face: 3K twill carbon, mirrored seam alignment along the centreline, weave continuity matched to adjacent splitter / protective-frame siblings
• Substructure: 2x2 plain-weave reinforcement layers behind the show face for stiffness across the panel's long span
• Cure: autoclave prepreg, ~6 bar, controlled ramp — no voids, no print-through
• Wall thickness: ~2.4–3.0 mm across the body, locally thicker at the mounting flange and edge return
• Weight: ~2.6–3.1 kg depending on lacquer thickness and reinforcement spec
• Finish options: Mansory deep-gloss UV-stable lacquer (default) or exposed-weave matte UV clear
• Hardware: stainless A2 fasteners, butyl-backed EPDM gasket strip along the mating edge, polyurethane spacers at every mount
• Bond line: hybrid mechanical fix plus 3M VHB strip for the full-length seal against the OEM bumper underside

Design & Visual Function

Visually, the front lip is a horizon line. It pulls the eye along the lower edge of the bumper and gives the GLS — a tall, upright, almost architectural SUV — a defined ground plane it does not have from the factory. On the standard GLS 450 / GLS 580 with the upright louvre grille, the lip sits clean below the lower air dam and reads as a continuation of the chrome-and-louvre vertical rhythm. On the AMG GLS 63 with the Panamericana grille and the more aggressive lower aperture, the lip extends and frames the central intake without competing with the vertical Panamericana bars above it. Either way, the piece adds depth without crowding the face of the car, which is the central design brief on a vehicle this size.

Functionally, this is a presence part rather than an aero part. The GLS X167 is a 5.21 m, ~2.49 t luxury SUV with AIRMATIC and, on top trims, E-ACTIVE BODY CONTROL — none of those systems are looking for additional front downforce, and Mansory's brief on this car is theatre-of-arrival, not motorsport. The lip therefore carries no shaped underside, no Gurney, no canard. It accents, it does not act. The deeper, more aggressive sibling is the front splitter (see the pairing section), which projects further and reads as a track-toned piece — the lip is its restrained counterpart. Owners who want the lower edge defined without the visual commitment of the splitter specify the lip alone; owners who want the full Mansory front move to the splitter, often with the front-protective-frame above it.

From an installer's view, the lip respects every functional element below the bumper — front parking-sensor cones (the OEM ultrasonic units fire forward and slightly downward, well above the lip plane), the radar aperture for active distance assist, the camera washer line if the vehicle is fitted with the surround-view package, and most importantly the V8 BiTurbo intercooler airflow path on the GLS 580 and AMG GLS 63: the lower intake stays fully open, the intercooler core sees the same incoming column, and there is no measurable change to charge-air temperatures. AIRMATIC's lift mode (the +25 mm setting used for driveways and steep ramps) was the dimensional reference during fitment validation — at maximum lift the lip clears typical 18–20 % approach geometry, and at lowered highway ride it does not create a ground-strike risk on modest road imperfections.

Compatibility & Fitment

Designed for the Mercedes-Benz GLS X167 (2019–onwards), all variants — GLS 450 (3.0 L inline-6 with EQ Boost mild-hybrid), GLS 580 (4.0 L V8 BiTurbo with EQ Boost), and AMG GLS 63 (4.0 L V8 BiTurbo, ~603 hp). Both pre-facelift and the post-MY2024 facelift bumper geometries are supported via dedicated mount-point sets — confirm model year and grille type (upright louvre vs Panamericana) at order so the correct shell is dispatched. Compatible with 4MATIC, 9G-TRONIC, AIRMATIC including E-ACTIVE BODY CONTROL, Driver Assistance Package, surround-view camera, parking-sensor array, headlight washers, and adaptive cruise radar. Does not interfere with the panoramic-roof drainage routing (which exits via the A-pillar) or the third-row seat operation. Vehicles riding on aftermarket lowering modules below AIRMATIC's lowest factory setting should be reviewed for clearance before fitment.

Installation & Reversibility

Budget 3–5 hours at a Mercedes-certified body shop or a Mansory-trained installer. The OEM bumper does not need to come off the car for fitment, but the front wheel-arch liners are released to gain access to the lower bumper return on each side. The lip is offered up dry, parking-sensor cones are validated, and the mating edge is degreased and primer-prepped before the butyl gasket and 3M VHB strip are applied. Stainless A2 fasteners pick up factory locating bosses on the bumper underside — no drilling into painted panels is required for the standard fit. The lip is fully reversible: removed, the OEM bumper underside shows only the original locating points, and there is no paint witness mark provided the VHB strip is removed warm and clean. Torque sequence is symmetric centre-out to avoid panel pre-load. Final QC checks are gap (3.0 ±0.5 mm to bumper lower edge), flushness across the centreline, and parking-sensor cone validation through the diagnostic tester.

Pairing within the Mansory GLS X167 programme

The most important pairing question on this part is lip versus splitter. The Front Splitter — Mansory Carbon for Mercedes GLS X167 is the deeper, more projected sibling: it extends further forward of the bumper, reads as a track-toned piece, and is specified by owners who want the front of the car to look planted and aggressive. The lip is its restrained counterpart — same family, same finish language, half the visual commitment. Owners typically specify one or the other; pairing both is mechanically possible only on the post-MY2024 bumper variant and we do not recommend it visually. Above the lip, the Front Protective Frame adds a bull-bar-style protection element that pairs cleanly with either the lip or the splitter and gives the front a coachbuilt-SUV character. Further back, the Air Outtake Cover in matched 3K twill closes the visual loop along the front fender vent and ties the lip into the car's side language.

Maintenance & Durability

Lacquered Mansory carbon is treated as a paint surface, not a raw composite. Two-bucket wash with a pH-neutral shampoo, dry with plush microfibre or a filtered blower, and quarterly application of a synthetic sealant or a Si-based ceramic top-up. A full ceramic coat (9H) over the lacquer is recommended for owners running the GLS as a daily — the SUV use profile (school run, motorway, occasional gravel access road) puts more rock-chip energy into a low-mounted carbon piece than a coupé would ever see, and a transparent PPF film over the centre 600 mm of the lip is sensible insurance. Avoid alkaline traffic-film removers, ammonia-based glass cleaners migrating onto the lacquer, and any abrasive sponge or clay-bar grade above ultra-fine — those are the reliable ways to kill the gloss on lacquered weave. A chip down to the substrate is a body-shop repair, not a polish; the lacquer system is multi-layer and refinishing requires colour-matched UV clear to keep the weave reading correctly under daylight.

Lead Time & Warranty

Lead time 4–8 weeks from order confirmation — Mansory carbon is bespoke autoclave production, not warehouse stock. Each piece is finish-inspected before despatch and supplied with mounting hardware, gasket strip, and an installation drawing keyed to the OEM bumper substructure. Warranty is 12 months against manufacturing defects (delamination, lacquer failure under normal use, hardware corrosion). Stone-chip damage, kerb impact and chemical attack from incorrect cleaning agents are not covered.

FAQ

Q: Will the lip fit my GLS 450, or is it AMG GLS 63 only?
A: It fits all X167 variants — GLS 450, GLS 580 and AMG GLS 63. The mount-point set differs slightly between the upright louvre bumper (450 / 580) and the Panamericana bumper (AMG GLS 63), so confirm grille and trim at order.

Q: How does this differ from the front splitter?
A: The lip is restrained — a defining lower edge with no projection. The splitter is the deeper, more aggressive sibling that extends forward of the bumper and reads as a track-toned piece. Most owners specify one or the other; the lip is the bespoke / coachbuilt route, the splitter is the theatrical route.

Q: Does it interfere with AIRMATIC ride-height changes or the +25 mm lift mode?
A: No. AIRMATIC's full range was the dimensional reference during fitment validation, and the lip clears typical approach angles even at the lowest highway setting. Lowered cars on aftermarket modules should be reviewed before order.

Q: Will it affect intercooler airflow on the V8 BiTurbo trims?
A: No. The lower intake aperture stays fully open, the intercooler sees the same incoming column, and charge-air temperatures are unchanged.

Q: Lacquered or exposed weave — which should I specify?
A: Default is Mansory deep-gloss lacquer, which matches paintwork and integrates with chrome surrounds and the Panamericana grille. Exposed-weave UV clear suits satin-paint specifications and reads more technical than theatrical. Either finish is UV-stabilised.

Pair the lip with the front splitter — sibling — or with the front protective frame for a complete coachbuilt front. To configure your X167 spec, message WhatsApp +44 7488 818 747 or write to [email protected].
