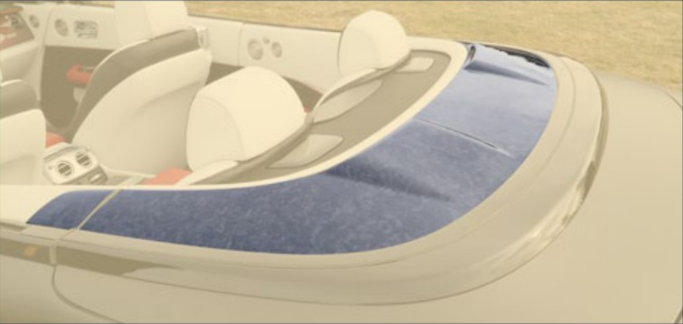

Folding roof Mansory Carbon for Rolls-Royce Dawn
Folding Roof — Mansory Carbon for Rolls-Royce Dawn
This Mansory folding-roof carbon set is the closing accent of the Dawn carbon programme — a quietly theatrical detail that frames the cashmere-blend hood when it is up and disappears into the deck channels when it is down. Crucially, this is not a hard-top conversion. The Dawn is a drophead-only twin-turbocharged V12, and the 6-layer fabric soft top stays exactly as Goodwood intended. What Mansory adds is a suite of lacquered carbon top-rail / roof-rail finishers that sit along the windscreen header, along the side roof rails and along the leading-edge stack, giving the car a coherent carbon arc from Spirit of Ecstasy back to the rear deck. Within the wider kit — see Mansory Body Kit for Rolls-Royce Dawn — it is the part that matures the silhouette under canvas without compromising the magic-carpet ride or the one-touch top mechanism.
Construction & Materials
The roof-rail finishers are produced as a small family of curved carbon shells, each shaped to the Dawn's specific cant-rail and header geometry. They are decorative trim covers, not structural roof members — they bond and clip over the OEM rail surfaces using a combination of factory-style 3M VHB adhesive tape, OEM-clearance clip locations and a soft EPDM gasket where the carbon meets the painted bodywork. The fabric soft top continues to land on its original sealing lips; the carbon never enters the seal path.
Material spec is consistent with the rest of the Mansory Dawn carbon family, so the finishers visually marry to the A-pillar cover and the engine-bonnet bar. Expect a deep, glassy lacquer with selectable weave; an exposed-weave variant is available on request for owners who specify the bonnet in raw weave.
- Weave: 3K twill default; 2K plain or forged-look on bespoke order.
- Lay-up: prepreg autoclave with vacuum-debulk between plies, balanced layup to keep the curved sections flat through thermal cycles.
- Wall thickness: 1.6–2.2 mm depending on the rail section — thicker on the windscreen header, thinner on the cant rails for clean radii.
- Set weight: typically 1.8–2.4 kg total across the rail family — negligible against the Dawn's ~2.56 t kerb mass, but balanced left/right so the soft-top kinematics remain neutral.
- Finish: Mansory deep-gloss UV-stabilised lacquer (Dawn-spec gloss profile to match the standard coachwork). Satin and exposed-weave optional.
- Hardware: 3M VHB tape (automotive-grade, primed surface), OEM-clearance plastic clips, EPDM micro-gasket along painted edges.
- Edge treatment: chamfered, polished, then over-lacquered — no raw cut lines visible from any seat position.
- Finish reference: matched to the bonnet and A-pillar so the carbon arc reads as a single coachbuilt detail, not a kit of parts.
Design & Visual Function
The Dawn lives or dies on its silhouette — the fabric top is part of the car's grace, and any rail trim has to flatter it rather than fight it. Mansory's drawing brief for these finishers is to echo rather than announce. Top-up, you read a thin, deliberate carbon line riding the windscreen header and the side rails; it picks up the verticals of the Pantheon grille and runs them rearwards, so when an observer's eye tracks from the Spirit of Ecstasy down the bonnet bar, across the A-pillar cover and onto the soft-top edge, there is no point at which the carbon language stops.
Top-down, the trim is mostly hidden in the deck channels alongside the stowed hood. From three-quarter angles you catch a glint of weave along the cant-rail edge — enough to confirm the carbon programme exists, not enough to make the car look busy. This is the opposite of trackday styling: the part is theatrical only at the moment of arrival, when the top is up and the lacquer catches the light against the cashmere-blend canvas.
Colour-pairing is the bespoke conversation. Owners who specify the bonnet exposed-weave usually take these finishers in matching exposed-weave, then pair with a darker fabric hood (anthracite or navy) so the carbon doesn't shout against a light canvas. Owners with a lacquered bonnet and a black or beige top normally take lacquered finishers — a quieter read that lets the Spirit of Ecstasy and the chrome surrounds do the heavy lifting.
Compatibility & Fitment
Rolls-Royce Dawn 2015–2023, all variants including Black Badge, all model years. Drophead convertible only — there is no coupe Dawn, and these finishers are explicitly designed around the Dawn's 6-layer fabric soft-top mechanism and rail geometry. Wraith owners cannot fit them: the Wraith roofline, B-pillar geometry and rear deck are different. The part keeps OEM coach-door geometry, OEM rain rails, OEM windscreen seal, OEM rear-quarter glass behaviour and the OEM Starlight headliner attachment intact. Parking sensors, illuminated bonnet pinstripe and the ambient lighting harness are unaffected because none of the trim crosses those electrical paths.
Most importantly: the OEM one-touch fabric stowage path is untouched. Each finisher is profiled to clear the rails as they fold and stack into the deck well. The hood seals — the lips that mate to the windscreen header and to the cant rails — are not modified, not shimmed, not relocated. Weather sealing performance against rain, wind noise and high-speed wash is identical to factory.
Installation & Reversibility
Plan for 2–3 hours with the car in a clean, dry, climate-controlled bay above 18 °C — VHB tape requires temperature for proper adhesion. The workflow is straightforward: degrease the OEM rail surfaces with isopropyl, apply the supplied 3M primer along the marked tape lines, dry-fit each finisher to confirm hood-cycle clearance with the soft top going up and down twice, then bond and apply hand pressure along the full seat. Final cure 24 hours before any car wash.
Reversibility is good — the finishers can be removed with fishing-line cutting under the VHB and a residue-cleaner pass over the OEM paint. We recommend a Rolls-Royce-certified body shop or a Mansory-trained installer for the first fit so the hood-cycle clearance check is documented; an experienced detailer can do it solo, but the soft-top cycle test is non-negotiable. No wiring, no drilling, no body modification.
Pairing within the Mansory Dawn programme
The folding-roof finishers are the part that closes the carbon arc — they are best specified once the bonnet and A-pillar are already in carbon, otherwise the rail line has nothing to dialogue with. The natural sibling specifications are:
- A-pillar Cover — Mansory Carbon for Rolls-Royce Dawn — the direct visual hand-off; the carbon line passes from the windscreen header onto the A-pillar without a paint-break, which is the whole point of taking both at once.
- Engine Bonnet with Bar (Exposed Weave) — Mansory Carbon for Rolls-Royce Dawn — anchors the carbon arc at the front of the car. Owners who go exposed-weave on the bonnet usually carry the same finish across to the rail finishers; owners on the lacquered bonnet keep the rails lacquered.
- Mirror Housing with Flasher — Mansory Carbon for Rolls-Royce Dawn — picks up the carbon on the side view, so the cant-rail finisher is not the only carbon detail above the beltline when the top is up.
Avoid pairing the rail finishers with motorsport-leaning parts; the Dawn is theatre-of-arrival, not lap-time. Keep the conversation bespoke.
Maintenance & Durability
Lacquered carbon under direct sun is the open-top owner's care problem in miniature. The Dawn is a drophead, so these finishers see UV every time the top is down — we ship them on a UV-stabilised lacquer system, but you should still wash with a pH-neutral shampoo, dry with a clean microfibre, and apply a ceramic coat at the first detail. Avoid alkaline wheel cleaners drifting onto the rails, ammonia-based glass cleaners, abrasive sponges and any “clay-mitt” aggression along the painted-carbon transition.
If a finisher chips at the edge, repair is a refinish job at the Mansory atelier rather than a roadside fix — the lacquer system has to be re-laid for the gloss to match the rest of the carbon programme. The good news is that the trim is bonded, not bolted, so a single chipped section can be removed and swapped without disturbing the seal lips or the OEM hood mechanism. Service intervals don't change, hood-cycling counts don't change, soft-top fabric care is unchanged.
Lead Time & Warranty
Lead time runs 4–8 weeks from order confirmation, in line with the rest of the Mansory bespoke programme — longer if you have specified an exposed-weave finish to match a non-stock bonnet. We hold a 12-month warranty against manufacturing defects (delamination, lacquer pinholing, weave misalignment). Wear from impact, kerb damage to the lower silhouette, and UV neglect are not covered.
FAQ
Q: Is this a hard-top conversion for the Dawn?
A: No. The Dawn is drophead-only and the OEM 6-layer fabric cashmere-blend hood remains in place. This product is a set of carbon rail finishers that trim around the soft top — the windscreen header, the side rails and the leading edge stack. The fabric mechanism is entirely untouched.
Q: Will it interfere with the one-touch top mechanism or the hood-cycle time?
A: No. Each finisher is profiled to clear the OEM rails as they fold and the soft top stacks into the deck well. We dry-fit and cycle the top twice during installation specifically to validate clearance. Hood-cycle time stays at the factory figure.
Q: Does it affect weather sealing?
A: No. The carbon never enters the OEM seal path — the hood seal lips that mate to the windscreen header and the cant rails are not modified or shimmed. Rain, wind-noise and high-speed wash performance are identical to factory.
Q: Can a Wraith owner fit this set?
A: No. The Wraith roofline, B-pillar geometry and rear deck are different — these finishers only fit Dawn 2015–2023, including Black Badge.
Q: Lacquered or exposed weave?
A: Match the bonnet. Lacquered bonnet — lacquered rails. Exposed-weave bonnet — exposed-weave rails. Mixing is possible on bespoke order but reads as a less coherent carbon arc, especially top-up.
Q: How long does the install take?
A: Around 2–3 hours in a temperature-controlled bay, including a soft-top cycle test. No drilling, no wiring, no panel modification.
Q: Is it reversible if the next owner prefers stock?
A: Yes. The trim is bonded with automotive 3M VHB and OEM-clearance clips, not bolted through the rail. A trained installer can remove and residue-clean back to OEM paint.
Pair these finishers with the A-pillar cover and the engine bonnet with bar to close the Dawn's carbon arc top-up. To configure your Dawn folding-roof carbon set, message WhatsApp +44 7488 818 747 or write to [email protected].
