Entrance panels for Mercedes G-class W463A Gronos

Entrance Panels for Mercedes G-Class W463A Gronos

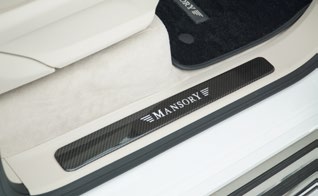

The entrance panel — the sill face that becomes visible when the W463A's door is opened — is the transitional surface between the exterior programme and the interior programme. Every occupant's entry and exit sequence includes a step over this surface, a visual glance at it from the kerb as the door opens, and a stepping contact with it as they board or alight. In OEM specification the W463A's entrance sill face carries a stainless-steel scuff plate with the G-Class or AMG identification lettering — a functional and brand-identifying element, but one whose stainless material specification is disconnected from both the Gronos carbon exterior programme and the Gronos carbon interior programme. The Entrance Panels from the Mansory Body Kit for Mercedes G-Class W463A Gronos replace the OEM stainless sill plates with Mansory-specified carbon-fibre entrance panels that carry the GRONOS identification and bridge the material transition from exterior to interior in the Gronos programme's own visual language.

Construction & Materials

The Entrance Panels are produced as direct replacements for the OEM sill scuff plates at all four door positions. Each panel uses a carbon-fibre structural laminate as the primary sill face, with a stainless-steel anti-scuff strip at the leading edge — the edge that receives direct foot contact during entry and exit. The carbon face is 3K twill prepreg, autoclave-cured, with horizontal fore-aft weave parallel to the sill's longitudinal axis. The GRONOS identification is formed as a relief or applied lettering element in the panel face. The OEM sill plate mounting screws engage the same threaded inserts as the OEM plates — direct exchange at the OEM screw positions without sill modification.

• Face material: 3K twill prepreg carbon, horizontal fore-aft weave
• Leading-edge anti-scuff strip: stainless steel at the direct foot-contact edge
• GRONOS identification: relief or applied lettering on panel face
• Clearcoat: cabin/sill-grade dual-layer lacquer on carbon face
• Mounting: OEM sill screw positions — direct exchange, no sill modification
• Coverage: all four door positions (front LH/RH, rear LH/RH)
• Supplied: full four-panel set with all mounting hardware

Design & Visual Function

The entrance panel's visual role as the bridge between exterior and interior programme is its primary design function. An observer standing at the kerb with the W463A's door open sees: the exterior body's Gronos carbon programme at the door face, the entrance panel's Gronos-identified carbon at the sill face, and the interior programme's carbon surfaces at the door card and console beyond. The entrance panel is the material continuum between these two worlds — its carbon face and GRONOS identification read from the kerb as the exterior programme does, and from the cabin as the interior programme does. Without the entrance panel, the sill zone is a stainless-steel gap in this continuum; with it, the Gronos programme's carbon language runs unbroken from exterior body panel through sill face into the cabin.

The entrance panel's visual continuity with the exterior programme is strongest at the kerb-door-open viewing angle because this is the only interior surface that is directly lit by external ambient light during door-open events — all other interior surfaces are illuminated by the cabin's internal lighting. An entrance panel in direct exterior ambient light presents its carbon weave and GRONOS lettering in natural daylight conditions, which reveals the depth and complexity of the 3K twill prepreg surface in a way that the cabin's artificial interior lighting cannot. Observers at the kerb see the Gronos entrance panel's carbon face in the same lighting conditions as the exterior body programme above it, making the material-continuum statement between exterior and interior most legible at this natural light viewing angle.

The GRONOS lettering on the panel face is visible from both approach angles: from the kerb as the door opens (facing outward), and from the footwell as the occupant boards (facing inward toward the cabin). This dual-direction legibility makes the GRONOS identification on the entrance panel one of the most frequently seen programme identification elements on the vehicle, encountered at every boarding event by every occupant.

Compatibility & Fitment

Entrance Panels fit Mercedes-Benz G-Class W463A 2018 to present, G63 AMG and G500/G550. The OEM sill scuff plate mounting positions are the same across all variants. LHD and RHD: front door panels are asymmetric in text orientation — confirm LHD/RHD at order for correct GRONOS lettering direction. Post-2024 facelift W463A compatible.

Installation & Reversibility

Installation time is 10 minutes per panel. Remove the OEM sill scuff plate at its mounting screw positions, position the Mansory carbon panel at the same screw holes, and tighten the mounting screws to OEM specification torque. The OEM panels are retained for reversibility. No sill modification is required. Ensure the panel leading-edge stainless strip is correctly seated against the sill's floor-facing edge before tightening.

Pairing within the Mansory Gronos programme

The entrance panels are the sill-zone element that the electrical side steps deploy from. The Electrical Auto Side Steps Short and Electrical Auto Side Steps Long provide the power-deployed step surface below the entrance panel zone. For the illuminated variant, the Illuminated Entrance Panels add ambient lighting to the GRONOS identification at the sill face. The Interior Trim Set continues the Gronos carbon programme from the entrance panel into the full cabin trim specification.

Maintenance & Durability

The entrance panel's sill position makes it the Gronos interior element most exposed to external contamination ingress — road salt, mud, and rainwater transferred from the occupant's footwear during boarding. The stainless anti-scuff strip at the leading edge is designed for this contamination exposure, but the carbon face behind it accumulates dirt from footwear contact at the boarding step. Clean the carbon face after each wet-weather boarding event with a damp microfibre cloth to remove the salt and mud deposit before it dries onto the clearcoat surface. The mounting screw positions in the panel face should be inspected at each season change for any grit accumulation in the screw head recesses — grit in the screw recess can accelerate corrosion of the screw head and make future panel removal for maintenance difficult.

The scuff strip's metal-to-carbon interface at the panel leading edge should be re-inspected whenever the panel is removed for deep cleaning. The mounting screw torque at the OEM anchor positions should be checked at each panel removal — carbon panels in sill positions experience higher vibration loading than wall-mounted trim pieces, and the mounting screws' preload can relax over 24–36 months of sill-position vibration cycling. Re-torque to OEM specification before refitting if any loosening is detected. A loose sill panel creates a slight movement at its perimeter edges that quickly develops into a visible flutter at motorway speed — catching the loosening early avoids this visual indicator of an unsecured panel.

Apply a sill-grade ceramic sealant to the carbon face every 4 weeks during winter use, when salt contamination from winter road treatment is at its highest. The sealant's hydrophobic layer causes salt-contaminated water from footwear contact to bead and run off the carbon face rather than pooling and evaporating to leave salt crystals in the weave texture. During summer, a 6–8 week sealant reapplication interval is adequate. Inspect the leading-edge stainless strip annually for any separation from the panel body — the metal-to-carbon joint at the leading edge experiences repeated thermal cycling and foot-contact impact, which can initiate adhesive joint fatigue if the strip bonding is not maintained.

Lead Time & Warranty

Lead time for Entrance Panels is 2–3 weeks from order. 12-month warranty against carbon face delamination, clearcoat adhesion failures, GRONOS lettering adhesion failures, and stainless-strip separation failures.

FAQ

Q: Are the GRONOS letters the same depth relief as the OEM G-Class or AMG letters on the factory sill plate?
A: The relief depth is matched to the Gronos programme's lettering specification, which may differ from the OEM AMG sill plate relief depth. The Mansory lettering is part of the programme's proprietary identification style.

Q: Can the entrance panels be used without the side steps, or are they complementary only when steps are fitted?
A: The entrance panels are independent of the side steps — they are direct OEM sill plate replacements that install at the same positions regardless of whether steps are fitted. They function and look correct with or without the side steps.

Confirm LHD/RHD configuration and specify with the Hodoor Mansory team: Contact us via WhatsApp +44 7488 818 747 or [email protected].
