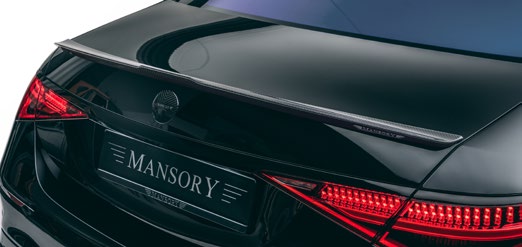

Sport rear deck lid spoiler Mansory for Mercedes-AMG S63E

Mansory Sport Decklid Spoiler for Mercedes-AMG S63E

The sport variant is the more visually restrained of the two Mansory decklid spoiler options for the S 63 E PERFORMANCE — paired against the taller performance variant, this one keeps the boot lid's apparent silhouette closer to the OEM AMG line while still giving the upper boundary layer a defined separation point at the trailing edge. Owners specifying the sport variant typically want the carbon programme's character on the rear without changing the saloon's traditional visual proportion. The aero brief is conceptually identical to the performance spoiler — give the upper-body wake a known geometry rather than letting it spill chaotically off a flat trailing edge — but the implementation here trades trailing-edge height for visual restraint, which is appropriate for a 2,510 kg long-wheelbase luxury saloon whose owner prizes elegance over emphasis. The chassis specifications it works against are the same: AMG biturbo V8 PHEV, 802 hp / 1430 Nm, 4MATIC+ AWD, 9-speed AMG Speedshift MCT, AMG quad-tip exhaust, AIRMATIC. It is part of the parent Mansory Carbon Fiber Body kit set for Mercedes-AMG S63E.

Construction & Materials

A shorter trailing-edge cantilever sees less aero load than the performance variant, which gives more freedom in the layup balance — the part is lighter, with a slightly thinner show-face skin and a less aggressive inner stiffener web.

• 3K 2×2 twill A-side cosmetic skin (forged-look option, 2K plain weave option)
• Co-cured inner stiffener web in unidirectional carbon, lighter than performance variant
• Pre-preg autoclave cure at 130 °C, multi-axial fibre orientation
• Wall thickness 2.0–2.6 mm in the show face, 4.0–4.8 mm at the boot-lid bond pad
• Net dry weight 0.7–0.95 kg
• 3M VHB 5952 along the bond face, OEM boot-lid paint as substrate
• Optional stainless threaded inserts at the OEM emblem-cap position for additional retention
• UV-stable 2K clear lacquer (gloss / satin / matte) over hydrophobic primer

Design & Visual Function

Trailing-edge height is the variable that distinguishes this variant from the taller performance spoiler — the sport-spec edge sits roughly 8–12 mm proud of the OEM decklid line rather than the performance variant's 22–28 mm. That smaller height is sufficient to define a separation point and prevent chaotic wake formation, but it does not produce the measurable rear-axle lift reduction that the performance variant achieves. For most road-driven owners the visual restraint is the right trade — the saloon's silhouette stays close to the OEM AMG line, and the carbon character on the boot lid reads as a refined accent rather than a motorsport accent.

The leading-edge profile is critical to the visual register: it has to blend without a step into the OEM AMG decklid stamping. Mansory achieves this with a CNC-trimmed bond face that follows the OEM decklid radius within ±0.4 mm, and a primer thickness that takes up the remaining tolerance during install. The result is a carbon spoiler that reads as moulded into the boot lid rather than glued onto it.

The spoiler's centreline is laid out so the OEM AMG model emblem (when retained) sits forward of the leading edge by roughly 35–40 mm — visually the emblem stays as the centre-piece of the decklid plane, with the carbon spoiler framing it from above rather than masking it.

Visually the spoiler reads as an elegant carbon trailing edge from any normal viewing angle. From three-quarter rear the silhouette is distinctly carbon-accented but only marginally taller than OEM; from directly behind the carbon plane frames the rear glass-to-decklid transition with a defined upper edge that pulls the eye to the AMG-spec rear-light clusters on either side.

For AMG Night Package cars satin lacquer disappears the spoiler into the AMG-spec blacked-out trim. AMG Carbon Package cars typically choose gloss to coordinate with the AMG-supplied carbon roof and rear-quarter accents.

Compatibility & Fitment

Engineered for Mercedes-AMG S 63 E PERFORMANCE (W223), 2023+, saloon. The bond face follows the OEM AMG boot-lid contour and the leading-edge transition is matched to the AMG decklid stamping. The spoiler does not interact with the OEM AMG rear-light cluster, the high-mount brake light, the rear emblem array, or any rear-glass component. The OEM AMG boot-opening hinge sweep is preserved with generous clearance to the rear glass at full-open. The added 0.7–0.95 kg sits comfortably within the OEM boot-strut envelope. Aftermarket stiffer struts (where fitted) should still allow the lid to close at the OEM rate.

Installation & Reversibility

Allow 50–80 minutes. Required tools: isopropyl alcohol, 3M Cleaner-Primer 94, low-tack masking tape, soft rubber roller, dry-fit alignment tape. Workflow: clean and prime the OEM boot-lid bond pad area, mark dry-fit alignment with low-tack tape, peel the VHB liner, set the spoiler down with a slight rocking motion to break any air pocket between the bond face and the boot-lid paint, press home with a rubber roller for 30 seconds across the entire bond, allow 24 hours cure before exposure to high-pressure water or boot-opening cycles. Reversibility is good: the VHB releases cleanly with localised heat (200–250 °C heat gun) and dental floss; the OEM paint stays intact provided adhesion-promoter rather than wax was used at install. A fresh wax-and-polish on the OEM paint after VHB removal restores the surface gloss to OEM.

Pairing within the Mansory Mercedes-AMG S63E programme

Most often combined with the Diffuser below for a coordinated rear-aero programme top and bottom, with the Roof spoiler for a coherent upper-body trailing-edge geometry in the same restrained register, and with the Rear hatch panel for visual continuity at the rear-glass-to-decklid transition.

Maintenance & Durability

The sport spoiler shares the maintenance brief of the performance variant — it sits in a moderately clean zone, but the trailing-edge top surface is exposed to UV on long parking sessions and the leading edge to bird-strike. Hand-wash with pH-neutral shampoo, two-bucket method, and a plush noodle mitt. Avoid alkaline pre-wash dwell longer than 60 seconds. Wax routine: a soft carnauba twice a year for natural depth, or a ceramic spray sealant every wash. Apply a UV ceramic top once a year for outdoor-stored cars; the trailing-edge top surface fades first if not protected. The bond face's VHB integrity should be inspected at every other service. Expected cosmetic-finish lifespan 8–11 years.

Lead Time & Warranty

Production turnaround: 3–5 weeks. Custom finishes (matte, satin, forged-look) extend by roughly one week. Coverage: 12-month warranty against manufacturing defects — delamination, voids, fitment, bond integrity, clear blistering — running from delivery date. Outside warranty: bird-strike etch, parking-cover-rub damage, chip propagation, and bond walk attributable to incorrect substrate prep at install. Each spoiler ships in a foam cradle with a stiffened outer carton; the QC photograph documents trailing-edge alignment and weave continuity under raking light.

FAQ

Q: How does the sport spoiler differ from the performance variant?
A: Roughly 14–18 mm shorter trailing edge. The performance variant produces a measurable rear-axle lift reduction at high speed; the sport variant is more visually restrained and primarily defines a separation point rather than producing measurable downforce.

Q: Does it preserve the OEM boot-lid hinge sweep?
A: Yes. Generous clearance to the rear glass at full-open. Hinge geometry is preserved.

Q: Will the boot-lid struts continue to hold the lid open?
A: Yes within OEM specification. The added 0.7–0.95 kg is well within the OEM strut envelope.

Q: Does the spoiler obscure the high-mount brake light?
A: No. The high-mount brake light is in the rear glass and not affected by a boot-lid spoiler.

Q: Will the rear-camera image be affected?
A: No. The reverse camera is mounted in the rear bumper, well below the spoiler plane.

Q: Can I retrofit the OEM AMG decklid emblem to the carbon spoiler's leading edge?
A: No — the leading edge transition stops short of the OEM emblem position, and the emblem can be retained on the OEM decklid stamping forward of the spoiler.

Q: Does the part affect the rear-glass wake or boundary layer?
A: Only marginally. The rear-glass boundary layer is shaped primarily by the roof spoiler; the decklid spoiler picks up the air from where the rear glass terminates and gives it a separation point off the boot lid. Combining a sport decklid with a sport roof spoiler produces a coherent rear-glass-to-decklid wake.

Q: Will the part interfere with rear-mounted accessories like a tow-bar?
A: No. The spoiler sits on the boot lid; tow-bar hardware mounts under the rear bumper. The two never share a plane.

Pair the sport spoiler with the diffuser and the roof spoiler in the same restrained register for a coherent rear-aero programme. To configure your build, message WhatsApp +44 7488 818 747 or write to [email protected].
