Mansory Carbon Fiber Body kit set for Mercedes-AMG S63E

MANSORY for the Mercedes-AMG S 63 E Performance — the plug-in-hybrid AMG flagship

When Affalterbach rebuilt the AMG S-Class for 2023, it did something no AMG flagship sedan had ever done before: the S 63 became a plug-in hybrid. The same M177 4.0 biturbo V8 that powers the AMG GT and the G 63 now works in series with a 150 kW e-motor on the rear axle and a 13.1 kWh battery pack, and the combined output is 802 hp with 1430 Nm of peak torque. This page covers the Mansory carbon programme built specifically for that drivetrain — how the kit ships around the PHEV rear-axle layout, why the exhaust cutouts are four-quad specific, and how the W223 S 63 E Performance order book differs from the factory-W223 (non-AMG) Mansory commission pattern.

Why the S 63 E is a different Mansory catalogue line from the base W223 S-Class

The standard W223 S-Class Mansory kit (see our W223 page) fits S 450, S 500, S 580 and Maybach S 580 / S 680 donors. The S 63 E Performance uses the same body shell but a meaningfully different front and rear. AMG moved the front bumper intake geometry on the 63 E to support the biturbo V8's cooling, added dedicated intakes for the battery cooling loop on the rear axle, and published a quad-exhaust tip layout that is not shared with any non-AMG W223. Mansory publishes a separate catalogue kit accordingly — this page.

The parts list

Materials follow the workshop's AMG-tier standard: dry carbon on the vented bonnet, ducktail and mirror caps; PU-RIM composite with carbon trim on the front bumper and rear apron (with an optional full-dry-carbon bumper upgrade); twill-weave on grille accents.

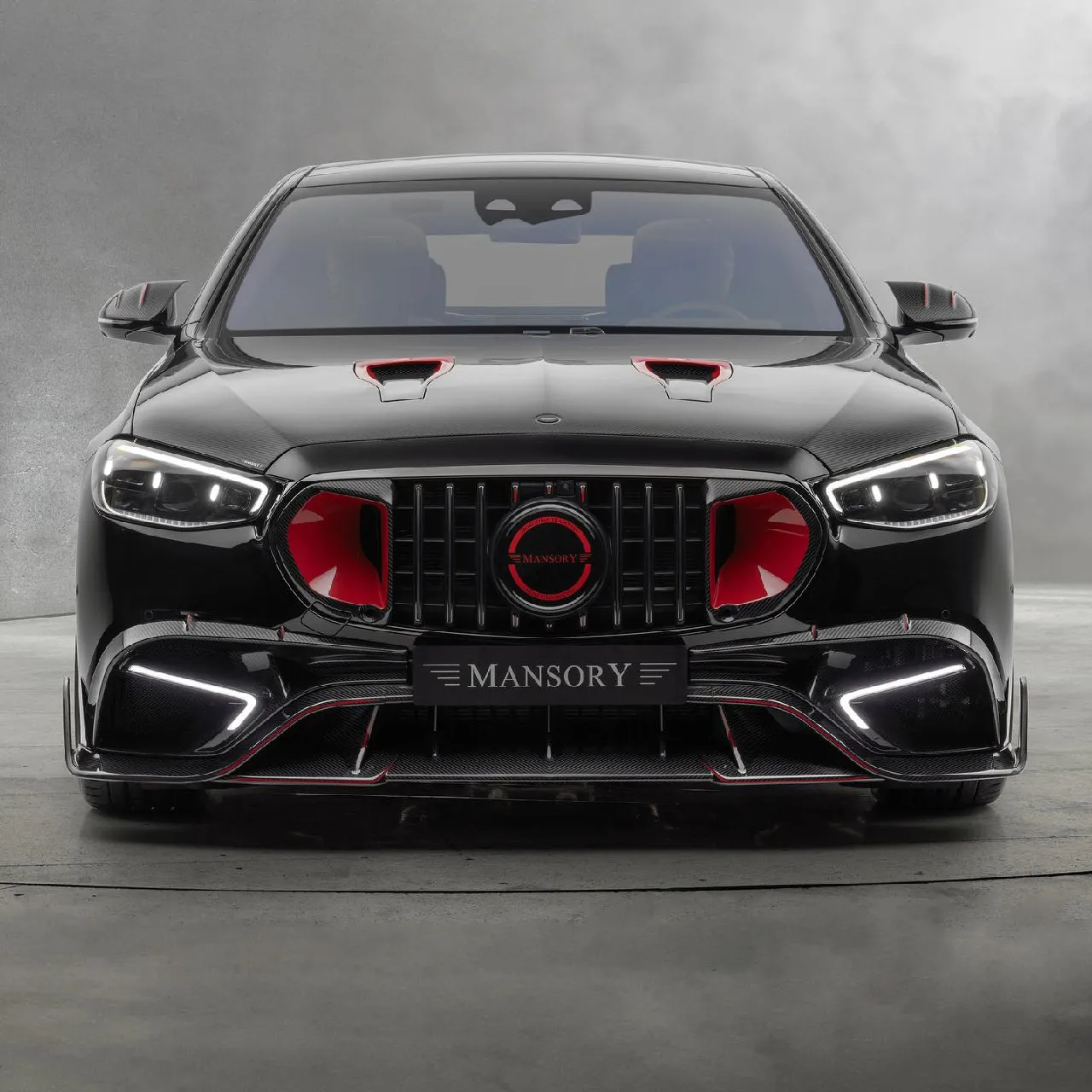

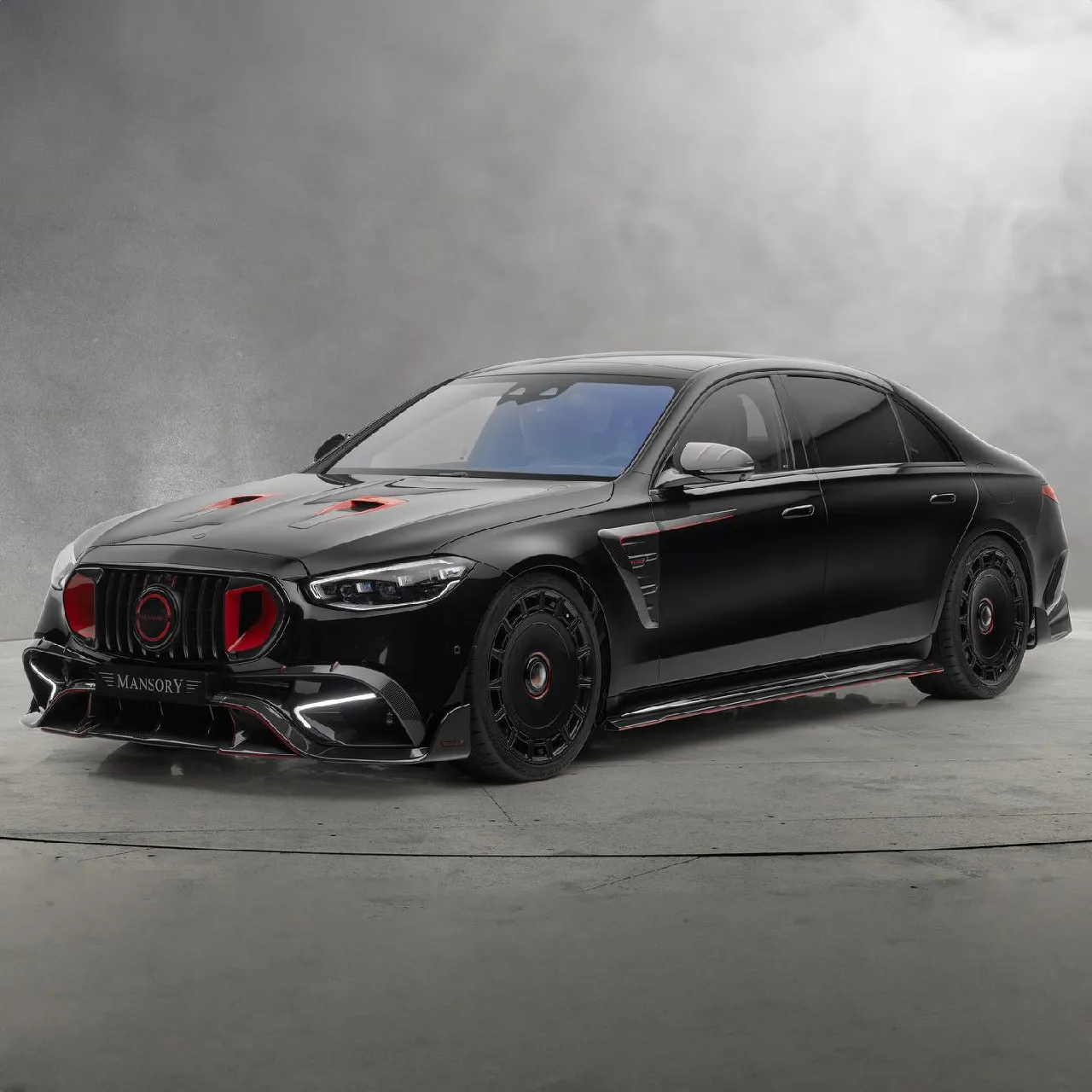

Front:

• Front bumper with enlarged AMG-specific intake apertures — retains the factory radar-module apertures and the forward-facing parking sensors
• Splitter / lower lip with flow-turning vanes

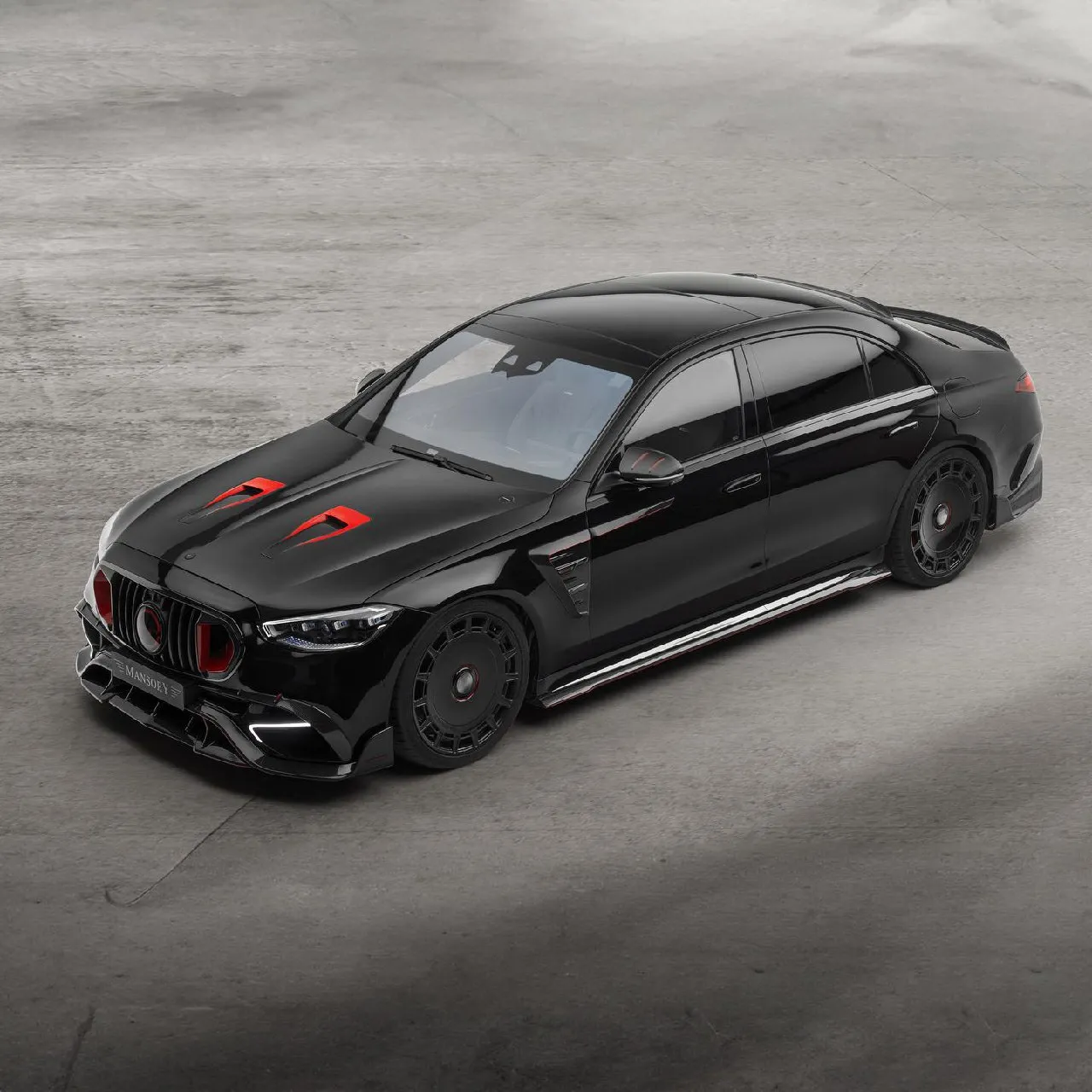

• Vented carbon bonnet — louvre geometry sized to the 4.0 biturbo V8 under-bonnet heat signature
• Carbon grille accent inside the AMG Panamericana grille frame

Sides:

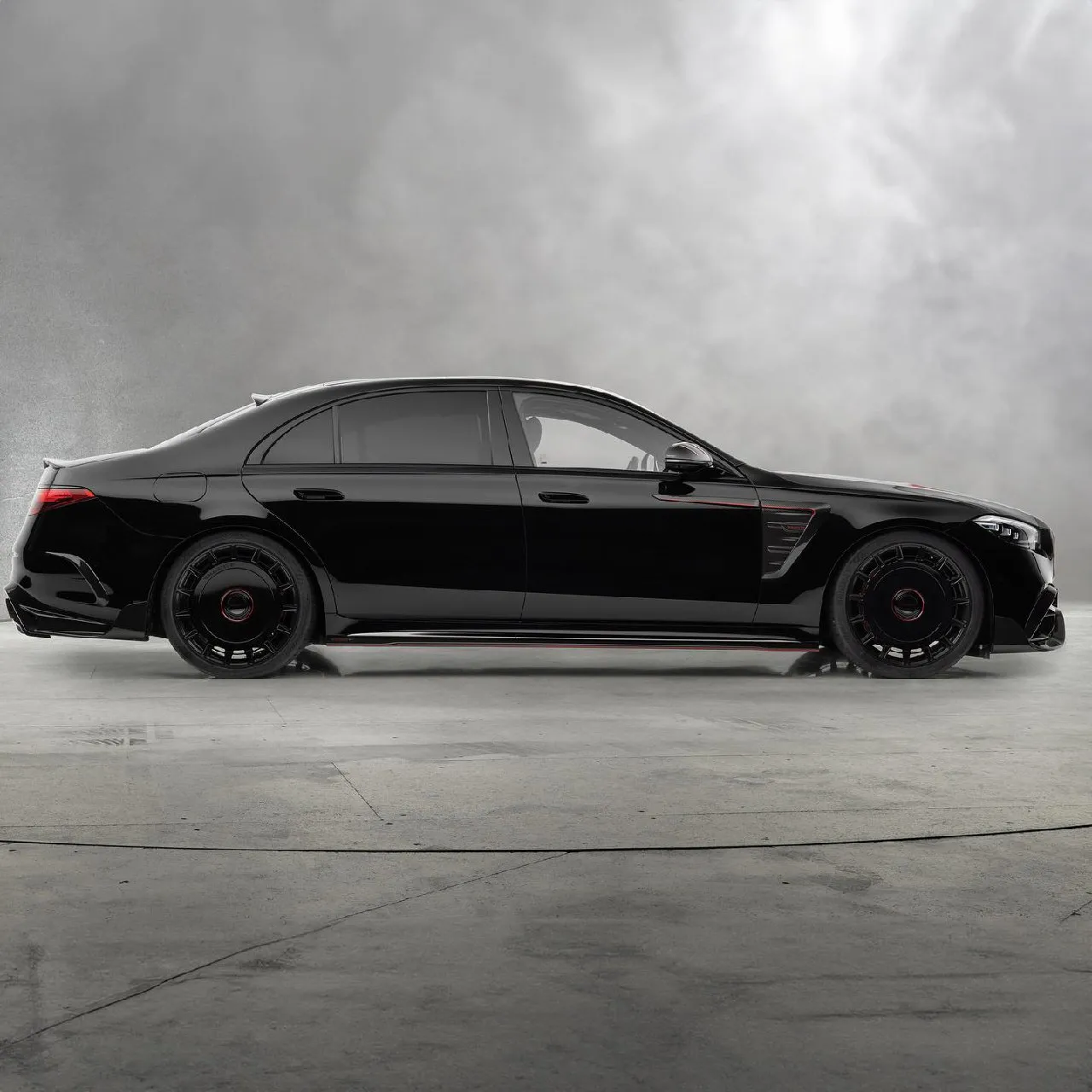

• Side skirts with carbon flow blades

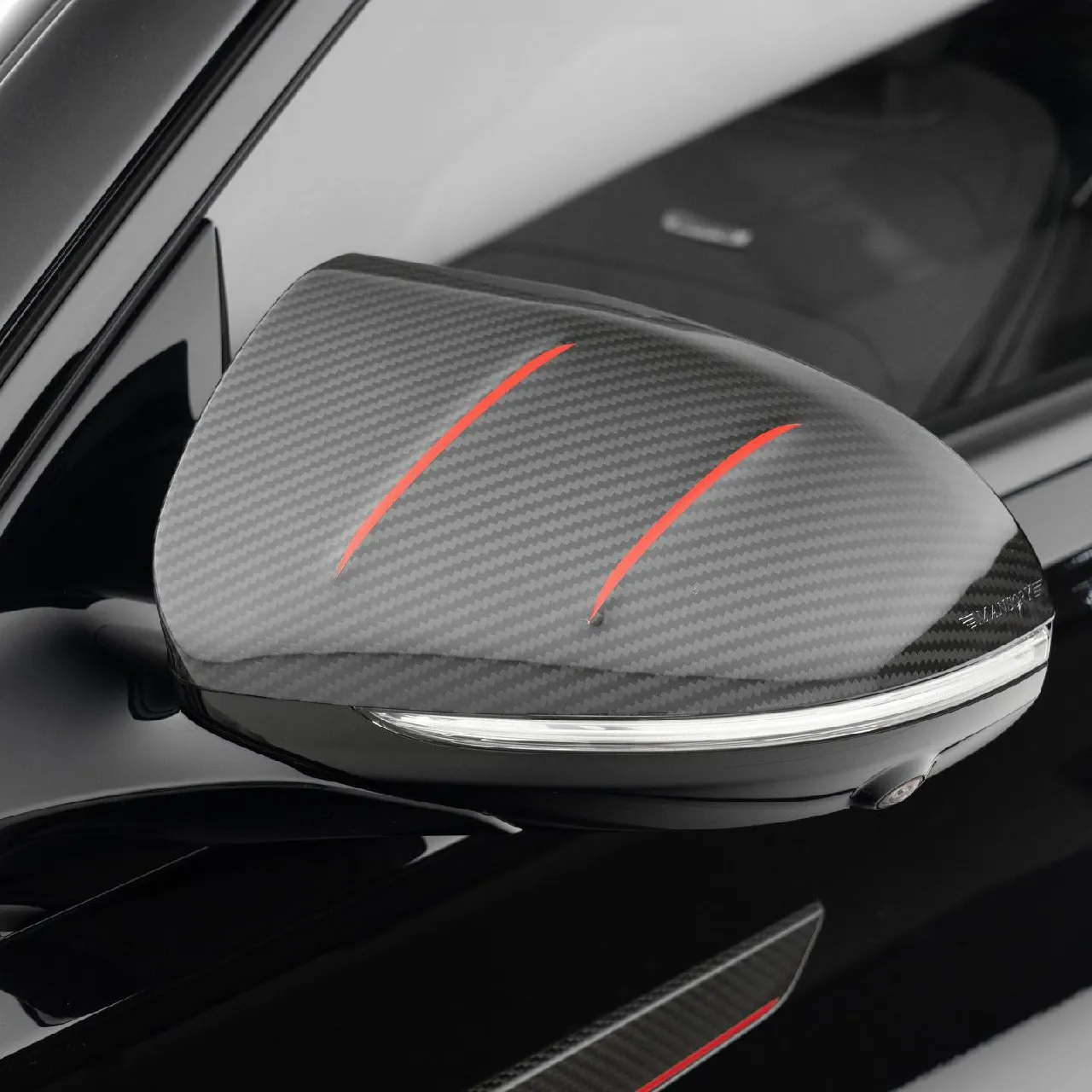

• Mirror caps (dry carbon, twill weave visible)
• Carbon door-handle surrounds

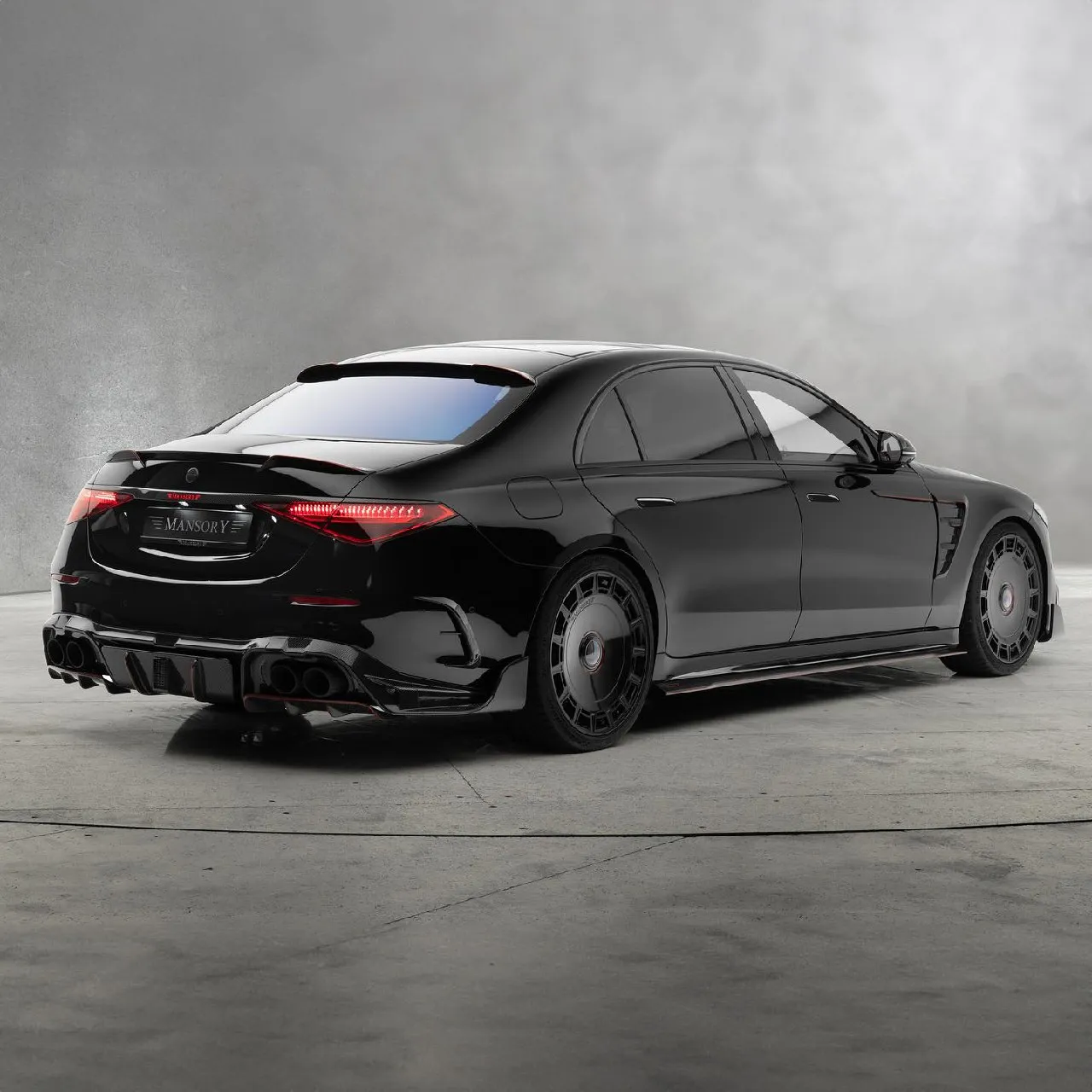

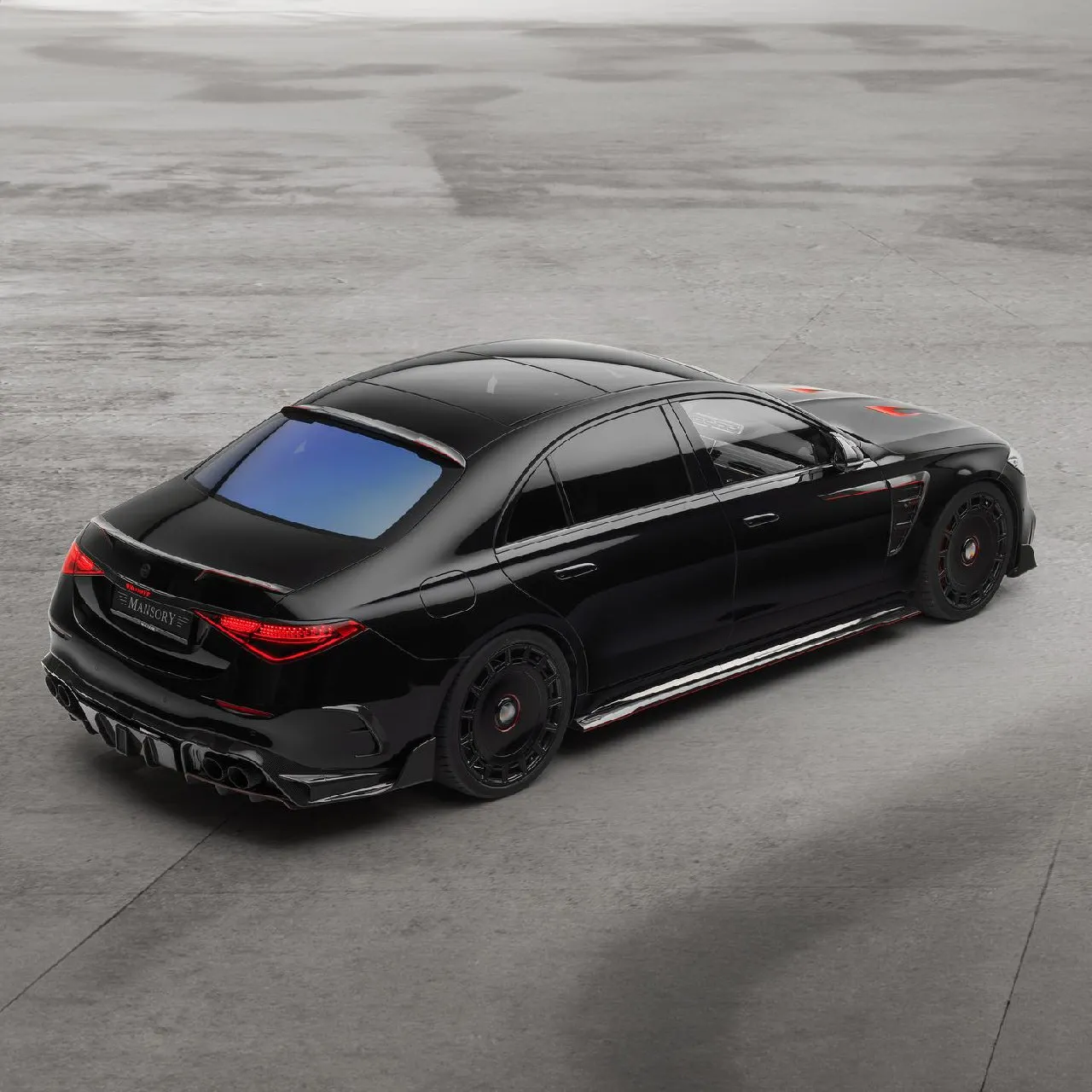

Rear:

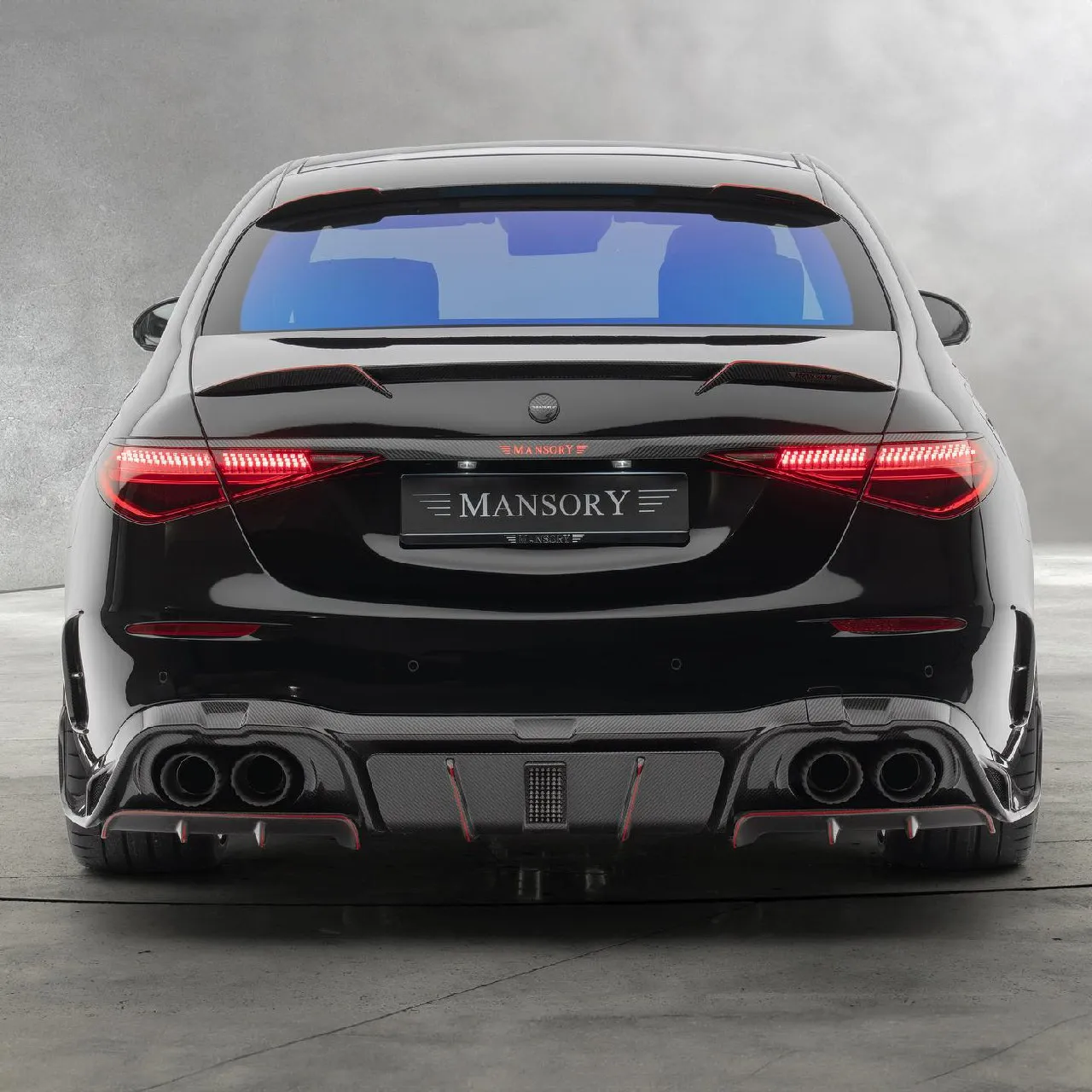

• Rear apron with integrated diffuser and four dedicated quad-exhaust-tip cutouts — the cutout geometry matches the S 63 E Performance factory tip positions exactly (not shared with any non-AMG W223 rear apron SKU)
• Ducktail boot-lid spoiler in dry carbon
• Rear reflector carbon surrounds
• Charge-port flap carbon overlay (sits on the left rear quarter; does not obstruct the charge-port actuator)

How the kit works around the PHEV layout

The S 63 E Performance has three thermal subsystems beyond the V8 main cooling loop: the rear-axle e-motor cooling, the inverter cooling, and the 13.1 kWh high-voltage battery cooling. Battery cooling enters through the front bumper's lower central intake (preserved at factory aperture in the Mansory bumper). E-motor and inverter cooling enter via rocker-level intakes in the lower rear quarter panels — the Mansory side skirts do not cover the rocker-level intakes and preserve factory airflow. The rear-bumper diffuser geometry carries dedicated cutouts both for the exhaust tips and for the battery-cooling radiator exit (the battery cooling loop exhausts through a rear-lower vent that the Mansory diffuser preserves with an additional slotted vent). None of this affects the PHEV system's factory cooling performance in DC fast-charge or full-throttle track scenarios — the kit was designed against AMG's thermal drawings rather than visually.

The charge port sits on the left rear quarter. The Mansory quarter-panel carbon overlay is cut around the charge-port door and does not obstruct the factory actuator. Owners who DC fast-charge the car at public stations should note that the Mansory overlay is bonded at install and is not removable for charge-session access beyond normal door-opening behaviour.

Engine and hybrid system — factory output preserved

The Mansory S 63 E kit is bodywork-only. The M177 4.0 biturbo V8's 612 hp alone, the 150 kW e-motor's 200 hp alone, and the combined 802 hp / 1430 Nm output all remain at factory specification. Mansory does not publish an ECU tune for this donor — the S 63 E's powertrain control integrates both the combustion-side and the e-motor calibration tightly, and aftermarket ECU recalibration would interact with the torque-vectoring logic on the rear e-motor. A stainless sport-exhaust SKU is available as a separate line item and is a common add-on because the factory AMG valvetronic exhaust, while already configurable, gets an additional character change from the Mansory valves. The Mansory exhaust does not change the 802 hp combined rating.

Wheels — 22" forged as the AMG-tier standard

The OEM S 63 E Performance ships on 21" or 22" AMG forged wheels with a PHEV-specific reduced-shoulder tyre spec. Mansory's standard wheel for this donor is a 22" forged multi-spoke that accepts the factory AMG tyre profile without modification. The 22" is the dominant spec — unlike other W223 AMG applications, the S 63 E's additional curb weight from the PHEV hardware (roughly +450 kg vs a non-hybrid S 63) does not pair well with a 23" wheel load profile, and the workshop's standing position is that the 22" is the correct visual and mechanical match. 21" is supported for owners who prefer ride comfort over visual weight. Wheel collection: Hodoor forged wheels.

An early-adopter PHEV order book — city by city

The S 63 E Performance is a PHEV AMG — a drivetrain type that did not exist in the AMG flagship segment before 2023. That makes the Mansory order book unusual. It is not concentrated in the Gulf like most Mansory AMG flagships; instead it tracks the cities where buyers actively want a PHEV mega-sedan for the combination of tax treatment, low-emission-zone access, and flagship presence.

Zurich, Geneva, Luxembourg. The Alpine financial corridor carries the single-largest share of S 63 E Mansory commissions. Switzerland and Luxembourg buyers tend to commission the S 63 E specifically for its PHEV eligibility on corporate fleet policies that require a plug-in drivetrain for the flagship sedan allowance. The Mansory commissions here are typically full kit + 22" wheel + factory exhaust (the workshop sport exhaust is over-specified for chauffeur-assisted use in this cluster).

London, Paris, Milan. The European metropolitan corridor commissioning the S 63 E Mansory is driven partly by low-emission-zone access — London's ULEZ expansion, Paris's ZFE zones, Milan's Area B — where a PHEV flagship remains compliant while a comparable V12 Maybach does not. UK commissions typically specify body-coloured bumpers; French and Italian commissions trend toward raw-carbon bumpers.

Los Angeles and New York. The US order book for the S 63 E Mansory is concentrated in Los Angeles (Beverly Hills / Newport Beach / Malibu) and in New York (Manhattan / Greenwich / Hamptons). This is a second-garage-sedan commissioning pattern — households already run an S 580 or a Maybach S 680 as primary chauffeur car and specify the S 63 E as an owner-driven performance counterpart with Mansory bodywork.

Gulf: thinner than expected. The UAE order book for the S 63 E is notably smaller than for the non-hybrid S-Class Mansory kits. Gulf AMG flagship buyers migrated largely to the G 63 and to the Maybach segment, and the S 63 E sells at much lower volumes in the region than in Europe.

Asia-Pacific. Singapore and Hong Kong take a small PHEV-tax-advantaged share. Japan takes a recurring share concentrated in the Tokyo Minato-ku luxury corridor.

Sister Mansory W223 programmes and AMG siblings

The S 63 E kit sits next to the base-W223 Mansory programme on the standard S-Class page (S 450 / S 500 / S 580), the Maybach S-Class Mansory (Maybach S 580 / S 680 with pillarless rear doors and different body), and the previous-generation W222 restyling programme. AMG-family siblings include the SL R232 (roadster), the AMG GT (sports coupé), and the G 63 Gronos (SUV).

Ordering & lead time

Full S 63 E carbon set: four to six weeks from the workshop. Mansory sport exhaust: three to four weeks. 22" forged wheel set with lowering module: four to five weeks. Email [email protected] or WhatsApp +44 7488 818747 with your VIN, confirmed drivetrain (S 63 E Performance), build year, OEM Mercedes-Benz paint code, and preferred weave specification (body-coloured bumpers with carbon trim vs full raw carbon). Specify up-front whether the charge-port-flap carbon overlay is desired — some commissions delete the overlay to preserve the factory charge-port flush-door aesthetic.

FAQ

Does this kit fit the non-AMG S 450 / S 500 / S 580 W223 variants?
No. The front bumper intake geometry and the rear apron quad-exhaust cutouts are AMG S 63 E-specific. Non-AMG W223 donors are routed to the base W223 Mansory page.

Does the kit fit the Maybach S 580 / S 680?
No. The Maybach body differs at the pillarless rear-door geometry and at the extended rear quarter panels. Maybach commissions route to the Maybach Mansory page.

Does the PHEV rear-axle e-motor complicate install?
No. The bodywork install does not require access to the rear-axle e-motor, the battery pack or the inverter. Install is standard four-to-six shop days.

Does the DC fast-charge cable clear the charge-port carbon overlay?
Yes. The overlay is dimensioned around the charge-port door and leaves the factory port aperture fully exposed. Commercial CCS2 charge cables fit without interference.
