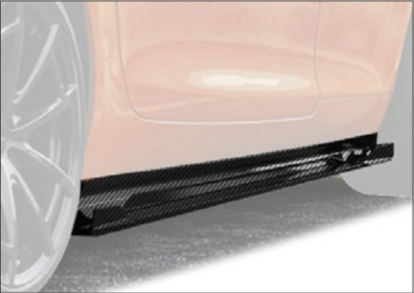

Side skirts Mansory Carbon for Mercedes-Benz AMG GT S Coupe

Mansory Carbon Side Skirts for Mercedes-Benz AMG GT S Coupe

Within the wider Mansory Carbon Fiber Body kit set for Mercedes-Benz AMG GT S Coupe programme, the side skirts are the longest single carbon panels you will ever fit to the C190. They run rocker-to-rocker between the front and rear wheel arches, smoothing the transition from the front-lip exit to the rear diffuser intake and tying the wide-body-kit haunches into one unbroken flank. On a long-bonnet, cab-rearward, 4.0-litre M178 V8 BiTurbo coupé with hot-V turbos and a rear-mounted 7G DCT transaxle, the visual centre of gravity is already biased rearward; a properly resolved skirt line is what stops the C190 from looking front-heavy and gives the GT R, GT C, GT S and Black Series their signature low-slung, GT3-flavoured planted stance.

Construction & Materials

The skirts are laid up as full-length one-piece carbon panels rather than a multi-section bolt-up, which is critical: any seam in a 1.7-metre rocker line catches reflections and breaks the visual flow along the door. Mansory specs them in autoclave-cured prepreg with 3K twill on the visible faces, supported by a heavier biaxial backing layer for rigidity, and finished in deep-gloss UV-stable lacquer. An exposed-weave matte alternative is offered for owners who want the fibre to read more obviously next to a satin paint finish.

The geometry is engineered around the C190's OEM rocker pinch-weld rail, so the inner mounting flange traces the factory line; no welding, no body cuts.

• Layup: autoclave-cured prepreg, 3K twill outer / biaxial backing
• Wall thickness 2.6–3.2 mm with thicker landing pads at mounting points
• Pair weight ~5.4 kg (left and right combined), versus heavier OEM plastic sill cladding
• Finish: deep-gloss UV-clear lacquer (default) or exposed-weave matte clear
• Hardware: stainless threaded inserts, M6 captive nuts, body-coloured trim plugs
• Adhesive: Mansory-spec polyurethane bond pre-applied to the upper flange land
• Splash edge: integrated drip lip routes water rearward of the door aperture
• Underbody face: textured finish to scatter underbody flow rather than reflect it

Design & Visual Function

Side skirts on the AMG GT do three jobs at once. Visually, they lower the apparent ride height by 25–35 mm without touching the suspension; the eye reads the lower edge of the carbon, not the rocker pinch-weld behind it. Aerodynamically, they form a continuous edge that prevents high-pressure air spilling out from under the front-lip and rolling up the door, which in turn keeps the flank clean for the rear haunch over the DCT transaxle. Functionally, they are the panel that takes every gravel-spit, every kerb-rash on a multi-storey ramp and every careless trolley swing in a hotel forecourt — the carbon laminate absorbs that abuse far better than thin OEM sill plastic.

The weave is laid so the twill diagonal runs forward-and-down as you read the panel from front arch to rear arch, echoing the leading-edge geometry of the front-lip and the side-lip secondary panel that sits inboard at the lower face. That continuity is why side skirts are almost never specified alone — they read best as a triple with side-lip and front-lip, which reinforces the wide-body-kit visual width that Mansory is targeting.

The upper edge of the skirt is intentionally drawn slightly higher into the door pressing than the OEM sill cladding, which masks any factory paint imperfections at the door-to-sill shut and shifts the eye upward, lengthening the visual wheelbase. The lower edge sits roughly 8–12 mm proud of the OEM sill bottom — enough to read as a clear lowering cue without compromising approach over kerbs.

Compatibility & Fitment

Engineered for the Mercedes-AMG GT (C190): GT, GT S, GT C, GT R, GT R Pro and Black Series, Coupé as primary fitment with Roadster sharing the same rocker geometry — Roadster owners should confirm the rear-arch transition with their installer where wide-body-kit haunches are also being fitted. The skirts are NOT compatible with the four-door AMG GT 63 (X290), which is a separate platform with a completely different rocker line, B-pillar position and underbody. OEM jacking points are preserved through the carbon flange (jack pads sit through purpose-cut reliefs), the AIRPANEL active underbody on GT R is unaffected because the skirts terminate above the floor-pan plane, and the OEM exhaust path under the rear haunch is untouched. Pre-facelift (2014–2017) and post-2017 Panamericana facelift cars share the same rocker pressing, so the skirts fit both — only the grille-branding parts care about the facelift split.

Installation & Reversibility

Allow 5–7 hours per pair in a properly equipped body shop. Tools: trim removal levers, T30 and T40 Torx, 10 mm and 13 mm sockets, masking tape, isopropyl panel-prep, 3M primer-94 promoter and a heat gun for the bond line. Sequence: remove OEM sill cladding (clip-on, no cuts), clean the rocker pinch-weld and the door-shut lower edge, dry-fit the carbon skirt with masking tape stand-offs to confirm shut-line alignment fore and aft, then bond the upper flange and torque the four mechanical fasteners per side. Reversibility is full — the OEM cladding clips back onto untouched factory mounts, no holes are drilled into structural metal. We strongly recommend an AMG-certified body shop for this part because the bond line cure window is short and the skirt's length amplifies any initial misalignment along the door shut.

Pairing within the Mansory AMG GT programme

Side skirts are the spine of the lower-body programme — they only fully resolve when fitted alongside the panels that meet them at each end. The natural triple is the skirts plus Side lip as the smaller secondary panel that finishes the inboard lower face of the rocker, and the Front lip which feeds clean air into the leading edge of the skirt. Owners running the full Wide body kit should specify the skirts at the same time so the haunch flare and the rocker line are laminated and finished as one production batch — colour-match on lacquer batches is the single biggest reason Mansory recommends ordering paired panels together rather than spread across two visits.

Maintenance & Durability

Lacquered carbon side skirts live in the worst real-estate on the car: ankle-height, downstream of the front tyres, in the line of every flying chip, salt-spatter and parking-bay kerb. Treat the lower 200 mm as a wear zone. Apply a self-healing PPF strip along the leading 300 mm and the lower edge — that single piece of film absorbs roughly 90% of the gravel pickup damage that would otherwise reach the lacquer. A good ceramic coat on top of the PPF (and on the bare lacquer above it) gives 18–24 months of easy-clean and a measurable UV-block which slows the yellow-shift that kills cheap clearcoats. Never use alkaline wheel-cleaner overspray on the skirt face: it eats the lacquer's UV inhibitors. Hand-mitt only on the carbon, no abrasive sponges, no brush snowfoam pre-rinses with traffic-film removers stronger than pH 10. If a stone chip cracks the lacquer, treat it within a week — water ingress under the lacquer onto the weave is the only failure mode that ends in a panel replacement rather than a polish-and-recoat. Carnauba waxes look pretty for two weeks but offer almost no mechanical defence; ceramic is the right answer here.

Lead Time & Warranty

Lead time 4–8 weeks from order confirmation. Each pair is laid up to the customer's specified finish (deep-gloss lacquer or exposed-weave matte) and serial-stamped before despatch. 12-month manufacturer warranty against laminate defects and bond-line failure under normal road use. Warranty excludes impact damage from kerb-strikes, gravel and parking incidents — that is what the PPF strip is for.

FAQ

Q: Do these fit a 2015 pre-facelift GT S as well as a 2019 GT R?
A: Yes. The C190 rocker pressing did not change at the 2017 facelift, so the skirts fit both — unlike the front-grill-mask which is Panamericana-only.

Q: How are side skirts different from the side lip?
A: The skirts are the long primary panel running door-to-door along the rocker. The side lip is a smaller secondary blade that sits inboard at the lower face of the skirt. They are designed to be specified together, not as alternatives.

Q: Will they clear a multi-storey ramp at standard ride height?
A: At OEM ride height, yes. The lower edge sits 8–12 mm proud of the factory sill, well within standard approach geometry. Lowered cars on coilovers should re-measure approach angle before fitting.

Q: Roadster fitment — same panel?
A: The rocker line is shared between Coupé and Roadster, so the skirt panel fits. Confirm with your installer where the rear-arch transition meets a wide-body-kit haunch flare on a Roadster spec.

Q: Can these be fitted to the four-door AMG GT 63 (X290)?
A: No. The X290 is a separate platform with a different rocker geometry, B-pillar location and underbody — these skirts are C190 two-door only.

Q: How much weight is saved versus OEM cladding?
A: Roughly 1.8–2.2 kg across the pair. Side skirts are not specified for weight savings — they are specified for stance, flank aero and visual continuity.

Pair the skirts with the side-lip and front-lip first, then layer in the wide-body-kit haunches when you are ready to commit to the full Mansory C190 silhouette. To order or to discuss a paired-panel production batch, reach us on WhatsApp +44 7488 818 747 or [email protected].
