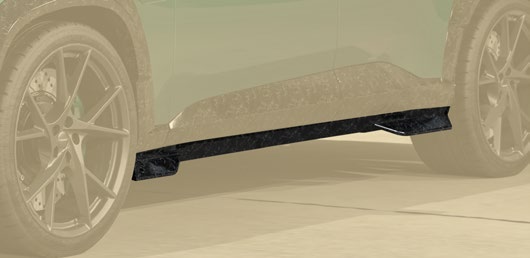

Running the full length of the BMW XM's sill between the front and rear wheel arches, the Mansory carbon side skirts lip is the lateral spine of the Mansory Carbon Fiber Body kit set for BMW XM. The sill zone is the most visually dominant feature of a wide-body SUV viewed in profile — it defines the visual floor from which the bodywork rises and determines whether the car reads as planted and purposeful or as sitting too high on its wheels. On the BMW XM G09, with its M xDrive AWD drivetrain package and the substantial ground clearance required for an SUV of ~2,750 kg kerb mass carrying a 25.7 kWh battery module beneath the cabin floor, the sill profile is necessarily taller than comparable M saloon or coupé applications. The Mansory side skirts lip resolves this by introducing a sharp carbon blade along the lower sill edge that shadows the tall sill panel, compresses its apparent height visually, and simultaneously manages the underbody airflow boundary layer between the front and rear wheel-arch turbulence zones. The S68 twin-turbo V8's underbody thermal management benefits from a more organised sill-to-underbody air transition, and the visual result is a dramatically lower-looking stance from the kerb.

Construction & Materials

The side skirts lip is produced from 3K twill carbon cloth in the same 200 g/m² areal weight specification as the front lip and roof spoiler, maintaining the diagonal weave rhythm across all exterior carbon elements when viewed in sequence from front to rear. The panels run 2,180 mm in full length per side — the longest single carbon extrusion in the programme — and require a multi-drape tooling strategy to achieve void-free consolidation across the full length without trapped air at the midspan bow. Mansory's solution uses a matched-metal tool split at the sill midpoint, with the two panel halves joined at an invisible seam location beneath the door intersection at the B-pillar zone.

The panel section is an asymmetric closed-section profile: the lower inward-facing flange carries the OEM clip-nut inserts, while the outward-facing blade nose runs 18–22 mm below the sill lower edge. An internal 2 mm aluminium stiffener bonded along the midspan section of each panel prevents long-term thermal sag — the side skirts are exposed to direct sunlight on horizontal sill surfaces for extended periods, and without a stiffener, unidirectional thermal load can induce creep in a pure-CFRP panel of this span.

• Outer weave: 3K twill 200 g/m² — consistent with front lip and roof spoiler weave specification
• Panel length: 2,180 mm per side — longest single piece in the Mansory BMW XM programme
• Manufacture: two matched-metal half-tools joined at B-pillar seam location; multi-drape layup
• Cure: autoclave 120 °C, 6 bar, 4-hour dwell
• Section geometry: asymmetric closed-section; blade nose projects 18–22 mm below sill lower edge
• Internal stiffener: 2 mm aluminium strip bonded along midspan to prevent thermal sag over long panel run
• Component weight: 2.8–3.4 kg per pair including mounting hardware
• Hardware: 8× OEM-position clip nuts per side, 2× M6 stainless studs at front and rear panel ends
• Finish: 2K polyurethane clear coat; satin variant available as panel-independent option per side

Design & Visual Function

The side skirts lip blade creates a continuous horizontal shadow line along the lower sill surface that visually reduces the perceived body height between the wheel arches by 35–45 mm — a significant correction for the XM's 837 mm sill height from ground to the door-skin character line. The shadow effect is achieved by a 22 mm vertical blade nose that undercuts the sill lower edge and creates a consistent shade gap that reads as a deliberate architectural recession rather than a trim piece. This optical correction aligns the XM's stance with the visual language of the M4 and M3 programmes despite the very different ground-clearance requirements of an SUV versus a low saloon.

Aerodynamically, the side skirts lip performs the boundary-layer management function in the mid-body underbody zone. Between the front wheel arch and the rear wheel arch, the underbody floor is the primary low-pressure energy reserve that the rear diffuser extracts — any lateral air ingress from the sides raises underbody pressure and attenuates the diffuser's suction work. The side skirts blade interrupts the lateral pressure equalisation path at sill height, acting as a fence that retains low-pressure underbody air between the wheel arches and channels it rearward into the diffuser entry zone. This interaction is most pronounced at motorway speeds when the boundary-layer thickness at the sill level creates a significant lateral pressure gradient.

In the context of the full Mansory body programme, the side skirts lip connects the front-fascia horizontal datum (set by the front lip) with the rear body-side horizontal datum (set by the arch extensions). When the full programme is viewed in profile, these three horizontal elements form a continuous carbon contour reference at the lower body that organises the XM's tall profile into a coherent visual architecture — the optical equivalent of a body-colour rocker panel treatment, but in carbon fibre with a distinctive textured surface.

Compatibility & Fitment

Confirmed fitment: BMW XM G09 2023-onwards, all trim variants including base XM (M Hybrid 644 hp / 800 Nm) and XM Label Red / 50 Jahre M (748 hp / 1000 Nm). LHD and RHD variants are identical — the G09 sill geometry is symmetric. The side skirts lip clips to the OEM lower sill clip-nut positions without drilling, preserving the factory sill's stone-chip protection film where fitted. Ground clearance at the blade nose is 175–185 mm from road surface at standard adaptive M Suspension ride height — adequate for urban kerb approaches when the 22° ramp angle is observed. The panel is compatible with factory M Sport side rocker panels and factory M Carbon body-side elements; Mansory verifies the profile against both sill configurations before releasing the production template.

Installation & Reversibility

Installation time is 40–60 minutes per side (80–120 minutes per pair) with the vehicle raised to provide access to the sill underside. Procedure: raise the vehicle; peel back the lower sill stone-chip film if present (re-apply after installation); remove the OEM clip-nut blanks from the sill lower edge using a trim pry tool; slide the Mansory panel into position from the rear end, aligning the front-end nose to the front wheel-arch liner boundary; clip the 8 OEM-position clip nuts per side; thread and torque the front and rear M6 studs to 8 Nm. No drilling is required. Removal fully reverses the process; the OEM sill surface and clip positions are restored without modification. Reinstallation of the stone-chip film is recommended after fitting to protect the sill surface exposed behind the skirts lip blade.

Pairing within the Mansory BMW XM programme

The side skirts lip is the mid-body connector between the front and rear aero components. It pairs architecturally with the Front lip Mansory for BMW XM, which sets the front horizontal datum that the skirts lip carries rearward, and with the Rear diffuser Mansory for BMW XM, whose boundary-layer intake efficiency is improved by the sill-level lateral airflow management the skirts lip provides. For owners adding the widebody package, the Fenders and door extension Mansory for BMW XM increases the body width in the arch zones above the sill lip, and the two components' lower-body carbon planes combine to create the full widebody stance graphic.

Maintenance & Durability

The side skirts lip is exposed to road spray, kerb-height stone chips along the blade nose, and UV radiation from the low sun angle on the outward-facing blade surface. The 18–22 mm blade nose projection places the trailing edge within the splash zone for rear-wheel mud spray in wet conditions — rinse this face thoroughly before contact washing to avoid abrasive grit trapping in the narrow blade-to-sill shadow gap. The internal aluminium midspan stiffener prevents thermal sag but should be inspected for corrosion at the adhesive bond line if the panel has been subjected to de-icing chemical road salt. Apply SiO₂ ceramic sealant along the blade face after each detail session; the low-mounted horizontal surface accumulates road film faster than any other exterior panel. For chips to the blade nose, use Mansory's carbon touch-up pen promptly — the 18 mm horizontal nose face is the most exposed surface to kerb-approach stone contact, and untreated chips expose cut-fibre ends to moisture.

Lead Time & Warranty

Lead time for the Mansory side skirts lip pair is 2–3 weeks from confirmed order, covering the dual-half tooling setup, autoclave cure, aluminium stiffener bonding, CNC trimming, and pre-delivery panel-length verification. The 12-month manufacturing warranty covers panel delamination, aluminium stiffener bond failure, void formation, clear-coat crazing, and clip-nut thread failure. Blade-nose stone-chip damage and kerb impact are excluded, as the blade nose position is inherently exposed to these contact events in normal urban use.

FAQ

Q: Does the side skirts lip reduce the XM's ground clearance?
A: The blade nose projects 18–22 mm below the sill lower edge, but the G09 sill itself sits at 175–185 mm above the road surface at standard adaptive M Suspension ride height. The blade nose therefore remains at 153–167 mm above the road — above the minimum ground clearance of most urban kerbs (typically 120–150 mm). For off-road or high-kerb environments, removing the lip before traversing is recommended.

Q: Is the panel supplied as a matched pair or can a single side be ordered?
A: The side skirts lip is manufactured as a matched left/right pair in the same lacquer batch to guarantee colour-consistency between sides. Single-side orders are possible if one panel is damaged and requires replacement — contact our team with your original order reference and we will manufacture a matched replacement unit.

Q: Can the side skirts lip be fitted alongside the factory M Carbon side sill extension?
A: Yes — the Mansory side skirts lip clips to the OEM sill clip positions at the lower edge of the factory sill structure. The M Carbon side sill extension, where fitted, occupies a higher position on the sill face and does not share clip positions or conflict with the Mansory lower blade. Both elements can be fitted simultaneously.

Q: How does the internal aluminium stiffener affect the overall weight?
A: The 2 mm aluminium strip adds approximately 0.3 kg per panel to the total weight versus a pure-CFRP construction. At the component's 2.8–3.4 kg total pair weight, the stiffener represents roughly 18% of the total — a worthwhile trade for the prevention of midspan thermal sag on the programme's longest external panel.
