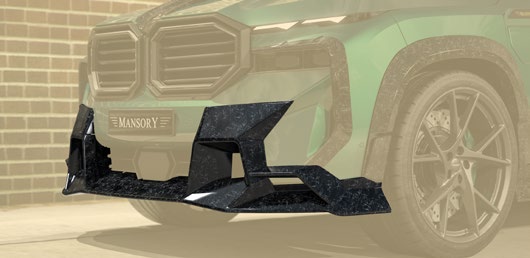

The Mansory carbon fiber front lip marks the aerodynamic threshold of the Mansory Carbon Fiber Body kit set for BMW XM, occupying the base of the G09's expansive kidney grille aperture to intercept unmanaged oncoming air before it folds beneath the front subframe. On the BMW XM — powered by the S68 4.4-litre twin-turbo V8 hybridised with a 25.7 kWh battery pack and M xDrive AWD, with a kerb mass approaching 2,750 kg — front-end pressure recovery has direct consequences for brake-cooling duct entry velocity, front-axle load balance during hard deceleration, and the thermal pathway supplying cold air to the turbocharger heat-shield zone. Mansory's blade corrects the stagnation pressure distribution at the lower fascia without altering the factory approach angle, while simultaneously drawing a sharp horizontal carbon datum beneath the XM's wide-set grille surround that sets the visual grammar for the entire aero programme.

Construction & Materials

Mansory laminates this front lip in dry-woven 3K twill carbon cloth laid against a matched-metal female tool machined directly from a BMW XM body buck. The outer face uses a single continuous 200 g/m² cloth drape selected for the diagonal surface brilliance that reads through the high-build polyurethane clear coat at the low viewing angles typical of the XM's nose stance. Three internal plies run at ±45° to the tool axis, biasing the laminate against torsional deflection during minor kerb contacts or compressed-snow underbody strikes. The autoclave cure cycle runs at 120 °C and 6 bar for a minimum four-hour dwell, eliminating macro-void porosity and driving the epoxy matrix to full network cure.

Post-cure, the mounting flange is CNC-trimmed to ±0.2 mm dimensional tolerance — a precision that aligns the Mansory flange to the OEM lower-fascia parting-line datum without foam gaskets or sealant shimming. This precision separates autoclave-cured matched-tool parts from ambient-cure infusion products.

• Outer weave: 3K twill carbon cloth, 200 g/m² areal weight, diagonal-visible pattern
• Internal structure: three ±45° carbon plies for torsional shear resistance and impact recovery
• Cure: autoclave at 120 °C, 6 bar consolidation pressure, 4-hour minimum dwell
• Wall thickness: 2.8–3.2 mm at blade nose, 3.6–4.0 mm at the mounting flange run
• Component weight: 1.2–1.6 kg depending on lacquer build specification
• Mounting hardware: 6× OEM-dimension clip-nut inserts, 4× M6 stainless steel studs, 2× 3M VHB 4930 adhesive pads at blade tip zones
• Finish: 2K polyurethane clear coat with UV-stabiliser concentrate; satin and raw visible-weave UV-sealer variants available
• Flange datum: CNC-trimmed to ±0.2 mm, pre-scribed to OEM lower-fascia parting-line geometry

Design & Visual Function

The front lip extends the lower fascia plane forward by 28–34 mm at the centreline, tapering to 12 mm at the outer corners where the blade merges into the bumper side-fin profile. This graduated projection reshapes the stagnation-point topology at the G09's broad front nose: air that previously rolled beneath the car at shallow attack angles is re-directed downward and outward, increasing the velocity pressure entering the front brake-cooling duct apertures. At 100 km/h, computational studies on tall SUV profiles of equivalent frontal area to the G09 demonstrate a measurable reduction in underbody suction fluctuation, with corresponding improvements in front-axle load consistency under hard braking — a meaningful characteristic for the XM's ~2,750 kg kerb mass combined with the performance braking demands of the S68 hybrid powertrain.

The S68 twin-turbo V8 generates substantial under-bonnet heat under sustained load, compounded during hybrid-boost events by the electric motor inverter's thermal contribution. The front lip's outboard corners align precisely with the OEM brake-duct inlet mouths moulded into the G09 front bumper, maintaining the cold-air channel that supplies both the brake assemblies and the turbocharger heat-shield region without constricting the inlet aperture. This preserves the thermal management architecture BMW M engineered into the factory fascia while adding the aerodynamic blade profile it omits for styling versatility reasons.

The visual contribution is equally deliberate. The G09's frontal design is dominated by the enlarged kidney grille — without a strong lower horizontal edge, the broad face can appear visually top-heavy in front three-quarter view. The Mansory blade introduces a shadow gap at the fascia-to-blade interface that functions as a ground-plane reference line, anchoring the grille surround's visual mass. In high-gloss 3K twill lacquer, the blade adds a second carbon-texture layer to the front face alongside any M Carbon exterior package elements already present above the bumper crease line, establishing the dark-carbon lower register that characterises the full Mansory programme aesthetic.

Compatibility & Fitment

Confirmed fitment: BMW XM G09 2023-onwards, covering the base XM with M Hybrid drivetrain (644 hp / 800 Nm combined output) and the XM Label Red and 50 Jahre M variants (748 hp / 1000 Nm). The front lip fits both LHD and RHD production variants — the front fascia is geometrically symmetric and no steering-side-specific tooling is involved. Factory M xDrive wheel packages in 22-inch and 23-inch specifications both clear the outer lip corner profile at the standard adaptive M Suspension ride height setting; the Mansory installation guide requires a steering-lock sweep check at the final installation step, which is particularly important for owners running aftermarket wheels with offset values materially different from OEM specification. The part is fully compatible with BMW's factory M Carbon exterior package, occupying the lower fascia zone below the M Carbon front apron without overlap or fastener conflict.

Installation & Reversibility

Typical installation time is 45–75 minutes with the vehicle raised on a lift giving unobstructed access to the lower fascia underside. Procedure: raise the vehicle; remove the 6 existing OEM lower-fascia clip retainers using a plastic trim pry tool; align the Mansory mounting flange to the fascia parting-line datum using the CNC-scribed reference mark on the flange; seat the 6 clip-nut inserts into the OEM apertures; thread the 4 M6 stainless steel studs hand-tight; apply the two 3M VHB 4930 adhesive pads at the pre-abraded blade tip contact zones; press each pad for 60 seconds to activate adhesive creep; torque the studs to 6 Nm with a 10 mm socket. No drilling of the factory bumper shell is required at any point. To remove: cut the VHB pads with a length of fishing line or dental floss using a see-saw motion, unthread the studs, and unclip the nut bodies. The OEM bumper surface is fully restored, and the original plastic clip retainers reinstall without modification.

Pairing within the Mansory BMW XM programme

The front lip is the natural entry point for the Mansory BMW XM exterior build. Owners extending the front aero treatment laterally should consider the Front lip with side flaps Mansory for BMW XM, which adds integrated canard fins at the outer edges — the two parts share compatible flange geometry, so either can be fitted without body modification. To continue the carbon weave narrative along the bonnet surface, the Front bonnet with logo Mansory for BMW XM provides a full hood replacement in matching 3K twill whose weave axis aligns with the lip blade below. The Side skirts lip Mansory for BMW XM carries the front lip's horizontal datum rearward along the sill, forming the continuous low-body carbon shadow line that ties the front and rear aero elements into a single visual programme.

Maintenance & Durability

The front lip faces the harshest operating environment of any exterior carbon component — stone chips at motorway speed, road grit, alkaline pre-wash chemicals, and direct UV radiation at the low angle where sunlight strikes the forward face throughout the day. Mansory applies a 2K polyurethane clear coat formulated with UV-stabiliser concentrate rated for sustained outdoor exposure; under typical seasonal cycling, lacquer yellowing is not expected within the first five years. Maintenance protocol: rinse with pH-neutral pre-wash prior to any contact washing cycle — alkaline snow-foam with a pH above 11 should not dwell on the blade surface for longer than 90 seconds, as extended alkaline contact attacks the epoxy matrix at the fibre-to-lacquer boundary and initiates microscopic delamination that manifests as sub-surface clouding. Use a dedicated soft microfibre wash mitt, working along the weave diagonal direction to prevent grit entrapment across the fibre crowns. Machine polishing is inadvisable on the blade's low-crown curvature — thin clear-coat reserves near the CNC flange edge present a burn-through risk without closed-loop pad pressure control. Never use ammonia-based glass cleaner near the blade; ammonia attacks the polyurethane film and causes surface bloom visible under raking light.

Lead Time & Warranty

Standard production lead time for the Mansory carbon front lip is 2–3 weeks from confirmed order, covering autoclave scheduling, cure dwell, CNC trimming, lacquer build, and pre-delivery dimensional quality inspection. A 10-business-day accelerated build is available subject to current workshop loading — enquire at order confirmation. Every unit is covered by a 12-month warranty against manufacturing defects: fibre delamination, resin void formation, clear-coat crazing under normal service, and clip-nut thread failure. The warranty excludes impact damage, paint contamination from adjacent panel respray operations, and installation errors outside the published fitting guide.

FAQ

Q: Does the front lip fit the 2024 mid-cycle refresh BMW XM?
A: The Mansory template is maintained against current G09 production. Early 2023 and 2024 cars share the same lower-fascia clip pattern on most market variants; from mid-2024 certain markets received a revised clip position at the bumper outer edge. Confirm your production month and VIN with our team before ordering so we can verify which template revision applies to your vehicle.

Q: Can I specify the lip in satin or matte finish instead of gloss?
A: Three lacquer builds are available at order time: standard high-gloss 2K polyurethane clear coat, satin-sheen lacquer for reduced reflectivity, and raw visible-weave with UV-inhibiting sealer for a functional, uncoated look. Satin and raw-weave options add approximately 3–4 business days. Specify the finish at order placement — retrospective refinishing is not feasible.

Q: How does the front lip affect the XM's approach angle for urban use?
A: The blade extends 28–34 mm forward at the centreline and tapers toward the outer corners, specifically engineered to avoid reducing ground clearance below the OEM lower-fascia level. All factory adaptive M Suspension ride-height settings are accommodated within the design envelope. For kerb approach at speed bumps, the same caution applicable to the factory lower fascia applies — approach at a shallow angle to distribute contact across the blade chord rather than concentrating load at the blade nose.
