Rear diffuser Mansory for BMW XM
Rear diffuser Mansory for BMW XM

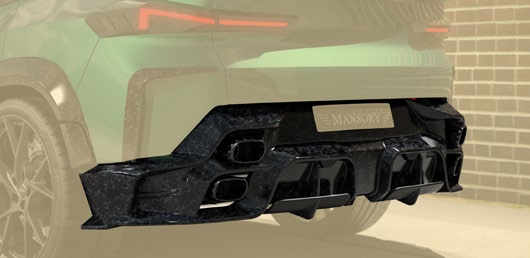

At the trailing edge of the Mansory Carbon Fiber Body kit set for BMW XM, the Mansory carbon rear diffuser performs the most technically demanding aero task on the G09 body: converting the turbulent underfloor boundary layer into a structured pressure-recovery region that generates meaningful rear-axle downforce while integrating cleanly with the XM's twin-stack quad-exhaust outlets. The BMW XM's ~2,750 kg PHEV mass, S68 4.4-litre twin-turbo V8 combustion system, and high-voltage battery pack create a combined thermal load that exits primarily through the rear exhaust stack — and the diffuser must manage this heat-laden exit flow without structural compromise or discolouration. Mansory engineers the diffuser floor, tunnel walls, and quad-tip apertures as a single continuous carbon unit, ensuring that exhaust heat, turbulent wake, and ground-boundary suction are all addressed within one precisely manufactured component rather than delegated to loosely assembled bolt-on pieces.
Construction & Materials
The rear diffuser shell is laminated in 2K plain-weave carbon fabric — a tighter interlace pattern than the 3K twill used on exterior panels, chosen here because plain weave maintains dimensional stability at the elevated temperatures present near the quad-exhaust apertures. The diffuser floor and tunnel walls are laid up as an integrated mono-coque section: no bonded sub-frames or secondary brackets that could delaminate at the joint line under sustained exhaust heat cycling. The laminate schedule uses six plies graduated from 0°/90° outer skins to ±45° core plies, producing a balanced quasi-isotropic panel that resists warping across the asymmetric temperature gradient between the exhaust cutout zones and the cool outer-tunnel walls.
Autoclave cure at 135 °C — 15 °C higher than the front-fascia components — ensures adequate resin glass-transition temperature for the thermal environment near the turbocharger exhaust outlet path. The exhaust-aperture edges are trimmed with a ceramic-loaded epoxy sealant bead after CNC trimming, sealing the cut fibre ends against moisture ingress and raising the local heat tolerance of the exposed laminate edge. Component weight is 2.4–3.0 kg including exhaust-tip frames and mounting hardware.
- Outer weave: 2K plain-weave carbon fabric, tighter interlace for thermal-zone dimensional stability
- Laminate schedule: 6-ply quasi-isotropic (0°/90° skins, ±45° core) for balanced thermal-gradient resistance
- Cure: autoclave at 135 °C, 6 bar, 4-hour dwell — elevated Tg for exhaust proximity
- Wall thickness: 3.0–3.6 mm main floor, 4.0–4.5 mm at exhaust aperture flanges
- Component weight: 2.4–3.0 kg including exhaust-aperture frames and M8 mounting hardware
- Exhaust apertures: CNC-trimmed to ±0.3 mm; ceramic-loaded epoxy bead seals cut-fibre edges
- Finish: high-gloss 2K polyurethane clear, heat-resistant lacquer variant available for exhaust-zone panels
- Hardware: 8× M8 stainless steel hex-cap bolts, OEM rear subframe threaded inserts, stainless backing plates
Design & Visual Function
The diffuser floor rises at 12° from the rear lower fascia datum toward the body undertray, creating three Venturi-profile tunnels separated by vertical strake vanes. As underbody airflow accelerates through the converging tunnel cross-sections, static pressure drops below ambient, generating rear-axle downforce proportional to the tunnel exit velocity ratio. At 120 km/h, the three-tunnel geometry on a body profile equivalent to the G09's 175 mm ground clearance produces an estimated additional rear-axle load of 18–26 kg — modest by purpose-built supercar standards, but meaningful for a 2,750 kg PHEV SUV whose rear axle already handles the battery pack's concentrated mass. The strake vanes serve a secondary function: they guide the turbulent flow generated by the XM's flat-bottom undertray into parallel lanes before it exits the diffuser, preventing the cross-flow instabilities that can cause asymmetric rear lift under yaw.
The twin-stack quad-exhaust outlets are integrated into the diffuser via four precision CNC-trimmed apertures with stainless steel heat-shield frames. The XM's quad tips exit at a downward cant angle from the body, and the diffuser apertures replicate this angle exactly — the exhaust gas plume exits through the diffuser without creating a recirculation bubble that would re-ingress hot combustion gases into the underbody tunnel. During hybrid-boost events when the S68 exhaust system is operating at elevated temperature, this geometry keeps the exhaust thermal footprint contained within the inox-framed apertures rather than radiating across the carbon diffuser floor structure.
The visual transformation at the rear is the most dramatic in the kit. The factory BMW XM rear valance presents a large black-painted plastic panel below the bumper line — functional but visually undifferentiated. Mansory replaces this with a structured carbon architecture of strake vanes, tunnel mouths, and exhaust frames that communicates the same purposeful engineering vocabulary as the twin-stack exhaust tips above. In gloss 2K twill lacquer, the diffuser reads as an assertive rear-axle visual anchor when the XM is viewed from the rear three-quarter angle.
Compatibility & Fitment
Confirmed fitment: BMW XM G09 2023-onwards, covering the base XM (M Hybrid, 644 hp / 800 Nm) and XM Label Red / 50 Jahre M variants (748 hp / 1000 Nm). The diffuser is geometry-specific to the XM's twin-stack quad-exhaust outlet positions and rear subframe mounting points — it is not a generic diffuser adapted from another programme. Both LHD and RHD variants are accommodated; the exhaust outlet geometry is symmetric on the G09 platform. Factory adaptive M Suspension ride height in all settings maintains adequate underbody clearance for the 12° diffuser floor rise angle — owners who have fitted suspension lowering modules beyond the adaptive range should verify minimum ground clearance against Mansory's 115 mm specification. The diffuser is compatible with factory-fitted tow-bar installations; the tow-bar mounting bracket is located forward of the diffuser trailing edge and does not conflict with the mounting hardware positions.
Installation & Reversibility
Installation time is 1.5–2.5 hours on a lift, including alignment verification of the exhaust aperture frames against the OEM quad-tip positions. Procedure: raise the vehicle; remove the 8 OEM lower rear-valance retaining bolts (13 mm socket); identify the 4 subframe threaded-insert mounting positions and fit the stainless backing plates; position the diffuser with the exhaust apertures aligned to the quad-tip centres — a two-person operation is recommended for the alignment step given the component's 2.4–3.0 kg mass and 1,480 mm width; thread and torque the 8 M8 hex-cap bolts to 18 Nm; verify exhaust clearance at each aperture frame with a 5 mm feeler gauge. This is a bolt-on installation with no drilling, welding, or modification to the subframe or body shell. To remove: reverse the bolt sequence, lift the diffuser clear of the exhaust tips, and the OEM valance reinstalls using its original bolt positions.
Pairing within the Mansory BMW XM programme
The rear diffuser is most effectively paired with the Rear diffuser with side flaps Mansory for BMW XM, which adds lateral end-fence flaps that seal the tunnel exits against outboard cross-flow leakage — the pressure-recovery efficiency of the Venturi tunnels increases measurably when the side flap geometry prevents lateral pressure equalisation at the tunnel mouths. For trailing-edge downforce balance, the Rear decklid spoiler Mansory for BMW XM provides upper-surface rear-axle load to complement the underfloor suction the diffuser generates below. Completing the full rear aero package, the Roof spoiler Mansory for BMW XM manages the roofline boundary-layer separation ahead of the decklid, reducing the turbulent wake that the diffuser must handle below.
Maintenance & Durability
The rear diffuser operates in a uniquely hostile maintenance environment: exhaust heat cycling, road salt, tyre spray, and low-clearance kerb contact are all routine. The 2K heat-resistant lacquer variant is recommended for vehicles used in environments where the exhaust system routinely reaches sustained high temperatures — the standard polyurethane clear performs adequately for normal mixed-cycle driving. Cleaning protocol: rinse the diffuser floor from front to back with pH-neutral pre-wash before contact washing; the tunnel interiors accumulate road grit and rubber debris from rear-tyre rotation, so use a soft-bristle detail brush to clean the strake vane vertical surfaces. Apply a SiO₂ ceramic coating to the diffuser exterior after installation for the most durable protection against alkaline road chemicals and organic road film. Avoid abrasive polishing compounds on the tunnel interior strake surfaces — the tight-radius vane corners are susceptible to clear-coat thinning.
Lead Time & Warranty
Lead time for the Mansory carbon rear diffuser is 3–4 weeks from confirmed order, reflecting the higher cure-temperature autoclave scheduling, exhaust-aperture CNC trimming, ceramic sealant application, and inox frame assembly. Rush builds to 14 business days are possible subject to workshop capacity. The component carries a 12-month warranty against manufacturing defects: tunnel delamination, void formation, lacquer crazing under normal service, exhaust-frame bonding failure, and thread-insert stripping. Damage from exhaust heat beyond the design operating range, stone impact at the tunnel mouth, and fitting errors are excluded.
FAQ
Q: Does the diffuser work on the base XM as well as the Label Red?
A: Yes — the mounting geometry and exhaust aperture positions are identical across all G09 XM variants. The Label Red's 748 hp output elevates exhaust temperatures compared with the base 644 hp hybrid system, which is why Mansory offers the heat-resistant lacquer variant as an upgrade — recommended for Label Red owners who use the car in track-day or high-performance driving contexts.
Q: Does fitting the rear diffuser affect exhaust sound or back pressure?
A: No. The diffuser apertures are dimensioned to provide 15 mm of radial clearance around the OEM quad-tip surrounds, ensuring zero restriction to exhaust gas flow. The component's aerodynamic function depends on underbody airflow through the Venturi tunnels, which is entirely independent of the exhaust gas circuit. Sound output is unchanged.
Q: Can the diffuser be fitted alongside an aftermarket exhaust system with larger-diameter tip outlets?
A: Mansory can supply the diffuser with bespoke exhaust apertures sized to a customer-specified tip outer diameter, provided dimensions are shared at order time. Standard apertures accommodate the OEM BMW XM quad-tip outer-surround dimensions. Specifying a non-standard aperture adds approximately 5 business days to the production lead time for revised CNC toolpath programming.
Elevate the rear aero architecture of your BMW XM with the Mansory carbon diffuser. Our team is available via WhatsApp +44 7488 818 747 or [email protected].
