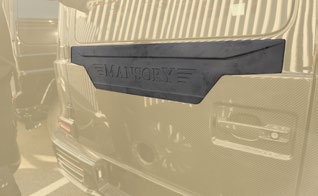

Rear door panel for Mercedes G-class W463A Gronos

Rear Door Panel for Mercedes G-Class W463A Gronos

The rear door of the W463A G-Wagon is not a conventional liftgate — it is a side-hinged door mounted on the nearside or offside depending on market specification, carrying the spare wheel on its outer face and providing swing-out access to the rear loading area. The outer body surface of this door — the flat steel panel that frames the spare wheel carrier on its upper, lower, and lateral edges — is one of the largest uninterrupted flat panels on the G-Wagon's exterior, exceeded in area only by the main door panels on the side body. The Rear Door Panel from the Mansory Body Kit for Mercedes G-Class W463A Gronos replaces this steel panel — or overlays it — with a precision-formed carbon-fibre face panel that brings the Gronos material language to the W463A's rear face, surrounding the spare wheel carrier in visible carbon and transforming the rear elevation from a utilitarian flat surface to a purposeful programme-identified finish.

Construction & Materials

The Rear Door Panel is available in two configurations: as a full replacement panel that substitutes for the OEM steel outer door panel (including all OEM surface features — spare wheel carrier mounting aperture, handle recess, and number plate illumination surround), and as an overlay panel that bonds over the existing OEM steel panel using a combination of structural 3M VHB tape and perimeter stainless-steel clip retention. The full replacement configuration requires bodyshop access to the door's inner structure for OEM panel removal; the overlay configuration can be installed by a competent installer without full bodyshop access and is therefore more practical for post-registration upgrades. Mansory supplies both formats; specify preferred configuration at order.

Both configurations use the same 3K twill prepreg carbon outer visible face, autoclave-cured at 120 °C / 4 bar on a mould derived from the W463A door's outer surface geometry. The panel spans the full door face from the hinge-side edge to the latch-side edge and from the door top flange to the door sill frame, with precision apertures for the spare wheel carrier mounting bolts, the door exterior handle, and the number plate illumination lamps. The weave is oriented fore-aft on the horizontal axis of the door panel — consistent with the W463A's slab-sided body's overall Gronos carbon horizontal language at the door zone.

• Configuration options: full OEM-panel replacement (bodyshop fitting) or overlay (installer fitting with VHB + clips)
• Laminate: 3K twill prepreg carbon, autoclave 120 °C / 4 bar — full-door span with apertures for carrier bolts, handle recess, and number plate lamps
• Weave orientation: horizontal fore-aft on door's long axis — continuous with Gronos door panel language at the side body
• Wall thickness full-panel: 1.8–2.2 mm body; 2.6–3.0 mm at spare wheel carrier aperture edges and hinge attachment zones
• Overlay retention: structural 3M VHB at primary contact zones; stainless-steel perimeter clips at door edges — peel force exceeds 40 N/cm² on factory automotive clearcoat
• Weight full-panel replacement: approximately 8–12 kg — versus OEM steel door outer panel approximately 18–24 kg; approximately 10–12 kg saving
• Clearcoat: dual-layer UV-stable gloss lacquer at 35–45 µm DFT; satin/matte on request
• Supplied: single panel (the W463A has one spare-wheel-carrying rear door)

Design & Visual Function

The rear door panel is the single largest carbon-fibre panel in the Gronos exterior programme. Its flat, near-square geometry — approximately 1,000 mm wide and 1,400 mm tall on the W463A — is the most demanding carbon-weave alignment challenge in the kit because the panel's large area makes any weave direction inconsistency, fibre bundle interruption, or surface void immediately visible from any approach angle. Mansory's laminate team uses a single-piece prepreg lay-up for the main panel area, with no weave joins across the primary visible surface except at the cut apertures for the spare wheel carrier and handle recess. This single-piece approach is more wasteful of material than a multi-piece lay-up but eliminates the visible seam line that multi-piece panels produce at their junction, which on a 1,400 mm panel height would appear at approximately mid-height — an aesthetically unacceptable interruption at the rear elevation's dominant panel.

With the Spare Wheel Cover II mounted at the panel's centrepoint — the spare wheel carrier aperture — the Rear Door Panel becomes the carbon field that frames and contextualises the cover. The relationship between the panel's flat weave field and the cover's concentric radial weave creates a tension between two carbon textures: the horizontal fore-aft linear programme of the panel versus the circular radial programme of the cover. This tension resolves the rear face as a composed carbon canvas with a clear hierarchy — the linear horizontal field as background, the circular radial cover as focal point — that gives the G-Wagon's rear elevation a sophistication that a uniformly textured surface cannot achieve.

At night, when the W463A is rear-lit by following headlamps, the rear door panel's large flat surface catches the full beam of the following vehicle's lights and reflects the 3K twill weave pattern across its entire span. This night-time behaviour — the rear door panel reflecting approaching headlights across its carbon surface — is one of the most distinctive characteristics of a fully specified Gronos rear elevation and is difficult to describe in static photography but immediately apparent in real-world traffic conditions.

Compatibility & Fitment

The Rear Door Panel is specific to the Mercedes-Benz G-Class W463A 2018 to present. The W463A's rear door swings to the right (RHD) or left (LHD) depending on market specification — the door panel aperture geometry for the handle and carrier is configured for the W463A's specific hinge-side orientation. Specify LHD or RHD configuration at order. Post-2024 facelift W463A is compatible. Not compatible with the pre-2018 W463 rear door geometry.

Installation & Reversibility

Full-panel replacement requires a bodyshop with access tools for the W463A door's inner structure, exterior door handle removal, and the door hinge area — typically a 4–6 hour job at a Mercedes-Benz approved facility. The OEM steel outer panel is removed, handle and number plate lamps transferred, and the carbon replacement panel is installed using OEM hardware plus the Mansory-supplied hinge-zone reinforcement brackets. Overlay configuration installation is 2–3 hours: IPA-clean the OEM panel surface, apply VHB pads at the eight primary contact zones, position the overlay panel with the supplied alignment guides to ensure spare wheel carrier aperture and handle aperture align precisely with OEM provisions, press all VHB zones, then engage all perimeter clips. Both configurations are reversible, though full-panel replacement requires the bodyshop for OEM panel re-installation.

Pairing within the Mansory Gronos programme

The rear door panel pairs directly with the spare wheel zone components. The Spare Wheel Cover II is the natural co-specification — the carbon panel as the field, the carbon cover as the centrepiece. For rear-face visual framing at the lamp clusters, the Rear Light Protection Cover applies Gronos carbon treatment to the lamp cluster surrounds that flank the door panel in the rear elevation. For door-shoulder material continuity on the side body, the Carbon Mirror Housing aligns the shoulder-zone carbon with the rear door panel programme.

Maintenance & Durability

The rear door panel's large flat surface is the easiest Gronos exterior component to wash correctly because its uninterrupted area allows long, straight wash strokes following the horizontal weave. Use a large-format microfibre mitt and a top-to-bottom-to-top wash stroke pattern across the panel's full width, covering the panel's height in three or four passes. Rinse the mitt between each pass to prevent grit recirculation from the lower panel sections (which accumulate higher debris density from rear-tyre rooster splash) onto the upper panel face. The spare wheel carrier aperture edge is the highest stone-chip risk zone on the panel — the aperture edge projects into the airstream from the underside of the spare wheel and intercepts stone deflections from the rear tyres of the following vehicle. Inspect this edge after motorway running and treat chips immediately.

The overlay panel's VHB and clip retention system should be inspected annually by lightly pressing the panel edges to confirm there is no delamination from the OEM door surface — any hollow sound or flex at the panel edge indicates a VHB zone loss that should be addressed by re-bonding through the accessible perimeter clips. On full-replacement panels, check the hinge-zone reinforcement brackets annually for any corrosion at the bracket-to-body contact faces — anti-corrosion treatment at these contact points during installation prevents moisture accumulation.

Lead Time & Warranty

Lead time for the Rear Door Panel is 3–5 weeks from order, reflecting the large panel dimension and the single-piece lay-up requirement. 12-month warranty against delamination, clearcoat adhesion failures, dimensional aperture misalignment, and VHB/clip retention failures.

FAQ

Q: Is the full-panel replacement significantly better than the overlay for long-term fitment?
A: The full-panel replacement provides a permanent, body-shell-integrated fitment with no VHB/clip retention dependency. For high-mileage, all-weather use or if the W463A is used off-road regularly, the full-panel replacement is the more durable specification. The overlay is equally visually finished and suitable for road use.

Q: How does the rear door panel handle the door-swing cycle — does flexing crack the clearcoat?
A: The W463A's rear door swing cycle generates low stress in the outer panel because the door is hinged at its lateral edge rather than the top edge. The panel's flexural mode during opening is a longitudinal bow, which the carbon laminate's in-plane stiffness resists effectively. Clearcoat cracking from door swing is not expected under normal cycle rates.

Q: Is the number plate aperture pre-cut for EU plate format, or other formats?
A: The standard number plate aperture is sized for the standard ISO plate format used across most markets. If a different plate format is required, specify at order — Mansory can adjust the aperture geometry within the mould's trim capability.

Q: Does the overlay panel add any noticeable weight to the rear door's swing cycle?
A: The overlay panel weighs approximately 5–7 kg, which is less than half the weight of the OEM steel panel it sits over. The rear door hinge and latch are engineered for the full OEM panel and spare wheel assembly mass — the overlay's additional weight is within the hinge design envelope.

Q: Can the rear door panel be fitted on the W463A with the optional factory tow bar — does it clear the hitch receiver?
A: The rear door panel is fitted to the door outer surface, which swings clear of the tow bar receiver when the door is opened. There is no clearance interaction between the panel and the tow bar receiver with the door in the closed or open position on standard W463A tow bar geometries.

Specify panel configuration (full replacement or overlay) and door hinge side with the Hodoor Mansory team: Contact us via WhatsApp +44 7488 818 747 or [email protected].
