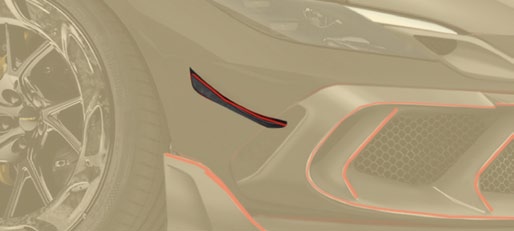

Race flaps — called canards or dive planes in aerodynamic engineering — derive their entire value from the coherent leading-edge vortex they generate at the outer corners of the front bumper. That vortex, trailing rearward from the flap tip into the front wheel arch, acts as a rotating fluid barrier that seals the boundary between the car's clean freestream and the chaotic turbulent flow produced by the rotating front tyre inside the wheel arch. The Mansory Carbon Fiber Body kit set for Ferrari 296 GTB includes these Mansory race flaps as the vortex-generating element of the front aero package. On the Ferrari 296 GTB — 830 hp combined from the F163 twin-turbo V6 and the 165 hp axial-flux electric motor, 8-speed dual-clutch transaxle, mid-rear transverse layout — the front tyre's high rotational speed above 200 km/h creates a substantial turbulent bubble inside the wheel arch that, if unmanaged, migrates rearward along the sill and contaminates the clean floor-bound boundary layer that the rear diffuser depends on. The race flaps interrupt this process at the wheel arch's leading edge, containing tyre-generated turbulence within the arch rather than allowing it to escape along the floor. The perceptible effect is improved aerodynamic balance in fast corner transitions — the front end's willingness to rotate correlates directly with the cleanliness of the underbody flow feeding the diffuser. Pair these with the Mansory front splitter and the Mansory side skirts I for a fully integrated front-to-rear aerodynamic chain.

Construction & Materials

Both flaps are laminated from 3K twill prepreg over male aluminium tooling shaped to the 296 GTB's outer bumper corner geometry, then autoclave-cured as matched pairs in the same oven run. Simultaneous cure of left and right is critical: any asymmetry in fibre orientation, resin distribution, or dimensional outcome between the two flaps produces an asymmetric vortex pair, which creates a net yaw moment that the 296 GTB's stability systems must constantly compensate for at high speed. Mansory's matched-pair cure protocol eliminates this risk at the manufacturing stage.

A 45°-biased unidirectional carbon insert is laminated into the flange-to-blade junction of each flap. This insert is a deliberate crack-propagation barrier: a stone impact that would otherwise drive a fracture from the blade's leading edge through to the bumper mounting structure will arrest at the insert boundary, limiting damage to the blade itself. The flange face uses the same OEM boss positions as the factory corner piece — two M6 stainless bolts per flap, zero new holes in the bumper.

• Weave: 3K twill prepreg — matched pair cured simultaneously; guaranteed aerodynamic symmetry left-right
• Cure: autoclave 120 °C / 5 bar, matched pair — fibre-volume fraction ≥60 %
• Crack barrier: 45° UD carbon insert at flange junction — contains stone-impact damage to blade, protects bumper structure
• Blade planform: swept delta, 120 mm × 80 mm × 4 mm — sized for the 296 GTB outer bumper corner aperture
• Tip washout: deliberate — vortex strongest at arch-inner corner, tapering outward across arch height
• Mass: 0.18 kg per flap, 0.36 kg per pair — negligible unsprung weight at front corners
• Mounting: 2 × M6 stainless bolts per flap into OEM boss — fully reversible, no drilling
• Finish: piano-gloss UV-stable clear lacquer; matte clear coat on request

Design & Visual Function

A race flap's aerodynamic action is dominated by its leading-edge vortex: as the oncoming airstream meets the flap's sharply angled leading edge, a vortex tube forms along the span, trailing rearward and downward into the wheel arch low-pressure cavity. This rotating column of air acts as a fluid wall — it is harder for the high-energy freestream to cross than a simple static surface, because the vortex' angular momentum actively resists lateral perturbation. The practical results are a reduction in pressure drag at the front axle corners, suppression of the turbulent bubble inside the wheel arch, and an improvement in the pressure gradient driving the underbody low-pressure zone that feeds the rear diffuser's Venturi. For the 296 GTB's PHEV battery cooling circuit — which relies on stable underbody pressure for the front heat exchanger's air-side performance — reduced wheel-arch pressure variation is a secondary but real benefit during sustained hybrid operation at track speeds.

The flap's planform is a swept delta with tip washout. The delta sweep sets the vortex-shedding angle to match the 296 GTB's outer bumper geometry at 180–250 km/h, the speed range where tyre turbulence management is most critical for lap time. The tip washout distributes the sealing vortex across the full height of the arch opening rather than concentrating it at a single point — the arch's upper region (closest to the sill) benefits as much as the lower region (closer to the road surface). Mansory's CFD analysis of the 296's outer bumper corner geometry at these speeds informed the specific sweep angle and planform dimensions.

Visually, the race flaps introduce the canard aesthetic of GT3 and prototype race cars — a look that translates the 296 GTB's competition DNA into road-legal bodywork. Seen from directly ahead, the angled blades frame the outer bumper corners in a forward-swept geometry that visually widens the car's face. From the side, the angular intrusion interrupts the bumper's smooth arc with a deliberate signal: this is an aerodynamically considered car, not merely decorated with carbon trim.

Compatibility & Fitment

Fits all Ferrari 296 GTB coupé (2022+), 296 GTS spider (2023+), and 296 Assetto Fiorano. Outer bumper corner boss positions are identical across all 296 configurations. The matched-pair design requires both left and right flaps to be installed simultaneously — a single-side installation creates the aerodynamic asymmetry the crack-barrier system otherwise prevents. Not affected by the front lift system, AF carbon underbody, or any factory bumper specification variant.

Installation & Reversibility

Two M6 stainless bolts per flap into OEM boss positions. Tool required: Torx T30 socket. Time: 15 minutes per pair. Fully reversible — the OEM corner pieces reinstall using the same boss holes.

Pairing within the Mansory 296 GTB programme

The race flaps produce maximum aerodynamic benefit in combination with the Mansory front splitter, which charges the underbody with accelerated air that the vortex seal then protects from arch contamination. The Mansory side skirts I extend the lateral seal that the race flap vortices initiate at the arch, carrying it rearward to the rear arch. The downstream beneficiary is the Mansory rear diffuser with brake light, which receives cleaner boundary-layer flow at higher velocity when the entire front-to-rear aero chain is installed correctly.

Maintenance & Durability

Race flaps at the outer bumper corners receive direct frontal stone strike from the road surface ahead. The 45° UD insert limits crack propagation, but the leading edge will accumulate chips over time and these should be sealed promptly with clear lacquer touch-up to prevent moisture ingress. Monthly pH-neutral wash and quarterly ceramic sealant application maintains the lacquered surface. The lightweight blade sections are vulnerable to lateral physical contact — parking-lot impacts with bollards or low walls are the most common point of damage. Because the flaps mount on two M6 bolts, replacement is fast and individual side units are available from Hodoor without requiring a pair replacement.

Lead Time & Warranty

Lead time: 2–3 weeks. Ships as a matched left-right pair — do not split the pair for installation. 12-month warranty against manufacturing delamination, fitment-preventing dimensional error, and crack-barrier delamination under normal aerodynamic load. Stone-strike and contact damage are excluded.

FAQ

Q: Are the race flaps rated for track use or are they road-only?
A: Designed and tested for track use on the 296 GTB. The UD crack barrier and M6 bolt mounting are structurally sound under track aerodynamic loads. Lateral contact with kerbing is the primary risk on track, not aerodynamic failure.

Q: Does fitting only one flap cause any handling issues?
A: Yes — an asymmetric vortex pair creates a yaw-bias that the stability system compensates for but which is undesirable in a performance context. Always fit the pair simultaneously.

Q: Will the flaps interfere with the front tyre at full steering lock?
A: No. The flaps are positioned at the outer bumper corner ahead of the wheel arch opening, outside the tyre's sweep arc at maximum steering lock on the factory steering stop.

Q: Should race flaps be fitted before or after the front splitter?
A: Either order works aerodynamically. Fitting the splitter first is common practice as it is the larger structural component and its installation accesses the same underside area.

Q: Can I order a replacement single blade if one is damaged?
A: Yes. Single-side replacement blades are available. Dimensional data is available from Mansory on request to verify aerodynamic symmetry between a new replacement blade and the surviving original.

Add the vortex-sealing aerodynamic edge of GT racing geometry to your 296 GTB. Reach our team via WhatsApp +44 7488 818 747 or email [email protected] to place your order.
