Mirror housing Mansory style Carbon for Audi RS Q8

Mirror Housing Mansory Style Carbon for Audi RS Q8

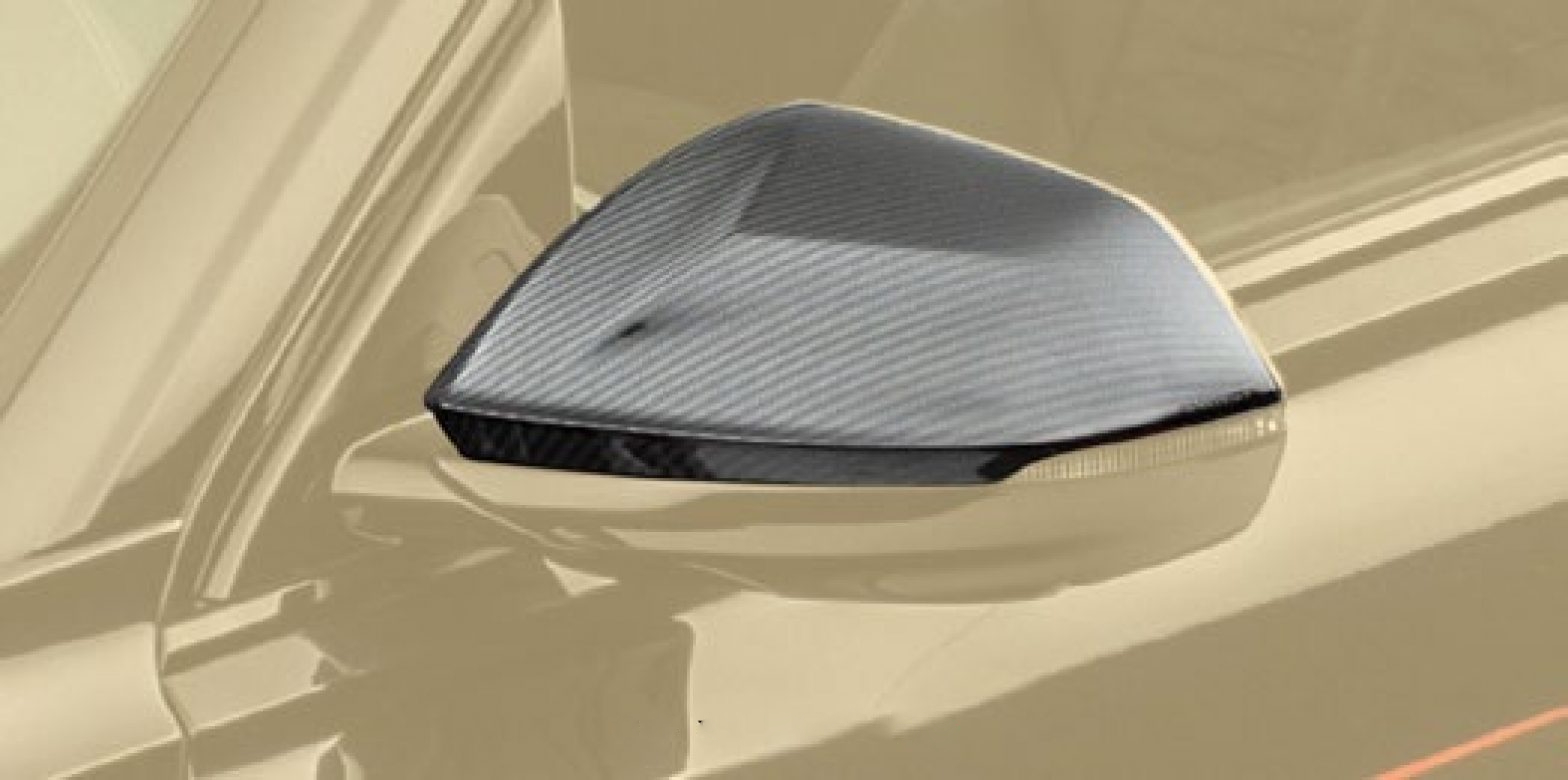

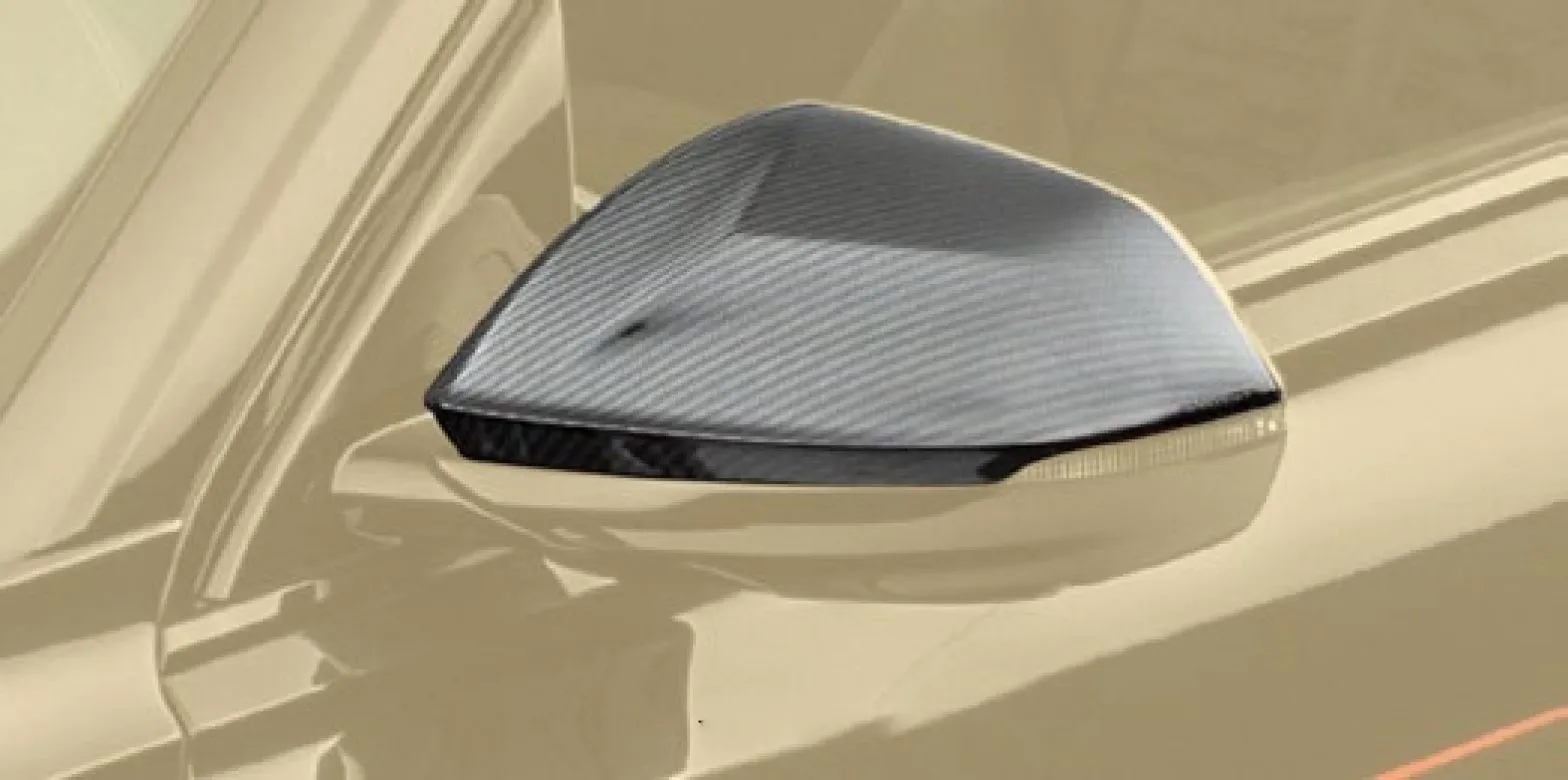

The Mansory-style carbon mirror housing pair sits at the most-photographed quarter of the Audi RS Q8 — the wing-mirror sail at the leading edge of the front door, framed by the quattro arch flare and the 22- or 23-inch wheel below. Within the wider Mansory Carbon Fiber Body kit set for Audi RS Q8 programme, this is the highest-visibility upgrade per square centimetre on the car: the cap occupies less than half a litre of volume and yet, because the door-mirror sits exactly at eye-line for a passing pedestrian and at the camera focal point of every dealership reveal photo, it does more for perceived intent than any single bumper detail. This Section B item is a Mansory-style replica — the geometry, weave grain and bevel set are copied from the genuine Mansory mirror cap, then re-laid in our own prepreg line. One revision; fits the 4M chassis from 2020 through the 2024+ Performance facelift without modification.

Construction & Materials

Each housing is a two-shell carbon shell — outer aerodynamic skin and inner mounting flange — bonded with structural epoxy and finished as a single visible-weave part. The pair is laid up over machined CNC tooling pulled from a 3D scan of the OEM RS Q8 mirror, then over-laid with the additional Mansory bevel rib and the lower drip-edge that defines the Mansory silhouette in profile. Full prepreg, autoclave-cured to 120 °C / 6 bar; no chopped strand, no hand wet lay anywhere on the visible face. The assembly clips onto the OEM mirror motor base using the Audi factory three-tab latch — no glue, no drilling, no donor mirror to sacrifice.

• Weave: 3K twill 2x2, 200 gsm, with the diagonal grain aligned to the door body line so the weave runs parallel to the shoulder crease — not to the ground
• Layup: 4-ply outer + 2-ply inner stiffening flange, total wall thickness 1.6–1.9 mm
• Cure: full autoclave, 120 °C, 6 bar, 90-minute hold; vacuum debulk between plies 2 and 3
• Pair weight: 480–520 g (vs ~720 g for the OEM plastic painted cap pair) — modest mass-reduction at the door pivot
• Mounting: OEM Audi three-tab latch, identical to factory cap; no adhesive, no drilling
• Finish: standard 2K UV-stable clear lacquer; matte and satin available on request
• Bevels: chamfered leading and trailing edges, 1.2 mm radius, hand-finished before lacquer
• Hardware included: replacement Audi clip set in case the OEM cap is removed roughly

Design & Visual Function

The wing mirror on a 4M-platform RS Q8 is an aerodynamically loaded shape. Audi's own engineering refines the housing for cabin-noise reduction at autobahn speed and for camera-line clearance for the side-assist radar packed inside the lower mirror foot. The Mansory geometry preserves both: the trailing-edge spoiler step that breaks airflow cleanly off the housing is retained, and the lower foot housing the radar antenna is left untouched in shape and material thickness. What the Mansory style adds is a visual lengthening — a fuller leading bevel and a sharper drip edge that, viewed from the side, draws a continuous shoulder line from the headlight through to the C-pillar.

Weave alignment is the detail most owners remark on after fitment. The grain runs parallel to the door body line — that is, parallel to the upper character crease that runs from the headlight cluster, through the door panel, to the rear quarter. When the car is in the sun, the carbon weave reflects in a single coherent direction, matching the optical break of the door fold above and below it. A randomly-grained cap, by contrast, scatters reflections and looks like a spare part. We use printed reference templates against each shell pre-trim to guarantee this alignment.

From the front three-quarter — the hero angle for any Mansory build — the cap reads as a continuation of the front fender vent and the headlight DRL signature, finishing the visual chain at door height. Combine it with the matched style-line front fenders and the bonnet, and the entire upper bodyside reads as a single carbon stripe interrupted only by glass.

Compatibility & Fitment

Audi RS Q8 (4M chassis), all model years 2020 through current. Unlike the genuine Section A mirror housing — which has two separate revisions, one for pre-facelift and one for the 2023+ refresh — this Mansory-style cap was tooled with a unified geometry that fits both bumper-and-door generations. The OEM mirror base, motor, and electrical interface are shared across the facelift, so a single shell maps cleanly onto either car. All electronic functions are preserved: blind-spot indicator (BSI) amber LED window in the upper trailing edge, side-assist (rSA) radar pass-through in the lower foot, heated mirror element, automatic folding servo, automatic dimming and the puddle-light cluster on the underside. The cap is also compatible with the optional camera-mirror package fitted to some Performance cars, although owners with full digital wing cameras (rare on RS Q8) should confirm before ordering — the genuine Mansory option-list note also applies here.

Installation & Reversibility

Installation is fully reversible and can be performed by the owner in around twenty minutes per side without removing the door panel. Tools: a plastic trim wedge and a torque screwdriver. Method: with the mirror folded out, insert the wedge under the lower edge of the OEM cap and release the three Audi factory clips one by one — front, top, rear. Lift the OEM cap clear of the motor base. The carbon replacement clips on in the same sequence: bottom-front clip first, then top, then rear, listening for each of the three positive clicks. There is no glue, no drilling, no rewiring; the BSI LED and heater element live on the mirror motor base, not the cap, so they are untouched. The OEM cap can be re-fitted at any point in the future by reversing the operation. The RS Q8's air suspension does not need to be raised for this work — it is comfortable to do with the car at standard ride height. Total time for the pair: 30–40 minutes including a careful surface inspection before clipping in.

Pairing within the Mansory RS Q8 programme

This cap is part of the Section B Mansory-style line and pairs exclusively with style-line siblings — the customer who specifies replica caps wants matched replica fenders, bonnet and full kit, not a mix of genuine and style components. The closest visual partner is the Front fenders with logo Mansory style set: the cap and the fender share the upper bodyside reflection plane, so weave-grain alignment between them is the single most important visual coherence test on the car. Above them, the Front bonnet Mansory style closes the upper carbon plane from headlight to windscreen. For owners specifying the full programme, the Body kit Mansory style Carbon bundles the bumpers, splitter, race flaps, diffuser and roof spoiler in one package — caps and fenders are typically added on top of the kit.

Maintenance & Durability

Carbon mirror caps live a hard life: they are washed weekly, knocked by suitcases in tight parking, sprayed by alkaline wheel cleaner overspray and exposed to direct sun whenever the car is parked. The lacquer is the single point of failure. Treat them with the same regime you'd give a glossy painted panel: pH-neutral shampoo only, no contact-wash with a road-grit-loaded mitt, no ammonia-based glass cleaner used on the adjacent A-pillar that drifts onto the cap, and absolutely no alkaline wheel acid. A ceramic coating — even a low-cost spray-on consumer ceramic — extends UV resistance dramatically and is strongly recommended; carnauba is acceptable but needs reapplication every two months. Stone chips on the leading edge are repairable: a touch-up of clear 2K lacquer applied with a fine brush prevents moisture wicking into the weave. Expected lacquer life under garaged use is 8–12 years. The carbon shell itself, undamaged, will outlast the rest of the car.

Lead Time & Warranty

Lead time is 4–6 weeks from confirmed order — the Mansory-style line runs to scheduled production batches rather than open stock, and each pair is autoclave-cured and lacquered in turn. Express slots are sometimes available; confirm at order. The cap pair carries our 12-month manufacturing-defect warranty covering delamination, lacquer crazing under normal use, and any clip or mounting defect. Stone chip damage and impact damage are not covered but are repairable; we provide repair guidance and clear-coat material on request.

FAQ

Q: Will this fit my pre-facelift 2020 RS Q8 and also a 2024 Performance?
A: Yes. Unlike the genuine Section A part, which exists in two revisions, this Mansory-style cap has a unified geometry that fits both generations.

Q: Does the blind-spot LED still work?
A: Yes. The BSI amber LED is mounted on the mirror motor base, not on the cap, and the cap has the matching translucent window in the trailing edge. Side-assist radar function is unaffected.

Q: How does the Mansory-style cap compare to the genuine Mansory carbon cap?
A: Geometry, weave grain and bevel set are copied from the genuine part. Layup and finish are produced in our own autoclave line. The visual difference at the car is indistinguishable; the price difference is significant.

Q: Can I install these myself?
A: Yes. The OEM Audi cap is clipped — three plastic clips per side. With a trim wedge and patience the swap takes 30–40 minutes for the pair, no door panel removal, no rewiring.

Q: Are matte and satin finishes available?
A: Yes, on request. Standard finish is 2K gloss clear lacquer; matte and satin are quoted to order.

Pair these caps with the matched style-line fenders and bonnet for a coherent upper-bodyside carbon read. To order, ask about lead time, or request matte lacquer: WhatsApp +44 7488 818 747 or [email protected].
