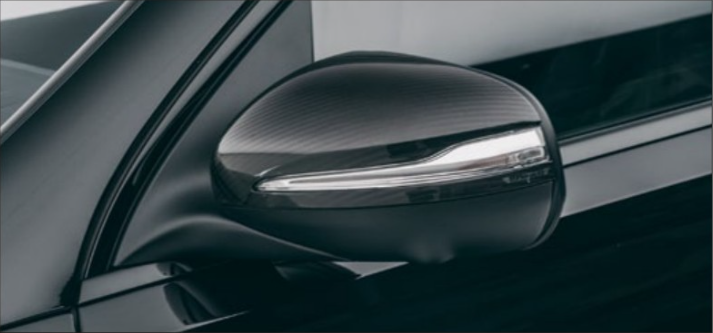

Mirror cover I Mansory Carbon for Mercedes GLS X167

Mirror Cover I Mansory Carbon for Mercedes GLS X167

The Mirror Cover I is the lightest-touch, most reversible chapter in the Mansory mirror story for the Mercedes-Benz GLS X167. Unlike the housing variants, this piece is a bonded add-on shell that wraps over the existing OEM painted mirror cap rather than replacing it. Within the wider Mansory Body Kit for Mercedes GLS X167, the cover is the entry door — chosen by owners who want a flash of bespoke carbon at the daylight opening without committing to a full cap swap. It suits every X167 trim from the GLS 450 inline-six mild-hybrid to the GLS 580 V8 BiTurbo and the AMG GLS 63 with its Panamericana grille and four central exhausts, because the cover sees nothing of the powertrain — it lives purely in the visual language of the door mirror.

Construction & Materials

Mirror Cover I is laid up as a thin-wall add-on shell. Because it bonds over the factory cap and never has to host the fold mechanism, blind-spot module, puddle-light port or wing-mirror camera bracketry, the wall section is markedly thinner than a full housing — Mansory cures it lean and light. The cure schedule is a vacuum-bagged prepreg cycle followed by a clear-lacquer top coat that sits flush with the inner glue line so no edge step shows once bonded.

• Weave: 3K twill, 2x2, weave alignment matched left/right so the diagonal runs into the door line
• Cure: vacuum-bagged prepreg, post-cured for dimensional stability against summer heat-soak on a parked GLS
• Wall thickness: 1.5–2.0 mm, deliberately thin because the OEM cap takes the structural load
• Weight: ~110 g per side, ~220 g for the pair — negligible against AIRMATIC self-levelling
• Bonding system: 3M VHB acrylic foam tape, pre-applied to the inner profile, with a foam-edge gasket to mask the seam
• Finish: Mansory deep-gloss UV clear over exposed weave, or matte satin lacquer on request — both are paint-compatible if a body-colour stripe is later wanted
• Edge treatment: rolled inner lip so the cap sees no sharp carbon edge against its painted surface
• Hardware: none — purely an adhesive-bonded skin, no screws, no clips, no plugs into the OEM harness

Design & Visual Function

The cover bonds over the OEM painted cap with VHB tape, which is the central trade-off of this piece. You preserve the factory cap underneath — peel the cover off in three to five years and the GLS returns to its original mirror silhouette without paint damage, primer ghosting or a rebuild bill. That reversibility is the whole point. The flip side is that the cover does not transform the cap geometry; it adds a carbon skin to the existing shape rather than redrawing it, so the silhouette reads as Mansory texture on a Mercedes form, not a wholly new coachbuilt mirror.

This is where the three-way matrix matters. Mirror Housing II is the most aggressive choice — a fresh cap with the newest Mansory geometry, sharper edges, deeper carbon volume; owners pick it when they want the door mirror to read as a Mansory piece first and a Mercedes piece second. Mirror Housing I is the original Mansory cap geometry, more familiar, slightly softer, often specified by clients who want carbon presence in the established Mansory idiom. Mirror Cover I sits below both as the cheapest, fastest, fully reversible add-on — the right answer when the brief is “some carbon at the mirror, but I might lease the car back in two years.”

Visually the cover catches light along the upper crown and along the trailing edge where the weave runs into the door shut-line. Because it is thin-walled, the proportions of the OEM cap are retained — chrome surrounds on lower trims and the gloss-black aero accents on AMG GLS 63 still read clearly. The piece is theatrical in a quiet way: a coachbuilt detail that rewards a second look at valet parking rather than shouting from across the forecourt.

Compatibility & Fitment

Mirror Cover I fits the Mercedes-Benz GLS X167 from MY2020 onward, including the post-MY2024 facelift. It is geometry-compatible with GLS 450 (inline-six EQ Boost mild-hybrid), GLS 580 4MATIC (4.0L V8 BiTurbo), and AMG GLS 63 4MATIC+ (4.0L V8 BiTurbo with EQ Boost). Because nothing inside the OEM mirror is touched, every factory function is preserved: power-fold, auto-dimming, heating, blind-spot assist LED, surround-view camera (where fitted), kerb-tilt for reverse, and the Mansory-logo or Mercedes-star puddle projection if the car has the welcome lamp. AIRMATIC ride-height changes, 9G-TRONIC behaviour and 4MATIC traction are obviously unaffected — the cover is purely a bonded skin on the door cap.

Installation & Reversibility

Installation is a 30–45 minute DIY job per pair. The OEM caps stay on the car. Workflow: park indoors at 18–25 °C ambient, fold the mirror out, mask the cap edge, degrease the painted surface twice with isopropyl alcohol on a lint-free cloth, allow full flash-off, peel the VHB liner from the cover, align the cover dry on the cap to confirm geometry, then press from the centre outward with consistent palm pressure for 30 seconds along every edge. Cure the bond at room temperature for 24 hours before a wash. Reversibility is the headline: at end-of-lease or before resale, warm the cover with a heat gun to 50–60 °C, lift one corner with a plastic wedge, and peel the shell off; residual VHB foam comes away with citrus-based adhesive remover and a microfibre, leaving the OEM paint intact. No primer scars, no clip cuts, no harness scars — the GLS goes back to factory cap with zero diagnostic trace.

Pairing within the Mansory GLS X167 programme

Cover I is the third corner of the mirror matrix, so the natural cross-references are the two cap-replacement options. Specify Mirror Housing I if the brief evolves into a full coachbuilt cap in the established Mansory geometry, or Mirror Housing II for the latest, sharpest Mansory cap silhouette. Outside the mirror cluster, the cover plays well with the front fender panel, which carries a similar quantity of weave at flank height and balances the carbon eye-line from front three-quarter angles. Owners building a full visual brief usually loop in the parent Mansory Body Kit for Mercedes GLS X167 for a single coordinated cure batch and finish match.

Maintenance & Durability

VHB-bonded carbon covers age on two clocks. The lacquered weave behaves like any high-end clear-coat: yearly ceramic top-up, two-bucket wash with pH-neutral shampoo, no alkaline traffic-film removers, no ammonia glass cleaners migrating onto the lower edge, no abrasive sponges. Avoid jet-washing within 2 cm of the cover edge in the first 30 days post-bond. The acrylic foam tape itself has a service window of three to five years on a daily-driven X167 — UV exposure and thermal cycling on a south-facing driveway accelerate ageing. Replacement is straightforward: peel and re-bond a fresh cover. Stone-chip risk is minimal because the cover lives high on the door, but a clear PPF wrap over the weave is available for clients who park outside on rural lanes. If a cover is scuffed in a tight kerb encounter, it can be removed and refinished off the car in a few days, while the OEM cap underneath usually survives untouched.

Lead Time & Warranty

Lead time is 4–8 weeks from order confirmation. Each pair is built to brief, weave-aligned, lacquered to spec, and dispatched with a pre-applied VHB liner kit and a printed install guide. A 12-month warranty covers manufacturing defects in the carbon shell and the bonding tape; outside the warranty window, reorders are quick because the geometry is digitised in the Mansory archive for X167.

FAQ

Q: When should I pick Cover I over a full housing replacement?
A: When you want the smallest, cheapest, fastest carbon footprint at the mirror — typically a leased GLS, a daily-driver where reversibility matters at resale, or a first carbon piece on the car before deciding how far the brief will go. If you want the cap geometry itself to change, Housing I or Housing II is the right call.

Q: Does the cover fit GLS 450, GLS 580 and AMG GLS 63 the same way?
A: Yes. The OEM mirror cap is shared across the X167 line — Panamericana grille and four exhausts on the AMG GLS 63 do not change the door-mirror moulding, so a single cover geometry covers all trims and the post-MY2024 facelift.

Q: How much weight does it add?
A: About 220 g for the pair. Against a 2.49 t kerb weight on AIRMATIC self-levelling, the figure is academic — this is a visual piece, not a weight-saving piece.

Q: If I scuff the cover on a kerb, what is the repair workflow?
A: Peel the affected side off with a heat gun and plastic wedge, send the shell for refinish or order a replacement, and re-bond. Because the OEM cap underneath is still original, the car is drivable in the meantime without an exposed primer surface.

Q: Will peeling the cover off later damage the original paint?
A: No, when done correctly. Warm the bond to 50–60 °C, peel slowly at a shallow angle, and clean residual VHB with a citrus adhesive remover and microfibre. Mansory specifies the tape and cure profile precisely so that, at end-of-life for the cover, the OEM cap returns to factory condition with no clear-coat lift.

Q: What is the lead time and how does it ship?
A: 4–8 weeks. The pair arrives boxed with VHB liners pre-applied, a foam-edge gasket fitted, alcohol prep wipes and a printed install guide.

Pair Mirror Cover I with Housing I, Housing II or the wider Mansory GLS X167 brief and we will build a single coordinated carbon spec around it. Talk to us via WhatsApp +44 7488 818 747 or [email protected].
