Logo for front grill for Mercedes G-class W463A Gronos
Logo for Front Grill for Mercedes G-Class W463A Gronos

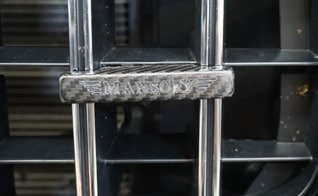

The front grill of the W463A G-Wagon — whether in OEM AMG specification or in the Gronos programme's wide-body configuration — spans a substantial horizontal bar section across the nose at approximately 500–650 mm above the ground. This bar section is a natural location for a secondary programme emblem, distinct in mounting and purpose from the centreline badge of the Mansory grill mask. The Logo for Front Grill, part of the Mansory Body Kit for Mercedes G-Class W463A Gronos, sits in this position — on the front grill bar surface at the W463A's lower nose — deploying a badge format calibrated to the grill bar's geometry rather than the mask aperture recess. The result is a layered badge identity on the Gronos front face: the grill mask logo at the aperture centreline above, and the front grill logo at the grill bar below, creating a two-level identity declaration that reads on the G-Wagon's vertically tall front face without competition between the two badge positions.
Construction & Materials
The Logo for Front Grill uses the same zinc alloy die-casting process as the grill mask logo, with the same multi-stage post-cast finishing sequence: electroless nickel, then the surface finish of choice. However, the mounting system differs materially from the mask-aperture logo. The front grill bar on the W463A — whether OEM plastic in standard specification or the Mansory grill bar in full Gronos mask specification — does not carry pre-installed captive nuts. The front grill logo instead uses a 3M VHB bonded-pad system with an integrated spring-clip anti-rotation tab that prevents badge rotation on the convex grill bar surface. The VHB pad is formulated for automotive exterior use at temperatures up to 150 °C — exceeding the peak surface temperature of the W463A's front grill bar in high-ambient direct sun — and provides a peel force above 35 N/cm² on primed ABS or painted metal substrates.
Two badge face formats are available: a horizontal orientation badge scaled to the grill bar width, with letter height proportioned to the grill bar depth; and a stacked-format badge where the Mansory emblem is presented in a compact square format that occupies less horizontal grill bar length. Both formats are produced in the same finish options as the mask logo: polished chrome, dark-chrome PVD, or carbon-inlay face. The stacked format is recommended for builds where the grill bar carries OEM or Mansory Gronos lettering in addition to the Mansory emblem, to avoid crowding the horizontal bar with too many elements across its width.
- Manufacturing: zinc alloy die-casting with post-machining of mounting-pad interface face — identical metallurgical specification to grill mask logo
- Mounting system: 3M VHB automotive exterior bonding pad with spring-clip anti-rotation tab — adhesive rated to 150 °C surface temperature and 35 N/cm² minimum peel force
- Format options: horizontal orientation (wide-aspect) or stacked (compact square) — specify at order stage
- Finish options: polished chrome; dark chrome / gunmetal PVD; carbon-inlay face with chrome or dark-chrome relief
- Surface protection: UV-stable clearcoat over all finish variants
- Badge weight: approximately 30–45 g — lighter than mask logo due to the smaller footprint of grill-bar format versus aperture-recess format
- Substrate compatibility: bonds to primed ABS, painted plastic, painted aluminium, and lacquered carbon grill bar surfaces — clean with IPA before bonding
Design & Visual Function
The front grill bar is at the lowest section of the W463A's front face — just above the front bumper lower edge — and is viewed from a more oblique downward angle than the centreline mask logo, which sits at eye-level for an adult pedestrian. This geometry means the front grill logo must carry readable relief depth even when viewed at a 20–40° downward angle, where shadow-fill in the letter recesses reduces legibility for shallow-relief badges. The Mansory grill bar logo is therefore produced with slightly deeper relief — 2.0–3.0 mm versus 1.5–2.5 mm for the mask logo — to ensure that letter legibility at the oblique angle matches the mask logo's visual impact at the near-horizontal front viewing angle.
In the two-badge system — mask logo above, grill logo below — the vertical separation between the two badge positions on the W463A front face is approximately 250–350 mm. This separation is significant: it means the two badges are never seen simultaneously in a single eye fixation at close range (less than 3 metres), but are both resolved in the peripheral field at the 8–15 metre approach distance where the front face is taken in as a whole composition. At this distance the two-badge layout reads as a deliberate vertical composition that echoes the G-Wagon's characteristic stacked front-face architecture — the stacked headlights, the horizontal grill sections, and now the two-level badge identity.
Compatibility & Fitment
The Logo for Front Grill is compatible with the Mercedes-Benz G-Class W463A 2018 to present, on both the OEM front grill bar surface and on the Mansory Gronos performance grill mask's lower grill section (where a separate lower grill bar carries the badge). Compatible with G63 AMG and G500/G550 variants. LHD and RHD body configurations share the same front grill bar position. The post-2024 W463A facelift did not change the front grill bar geometry or position. Confirm your front grill surface substrate (OEM painted ABS, carbon mask section, or aftermarket aftermarket specification) when ordering, as the VHB pad formulation and anti-rotation clip geometry are pre-set for the OEM grill bar convex profile.
Installation & Reversibility
Installation time is 10–15 minutes. Clean the grill bar surface with isopropyl alcohol (IPA) and allow to dry fully. Peel the VHB backing from the badge base pad. Position the badge at the intended grill bar centreline location, engage the anti-rotation clip tab into the grill bar upper edge lip, and press the badge face firmly against the grill bar with sustained hand pressure for 30 seconds. Allow 24 hours at ambient temperature above 15 °C for full VHB adhesive development before washing the front face or exposing the badge to high-pressure water. Removal: using a plastic pry tool or dental floss (looped behind the badge and sawed through the VHB pad) removes the badge without damage to the grill bar surface; any VHB adhesive residue is removed with a light IPA wipe. The operation is reversible — the grill bar is not damaged and a replacement badge can be bonded at the same position.
Pairing within the Mansory Gronos programme
The front grill logo pairs directly with the grill mask system as the lower-position emblem. For the centreline mask aperture emblem, the Logo for Grill Mask is the upper-position partner. The two logos are designed to be specified together for a complete Gronos front-face identity. For the complete performance grill face that both logos mount to or adjacent to, the Fully Carbon Front Mask with Performance Grill is the foundation element. For headlight-frame carbon continuity across the full front face, the Carbon Headlight Covers extend the carbon register to the headlight surrounds.
Maintenance & Durability
The front grill logo maintenance protocol matches the grill mask logo: soft microfibre cloth, pH-neutral shampoo, no abrasive compounds on the chrome or PVD surface. The grill bar position exposes the badge to more direct stone strike than the mask aperture position — the lower nose zone of the W463A is the highest stone-strike intensity area on the front face, because incoming road debris deflected upward by the front wheel contact patch reaches its maximum height at the front bumper and lower grill level. This makes a stone-chip-resistant clear paint-protection film over the badge face particularly valuable in this location; a precision-cut PPF patch over the badge can be applied by a detailing specialist and provides impact absorption without affecting badge appearance.
Lead Time & Warranty
Lead time for the Logo for Front Grill is 1–2 weeks from order. The badge carries a 12-month warranty against manufacturing defects — die-cast dimensional errors, plating adhesion failures, clearcoat delamination, and VHB pad bond failures under normal temperature and wash exposure. Impact damage from stone strikes and VHB bond failure caused by solvent-based cleaning products applied to the badge base are not covered.
FAQ
Q: Can I order both the Logo for Grill Mask and the Logo for Front Grill in the same finish?
A: Yes. Ordering both logos in the same finish — polished chrome, dark chrome, or carbon-inlay — creates a matched two-badge front-face identity. Mixing finishes (for example, dark chrome mask logo and polished chrome grill logo) is also a valid specification that some owners use for a layered visual complexity on the front face.
Q: The OEM grill bar on my G500 W463A is painted body colour, not black. Will the VHB pad bond to painted surfaces?
A: Yes. The 3M VHB pad bonds reliably to painted metal and painted plastic provided the surface is clean, dry, and IPA-degreased before application. If the paint surface has a protective wax or ceramic sealant coating, the IPA degreasing step is critical to dissolve the coating at the bond area — bonding over wax significantly reduces the VHB peel strength.
Q: Is the horizontal-format or stacked-format badge more common in the Gronos programme?
A: The horizontal format is more common on builds where the front grill bar is the Mansory carbon mask lower section (which presents a wide horizontal carbon panel). The stacked format is preferred on OEM grill bar builds where the bar has OEM lettering or other elements occupying the horizontal field — the stacked format avoids visual crowding at the grill bar centreline.
Q: How do I remove the badge cleanly without scratching the grill bar surface?
A: Use dental floss looped behind the badge and sawed back and forth through the VHB pad in a motion parallel to the grill bar surface. This avoids the flex stress on the badge and the grill bar surface that a pry tool creates. Finish with IPA on a microfibre to remove VHB residue. If the grill bar is lacquered carbon or painted in a soft colour, place a protective tape along the grill bar edges adjacent to the badge before using the floss to prevent any accidental contact damage during removal.
Q: My W463A has the Mansory carbon grill mask fitted. Does the Logo for Front Grill mount on the mask's lower grill section?
A: Yes, provided the mask's lower grill section has an accessible flat or gently convex bar surface for VHB bonding. On some Mansory mask configurations the lower grill section carries a carbon bar face that is suitable for VHB bonding after IPA prep. Confirm the lower grill bar surface geometry with Mansory if uncertain.
Specify badge format and finish and confirm grill bar substrate type with the Hodoor Mansory team: WhatsApp +44 7488 818 747 or [email protected].
