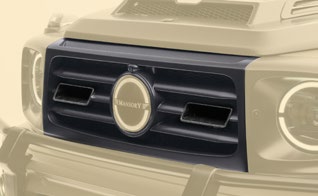

Fully carbon front mask with performance grill for Mercedes G-class W463A Gronos
Fully Carbon Front Mask with Performance Grill for Mercedes G-Class W463A Gronos
The front face of the W463A G-Wagon is the most scrutinised surface on the vehicle — upright, wide, and vertical in a way that few modern production cars can match — and the Fully Carbon Front Mask with Performance Grill from the Mansory Body Kit for Mercedes G-Class W463A Gronos programme redesigns that face entirely. The OEM nose treatment on the W463A — with its rectangular grille opening, round headlight pods, and optional AMG front fascia — is strong in its own right, but it reads as factory specification. The Mansory performance grill introduces a different visual logic: a full carbon-fibre mask that spans from the bonnet-to-wing junction down to the lower valance, with a precision-machined grill aperture matrix that reshapes the front face into a purpose-built performance identity while managing the cooling airflow requirements of the M177 4.0 L twin-turbo V8's front-mounted intercoolers and radiator stack.
Construction & Materials
The Fully Carbon Front Mask is produced as a multi-section assembly — main mask body, grill aperture frame, performance grill mesh, and headlight-surround elements — that fits together on the W463A's front-end crash structure and front-wing mounting geometry. The main mask body is autoclave-cured prepreg carbon, formed on a full-face mould derived from the W463A front-end body scan. The grill aperture frame is machined from carbon-fibre composite sheet after curing, giving the aperture edges the tight-tolerance geometry required for the performance grill mesh to seat without rattle under engine vibration.
The performance grill mesh is produced in two material options: carbon-fibre composite mesh for a fully visible-carbon face that continues the Gronos material language across the grill aperture; or powder-coated aluminium mesh in a fine diamond pattern that provides stronger stone-strike resistance at the radiator-intake face. Both mesh specifications are mechanically retained in the aperture frame with stainless-steel fasteners — no adhesive is used at the grill mesh interface, allowing mesh cleaning and replacement without mask removal.
- Mask body: 3K twill prepreg carbon, autoclave-cured at 120 °C / 4 bar — full-face structural part spanning bonnet-to-wing junction to lower valance
- Grill aperture frame: machined carbon-fibre composite — tight-tolerance aperture edges for rattle-free mesh seating under engine vibration
- Grill mesh: carbon-fibre composite mesh (fully visible carbon) or fine-diamond powder-coated aluminium mesh (stone-strike resilient) — specified at order stage
- Mesh retention: stainless-steel fasteners throughout grill aperture frame — mesh is service-removable without mask removal
- Wall thickness on mask body: 1.8–2.2 mm standard; 2.6–3.0 mm at crash-structure attachment and headlight-bezel reinforcement zones
- Clearcoat: dual-layer UV-stable gloss lacquer at 35–45 µm DFT on mask body; satin/matte option available; raw-weave visible carbon without topcoat for specialist specifications
- OEM sensor / camera integration: mask geometry retains provisions for OEM front-facing camera (where fitted), ACC radar housing, and front-parking sensor array — no sensor deletion required
- Mounting: front-end crash structure attachment points with stainless-steel hardware; front-wing leading-edge interface sealed with OEM foam strip profile
Design & Visual Function
The performance grill aperture is the centrepiece of the mask's design. On the OEM W463A the grill is characterised by its rectangular perimeter and its coarse horizontal bars — a configuration derived from the G-Wagon's utilitarian origins and carried forward into the luxury-performance era with only modest modernisation. The Mansory performance grill replaces this with a finely divided aperture matrix whose individual opening geometry is determined by the combined constraints of cooling inlet area, structural rigidity of the aperture frame, and visual density at the viewing distance from which the W463A's front face is most commonly encountered — approximately 5–8 metres in an urban context, such as approaching a junction or entering a parking facility. At this distance, the Mansory mesh reads as a deep, dark, finely-textured surface rather than a series of individual openings, giving the nose a presence that is both functional and visually dense.
Cooling performance is the engineering baseline. The M177 4.0 L twin-turbo V8 in G63 AMG configuration requires a specific minimum frontal cooling aperture area for the intercooler stack (two front-mounted intercoolers flanking the radiator on the W463A), the radiator itself, and the power-steering cooler. Mansory's CFD model of the W463A front face verified that the performance grill aperture maintains or exceeds the OEM total open area across the full speed range, while the grill mesh's fine diamond pattern distributes the incoming airflow across the radiator face more uniformly than the OEM bar-type grill, reducing hot spots at the core face edges. The mask body's side extensions — which replace the front wing-to-bumper transition pieces — reshape the stagnation zone at the upper nose corners, reducing the recirculating pressure region that the OEM nose creates at the A-pillar base.
Compatibility & Fitment
The Fully Carbon Front Mask with Performance Grill is designed for Mercedes-Benz G-Class W463A 2018 to present, covering G63 AMG (M177 twin-turbo V8, 585 hp / 850 Nm) and G500/G550 (M176 V8 biturbo, 422 hp / 610 Nm). LHD and RHD body configurations share the same front-end crash structure and wing-to-mask mounting geometry on the W463A. The mask geometry retains provision for OEM front-facing camera, ACC radar module (where fitted), and front-parking sensor array — consult Mansory at order stage if your W463A carries any additional front-end sensor hardware beyond the standard package. The mask is NOT compatible with the pre-2018 W463; that platform has a different front-end structure and a separate Mansory programme. Do not confuse with the Wide Front Mask variant in the Gronos programme — that is a separate, wider-arch specification.
Installation & Reversibility
Front mask installation is a 3–5 hour job for a Mercedes-Benz approved body shop. The procedure begins with front-end access: bumper fascia removal is needed on most W463A configurations to access the lower crash structure attachment bolts. The OEM grill assembly is disassembled from the front-end crash structure, and the parking sensor harness connectors and front-camera connector (where fitted) are transferred to the Mansory mask. The mask body is positioned on the crash structure, crash-bar attachment bolts torqued, and the front-wing-to-mask foam seal pressed into the interface joint. Gap alignment at the bonnet leading edge and front-wing-to-mask joint is checked before final assembly. Reversibility: the OEM grill and bumper fascia are retained and can be reinstalled. Parking sensor holes and camera provisions in the Mansory mask are pre-cut to match OEM sensor positions — no sensor re-positioning is required.
Pairing within the Mansory Gronos programme
The front mask is the identity anchor of the Gronos front-end specification and pairs directly with components in the same facial zone. The Carbon Headlight Covers with Air Intake extend the mask's carbon language around the headlight housing perimeter, adding an air intake duct to each corner that furthers the performance-intake visual language of the performance grill. The High Front Protective Frame adds a brushbar structure to the lower front that completes the Gronos face below the mask aperture — a combination that addresses both the aesthetic and real-world robustness requirements of a premium G-Wagon specification. For grill-zone emblem identity, the Logo for Grill Mask places the Mansory Gronos emblem at the mask aperture centreline.
Maintenance & Durability
The carbon mask body requires the same UV-protection and wash protocol as other Gronos exterior panels — pH-neutral wash, no alkaline pre-soak dwell, no ammonia-based products near the clearcoat edge. The performance grill mesh requires a specific additional step: the mesh apertures trap road film and insect residue that is not removed by a standard surface wash. After washing the mask body, direct a fan-spray water jet through the mesh from the exterior face to clear debris from the rear face of the mesh at the radiator intake edge. Never use a concentrated pressure-wash jet aimed directly into the mesh — the stream can deform the fine mesh strands or force debris into the radiator core behind. The mesh is service-removable from the aperture frame for deep cleaning using the stainless-steel retention fasteners.
Lead Time & Warranty
Lead time for the Fully Carbon Front Mask with Performance Grill is 4–6 weeks from order confirmation, reflecting the multi-section assembly and mesh specification lead. The mask assembly carries a 12-month warranty against manufacturing defects — delamination, grill aperture frame dimensional errors, mesh retention fastener failures, and clearcoat adhesion failures. The warranty does not cover damage from stone strikes to the mesh aperture, incorrect pressure-washing of the mesh face, or installation errors resulting in mask-to-wing misalignment.
FAQ
Q: Does the performance grill aperture provide adequate cooling for the M177 G63 AMG on track days?
A: Mansory's CFD analysis confirmed that the performance grill aperture maintains or exceeds OEM cooling inlet area across the full speed range. For sustained track use in ambient temperatures above 35 °C, ensure the radiator and intercooler faces are clean of debris before sessions — the fine-mesh grill is more effective at trapping accumulated insects than the OEM bar grill, so a pre-session clean is advisable.
Q: Will this mask fit my W463A that has the night-vision camera package?
A: Consult Mansory at order stage and specify the presence of the optional night-vision camera housing in your W463A's front fascia. Mansory can advise on the mask aperture provision for non-standard sensor configurations.
Q: Can I change the grill mesh from carbon to aluminium (or vice versa) after purchase?
A: Yes. The mesh is mechanically retained in the aperture frame with stainless-steel fasteners and is service-replaceable independently of the mask body. Specify your initial mesh preference at order; alternative mesh sets are available as separate items.
Q: How does the Fully Carbon Front Mask compare to the Wide Front Mask variant?
A: The Fully Carbon Front Mask with Performance Grill fits the standard W463A body width. The Wide Front Mask is from a different Gronos sub-variant (the wide-arch programme) and requires wider front wings. Confirm your W463A's body specification before ordering.
Q: Is the Mansory logo for the grill included with the mask, or is it a separate item?
A: The Logo for Grill Mask is supplied separately within the Gronos programme, allowing owners to specify emblem finish (polished, matte, or carbon) independently. It is designed specifically for the Mansory Gronos mask aperture centreline recess.
Specify your Front Mask configuration — mesh type, finish, sensor provisions — with the Hodoor Mansory team: WhatsApp +44 7488 818 747 or [email protected].
