Carbon headlight covers for Mercedes G-class W463A Gronos

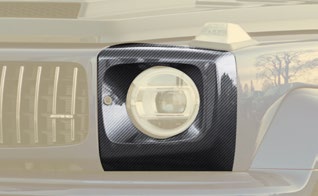

Carbon Headlight Covers for Mercedes G-Class W463A Gronos

The headlight clusters on the W463A G-Wagon are the visual centrepiece of its frontal identity. The factory LED housings — deep-set in the upright front face, framed by the wing-to-bonnet junction above and the bumper treatment below — occupy the most scrutinised zone on the car's exterior. The Carbon Headlight Covers from the Mansory Body Kit for Mercedes G-Class W463A Gronos address this zone with a focused material statement: a visible 3K twill carbon surround that replaces the OEM headlight perimeter trim, framing the lamp housing in a precision-woven carbon border without adding duct geometry. For W463A owners whose specification is led by surface visual coherence — where every adjacent panel carries the same carbon-weave register and the headlight corner needs to read in the same material language without the functional duct accent of the intake variant — these covers deliver the pure carbon-surround result.

Construction & Materials

The Carbon Headlight Covers are formed from 3K twill prepreg carbon using autoclave cure, on the same tooling geometry used for the intake variant minus the duct channel section. The absence of the duct mould-feature simplifies the lay-up geometry at the cover's inboard edge, which allows a tighter radius on the upper-inboard corner — reducing the gap between the cover edge and the headlight housing rim to 1.0–1.5 mm versus 2.5–3.0 mm on the duct variant where the intake slot opening sets the minimum inboard edge clearance. This tighter gap gives the non-intake covers a flush, seamless presentation at the headlight housing perimeter.

The weave structure on the cover face uses the same 3K twill orientation as the Gronos bonnet and door panels — 45° diagonal to horizontal — ensuring optical weave-pattern continuity across the front wing, bonnet, and headlight cover when a full Gronos exterior specification is assembled. The cover's outer surface receives two-coat UV-stable clearcoat and the inner face receives a gelcoat moisture barrier. Mounting hardware is stainless-steel M5 flanged fasteners at three perimeter retention points per cover.

• Laminate: 3K twill prepreg carbon — 45° weave orientation, continuous pattern with Gronos bonnet and door panels
• Duct: none — clean perimeter surround profile; tighter upper-inboard corner radius (1.0–1.5 mm gap to housing rim vs 2.5–3.0 mm on intake variant)
• Cure: autoclave 120 °C / 4 bar
• Wall thickness: 1.4–1.8 mm on cover face — marginally thinner than the duct variant given the absence of duct-wall structural loading
• Weight per cover: approximately 0.28–0.40 kg — lighter than duct variant due to absence of duct-wall material
• Clearcoat: dual-layer UV-stable gloss lacquer at 35–45 µm DFT; satin/matte on request
• Mounting: three-point stainless-steel M5 flanged fasteners per cover at headlight housing outer-rim mounting positions
• Supplied: pair (LH and RH mirror parts) — specify body-side if ordering individual replacement

Design & Visual Function

The headlight cover as a pure carbon surround — without duct accent — operates on a single design principle: perfect material coherence at the headlight corner. In a full Gronos specification, when the bonnet is carbon, the front mask is carbon, and the mirror housings and A-pillar cover carry the same 3K twill pattern, the headlight corner that uses the non-intake carbon cover reads as a seamless continuation of the exterior material language with no interruption. The duct slot of the intake variant, however visually purposeful, introduces an element of contrast at the headlight surround that some specifications do not require — either because the car's thermal management is already handled through the bonnet IV's extraction geometry, or because the design brief calls for absolute surface continuity.

The tighter flush fit at the upper-inboard corner is a specific visual advantage of the non-intake cover on the W463A's geometry. The W463A headlight housing has a characteristically abrupt inner edge where the housing meets the front wing and bonnet base — this junction is already a complex shadow line in the factory specification. The Mansory carbon cover's 1.0–1.5 mm inboard gap at this edge minimises the shadow depth at the housing-to-cover junction, integrating the carbon frame more tightly with the housing face and making the headlight cluster appear more deeply set in the carbon surround. This is a detail that reads clearly at the 3–5 metre viewing distance typical of an urban setting.

Under low-angle lighting — dawn or dusk conditions where the sun hits the front face from a near-horizontal angle — the 3K twill weave on the cover face produces a strong diagonal pattern shadow that extends the carbon surface's visual texture across the entire headlight corner. This low-angle behaviour is a characteristic of the 3K twill weave structure: the diagonal over-under pattern creates alternate ridges and recesses at approximately 0.2 mm amplitude that respond to raking light with a cloth-like depth that flat paint cannot produce at any angle.

Compatibility & Fitment

Carbon Headlight Covers (without intake) fit the Mercedes-Benz G-Class W463A 2018 to present, covering G63 AMG (M177 twin-turbo V8, 585 hp / 850 Nm) and G500/G550 (M176 V8 biturbo, 422 hp / 610 Nm). Both LHD and RHD body configurations are covered — LH and RH are mirror-image parts. Post-2024 facelift W463A retains the same headlight housing outer rim geometry — these covers fit all W463A production years from 2018 to present. Pre-2018 W463 headlight housings are circular format — not compatible with this cover.

Installation & Reversibility

Installation time is 20–40 minutes per side for the non-intake carbon covers — slightly less than the intake variant because there is no duct outlet clearance check required inside the front wing cavity. The procedure is: remove the OEM headlight surround trim, position the Mansory carbon cover at the housing outer rim, engage all three mounting-point fasteners finger-tight, check gap uniformity around the housing perimeter (target 1.0–1.5 mm inboard, 2.0–2.5 mm outboard-lower), then torque to specification. No adhesive, no drilling, no headlight housing disassembly required. Fully reversible — OEM surround trim re-installs at the same mounting positions.

Pairing within the Mansory Gronos programme

The clean-surround carbon covers pair well with a specification that maximises surface continuity. The Carbon Headlight Covers with Air Intake represent the intake-duct alternative at the same mounting position for owners who want the additional front-corner thermal management feature. For carbon continuity from the headlight surround down the D-pillar, the D-Pillar Cover II brings the same 3K twill weave language to the rear pillar. For the upper corner transition from bonnet to roof, the A-Pillar / Front and Side Roof Cover extends the visible-carbon programme from the windscreen base across the roof edge.

Maintenance & Durability

The non-intake covers have a simpler maintenance routine than the duct variant — without a channel to flush, the wash procedure is a standard lacquered-carbon panel clean. Use a pH-neutral shampoo, microfibre wash mitt in top-to-bottom passes following the weave direction, and rinse immediately after washing to prevent shampoo film drying on the clearcoat surface. Dry with a dedicated microfibre towel — blotting rather than wiping across the diagonal weave direction reduces the risk of swirl mark introduction on the cover's relatively small surface area.

Apply carnauba or SiO2 ceramic sealant every 6–10 weeks. The headlight cover faces are subject to stone-chip from the front tyre splash zone and from opposing traffic at the headlight-level height; both vectors deposit stone chips primarily at the outer-lower section of each cover. Consider a clear paint-protection film on the outer-lower quarter of each cover for high-mileage W463A builds. Expected clearcoat lifespan: 8–12 years under standard maintenance. Check annual inspection for any clearcoat micro-lifting at the mounting-hardware contact perimeter — address promptly with a touch-up pen before moisture reaches the carbon edge.

Lead Time & Warranty

Lead time for Carbon Headlight Covers (non-intake) is 2–3 weeks from order. The pair carries a 12-month warranty against manufacturing defects — delamination, void formation in the laminate, dimensional fitment errors at the mounting positions, and clearcoat adhesion failures. Stone-strike damage, overtorque of mounting hardware, and chemical damage are not covered.

FAQ

Q: If I want to upgrade later to the intake version, can I swap these out?
A: Yes. The non-intake and intake carbon cover variants use the same headlight housing outer-rim mounting positions. Swapping from the non-intake to the intake variant requires only removing the existing covers and fitting the intake covers in the same mounting points — no additional drilling or structural change.

Q: Do these covers affect the headlight housing alignment or levelling adjuster function?
A: No. The Mansory covers are a perimeter surround fitted at the housing outer rim. The headlight levelling adjuster is accessible from behind the housing in the front wing cavity — the Mansory cover does not block any service access to the adjuster.

Q: How do these compare visually with the G-Manufaktur factory carbon mirror caps?
A: The factory G-Manufaktur carbon option uses a gloss-finished resin-infused carbon with a different weave specification from the Mansory 3K twill. The Mansory cover's 3K twill at 45° diagonal will appear texturally different from the G-Manufaktur mirror caps — intentionally so, as the Gronos programme uses its own material identity.

Q: Can these covers be fitted on a W463A with aftermarket headlights, such as LED conversion units replacing the factory halogen spec?
A: Yes, provided the aftermarket headlight unit uses the same outer housing rim diameter and mounting position as the OEM W463A unit. Confirm outer housing dimension compatibility before ordering if aftermarket units are fitted.

Q: What is the gap at the upper-inboard corner on these covers — will it be visually tight or loose?
A: The design target for the non-intake cover is a 1.0–1.5 mm gap at the upper-inboard corner. This is tighter than the 2.5–3.0 mm required on the intake variant. In practice, panel-to-panel gap at this location will vary by ±0.5 mm depending on individual W463A body-panel build tolerances, but should read as flush at normal viewing distances.

Confirm your W463A's headlight specification and finish preference with the Hodoor Mansory team: WhatsApp +44 7488 818 747 or [email protected].
