Carbon trim bars for Mercedes G-class W463A Gronos

Carbon Trim Bars for Mercedes G-Class W463A Gronos

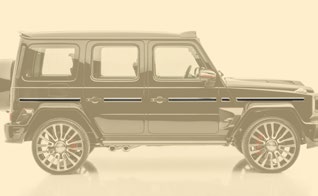

The horizontal trim bars of the W463A G-Wagon occupy the body zone between the door sill guards and the lower door panel face — a register that runs the full lateral length of the vehicle's side body at approximately 350–500 mm above ground level. These bars are one of the few horizontal accent elements on the G-Wagon's otherwise vertically dominant side profile, and in factory specification they are typically finished in body colour or in a contrasting silver or black accent trim that defines the lower body boundary. The Carbon Trim Bars from the Mansory Body Kit for Mercedes G-Class W463A Gronos replace these OEM accent bars with precision-formed visible-carbon profiles that transform the lower body boundary from a factory accent element into an explicitly Gronos-identified carbon feature, adding horizontal momentum and material depth to the W463A's side view at the zone where the body meets the sill.

Construction & Materials

The Carbon Trim Bars are produced as narrow-profile carbon-fibre extrusion-shaped parts — their cross-section is an L-shaped or T-shaped profile that allows the visible-carbon face to present cleanly while the mounting leg engages behind the OEM trim bar retaining clips without modification to the body sheet metal. The visible face is 3K twill prepreg, autoclave-cured, with the weave running horizontally along the bar's length. This horizontal weave direction is the only Gronos component where the weave explicitly runs in the direction of vehicle travel — all other horizontal panels use fore-aft weave for the same reason, but the trim bars' narrow face width (typically 25–40 mm visible face height) makes the horizontal weave direction particularly emphatic: the parallel weave bundles run as lines that visually extend the bar's length beyond its actual dimension.

• Profile: L-section or T-section carbon-fibre profile — mounting leg engages OEM trim bar clips without modification
• Visible face weave: 3K twill, horizontally fore-aft along bar length — the weave direction visually extends the bar's apparent length
• Cure: autoclave 120 °C / 4 bar
• Visible face width: 25–40 mm depending on section specification
• Wall thickness: 2.0–2.4 mm on visible face; 2.8–3.2 mm at clip-engagement mounting leg
• Clearcoat: dual-layer UV-stable gloss lacquer; satin/matte on request
• Retention: engages OEM trim bar retaining clip positions — no additional adhesive or hardware required in most cases
• Supplied: full lateral set for both sides of the W463A body

Design & Visual Function

The horizontal emphasis of the Carbon Trim Bars' weave direction produces a specific visual effect on the W463A's notoriously tall, vertical body profile. The factory trim bars at the sill zone are already a horizontal datum that interrupts the vertical body surface — but in factory finish, their painted or chrome surface reads as continuous with the body colour, merely differentiating in finish rather than material. The Carbon Trim Bars replace this with a surface that is categorically different from the surrounding body: the diagonal-within-horizontal weave of 3K twill creates a visual running-speed cue at the lower body that the body-colour bars cannot produce. This is the bars' primary design contribution: they add a sense of horizontal motion to a vehicle whose architecture is defined by immovable verticality.

The bars' modest face width — 25–40 mm — means they do not dominate the side view or compete with the larger carbon panel elements of the Gronos programme above them. They read as a precision signature element at the sill zone, identified from the correct viewing distance as carbon material rather than chrome or paint, but not overwhelming in their visual presence. This restraint is appropriate for a trim programme element: the bars reinforce the Gronos carbon identity without trying to serve as the primary visual statement of the side-body specification.

Compatibility & Fitment

Carbon Trim Bars fit the Mercedes-Benz G-Class W463A 2018 to present, on G63 AMG and G500/G550. The OEM trim bar retaining clip positions are the same across LHD and RHD body configurations. Post-2024 facelift compatible. Not compatible with pre-2018 W463 sill trim geometry.

Installation & Reversibility

Installation time is 20–40 minutes for the full set. Each bar section engages the OEM retaining clips with a press-fit — the mounting leg profile is dimensioned to the OEM clip receiver. Work from front to rear on each side, engaging one clip at a time with a trim pry tool to seat the mounting leg. Check the visible face flush with adjacent body paint along the bar's full length before moving to the next section. Fully reversible — OEM bars re-engage at the same clip positions.

Pairing within the Mansory Gronos programme

The Carbon Trim Bars pair naturally with lower-body and door-surface components. The Carbon Door Handle with Logo continues the Gronos carbon programme at the door opening grip — above the bars and in the same side-body zone. For entrance sill definition that frames the trim bars when the door is open, the Entrance Panels add Gronos carbon to the sill face. The Rear Door Panel extends the Gronos surface programme above the trim bars at the rear door, integrating the horizontal bar accent with the door face carbon.

Maintenance & Durability

The trim bars' low position at 350–500 mm above ground makes them the highest-exposure Gronos exterior components for road spray, salt, and stone-chip debris from the front wheels. After each motorway run, the bar faces collect a film of road salt and tyre rubber compound that, if allowed to dry and crystallise, bonds to the clearcoat at the microscopic surface texture of the 3K twill weave. A targeted rinse of the bar faces during routine washing prevents this bonding — direct a fan-spray rinse along the bar's face from the front of the vehicle to the rear, flushing the tyre-spray trajectory that deposits on the bar face from the front wheel contact patch.

Inspect the visible face of each bar section quarterly for any clearcoat micro-crazing at the weave-direction end caps where fore-aft weave threads turn at the bar's longitudinal terminations. This zone concentrates thermal-expansion differential between the resin matrix and the carbon fibre during cold-start and hot-park thermal cycles. A precautionary application of paint sealant across end cap zones before the first winter use season extends the clearcoat service life at these high-cycle positions significantly. If micro-crazing appears treat it immediately with a multi-stage polish and re-seal before propagation requires full clearcoat removal and recoating.

The mounting leg inside the OEM clip receiver can accumulate moisture between the leg and the clip receiver geometry, particularly in winter use. At the annual inspection, remove each bar section and check the mounting leg for any corrosion staining from road salt ingress — the leg is stainless-steel hardware and resistant to corrosion but the OEM clip receiver seat is painted steel that can develop surface rust under sustained salt exposure. A thin bead of corrosion-inhibiting wax on the OEM clip receiver seat before re-fitting the bars provides effective long-term protection at this interface.

Lead Time & Warranty

Lead time for Carbon Trim Bars is 2–3 weeks from order. 12-month warranty against delamination, clearcoat adhesion failures, and mounting leg dimensional errors at the OEM clip receiver engagement.

FAQ

Q: Are the trim bars a single continuous piece per side, or multiple sections?
A: Multiple sections — typically four to six sections per side, divided at the door gaps and body-section transitions. Section joints are positioned at body styling break lines that coincide with the door gap, minimising the visibility of section ends.

Q: Can the trim bars be specified in matte clearcoat for a stealth low-body specification?
A: Yes. Matte clearcoat is available. Matte trim bars at the sill zone complement a matte body-wrap or matte paint specification and reduce the bar's visual contrast against a matte body surface.

Q: Do the carbon bars fit over the OEM chrome lower sill protection strips on the standard G63 AMG?
A: The Carbon Trim Bars are designed to replace the OEM accent trim at the relevant mounting positions. If your W463A has OEM chrome sill protection strips at the relevant position, remove these before fitting the carbon bars. The carbon bars are not designed to overlay chrome-section strips.

Q: Do the bars work with or without the Mansory electrical side steps?
A: The trim bars are at the lower door face zone above the sill step area. The Mansory Electrical Auto Side Steps mount at the body-to-ladder-frame sill bolting points below the door face — the trim bars and the side steps occupy separate zones without interference.

Specify finish preference and W463A build year with the Hodoor Mansory team: Contact us via WhatsApp +44 7488 818 747 or [email protected].
