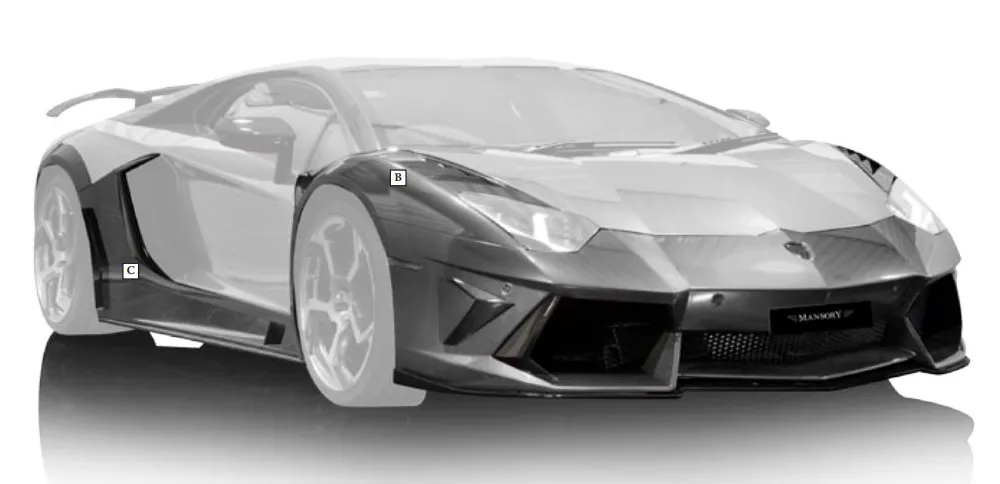

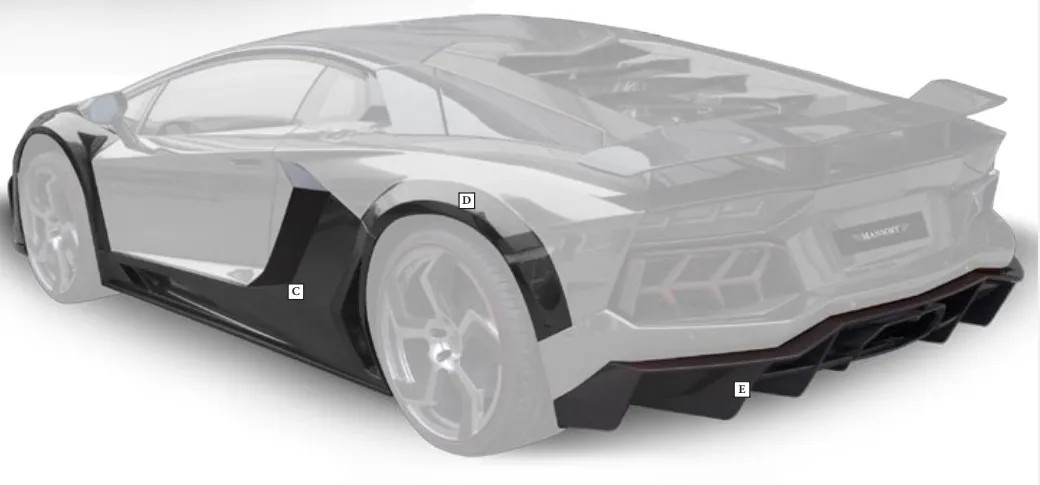

Body kit Mansory Carbon for Lamborghini Aventador

Mansory Carbon Body Kit for Lamborghini Aventador

The complete Mansory carbon body kit is the definitive expression of the Lamborghini Aventador reimagined through Mansory's engineering lens. As the foundational piece within the Mansory Carbon Fiber Body kit set for Lamborghini Aventador, this comprehensive package replaces every major exterior panel with autoclave-cured dry-carbon components — front bonnet, front bumper assembly, side skirts, rear bumper treatment, and the signature rear aerodynamic elements — unifying the car's wedge geometry under a single design philosophy. Owners who specify the full kit from the outset secure perfect panel-gap harmony and consistent weave direction across all surfaces rather than the slight mismatches that can appear when components are retrofitted one at a time.

Construction & Materials

Mansory engineers the body kit from pre-impregnated 3K twill-weave carbon fibre prepreg, cured in a temperature-controlled autoclave at 120 °C under 6 bar pressure. This process compacts the resin fraction to approximately 35 %, producing a void content below 2 % — the threshold that separates decorative carbon trim from genuine structural-grade composite. Every visible surface is finished with a UV-stabilised polyurethane clear lacquer that locks in the characteristic diagonal shimmer of the 3K twill without the yellowing that afflicts single-stage lacquers after prolonged sun exposure.

• Weave: 3K twill (primary exterior panels); selected interior-facing brackets in 2K plain for dimensional stability
• Cure: Autoclave, 120 °C / 6 bar — eliminates micro-voids, maximises interlaminate shear strength
• Wall thickness: 2.0–3.5 mm depending on panel (structural bumper brackets at upper end)
• Weight saving vs OEM polyurethane bumper set: approximately 14–18 kg across the full kit
• Finish: high-gloss UV-stabilised clear lacquer as standard; matte lacquer available on request
• Mounting hardware: OEM-specification stainless-steel fasteners, OEM clip retention points preserved; no new holes required on coupé fitments
• Bonding agent (where applicable): 3M VHB structural tape for sub-panels; mechanical fasteners for load-bearing brackets

The kit is supplied unpainted. Because the Aventador's factory bodywork is also carbon fibre (the monocoque and outer skin panels share the same substrate), Mansory's replacement panels exhibit near-identical thermal expansion behaviour — eliminating the differential cracking between carbon over-panels and a steel substructure that plagues kits designed for conventional steel-body cars.

Design & Visual Function

Mansory's approach to the Aventador resists the temptation to layer additive styling cues onto an already extreme silhouette. Instead each body kit element recalibrates a specific aero function: the extended front splitter geometry increases front axle downforce at motorway speeds by directing airflow beneath the front diffuser channels; the revised side skirt profile reduces lift along the sill section by sealing the underbody floor path more aggressively than the OEM rubber lip strips; and the rear treatment — in combination with the optional diffuser and performance wing — generates a balanced aero platform suited to both road and track use.

Visually the kit sharpens the Aventador's already blade-like waistline. The carbon surfaces reflect ambient light at a higher contrast ratio than Lamborghini's factory matte-black accents, giving the car a depth of surface detail that reads differently at every angle: mirror-flat in overcast conditions, intensely dimensional in direct sunlight. Whe the Aventador's scissor doors swing upward, the unbroken carbon sill section — running from the front wheel arch to the rear quarter — creates a continuous horizontal graphic that reinforces the car's ground-hugging stance.

Mansory also harmonises the kit with the Aventador's existing design language. The front bumper intake apertures maintain the factory proportions while integrating carbon lips at the lower aperture edges, feeding the optional front bumper air intake replacement without modification. The rear bumper preserves the Aventador's iconic tail profile — quad exhaust outlets and the low-set licence plate recess — while adding carbon lateral outtake covers that draw the eye across the full bumper width rather than the factory centre-only emphasis.

Compatibility & Fitment

This body kit is developed for the Lamborghini Aventador LP 700-4 (2011–2016) and the LP 720-4 50° Anniversario. It fits the Roadster (cabrio) in conjunction with the dedicated cabrio engine bonnet and roof-cover items available separately in the programme. The Aventador S (MY2017+) received Lamborghini's revised front and rear bumper shell geometry; the Mansory S-specific kit covers that model. The SVJ uses the Mansory SVJ Cabrera kit. LHD and RHD cars share identical exterior panel geometry — no steering-side variants are required for this kit.

Pre-delivery inspection recommendation: confirm the Aventador's VIN decodes as LP 700-4 or LP 720 before ordering, and supply photos of the existing front and rear bumper profile to the Mansory fitting centre so any corrosion or prior accident repair on the OEM clips can be identified in advance.

Installation & Reversibility

Full kit installation is a scheduled body shop event, not a driveway job. Mansory-trained installers allow 18–28 hours for a complete swap including panel removal, surface inspection of the monocoque mounts, dry-fitting for gap measurement, final fit, and lacquer touch-in at panel seams. The process requires a two-post lift, a torque-driver set calibrated to Lamborghini specifications, and a trim-removal kit for the plastic clips lining the sill channels.

All mounting points replicate OEM locations — the kit is fully reversible if the original panels are retained. No drilling into the carbon-fibre monocoque is required. Owners who retain the factory panels in climate-controlled storage can restore the car to factory specification at any time. Paint coding (if the owner has the visible carbon lacquered to body colour on specific panels) is the only intervention that affects reversibility, and this applies equally to any comparable aftermarket bodywork.

Pairing within the Mansory Aventador programme

The body kit functions as the visual anchor for the rest of the Mansory programme. Pair it with the Mansory designed diffuser to complete the underbody aero story — the diffuser's Venturi channels extend the body kit's floor-sealing geometry rearward, generating measurable rear-axle downforce. The rear performance wing then adds adjustable high-speed downforce atop the body kit's baseline aero balance. For owners focused on a road-oriented build, the Mansory front bonnet continues the carbon vocabulary across the entire upper surface of the car, eliminating the visual break that would otherwise occur at the bonnet's leading edge when the body kit panels transition from bumper to clamshell.

Maintenance & Durability

Lacquered carbon fibre requires broadly the same care as clear-coated paint, with a few additional considerations. Avoid automatic car washes with rotating brushes — the abrasive action on the top-coat can introduce micro-scratches that scatter light and obscure the weave pattern underneath. Hand-washing with a pH-neutral automotive shampoo and a microfibre mitt is the minimum standard. For UV protection, a carnauba-based wax applied quarterly adds a sacrificial layer above the lacquer that absorbs ozone and UV-B before they reach the resin matrix. Ceramic coatings offer longer-interval protection (12–24 months) and hydrophobic self-cleaning behaviour that is particularly effective on a low-slung, road-spray-exposed bumper kit.

Do not use ammonia-based glass cleaners, citrus degreasers, or dishwasher-grade detergents anywhere near the carbon surfaces — these chemicals attack the urethane lacquer at the molecular level, causing micro-clouding that is invisible until the panel is viewed in raking light. Chip repair on the clear coat is straightforward with a single-stage urethane touch-up pen; delamination on a properly autoclaved panel is extremely rare but is covered by Mansory's 12-month manufacturing warranty.

Lead Time & Warranty

A full body kit is a multi-panel bespoke production order. Mansory schedules 4–6 weeks lead time from order confirmation to dispatch. This allows the workshop to lay up each panel in sequence so the weave orientation is matched across the entire kit — a discipline that accounts for roughly a third of the production time. The kit is covered by a 12-month warranty against manufacturing defects including delamination, resin voids visible through the clear coat, and fitment anomalies attributable to the panel geometry. The warranty does not cover damage caused by road debris impact, UV degradation of a lacquer that has been sanded through, or chemical etching from improper cleaning agents.

FAQ

Q: Does the kit fit both the coupé and the Roadster?
A: The bumper, sill, and rear elements fit both body styles. The engine bonnet and roof cover differ between coupé and Roadster — Mansory supplies dedicated cabrio variants for those components. Confirm your body style when ordering.

Q: Can I order individual panels from the full kit rather than the entire set?
A: Yes. Every element of the Mansory Aventador programme is available as a standalone part. The full kit price offers a cost advantage over ordering each panel separately, but the programme is designed to accommodate staged specification.

Q: Is the carbon supplied with a gloss or matte finish?
A: The standard supply is high-gloss UV-clear lacquer. A matte-lacquer finish is available on request at the order stage. Transitioning between finishes after installation requires a respray of the affected panel.

Q: Does fitting the full kit void the Lamborghini factory warranty?
A: Mansory-supplied body kit panels are purely cosmetic and aerodynamic exterior components. They do not interact with the powertrain, suspension geometry, or electronic systems. In most markets the factory warranty on unmodified systems is unaffected. Confirm with your Lamborghini dealer for jurisdiction-specific guidance.

Q: Can the kit be combined with Mansory programmes for the Aventador S or SVJ?
A: No — the LP 700-4 / LP 720 kit is dimensionally different from Mansory's S-specific and SVJ Cabrera programmes. Mixing panels from different kits will produce fitment gaps. Each programme is designed as a closed system for its model year.

To order the full body kit or discuss staged fitment, contact the Mansory specialist team via WhatsApp +44 7488 818 747 or [email protected].
