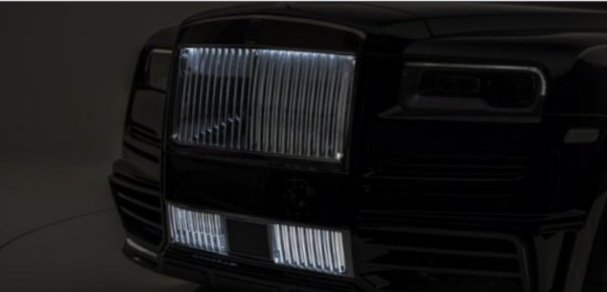

Ambiente grille and front bumper Illumination Mansory for Rolls-Royce Cullinan Coastline

Ambiente Grille + Bumper Illumination — Cullinan Coastline

The Ambiente Grille and Front Bumper Illumination is the full-width lighting overlay within the Mansory Body Kit for Rolls-Royce Cullinan Coastline programme. Where the grille-only ambiente lights the Pantheon vertical alone, this dual-zone variant extends the soft glow downward into the carbon front-bumper trim, creating a single horizon line of light that reads from twenty paces in a hotel forecourt. It is the plain-lamel reading of that idea — the chrome slats of the Pantheon grille remain factory finish, untouched by paint, so the daylight identity of a Rolls-Royce Cullinan is preserved while the night-time theatre is amplified. For owners who want broader light coverage than the grille-only card without committing to the two-tone painted-lamel statement, this is the considered middle ground in the four-card ambiente matrix.

Construction & Materials

Two physically distinct carbon zones share one harness. The grille frame inserts and the bumper trim spars are laid up in matched 2K plain-weave prepreg with a deep-gloss UV-stable lacquer that mirrors the lacquered carbon on the rest of the Coastline programme — fenders, bonnet bar, D-pillar, roof and decklid spoilers. Light pipes are co-bonded behind the carbon so that the LED feed glows from inside the part rather than from a surface-mounted strip, and chrome OEM slats remain visible and untouched.

• Weave: 2K plain prepreg on visible faces; off-axis biaxial backing for stiffness and harness routing
• Cure: autoclave at 120 °C, post-cured to stabilise resin under thermal load from V12 cooling air
• Lacquer: deep-gloss UV-stable, hand-flatted; available raw weave on request
• Wall thickness: 2.0–2.6 mm in the visible faces; 3.0–3.5 mm where light pipes are co-bonded
• Weight: ~1.5 kg combined for both zones, including LED modules and harness
• LED: warm-white 3000 K diffused via co-bonded acrylic light pipes — no visible LED dots through the carbon
• Harness: plug-and-play tap-in to OEM marker / DRL feed, in-line fuse, OEM connector geometry
• Hardware: stainless threaded inserts, butyl gasket strip, EPDM grommets at all harness pass-throughs

Design & Visual Function

The decision an owner makes here is not "more light" — it is "where is the line of light drawn." Grille-only ambiente keeps the glow inside the Pantheon frame, which on a Coastline-spec Cullinan reads as a tall vertical lantern. Extending into the bumper carbon turns that lantern into a horizon — a low, broad, calm beam that aligns with the OEM lower air aperture and runs almost the full width of the front mask. It is the difference between a single lit window and a lit colonnade. By day the bumper light pipes are matte under the lacquer; only the grille-vertical and the lower air-aperture carbon read as carbon, and the chrome lamels above sit cleanly in factory finish.

Restraint is the central idea. The lamels stay OEM chrome — not painted to match coachwork, not picked out two-tone — so the Pantheon retains its formal Rolls-Royce identity in daylight. Only at twilight, as the headlamps wake and the Spirit of Ecstasy raises on her plinth, does the dual-zone ambiente reveal itself: a quiet warm wash through the grille verticals and a broader, lower wash across the bumper carbon. The effect is bespoke rather than show-car — a Coastline owner walking out of a riad at dusk, or pulling under a hotel canopy on a winter evening, sees the car glow rather than announce.

The two zones are tuned for diffusion rather than punch. A Cullinan carries enough presence at 5.34 m and 2.66 t — the ambiente is there to give the front mask depth and softness, not to look like an aftermarket light bar. Warm-white 3000 K was chosen specifically to harmonise with the cabin Starlight headliner spill that escapes through the windscreen at idle, and with the OEM amber-tinged DRL signature; cool-white would have read as alien against Rolls-Royce's warm cabin language.

Compatibility & Fitment

Rolls-Royce Cullinan, model years 2018 onwards, Standard and Black Badge, Series I (2018–2023) and Series II Coastline facelift (MY2024 onwards). The grille frame and bumper carbon are sized specifically for the Cullinan front mask — they are not interchangeable with Phantom or Ghost. OEM parking sensors, washer jets, camera apertures, ACC radar window and the OEM coach-door geometry are all retained. Air-suspension self-levelling sensors and ride-height behaviour are unaffected. Spirit of Ecstasy retraction and illumination, Pantheon grille vane operation if specified, and the OEM bonnet pinstripe illumination if optioned, all remain factory-functional.

Installation & Reversibility

Plan on 1.5–2 h of careful electrical work in addition to the trim install itself. The grille frame and the bumper carbon are physically straightforward — they sit on OEM mount points with butyl gasketing — but the harness routing demands neat work: the loom from the grille zone passes behind the front-mask trim, joins the bumper-zone loom at a Y-junction inside the bumper carrier, and taps into the OEM marker / DRL feed via an in-line fused tap-in connector. Coding is not required for the marker tap; for canbus-respectful operation on later cars, a body shop with Rolls-Royce diagnostic access can register the additional load to suppress any check-control flag.

Reversibility is total: every interface — mount points, gasket, electrical tap-in — is reversible to OEM, and no harness is cut. Recommended installer is a Rolls-Royce-certified body shop or a Mansory-trained installer for the electrical splice; the carbon trim itself is fitter-friendly. PPF over the visible carbon faces is recommended before delivery on UK / Continental driving profiles, where motorway grit reaches the front mask quickly.

Pairing within the Mansory Cullinan Coastline programme

This card sits in the middle of a 2×2 ambiente matrix and has three direct siblings — the most natural decision for an owner is to compare it head-to-head with each of them before committing. Specify alongside or in place of:

• Ambiente grille illumination (plain) — grille-only, OEM chrome lamels; the most restrained reading
• Ambiente grille illumination, two-tone painted lamels — grille-only with painted slats
• Ambiente grille + front bumper illumination, two-tone painted lamels — the fullest reading, dual-zone with painted lamels

Beyond the matrix, the dual-zone ambiente sits naturally with the front grill frame (exposed) and with light upgrade for Cullinan Coastline; the warmth of the ambiente and the colour temperature of the upgraded headlamps are best matched at the same time of commission.

Maintenance & Durability

Lacquered carbon on the Cullinan front mask sees more rock-chip exposure than the same panel on a coupé — the SUV stance puts the bumper closer to the path of motorway gravel. PPF over the visible carbon faces is the single most useful step. For everyday wash, pH-neutral shampoo and a soft mitt; never alkaline degreaser, never ammonia-based glass cleaners on the lacquer, never abrasive sponges on the light-pipe windows. Ceramic coating extends UV stability of the lacquered weave and is fully compatible with the light pipes.

LED ambiente longevity is rated to 30,000 hours of operation; the harness is fused independently of OEM lighting circuits so that a fault on the ambiente cannot disable the OEM marker or DRL function. Power draw at standstill is approximately 6 W combined across both zones — negligible against the Cullinan's standstill electrical baseline. If a single light pipe takes a stone strike, the bumper-zone trim can be removed and the affected pipe replaced without disturbing the grille-zone trim.

Lead Time & Warranty

Lead time 4–8 weeks from order confirmation; bespoke production at Mansory. 12-month warranty against manufacturing defects covering both the carbon and the LED / harness assembly. Raw weave finish, alternative LED colour temperature (warm 2700 K or neutral 4000 K) and colour-matched lacquer over the bumper-zone carbon are available on request.

FAQ

Q: Why pick this card over the grille-only ambiente?
A: Coverage. The grille-only card draws a single vertical lantern; this card draws a horizon. If the Cullinan lives in valet-forecourt and hotel-canopy contexts, the wider beam reads more theatrically.

Q: Why pick this card instead of the two-tone painted-lamel version?
A: Restraint. The painted-lamel cards commit to a daylight statement — the lamels are visibly painted whether the lights are on or off. This card keeps the chrome OEM identity in daylight; the theatre only appears at dusk.

Q: Will the OEM Spirit of Ecstasy retraction and illumination still work?
A: Yes. The ambiente harness taps into a separate marker / DRL feed and does not interfere with the bonnet ornament loom or its illumination.

Q: Does this fit Black Badge as well as Standard?
A: Yes — both Standard and Black Badge Cullinan are supported, Series I and Series II Coastline. Black Badge chrome-darkening on the lamels is preserved; we do not paint over it.

Q: Can the LED feed be switched separately from the OEM markers?
A: A discreet welcome / coming-home logic is wired through the OEM marker tap by default. A separate cabin switch is available on request and is fitted into the OEM blank panel by a certified installer.

Q: How does the air-suspension ride-height behaviour interact with this part?
A: It does not. The carbon and the harness sit on the front mask; raise / lower / off-road suspension modes do not load the trim and do not change the visible alignment of the ambiente line.

Specify alongside the front grill frame and the light upgrade to commission the warm-light front mask in one workshop visit. WhatsApp +44 7488 818 747 or [email protected].
