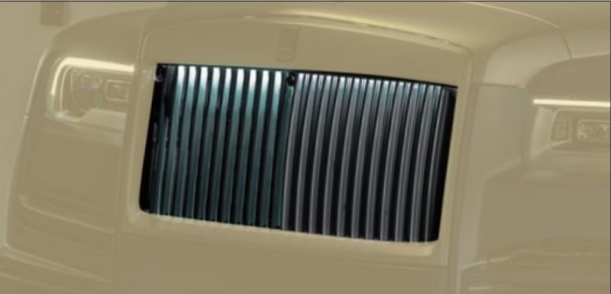

Ambiente grille Illumination with two tone painting lamels Mansory for Rolls-Royce Cullinan Coastline

Ambiente Grille Illumination, 2-Tone Painted Lamels — Cullinan

The Mansory Ambiente Grille Illumination with two-tone painted lamels is the most theatrical of the four ambiente variants in the Mansory Body Kit for Rolls-Royce Cullinan Coastline programme. It takes the upright Pantheon grille that defines the front of every Rolls-Royce and turns it into a piece of architectural light. The vertical chrome lamels are stripped, primed and repainted in a bespoke two-tone scheme — typically the body colour against a contrasting accent — and a discreet ribbon of LEDs is set behind the grille to glow around and through the painted slats at twilight. On a 5.34 m, 2.66 t twin-turbo V12 SUV with rear-hinged coach doors, a Spirit of Ecstasy and a Starlight headliner inside, that grille becomes the exterior counterpart to the cabin's ceremonial light show — the part that announces a Cullinan before its driver has even stepped out.

Construction & Materials

The kit is engineered around the OEM Pantheon grille frame and its vertical lamels, with carbon-composite carrier substructure to mount the LED array, optical diffusers and harness without fouling original sensor positions. The painted lamels are finished in PPG/Standox-grade waterborne system to factory Rolls-Royce film thickness so they read as Goodwood-grade coachwork rather than aftermarket plastic.

• OEM Pantheon grille lamels (vertical chrome slats) stripped, primed and repainted in bespoke two-tone scheme — body-colour base + accent (Mansory palette or RR Bespoke match)
• Carbon-composite mounting carrier (3K twill, vacuum-bag cured ~1.4 mm wall) for the LED ribbon and harness
• Automotive-grade SMD LED array, colour temperature ~3000 K (warm) or 4000 K (neutral) per spec, IP68 sealed
• Frosted polycarbonate diffuser strip set behind the lamels — emits a soft halo, not a hot spot
• Plug-and-play harness with OEM-style connectors, fused, tied into marker-light or DRL feed (no body-CAN coding required for basic on-with-side-lights operation)
• Total added mass ~0.4–0.6 kg vs OEM grille
• Hardware: stainless retainers, butyl gasket against the grille shell, no body-shell drilling
• Finish on lamels: deep-gloss two-pack lacquer over the two-tone basecoat, matched to RR coachwork standards

Design & Visual Function

This part exists for two reasons, and both are visual. The first is what happens at standstill, in daylight. A standard Pantheon grille is uniformly chrome — beautiful, but uniform. By repainting the lamels in two tones, Mansory introduces a controlled rhythm to the front mask: vertical bars that read as one colour from one angle and another from another, framed by the chrome surround and the Spirit of Ecstasy on the bonnet leading edge. The eye now has somewhere to land. The grille stops being a single silver block and becomes a composition that converses with the body colour, the carbon front-grill frame and any contrasting roof.

The second reason is what happens at twilight and after dark. The LED ribbon sits behind the painted lamels and washes light through the gaps between them, so the grille reads as a glowing cage rather than a back-lit billboard. The diffuser kills any pixel-shimmer and gives the light the soft, lacquer-like quality that suits a Rolls-Royce — closer in character to the Starlight headliner inside than to a sports-car light bar. Where the plain ambiente variant lets light fall on chrome, the two-tone painted variant gives the LEDs painted surfaces to graze, so the contrast between lit lamels and dark gaps is sharper and the colour signature of the bespoke paint is preserved at night.

Within the four-card 2×2 ambiente matrix — grille-only vs grille+bumper, plain vs two-tone painted lamels — this is the combination that maximises grille drama without committing to lighting the lower bumper apertures as well. It is the choice for owners who want the front of the car to perform a small piece of theatre when it pulls under a porte-cochère, but who prefer the lower bodywork to remain quiet. If you also want the bumper apertures to glow, see the Ambiente grille + front bumper illumination with two-tone painted lamels; if you prefer the chrome lamels left untouched, see the plain ambiente grille illumination; for chrome lamels with grille + bumper lighting, see the plain ambiente grille + front bumper illumination.

Compatibility & Fitment

Designed for Rolls-Royce Cullinan (2018 onwards), Standard and Black Badge, including Series II Coastline facelift cars. The kit retains OEM front-camera operation, parking-sensor function, the bonnet-pinstripe illumination feed where fitted and the air-suspension self-levelling sensors that govern Cullinan ride height. It is not a fit for Phantom, Ghost, Spectre or Wraith — the lamel pitch, grille height and surround geometry are Cullinan-specific. Coach-door operation, the Spirit of Ecstasy retraction mechanism and the bonnet-release path are unaffected. The carbon front-grill frame from the Coastline programme can be combined with this part — the painted lamels sit inboard of the frame, so the two pieces stack without interfering.

Installation & Reversibility

Allow one to two hours at a Rolls-Royce-certified body shop or Mansory-trained installer. The OEM grille is removed at its factory clips, the lamels are exchanged for the repainted set (or sent off-car for paintwork and refitted on return), the LED carrier is bonded to the back of the grille frame, and the harness is run to a switched-12 V tap on the marker-light or DRL feed via an inline fuse. No body-shell drilling. No body-CAN coding is required for the standard on-with-side-lights behaviour. Reversibility is total: pull the harness, refit the original lamels (kept by the owner) and the front of the car is back to factory in under an hour. We recommend a professional installer for the electrical splice — Cullinan body harnesses are routed close to airbag wiring and air-suspension lines and an unsupervised tap-in is not appropriate on a car of this value.

Pairing within the Mansory Cullinan Coastline programme

Inside the four-card ambiente matrix, the natural cross-references are the three siblings already named above — grille-only plain, grille+bumper plain and grille+bumper two-tone — so an owner can specify any cell of the 2×2 grid. Beyond illumination, the painted-lamel grille pairs cleanly with the exposed-carbon front grill frame, which surrounds the painted lamels with visible weave and gives the front mask a layered chrome–paint–carbon reading. Owners building a fuller front-end signature usually add the engine bonnet with exposed carbon bar and the carbon front fenders from the same Coastline roster.

Maintenance & Durability

The painted lamels are conventional Rolls-Royce-grade coachwork and should be cared for as such — pH-neutral shampoo, soft mitt, microfibre dry, no abrasive sponges, no alkaline traffic-film removers and no ammonia-based glass cleaners on the lacquer. A dedicated paint-grade ceramic coating extends the gloss life of the two-tone scheme and shrugs off the bug-strike and rock-chip exposure that a Cullinan picks up on long-distance use; on the front leading edges, a clear paint-protection film over the painted lamels is a sensible upgrade because the SUV's frontal area sees more debris than a saloon. The LED array itself is sealed and rated for the full life of the car at typical use; current draw at standstill is small enough that there is no measurable load on the battery during a normal porte-cochère arrival or short photo session. If a lamel chips, the painted set can be removed without disturbing the LED carrier, refinished and refitted; if an LED segment ever fails, the diffuser strip and carrier are designed as serviceable items.

Lead Time & Warranty

Lead time is typically four to eight weeks, driven by Mansory bespoke production and the paint-match step for the two-tone scheme. The kit is supplied with a 12-month warranty against manufacturing defects.

FAQ

Q: Why specify two-tone painted lamels instead of leaving the chrome?
A: Two reasons. At standstill the painted lamels add a controlled rhythm and a colour conversation with the body — the grille stops reading as a single silver block. At twilight the LEDs graze painted surfaces rather than chrome, so the lit-lamel-vs-dark-gap contrast is sharper and the bespoke paint colour is preserved after dark.

Q: Does this fit Black Badge as well as Standard Cullinan?
A: Yes. The lamel pitch and grille geometry are common to both. Black Badge cars often arrive with darker chrome surrounds — those stay; only the lamels are repainted.

Q: Can the LEDs be made to come on with the unlock animation rather than the side-lights?
A: The standard harness is wired to the marker-light or DRL feed (on with the parking lights). An installer with body-CAN access can re-target the trigger to the welcome / unlock event if the car's module supports it; we tune that on request.

Q: Will the painted lamels chip on motorway use?
A: They are finished to factory paint standards and will behave like any leading-edge body panel on a Cullinan. Owners who cover long distances frequently add a clear paint-protection film over the lamels — that is the same approach used on Rolls-Royce bonnets and front-fender leading edges.

Q: Is the install reversible if the car is sold or returned to lease?
A: Yes. The original chrome lamels are kept by the owner, the harness is unbolted from its fused tap and the LED carrier comes off the back of the grille frame. No drilling, no body-CAN flash. Refit time is under an hour.

Q: Does the air suspension lowering on entry affect anything in this kit?
A: No. The grille and its illumination sit well above the lowest point of the front mask, so the kerb-clearance position the air suspension drops to has no bearing on the lamels or the LED array.

Pair this with the carbon front-grill frame and the two-tone front fenders and the front of a Coastline Cullinan reads as one composed bespoke object. Specify, paint-match and book installation: WhatsApp +44 7488 818 747 or [email protected].
