Add on parts for front bumper Mansory Carbon for Mercedes-Benz AMG GT S Coupe

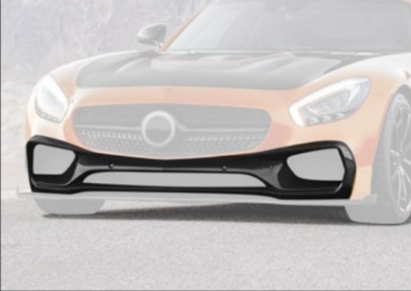

Add-On Parts for Front Bumper, Base — Mansory Carbon for Mercedes-AMG GT (C190) S Coupe

The base add-on parts for the front bumper are the most restrained route into the Mansory carbon programme for the Mercedes-AMG GT (C190). It is a single carbon accent panel that bonds onto the lower zone of the OEM front bumper, leaving the silhouette of the car untouched and the side intakes free of additional flaps. Within the broader Mansory Carbon Fiber Body kit set for Mercedes-Benz AMG GT S Coupe, this is where an owner of a 4.0L M178 V8 BiTurbo coupe or roadster — GT, GT S, GT C, GT R, GT R Pro, or Black Series — starts when the goal is a Mansory signature that reads as a refined accent rather than a wide-body declaration. The Panamericana grille verticals, the long bonnet, the rear haunches over the DCT transaxle — all stay as Affalterbach drew them.

Construction & Materials

The panel is moulded from prepreg carbon fibre and post-cured under autoclave pressure, the same workflow Mansory uses across the C190 programme. The visible weave is a 3K twill running edge-to-edge across the part, with the centre-line of the weave aligned to the longitudinal axis of the AMG GT so the pattern reads symmetrically when seen from kerb height — a small detail that matters because this is a base accent: there is nowhere for the eye to hide.

Because the base variant carries no flaps and no aggressive aero geometry, the laminate stack is optimised for stiffness and stone-chip resistance rather than downforce loading — the panel’s job is cosmetic and protective, not aerodynamic.

• 3K twill carbon prepreg, autoclave-cured, glass-transition tuned for European summer plus track-day soaks
• Wall thickness approximately 2.0–2.4 mm across the visible field, locally thicker at the bond flange
• Component mass under 1.0 kg — negligible nose-balance shift
• Mounting via OEM-grade structural adhesive plus mechanical retention at factory under-bumper points
• Finish options: deep-gloss UV-stable lacquer (showroom default) or matte UV clear that preserves the visual depth of the twill
• Edges CNC-trimmed, then hand-finished and lacquer-rolled to suppress fibre print-through
• Mansory production stamp located inboard of the bond flange, hidden once installed
• Hardware kit: stainless mechanical clips, primer wipes, alignment shims

Design & Visual Function

The base variant is a study in restraint. Its job is to introduce a Mansory carbon line at the lower edge of the OEM front bumper without altering the apparent width of the nose. There are no side flaps cantilevered out into the airstream, no winglets reaching toward the front wheels, no visual signal that the car has been re-imagined; instead, the eye reads a single deep-gloss carbon stripe under the AMG mouth, and the rest of the C190 face stays exactly as Affalterbach drew it.

That restraint has a thermodynamic side-effect. Because the panel does not protrude into the cooling intakes feeding the central radiator and the side intercoolers of the M178 V8 BiTurbo, airflow into the hot-V — where the twin turbochargers sit between the cylinder banks — is unaffected. Charge-air temperatures on a hot lap, brake-cooling duct flow on the front discs, and the low-speed pressure recovery into the AIRPANEL active underbody system on a GT R remain at OEM specification. For owners who chase consistent intake and intercooler temperatures on a circuit and do not want a downforce-biased front geometry, the base variant is the rational pick.

Visually, it pairs cleanly with both the lacquered weave of the Mansory engine bonnet and the painted-body alternative of the engine-bonnet-primed panel. Because the carbon line sits low on the bumper, it also harmonises well with the Mansory side skirts and side lips along the rocker, drawing a continuous low-line carbon thread from front splitter zone to rear diffuser without ever raising the visual centre of gravity.

Compatibility & Fitment

Designed for the Mercedes-AMG GT (C190) — GT, GT S, GT C, GT R, GT R Pro, Black Series — in Coupe and Roadster body styles. The base add-on bonds onto the OEM front bumper at factory under-bumper attachment points and respects all stock apertures, so headlight washer jets, parking sensors, AMG cooling ducts, and the AIRPANEL active underbody aero on GT R remain unobstructed. OEM exhaust valving, DCT transaxle clearance, and the SPEEDSHIFT 7G dual-clutch cooling architecture are unaffected.

NOT compatible with the 4-door AMG GT 63 (X290) — that car is a separate platform with its own grille architecture, MRA underpinnings, and 4MATIC+ all-wheel-drive layout, and Mansory’s C190 add-on geometry will not mate to its bumper. For pre-2017 Diamond-grille C190 cars the base add-on still fits, because it bonds below the grille zone; only the grille-branding components in the wider programme are facelift-specific.

Installation & Reversibility

Plan three to four hours of bench time, plus a clean dry workshop and a stable ambient of 18–24 °C for adhesive cure. The bonding process: degrease the bumper, mask the panel break, dry-fit and shim, scuff the bond flange, prime, apply Mansory-spec structural adhesive, set the part with alignment shims, then engage the mechanical clips at the factory under-bumper points. Cure overnight before the car returns to the road.

Reversibility is one of the practical reasons the base variant exists. Because the panel attaches to the OEM bumper rather than replacing it, an owner can return the car to factory appearance with a careful adhesive release and a respray of the bumper lower zone. There is no surgery to the headlight pods, no cut to the wheel-arch liners, no harness splice. For owners on a lease cycle or anyone who plans to sell the C190 onto a more conservative buyer, this is the lowest-risk way to wear the Mansory wordmark. For DIY-capable owners with bonding experience the install is approachable; for everyone else, an AMG-certified body shop or Mansory-trained installer is the right route.

Why an owner picks the BASE variant

The three add-on options for the front bumper sit on a clear spectrum. The high-side-flaps variant is the loudest: cantilevered carbon fences pushing visual width outboard of the front wheels, GT3-paddock energy in stationary form. The low-side-flaps variant is the middle path: smaller flaps, a carbon hint at the bumper corners, motion implied without theatre. The base variant is the most restrained of the three — a single accent panel, no flaps, no winglets, no protrusion. Owners pick it for four reasons: minimal-change carbon accent that respects the OEM C190 silhouette; lowest cost-of-entry to the Mansory carbon look; easy reversibility for lease returns or future resale; and zero impact on charge-air, brake-cooling, or AIRPANEL airflow. It is the choice of the owner who wants the Mansory thread without the Mansory volume.

Pairing within the Mansory AMG GT programme

If you eventually want more presence at the front of the car, step up to the low-side-flaps add-on for the front bumper or, for full GT3-flavoured visual width, the high-side-flaps variant. To extend the carbon thread upward and outward without changing aero geometry, pair the base accent with the Mansory front lip along the leading edge and the front fender splitter cover at the wheel-arch transition.

Maintenance & Durability

The panel sits at the lower front of the car, which means it lives in the strike zone for tar, gravel, salt mist in winter, and the occasional kerb in tight underground car parks. A clear paint-protection film over the leading edge of the carbon is the single best defence; a quality ceramic coat layered over the lacquer adds chemical resistance and makes road-film release with a pH-neutral wash. Avoid alkaline degreasers, ammonia-based glass cleaner overspray, and abrasive sponges — they are the three common killers of lacquered carbon gloss on a daily-driven AMG GT.

If the panel takes a stone chip, the repair pathway is straightforward because there is no aero geometry to recreate: lift the affected area, re-lacquer locally, polish back into the surrounding gloss. A full panel swap is rare and rarely necessary. UV care matters more in summer storage — leave the car under a breathable cover rather than a sealed plastic sheet, which traps heat against the lacquer.

Lead Time & Warranty

Lead time is typically four to eight weeks from order, reflecting Mansory’s bespoke production cadence — each panel is moulded to order and finish-matched to the specified lacquer or matte clear. A 12-month warranty covers manufacturing defects, including delamination, lacquer adhesion failure, and weave alignment outside Mansory’s tolerance. Stone chips, kerb strikes, and chemical damage from incorrect cleaning products are excluded.

FAQ

Q: How is the base variant different from the low-side-flaps and high-side-flaps add-ons?
A: The base is a single carbon accent panel under the OEM bumper with no flaps. The low-side-flaps variant adds modest flaps at the bumper corners. The high-side-flaps variant adds taller, more cantilevered flaps that push visual width outboard. Same parent car, three intensities.

Q: Does it fit GT, GT S, GT C, GT R, GT R Pro, and Black Series?
A: Yes — across the full C190 model range, Coupe and Roadster, in any production year (2014–2021). It bonds below the grille so pre-facelift Diamond-grille and post-facelift Panamericana cars both accept it.

Q: Will it fit the 4-door AMG GT 63 (X290)?
A: No. The X290 is a separate platform with its own bumper geometry and 4MATIC+ underpinnings; this part is C190-specific and will not mate to it.

Q: Does it change cooling for the M178 V8 BiTurbo?
A: No — the base panel does not protrude into the cooling intakes, so airflow into the central radiator, the side intercoolers feeding the hot-V turbos, and the front brake-cooling ducts is unchanged from OEM.

Q: Can I remove it later without trace?
A: Largely yes. Because it bonds to the OEM bumper rather than replacing it, a careful adhesive release and a respray of the bumper lower zone return the car to factory appearance. That reversibility is one of the main reasons owners pick the base over the wider variants.

Q: Lacquered or raw weave finish?
A: Both are available. Lacquered (deep-gloss UV-stable clear) is the showroom default and is easier to live with day-to-day. A matte UV clear is offered for owners who prefer the visual depth of the twill without high gloss.

Pair this base accent with side skirts, a Mansory engine bonnet, and a Mansory rear wing to draw the carbon thread from nose to tail without losing the OEM stance. Talk to us about specification and lead time on WhatsApp +44 7488 818 747 or [email protected].
