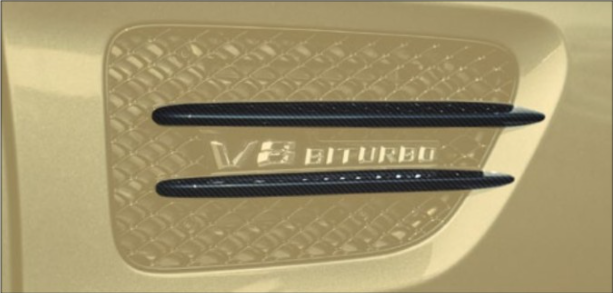

Front fender splitter cover Mansory Carbon for Mercedes-Benz AMG GT S Coupe

Mansory Carbon Front Fender Splitter Cover for Mercedes-AMG GT (C190)

The front fender splitter cover is one of those small Mansory parts that quietly does a lot of work on the long-bonnet AMG GT silhouette. It lives on the side of each front wing, immediately aft of the front wheel arch, where the OEM fender carries an air-extractor vent and the signature embossed AMG GT wordmark. Mansory's autoclave-cured carbon cover trims that vent surround in 3K twill, taking what is essentially a body-coloured stamping on the donor car and turning it into a deliberate carbon island that ties the front wheel arch into the side-skirt and the front-lip. Within the wider Mansory Carbon Fiber Body kit set for Mercedes-Benz AMG GT S Coupe, this is the trim element that makes the side profile read as a single composed surface — front lip, fender vent, side skirt, rear haunch — rather than a collection of separate panels glued onto a stock C190.

Construction & Materials

Each cover is laid up over a CNC-milled mould taken from a measured C190 fender. Mansory's carbon team pre-impregnates 3K twill with epoxy resin, ply count is tuned for a part that lives in a stone-chip zone (front wheel arch outflow throws gravel) without being structurally loaded. The autoclave cure compacts the laminate and gives the deep, optically dense weave that survives close inspection on a sunlit fender top. Underside is a single bonded mounting interface — no through-fender drilling on a healthy install.

• 3K twill outer ply, autoclave-cured prepreg epoxy, with optional 2K plain or forged-look skin on request
• Wall thickness ~1.6–1.9 mm at the visible flange, ~2.4 mm in the mount zone behind the OEM AMG badge bracket
• Per-cover mass roughly 180–230 g — pair adds well under half a kilogram to the front axle
• 3M VHB structural acrylic mounting strip plus two locating pegs that key into existing fender vent fixings
• Standard finish: deep-gloss UV-stable lacquer; matte satin or raw weave with UV clear available on request
• Edge profile is deburred and clear-flooded — no exposed weave at the perimeter where the part meets fender paint
• OEM AMG GT wordmark badge bracket is preserved — Mansory's cover frames the script rather than replacing it
• Optional weave alignment to the engine bonnet and front lip so all three carbon islands run a common 0/45° twill axis

Design & Visual Function

The fender vent on the AMG GT is not a closed decoration — it is a pressure relief. The front wheel arch on a C190 is fed warm air by the front brake ducts and by tyre churn, and that air has to leave somewhere before it builds pressure under the wing and lifts the inner liner. The OEM fender vent gives that air a low-pressure exit out into the side stream, where the side-skirt picks it up and runs it down the flank. Mansory's cover does not change the aperture geometry — that would risk the certified front brake-cooling balance — but it tidies the surround, deletes a mid-tone paint break that visually shortens the wing, and replaces it with a carbon plate that the eye reads as a vent rather than as decoration.

Visually, the part sits on one of the most-photographed sections of the AMG GT body: the long bonnet runs into the front wing, the wing carries the splitter cover, and the eye is then guided rearward toward the door pillar and the wide haunch over the rear-mounted DCT transaxle. Because the C190 has unusually long front overhang and a cab-rearward stance, anything that adds a rhythmic carbon accent at the wing-vent height stretches the visual bonnet line further. The cover's leading edge is profiled to flow into the body line that drops from the headlight cluster; the trailing edge stops short of the door shut so it never reads as a panel the door has to clear. Owners coming out of GT3 customer racing inspiration tend to pair this cover with raw-weave side-skirts and a gloss-lacquer front-lip to play matte against gloss on a single horizontal plane.

Weave alignment matters here more than on most small parts. With the cover sitting at eye height and flat to the side of the car, a misaligned twill axis is obvious from three metres away. Mansory's mould is indexed so the 0° twill thread runs parallel to the embossed AMG GT wordmark, which is itself parallel to the rocker — a single horizontal datum that ties the part to the body. If the engine-bonnet, the splitter-for-oem-engine-bonnet, the front-lip and the fender splitter cover all share that datum, the front three-quarter view stops looking like a parts catalogue and starts looking like a single carbon programme.

Compatibility & Fitment

This cover is engineered for the Mercedes-AMG GT (C190) two-door platform: GT (462 hp), GT S (522 hp), GT C, GT R (585 hp), GT R Pro and Black Series, in Coupé form and — with installer confirmation — Roadster, since the front wing pressing is shared. It is not compatible with the four-door AMG GT 63 (X290), which is a different platform with a different front-fender pressing and no equivalent venting accent. The OEM AMG GT wordmark badge bracket is preserved, so the donor car's badge transfers across without modification. Front brake-cooling ductwork, wheel-arch liner clips, parking-sensor harness routing through the wing and the AIRPANEL active underbody flap on the GT R are unaffected — the cover is a pure surface-mounted trim that does not encroach on functional clearances. Pre-facelift cars with the older Diamond grille still get a clean fit on this part because the fender vent geometry is shared 2014–2021; the Panamericana facelift caveat is grille-side only, not fender-side.

Installation & Reversibility

Total fitment time on a clean fender is around 40–60 minutes per side once the car is settled at workshop temperature. The fender is degreased, the OEM wordmark area is masked, the bonding surface is wiped with isopropyl, primer flash time is observed, and the cover is offered up dry first to confirm the locating pegs key cleanly into the existing vent fixings. Once dry-fit is signed off, the VHB liner is peeled in two stages and the part is rolled onto the surface from the leading edge backwards so air does not get trapped behind the bond line. A heat-gun pass at low temperature accelerates VHB cure for cars going on a road trip the next day. Reversibility is good: the cover lifts off with monofilament cord and a heat gun, and any VHB residue cleans off paint with a citrus adhesive remover and a foam pad. We recommend an AMG-certified body shop or Mansory-trained installer for first-time fitments simply because alignment to the engine bonnet's twill axis is easier with a second pair of eyes.

Pairing within the Mansory AMG GT programme

The fender splitter cover earns its keep when it is read alongside the parts directly upstream and downstream of it on the side profile. Most owners pair it with the front-lip directly ahead of the front wheel and the side-skirts immediately behind it, so the carbon line runs continuously from the front splitter through the wing vent to the rocker. Owners going further down the bonnet route also add the splitter-for-oem-engine-bonnet, which keeps the painted bonnet but introduces a matching carbon strip up at hood-shutline height — that triangulates the front three-quarter view between hood, wing and skirt without committing to a full carbon engine-bonnet swap.

Maintenance & Durability

The cover lives in a hostile zone for clear-coat: gravel thrown by the front tyre, salt spray off the rocker, and warm air dumping out of the wheel arch every time the front brakes are worked. Treat it like a painted carbon panel that happens to face the road. After delivery we recommend a ceramic coating layer on top of the factory UV-stable lacquer — the ceramic gives the chip-resistance and the wash-tolerance that pure carnauba does not, and on a daily-driven AMG GT it materially extends the life of the lacquer. PPF over the leading 30–40 mm of the cover's leading edge is a sensible insurance policy for any car that sees motorway miles, since that is where stone strikes concentrate. Avoid alkaline wheel cleaners, ammonia glass cleaner and abrasive sponges anywhere near the lacquer; pH-neutral shampoo and a soft microfibre on a two-bucket wash is enough. If a chip does penetrate the lacquer, the repair workflow is straightforward: stabilise the chip with UV-cure clear, flat back at high grit, machine polish, then re-ceramic. Catastrophic damage is rare given the part's surface-mount nature — in the worst case the cover lifts off and a new one bonds onto a clean fender without paint repair.

Lead Time & Warranty

Lead time is typically 4–8 weeks because Mansory builds bespoke parts to order rather than holding stock. We confirm trim spec (gloss / matte / raw), weave (3K twill / 2K plain / forged-look) and weave-axis match to any parts you already own or are ordering alongside this cover before the laminate is laid up. The cover ships with a 12-month manufacturing-defect warranty covering laminate delamination and lacquer crazing under normal road use; track abuse, post-fit modification and stone damage are out of scope.

FAQ

Q: Does this cover delete the AMG GT wordmark badge?
A: No. The OEM AMG GT script lives on a separate bracket that the cover is profiled around — Mansory preserves the badge area so the car still reads as an AMG GT, with carbon framing rather than replacing the wordmark.

Q: Will it interfere with front brake cooling on a GT R or Black Series?
A: No. The vent aperture itself is unchanged; the cover trims the surround only. Warm air still exits the front wheel arch on the same flow path as stock, so the certified front brake-cooling balance is untouched.

Q: Is the part shared between Coupé and Roadster?
A: The C190 front fender pressing is the same across Coupé and Roadster, so the cover bonds cleanly on both. We still ask Roadster owners to confirm with their installer because trim sealing around the soft-top mechanism on early build years can vary.

Q: Can I match the weave axis to a carbon engine bonnet I already have?
A: Yes — that is the recommended approach. If you tell us the bonnet's weave orientation at order time, the cover ships with a matched 0/45° datum so the front three-quarter view is visually unified.

Q: How does it differ from the side-lip and the midle-lip-cover lower down on the body?
A: Those parts live at rocker height and read horizontally from low angles. The fender splitter cover lives at wing height and reads from the front three-quarter at standing eye level. They are complementary, not alternatives — most owners ordering one specify the other in the same build.

Pair the front fender splitter cover with the front-lip and side-skirts to lock the C190 side profile into a single carbon line, then bring it up over the bonnet with the splitter-for-oem-engine-bonnet for a fully composed front-three-quarter view. To configure your build: WhatsApp +44 7488 818 747 or [email protected].
