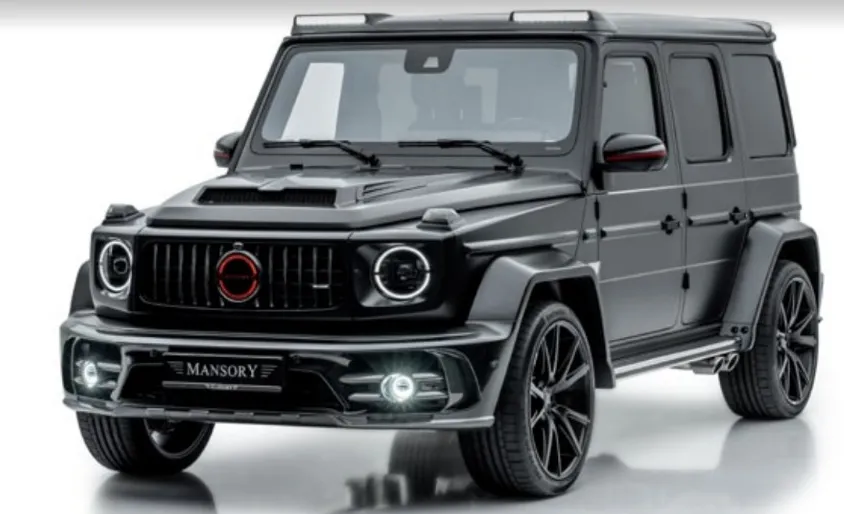

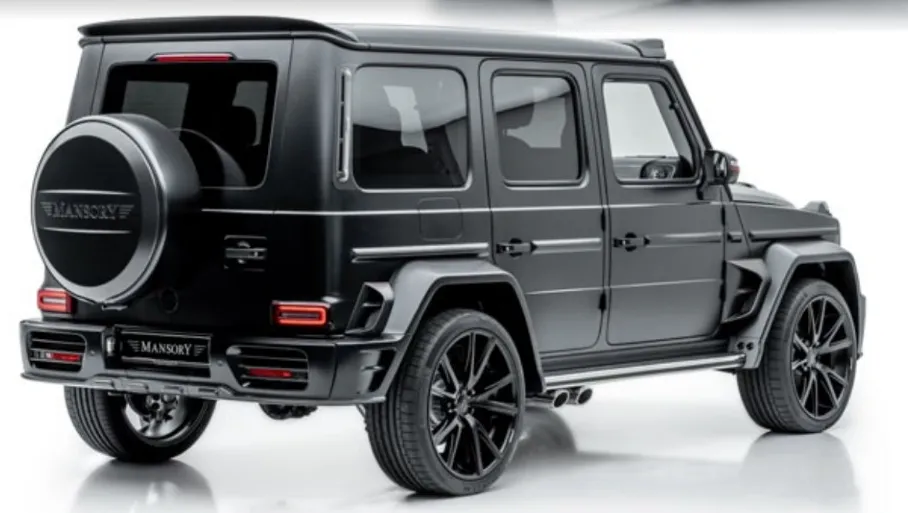

The Mansory carbon widebody is the geometry-defining piece of the Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 programme — the kit that turns the slab-sided W463A from a tall, narrow off-road silhouette into a wide, planted GT-truck stance without bolting on separate quarter panels. This particular SKU is the flares-and-splitters variant: the wheel-arch extensions, lower front bumper splitter, lower rear bumper splitter and side rocker extensions ship as one coordinated CFRP set, leaving the OEM doors and quarter sheetmetal in place. Owners specify it when they want the full Mansory track-width signature but plan to keep the factory door skins and side glass DLO untouched.
Track Width, Flare Geometry & Stance
The lead reason this kit exists is geometry. Out of the factory the W463A wears a 1655 mm front track and 1638 mm rear track inside fender lips that sit almost flush with the wheel face. Mansory's flare set adds approximately +30 mm of clear arch width per side at the front and +30 mm per side at the rear, which means the kit is engineered around a useable +60 mm front and +60 mm rear total track gain once you fit the matching 23-inch Mansory wheel offset. That is not a cosmetic delta — it is the exact width that lets a 305-section tyre clear under full articulation without rubbing the new arch liner.
Why those specific numbers work on the W463A's slab body comes down to two things. First, the OEM body sides are almost vertical, so a flare that grows outboard quickly looks bolted-on; Mansory's profile pulls the radius outward gradually over a 180 mm chord before stepping back inboard, so the eye reads it as a sculpted volume, not a fender extension. Second, the +30 mm per side keeps the new outermost point of the body inside the legal mirror-to-mirror envelope on most markets, which matters for type-approval and for parking-sensor calibration. The front splitter drops 22 mm below the OEM bumper lip and the rear splitter mirrors that line, so static stance reads as a 44 mm overall ride-height drop visually, even though the suspension itself is untouched.
Balance with the stock chassis is the other quiet design win. The G-class runs solid axles front and rear with long-travel coils; widening the track without changing roll centre would normally upset the on-centre feel. Because the flares only widen the bodywork — the axle and hub are unchanged — the chassis dynamics stay factory, and the wider tyre footprint that the kit enables actually reduces understeer at parking-lot speeds without adding roll.
Construction & Weave Logic
The whole set is laid up in 3K twill prepreg with an autoclaved cure cycle, then finished in either UV-stable clear lacquer or full body-colour paint over a sanded primer base. Wall thickness on the flares is held at 2.4–2.8 mm at the visible face and stepped to 3.5 mm along the bonding flange where the kit meets the OEM fender lip, which gives the part enough stiffness to survive a stone strike without resonating against the inner liner. Hardware is a hybrid: the flares use a row of OEM-style M5 plastic clips along the upper flange and 3M VHB structural tape along the lower flange; the splitters bolt to existing OEM bumper threads with stainless M6 hardware supplied in the box.
- Weave: 3K twill, 2x2, with an outer surfacing layer for clean lacquer flow
- Cure: autoclave at 6 bar / 130 C, two-stage post-cure to lock dimensional stability
- Wall thickness: 2.4–2.8 mm visible face, 3.5 mm at bonding flange
- Combined kit weight: approximately 14.6 kg dry, vs. roughly 24 kg if the same parts were moulded in ABS
- Mounting hardware: OEM-style M5 plastic clips, 3M VHB structural tape, M6 stainless bolts to existing bumper threads
- Finish options: high-gloss UV-stable clear lacquer over raw twill, satin lacquer, or full body-colour paint
- Bonding flange is shot-blasted at the factory to give primer a mechanical key for body-coloured builds
- Each flare ships pre-fitted with a butyl drip-edge seal so water cannot wick into the OEM fender seam
Compatibility & Fitment (W463A platform)
This kit is engineered for the Mercedes-Benz G-class W463A generation — the 4th-generation platform launched for model year 2018 (Mercedes internal code, sometimes called "new G"). It fits G500, G550, G400d, G350d and AMG G63 (M177 4.0 V8 BT). The previous-generation W463 (1979–2018, the original boxy car) is not compatible — different inner fender, different liner, different bumper bolt pattern. The W463A Gronos derivative and any future W464/W465 platform use separate kits.
Within the W463A range the kit fits both with-AMG-package and base bumpers, but the lower splitter ships in two cuts: the AMG splitter has a deeper centre notch to clear the AMG diffuser shroud, the base splitter is flat. Sunroof cars are fully compatible — the kit only touches arches and bumper line. Cars with electric side steps must order the matching Mansory short or long electric step set, because the OEM step does not bolt to the rocker extension. LHD and RHD share the same flares and splitters; the kit is symmetric.
Installation, Paint & Reversibility
Fit time runs 8–10 hours at a Mansory-trained body shop, or 12–14 hours at a competent independent. The flares clip to the OEM upper fender lip via the existing arch-liner clip points — no new holes are drilled in the painted fender — and the lower flange is bonded with 3M VHB after the factory paint is keyed with red Scotch-Brite. The splitters bolt to existing OEM bumper threads. Paint prep is the dominant labour cost: a body-coloured build needs the bonding flange masked, the visible face sanded with 800 grit, two coats of high-build primer, two coats of base, and two coats of clear, all flashed in a low-bake booth. Clear-lacquered raw-twill builds skip the colour coats but still need the same UV-stable 2K clear over the prepreg surfacing layer.
Reversibility is partial. The clip-on upper flange leaves no marks on the OEM fender, and removing the splitters returns the bumper to factory. The VHB-bonded lower flange, however, will pull paint when removed unless the flange is heated and lifted with a fishing-line cutter; plan on a cosmetic respray of the lower fender if the kit ever comes off. This is normal for any flush-bonded carbon flare and is not a fault of the kit.
Pairing within the Mansory G-class W463A G500/G63 programme
Three sibling parts complete the silhouette this kit defines. The carbon mirror housing drops the visual mass on the door's upper third and ties the side profile back to the carbon flares, so the eye reads the car as a coordinated carbon-and-paint composition rather than a flared truck. The electric auto side steps short are the correct length for cars wearing this rocker-extension profile — the long version pokes past the new flare line and looks bolted-on. For the rear, the roof wing finishes the upper plane and gives the car an aerodynamic anchor that balances the wider lower geometry; without it, a widebody G can read as bottom-heavy from a three-quarter rear angle.
Off-Road Implications & Suspension
The honest framing for the weight saving is unsprung mass — or rather, the absence of added unsprung mass. A typical aftermarket ABS flare set adds 9–10 kg to the bodywork, a chunk of which sits outboard of the spring and acts on suspension dynamics in compression. The CFRP set adds about 14.6 kg total but distributes it across four arches and two splitters, with the flares themselves bonded to the body shell rather than hanging off the wheel-arch liner; functionally the suspended-vs-unsprung split favours the carbon kit by roughly 4–5 kg per axle compared to ABS. On a long-travel solid-axle G that is enough to keep the factory damper tune working as Stuttgart intended.
The off-road approach angle drops by approximately 1.5 degrees because of the lower front splitter, from the factory 30.9 degrees to roughly 29.4 degrees with the kit fitted. Departure is largely unchanged — the rear splitter sits inboard of the bumper's lower edge. Breakover is unchanged because the rocker extensions sit above the OEM rocker line. None of those numbers are catastrophic for sand, gravel or graded trails, but rock-crawling owners typically remove the front splitter for serious off-road days.
Lead Time, Warranty & Care
Lead time on this kit runs 4–6 weeks from order, longer in body-coloured spec because the paint booth slot is the bottleneck. Warranty is 12 months against manufacturing defects — delamination, voids, fitment outside Mansory's tolerance bands. Care is straightforward: pH-neutral shampoo, soft microfibre, carnauba wax for clear-lacquered builds or a 9H ceramic coating for owners who want the lacquer protected against UV haze. Avoid ammonia glass cleaners on the carbon (they soften 2K clear over time), avoid abrasive sponges on the bonding flange, and never run the car through an automatic brush wash — the upper flange clip line is the one place a brush can lift the flare edge.
FAQ
Q: How much actual track width does the kit add?
A: The flares clear +30 mm per side front and rear, which translates to a useable +60 mm front and +60 mm rear track gain when paired with the matching Mansory wheel offset. That is the geometry the kit is engineered around.
Q: Does it fit both the AMG G63 and the base G500?
A: Yes, both. The flares and rockers are identical across the range; only the lower splitters ship in two cuts — an AMG splitter with a centre notch for the AMG diffuser, and a flat base splitter for non-AMG bumpers. Specify your bumper at order.
Q: I have a sunroof — any clearance issue?
A: None. The kit only touches the wheel arches, bumper splitters and rocker extensions. The sunroof drain tubes, headliner and roof-frame structure are all untouched, and the kit does not raise the roof line.
Q: How much does the front approach angle change?
A: Approximately 1.5 degrees, from the factory 30.9 to roughly 29.4 with the front splitter installed. The splitter is a bolt-on item, so it can be removed for serious off-road days and refitted in about 20 minutes.
Q: We want body-coloured flares — does the paint match the OEM fender exactly?
A: Yes, when sprayed in a Mercedes-coded base over Mansory's primer system. The flange is shot-blasted at the factory specifically to give the primer a mechanical key, and the visible face accepts standard 2K base + clear with no special carbon-specific chemistry. Match is to the car's VIN-coded paint code, not to a generic colour swatch.
Pair this widebody set with the matching mirror housings, short electric side steps and roof wing for a coherent W463A carbon programme. To order or to discuss colour-coding and lead time, contact us via WhatsApp +44 7488 818 747 or [email protected].
