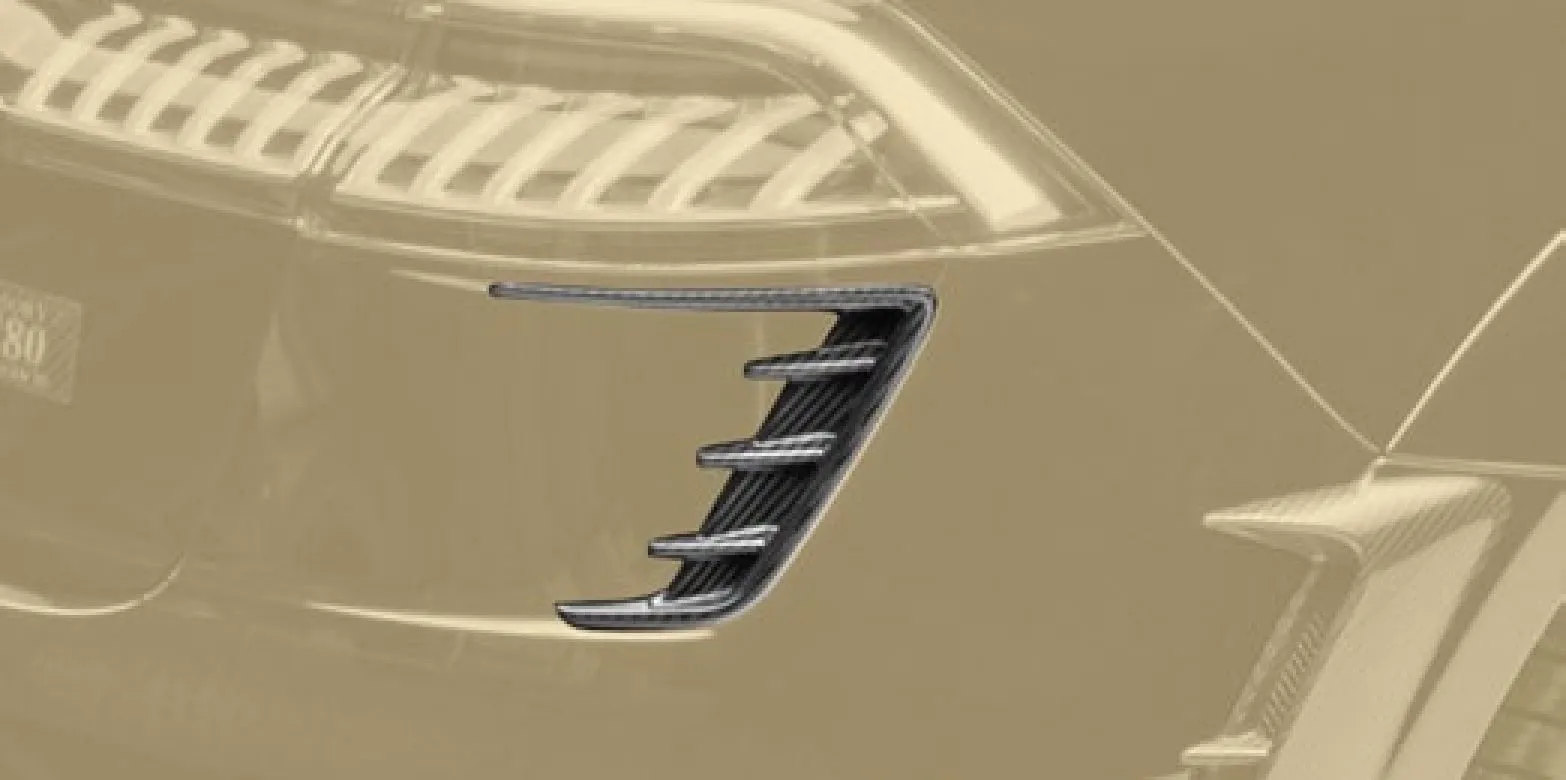

Rear bumper splitter Mansory style Carbon for Audi RS Q8

Rear Bumper Splitter Mansory Style Carbon for Audi RS Q8

The rear bumper splitter is the visual and aerodynamic anchor of the RS Q8's tail section, and this is the Mansory-style carbon replica — laid to the same Venturi-expansion geometry as the genuine Mansory diffuser insert, but produced on the hodoor prepreg line at a friendlier price point. It mounts inside the OEM rear bumper diffuser zone, framing the twin or quad tailpipes of the 4.0L TFSI biturbo V8 and managing the airflow that exits from beneath a 2,315 kg performance SUV-coupe at speeds approaching 305 km/h with the Dynamic+ pack. Within the broader programme it sits as the rear counterweight to the front splitter, and it ties the kit together visually beneath the rear-decklid spoiler. See it in catalogue context as part of Mansory Carbon Fiber Body kit set for Audi RS Q8.

Construction & Materials

The splitter is built from multi-axial prepreg carbon laminated over a CNC-milled tooling buck taken directly off a genuine Mansory reference, then autoclave-cured to bond resin and fibre into a single dense skin. The result is a part with the same surface fidelity as the factory Mansory insert — same fin angles, same exhaust cut-outs, same Venturi taper — at a noticeably lower entry point.

• Top skin: 3K twill carbon, mirror-matched across the centreline so the weave reads symmetrically left-to-right of the rear plate
• Substructure: biaxial 200 g/m² prepreg with localised reinforcement around the exhaust apertures and sensor pass-throughs
• Cure: autoclave-cured at 120 °C / 6 bar for full resin bond and void-free finish
• Wall thickness: 2.6–3.4 mm, ribbed in the high-load area below the licence plate housing
• Weight: approximately 3.2 kg fitted (replaces the OEM plastic insert, net change roughly neutral)
• Mounting: factory bumper anchor points, supplemental 3M VHB tape on the upper mating face, OEM-style clip retention along the lower edge
• Finish options: high-build clear lacquer (gloss), satin clear, or raw-weave protective UV coat for owners who prefer a flatter, more technical look
• Colour-key option: paintable primer-prepped surface for body-colour blending against two-tone RS Q8 specifications

Design & Visual Function

The geometry is what makes this part work. The genuine Mansory rear-bumper splitter is not just a styling shell — it is a Venturi expansion that pulls air out from under the floor and accelerates it past the exhaust gases, helping rear-axle stability on a tall, heavy SUV-coupe. The replica reproduces that geometry rib for rib: the central tunnel angle, the outer fin pitch, the exhaust-shroud radii. Visually, the result is a deeper, blacker rear under-section that compresses the perceived ride height and emphasises the width of the rear track.

Around the OEM exhaust outlets the splitter is contoured with a gentle relief so the carbon never sits within the heat-soak cone of the tailpipes; the autoclave-cured laminate handles steady-state radiation but the geometry deliberately keeps the weave away from direct contact. The fin layout downstream of the exhaust accommodates twin-tip and quad-tip configurations as fitted from the factory, and the central licence-plate pocket reads cleanly without disrupting the symmetry of the diffuser.

From three-quarter angles the splitter integrates with the rear-decklid trailing edge above and the lower bumper line either side, locking the tail into a single graphic block. On Performance-spec cars sitting on 23-inch wheels the visual weight balances correctly with the wider arch flares; on pre-facelift cars on 22s the part still reads correctly because the OEM bumper anchor geometry was retained across the facelift.

Compatibility & Fitment

Designed for the Audi RS Q8 (4M chassis, MY2020 onwards). Fits both pre-facelift cars (2020–2023) and the facelift Performance variant (2024+); the rear bumper geometry of the RS Q8 was carried across the facelift with only minor trim differences, and the splitter mounts to the same anchor points on both. Cars fitted with the OEM trailer-hitch package retain full hitch clearance — the splitter's central section is contoured around the receiver aperture. Rear parking sensors and any rear-radar emitters are passed through with factory-spec apertures, so PDC and lane-change-assist functions remain active. LHD and RHD bodies are identical at the rear, so the part is bilateral.

Installation & Reversibility

Installation takes a competent body shop roughly 1.5–2.5 hours. The OEM rear bumper does not need to be removed for fitment in most cases, although raising the car on its air suspension to the highest mode is recommended to give the technician working clearance underneath. The OEM lower diffuser insert is removed first (clip-retained), the new carbon part is offered up, sensor and exhaust apertures are checked for clearance, the upper mating face is degreased and 3M VHB primer-applied, then the part is clipped, tape-bonded and torqued at the factory anchor points. The process is fully reversible — no drilling, no permanent modification of the OEM bumper, and the original plastic insert can be refitted at any time. Owners with steep driveways should pay attention to kerb and approach-angle risk after installation, because the splitter sits a few millimetres lower than the OEM insert at its trailing edge; raising the air suspension to off-road or lift mode for driveways and ferry ramps eliminates the issue.

Pairing within the Mansory RS Q8 programme

Within the Mansory-style line, this rear bumper splitter pairs most coherently with the matching rear decklid spoiler, which sets the rear drag balance from above while this splitter manages the underbody exit; together they form the complete tail signature. It also pairs naturally with the roof spoiler for a three-element rear aero stack, and forms an integral element of the full Mansory-style body kit when ordered as part of the complete programme rather than à la carte.

Maintenance & Durability

The lacquered carbon surface is robust but reacts to the same things every clear-coated carbon panel reacts to: prolonged UV exposure without protection will eventually yellow the resin, ammonia-based cleaners and aggressive alkaline wheel chemistry will dull the lacquer, and stone chips at the leading edge of the splitter will propagate if left untreated. A ceramic coating applied within the first month of ownership is the single best decision for long-term appearance — it stabilises the lacquer against UV and makes brake-dust fallout at the rear easy to remove. Carnauba waxes work but require more frequent reapplication. For chip repair, small marks at the leading edge can be filled with a clear UV-cure resin and lightly sanded; deeper damage is best handled by a carbon specialist who can re-skin the affected area. Expected lifespan with reasonable care is well into the second decade of ownership.

Lead Time & Warranty

Lead time runs 4–6 weeks from order confirmation for the standard lacquered finish; raw-weave and satin variants add roughly one week for finishing. The part carries a 12-month warranty against manufacturing defects (delamination, lacquer failure, fitment deviation outside tolerance). Crash damage, kerb strikes, chemical attack and improperly torqued fasteners fall outside warranty.

FAQ

Q: Is this the genuine Mansory part or a replica?
A: This is the Mansory-style replica — same geometry, full prepreg carbon, made on the hodoor production line. Visually indistinguishable when fitted; significantly more accessible on price. The genuine Mansory rear-bumper splitter is offered as a separate SKU in the catalogue.

Q: Will my OEM rear parking sensors still work?
A: Yes. The splitter is moulded with factory-spec sensor pass-through apertures so PDC and any associated rear assistance systems function unchanged.

Q: Does it fit the facelift Performance and the pre-facelift?
A: Yes — the rear bumper anchor geometry was carried across the 2024 facelift, so the part fits both MY2020–2023 and Performance MY2024+ cars.

Q: I have the OEM tow-hitch package — does the splitter still fit?
A: Yes. The central section is contoured around the hitch receiver aperture and clearance is retained for both ball-mount fitting and electrical socket access.

Q: Quad tailpipes vs twin tailpipes — does it matter?
A: The splitter accommodates both factory configurations. The exhaust shrouds are sized to clear OEM tip diameters in either layout.

Q: Lacquered or raw weave — which ages better?
A: Lacquered is more forgiving day-to-day and easier to ceramic-coat. Raw weave with UV protectant looks more technical and is preferred by owners who want a flatter, less reflective rear end. Both are durable when correctly maintained.

Pair this splitter with the matching rear-decklid spoiler and roof spoiler to complete the rear-end signature, or build it into the full Mansory-style body kit. To order, get a fitment quote, or specify a finish, contact us on WhatsApp +44 7488 818 747 or [email protected].
