Passenger assist handle Mansory for Mercedes G-class G500 / AMG G63 W463A

Passenger assist handle Mansory for Mercedes G-class G500 / AMG G63 W463A

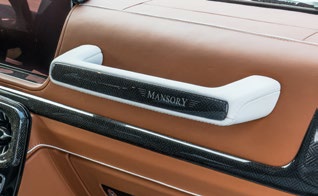

The passenger assist handle is the dash-side grip that sits ahead of the front passenger on the W463A G-class — the "oh-shit handle" you reach for when the front axle drops into a rut or the AMG G63 starts shoving forward on a damp on-ramp. Mansory's carbon version replaces the OEM moulded plastic strap-and-bracket with a 3K twill carbon hand-piece wrapped in a contrast-stitched leather grip, fastened to the same factory M6 inserts in the dashboard side wall. It is part of the wider Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 programme, where every cabin touchpoint that the eye lingers on or the hand actually uses gets re-executed in autoclaved carbon. The G is a body-on-frame truck on coil springs with a high centre of gravity — passengers genuinely brace against this handle, so the brief is real, not cosmetic.

Construction & Materials

The structural body of the handle is laid up from 3K twill prepreg over a closed mandrel and pulled in autoclave at controlled ramp; the result is a thin-wall hollow shell with the weave running diagonally across the visible upper face so it reads as a continuous sweep rather than a printed pattern. A leather sleeve in 1.4 mm full-grain hide is stretched and hand-stitched along the underside seam, with contrast thread (white, ivory, red, blue or black-on-black) selectable to match the rest of the cabin. The mounting bosses are bonded carbon-aluminium hybrids, not plain composite, so the M6 thread sits in a metallic insert that won't spall after repeated load cycles.

• Weave: 3K twill 2x2, 200 gsm prepreg, weave aligned along the principal grip axis
• Cure: autoclave, 6 bar @ 120 °C, post-cure 80 °C / 4 h for dimensional lock
• Wall thickness: 2.4–2.8 mm at the strap section, 4.0 mm at the bolt bosses
• Weight: ~140 g finished (vs ~210 g for the OEM moulded plastic + bracket assembly)
• Mounting hardware: OEM bolt pattern M6 × 2, factory torque 8 Nm; bolts and rubber isolators included
• Grip: 1.4 mm full-grain leather sleeve, hand-stitched, contrast thread to spec
• Pull rating: 80 kg static load through the bolt centres without measurable deflection
• Finish: high-gloss two-pack lacquer (UV-stable) standard; satin or matte on request

Design & Visual Function

The W463A dashboard is a slab of layered horizontals — a long top crash-pad, a recessed screen housing, then the centre stack stepping down into the transmission tunnel. The OEM passenger handle, in moulded leather-grain plastic, breaks that horizontal calm with a soft, slightly cheap-looking lump on the passenger side. Mansory's carbon piece keeps the silhouette identical (it has to: the bolt centres and the angle of attack to the dash are fixed), but the visible surface now reads as a single continuous twill ribbon. Light skating across the lacquered weave at dawn or under garage halogens picks out the diagonal grain, and the contrast stitching on the leather underside frames the carbon visually.

The grip diameter at the wrap section is held at roughly 32 mm — wide enough that a gloved hand (winter driving, off-road gloves) gets a confident closure, narrow enough that a smaller hand can still wrap it fully. The leather sleeve is intentionally not glued to the carbon shell along its whole length; it floats over a thin foam underlay so the grip has give under load and doesn't transmit cold to the passenger's palm in sub-zero starts.

Visually it pairs with the carbon middle-console / dashboard trims and the airbag cover surround so the passenger side of the cabin reads as a coordinated carbon set rather than a single bolt-on flourish. Owners who specify the full interior trim set typically order this handle as part of the same shipment to keep batch lacquer tone consistent.

Compatibility & Fitment

Fits the Mercedes-Benz G-class W463A generation only — that is the 4th-generation, 2018-onwards platform built on the all-new chassis (Mercedes internal model code W463A; not to be confused with the 1979–2018 boxy W463 it replaced, which uses a completely different dashboard moulding). Confirmed compatible variants: G500, G550 (US-spec), G400d, G350d and AMG G63 (M177 4.0 V8 biturbo). The handle is left/right-handed in the sense that it is always mounted on the passenger side of the dash — i.e. on a left-hand-drive car it sits on the right side of the cabin, and on a right-hand-drive car it sits on the left. Same physical part, mirrored bracket orientation; specify LHD or RHD when ordering. AMG-package and base trims share the same dashboard pressing, so no further sub-spec is needed. Pre-2018 W463, W464/W465 and Gronos cars use a different dash and are not compatible.

Installation & Reversibility

Fitment is a 15–25 minute job for an experienced trim installer. The OEM handle is held by two M6 bolts hidden behind small leather-grain caps on the upper face of the original part; pop the caps with a plastic trim tool, undo the bolts, lift the OEM strap clear, transfer the rubber isolators (or use the new ones supplied) and bolt the Mansory handle in their place. Torque is 8 Nm — the spec sheet ships with the part. No drilling, no glue, no harness work, no airbag interaction (the passenger handle on the W463A is not a structural airbag mount). Fully reversible: the original handle can be re-installed in minutes if the car is ever resold or returned to OEM. We recommend a certified trim installer if the dashboard top has been re-trimmed in Alcantara or hide, since that material can be scratched by a clumsy trim tool around the bolt caps.

Pairing within the Mansory G-class W463A G500/G63 programme

Owners who treat the cabin as a coherent set typically pair the passenger assist handle with roof handles in carbon (so every grab point in the car matches), the middle console + dashboard trims (which sit immediately beside the handle and define the visual baseline) and the broader interior trim set. Specifying these together at order time also locks the leather hide batch and the lacquer tone — important if you want the cabin to look like a factory build rather than a rolling parts catalogue.

Maintenance & Durability

Care is split between the carbon shell and the leather grip. The carbon: wipe with a damp microfibre, dry, then a quarterly pass of carnauba paste for cabins that see desert sun, or a one-shot ceramic coat for owners who hate routine. Avoid ammonia-based glass cleaners drifting onto the lacquer (they fog the clear), avoid abrasive sponges, and keep dishwasher-grade detergents away — they strip the UV-protective topcoat. The leather grip wants a neutral leather conditioner twice a year; if the contrast thread starts to shadow with skin oils, a soft-bristle brush and saddle soap returns it. Expected service life of the carbon-leather assembly under daily use is well past 10 years; the leather sleeve is the wear part and can be re-wrapped at any decent trim shop for a fraction of a new handle.

Lead Time & Warranty

Lead time is typically 2–3 weeks from confirmed order, longer if a non-standard stitch colour or non-standard leather hide is requested (those add roughly 5–7 working days for hide selection and matching). Warranty is 12 months against manufacturing defects — delamination of the carbon shell, voids in the layup, fitment errors at the bolt bosses, stitch failure in the leather sleeve. Warranty excludes physical impact, fire, chemical attack from non-automotive cleaners, and normal cosmetic wear of the leather grip from sustained hand use.

FAQ

Q: Is the handle structural — can a passenger really hang from it on an off-road descent?
A: Yes. The bolt bosses are carbon-aluminium hybrids and the strap section is rated to 80 kg static pull through the bolt centres without measurable deflection, which exceeds the OEM spec for a normal-use grab handle.

Q: Will it fit my 2017 G63 (the old boxy W463)?
A: No. The 2017 car is the previous-generation W463 with a completely different dashboard moulding and bolt pattern. This handle is for the 2018+ W463A only.

Q: Can I get matte instead of glossy lacquer?
A: Yes — satin and full matte are both available on request at no upcharge; specify at order time so the lacquer batch is set correctly.

Q: Does the leather wrap come in a colour to match my Designo or AMG interior?
A: We carry standard hides in black, saddle, deep red, sand and ivory, plus contrast stitch in the same five plus white. For Designo or bespoke hides, send a sample swatch and we will match it.

Q: Is the OEM handle cap re-usable if I ever revert to stock?
A: Yes. Keep the two leather-grain bolt caps and the original handle when you swap; reversion is a 15-minute job with no permanent modification to the dashboard.

Pair with carbon roof handles, middle-console trims and the full interior trim set for a coherent W463A cabin. Order via WhatsApp +44 7488 818 747 or [email protected].
