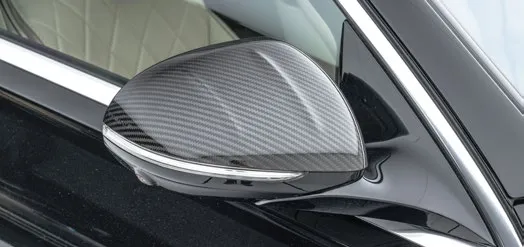

Mirror I. housing LHD Mansory for Mercedes-AMG S63E
Mansory Mirror 1 Housing LHD for Mercedes-AMG S63E
Mirror 1 is the more conservative of Mansory's two full-replacement housing options for the S 63 E PERFORMANCE — its silhouette tracks the OEM AMG painted shell within tight tolerance, so the upgrade reads as a refined material change rather than a re-sculpted door shoulder. Owners pick this variant when they want the carbon palette across the saloon without changing the door-mirror's apparent shape, and they accept that this means slightly less visual emphasis at the door shoulder than the more sculpted Mirror 2 variant. Functionally Mirror 1 is identical to Mirror 2: it is a complete replacement shell that takes the OEM mirror's motor carrier, glass, surveillance camera, side-indicator LED, and heater into a Mansory carbon outer. The chassis and OEM-feature compatibility brief is the same: a long-wheelbase W223 saloon running an AMG biturbo V8 PHEV powertrain (802 hp, 1430 Nm), 4MATIC+ AWD, 9-speed AMG MCT, and the AMG Multibeam Active LED + side-camera options where fitted. It is part of the parent Mansory Carbon Fiber Body kit set for Mercedes-AMG S63E.
Construction & Materials
The OEM-near silhouette frees the layup from any sculptural exaggeration — the show-face skin can be slimmer than the Mirror 2 variant's because the cantilever load is smaller, and the inner clip pockets follow the AMG carrier geometry exactly.
- Cosmetic skin: 3K twill A-side, with 2K plain or forged-look as alternatives
- Bake schedule: ramp-and-soak autoclave with 130 °C peak, multi-axial fibre map
- Show-face wall: 1.5 mm to 1.9 mm; OEM mount-point reinforcement: 2.8 to 3.4 mm
- Mass per side: 240 to 320 g dry — lighter than the Mirror 2 housing
- Inner clip pockets CNC-machined to the OEM AMG motor-carrier outer dimensions
- Surveillance-camera aperture and side-indicator LED slot moulded into the cosmetic shell
- 2K UV clear topcoat in gloss, satin, or matte; OEM mirror-glass clears the inner cone
- SKU is left-side specific; right-side ships under a separate code with mirror-image clipping
Design & Visual Function
Mirror 1's exterior shape sits within a few millimetres of the OEM AMG painted shell — the difference an owner sees from across a parking lot is largely the surface, not the silhouette. That conservative geometry is the point of the variant. From any normal viewing distance the mirror reads as a refined OEM accessory; only at close range does the carbon weave resolve and reveal depth. Compared with the Mirror 2 variant the Mirror 1 housing has a softer leading edge and a less pronounced shoulder — the mirror does not draw the eye away from the rest of the saloon's surface, which is the right register for owners who want a coherent, low-key carbon programme across the car.
The 3K twill is biased so the diagonals run rearward from the leading edge toward the door, in the same kinetic register as the rest of the Mansory exterior programme. That bias is consistent across the entire kit — front splitter, side-skirt lip, decklid spoiler — and gives the carbon palette across the saloon a coherent visual logic rather than a collection-of-parts feel. Owners who care about the small-detail aesthetics across the whole car will notice this consistency over time even if it does not register on a first walk-around.
Inner-cone geometry around the OEM mirror glass is set with a 4–6 mm clearance margin so the OEM glass adjuster moves freely within the carbon shell at the OEM range of motion. The OEM camera projects through a moulded aperture at the lower-front face; the side-indicator LED slot is moulded into the upper-rear face. Both apertures fall on natural panel-shadow edges so the carbon weave reads as continuous across the visible cosmetic face.
For AMG Night Package cars, satin lacquer keeps the mirror in the same low-reflectivity register as the AMG-spec blacked-out trim. For AMG Carbon Package cars, gloss lacquer coordinates with the AMG-supplied carbon roof and rear-quarter accents.
Compatibility & Fitment
Engineered for Mercedes-AMG S 63 E PERFORMANCE (W223), 2023+, saloon — LHD only. RHD cars require the mirror-image variant supplied separately. Compatible with AMG Night Package, AMG Carbon Package, AMG Multibeam Active LED, and AMG-spec side-camera options where the OEM mirror carries the camera hardware. The OEM motor carrier, glass adjuster, OEM heater, and side-indicator LED transfer from the donor mirror during installation. The OEM door-shut line is preserved because the housing's inboard return matches the OEM mirror-base profile within ±0.5 mm.
Installation & Reversibility
Plan 30–50 minutes per side; less than the Mirror 2 install because the OEM-near silhouette demands less alignment work. Required tools: Torx and 8 mm sockets, plastic trim picks, isopropyl alcohol, low-tack masking. Workflow: dismount the OEM mirror at the door, release the OEM glass at the four-point clip, unbolt the OEM motor carrier from the painted shell, transfer the carrier into the Mansory carbon shell using the CNC-machined clip pockets, route OEM camera, indicator, and heater looms through the moulded apertures, snap the OEM glass back to the carrier, remount the assembled mirror to the door. Reversibility is full and clean: the OEM motor carrier returns to the OEM shell at any time without modification of either part.
Pairing within the Mansory Mercedes-AMG S63E programme
Most often paired with another Mirror 1 housing on the opposite side for full visual symmetry, with the Sport outtake for front fender directly forward at the door shoulder, and with the Logo for grille mask to coordinate the front-mask and side-fender carbon presence in the same restrained register.
Maintenance & Durability
Routine wash exposure includes bug strike, road salt, and bird-strike — the housing is at eye height and gets every droplet a road throws up. Hand-wash with pH-neutral shampoo and a plush mitt; avoid grit-laden water reaching the glass-to-housing seam. The upper-rear face is the highest UV-exposure surface on the housing, so apply a UV ceramic top semi-annually. Bug acid removal within hours rather than days. Bird-strike risk is highest at the upper-rear face on cars parked under trees; an immediate clean prevents lacquer etch. Cosmetic lifespan typically runs 8–11 years; the OEM motor carrier inside the carbon shell is unaffected by anything that happens to the cosmetic surface.
Lead Time & Warranty
Build window: 4–6 weeks. Like Mirror 2, the part needs OEM-carrier dimensional verification at QC, which takes longer than a clip-on cover. Custom finishes (matte, satin, forged-look) extend by roughly one week. Coverage: 12 months from receipt for production defects — laminate voids, fitment shortfalls, clip-pocket dimensional accuracy, clearcoat blistering. Outside coverage: bird-strike etch, parking-cover abrasion, chip propagation, damage from incorrect motor-carrier transfer. The OEM motor carrier is not supplied — it transfers from the donor mirror at install. Each housing ships in an individual foam-lined box with a QC photograph documenting weave alignment and clip-pocket dimensional verification under raking light.
FAQ
Q: How does Mirror 1 housing differ from Mirror 2 housing?
A: Mirror 1's silhouette tracks the OEM shell within a few millimetres; Mirror 2 has a deeper sculpted shoulder and a sharper trailing edge. Mirror 1 is the conservative choice; Mirror 2 is the emphatic choice.
Q: How does Mirror 1 housing differ from Mirror 1 cover?
A: The cover is a clip-on overlay that does not touch OEM electronics; the housing is a full-replacement shell that incorporates the OEM motor carrier and electronics into a Mansory carbon outer.
Q: Is the OEM AMG-spec surveillance camera retained?
A: Yes. The OEM camera transfers to the Mansory carbon shell through a moulded aperture; OEM functionality is preserved.
Q: Is the OEM heater retained?
A: Yes. The OEM heater carrier and wiring transfer with the OEM motor carrier; cabin button behaviour and OEM heating performance are preserved.
Q: Does the housing affect mirror folding speed?
A: No. The OEM motor carrier transfers complete with the folding actuator and limit-switch loom; cabin-button behaviour is preserved.
Q: Is this housing compatible with RHD cars?
A: No — this is the LHD housing. RHD cars require the mirror-image variant supplied separately.
Q: Does the housing affect cabin NVH at high speed?
A: The housing is roughly 70 g lighter per side than the OEM painted plastic shell, so vibration response is marginally improved. Cabin acoustics are dominated by OEM glazing and door seals, so any audible change is below the noise floor.
Q: Will the carbon shell catch in a touchless or mechanical car wash?
A: No. The shell follows the OEM silhouette closely and does not protrude into the brush-sweep envelope of typical mechanical washes. Touchless wash is preferred for any aftermarket carbon, but routine mechanical wash is acceptable.
Pair Mirror 1 housing with the opposite-side housing or with the more emphatic Mirror 2 for an asymmetric two-register treatment. To configure your build, message WhatsApp +44 7488 818 747 or write to [email protected].
