Mansory Carbon Fiber Wide Body kit set for Mercedes G-class W463

Mansory Wide Body — Mercedes G-class W463 (1990–2018, pre-W464 ladder-frame)

This is the wide-body programme for the original W463 G-Wagen — the long-running 1990–2018 chassis with the live front beam axle, before Mercedes redrew the car as the W464 in 2018. It is worth saying clearly at the top: a wide-body W463 is not a soft-kit W463 with bigger panels. The two programmes share a model code and very little else. The Soft Kit bolts carbon over the OEM bumpers and leaves the steel body and the factory track untouched. The wide build replaces the bumpers, bonds carbon flares onto cut-back fenders, and pushes the track outward by tens of millimetres on each corner. The donor scope is identical — G350, G500, G55 AMG, G63 AMG on the M157 5.5 V8 biturbo — but everything that hangs on that chassis changes. Owners considering both programmes against each other will find the trade-off written up in the Mansory vs Brabus G-class comparison; this page is the technical brief for the wide build itself.

Wide vs Soft — what changes structurally

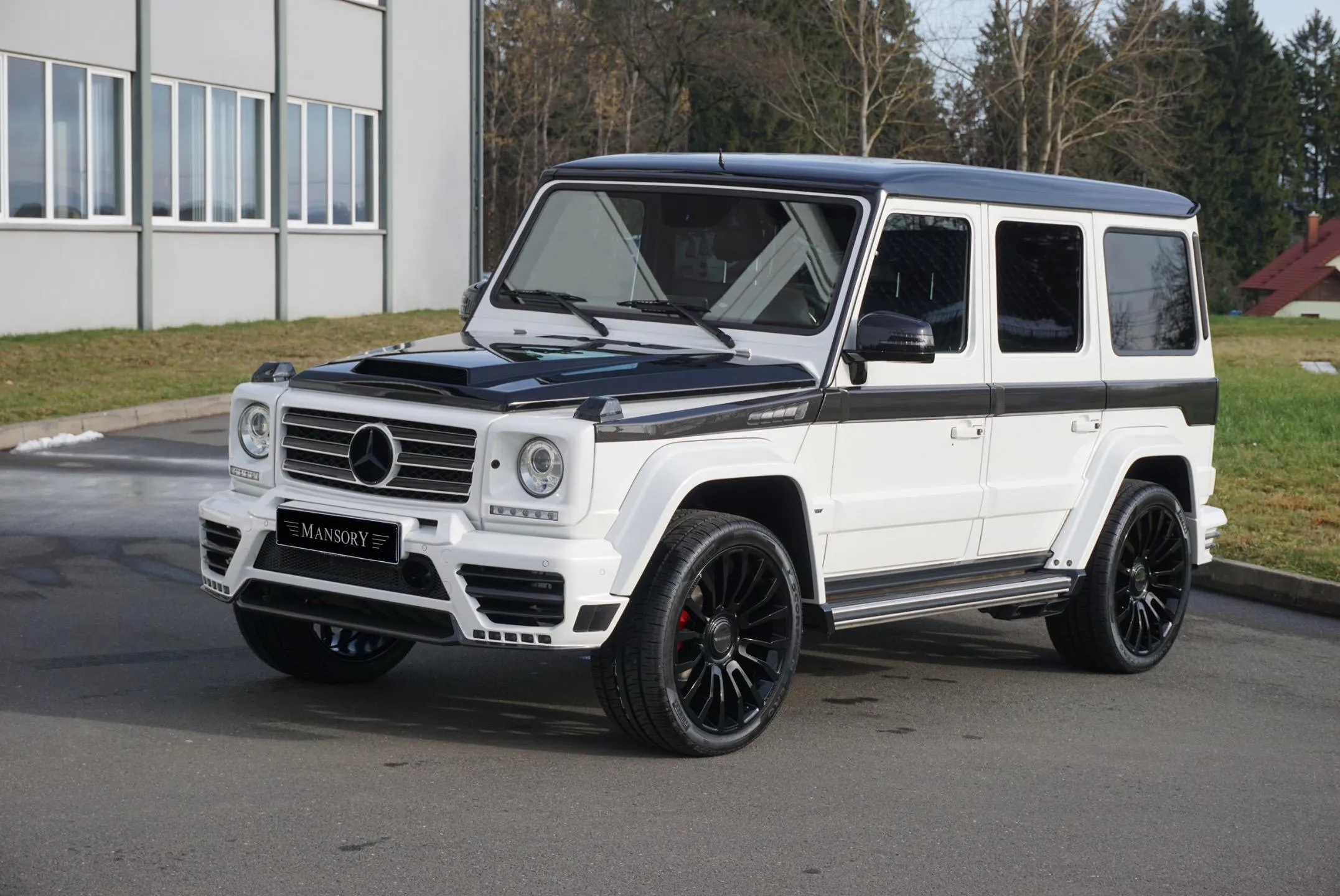

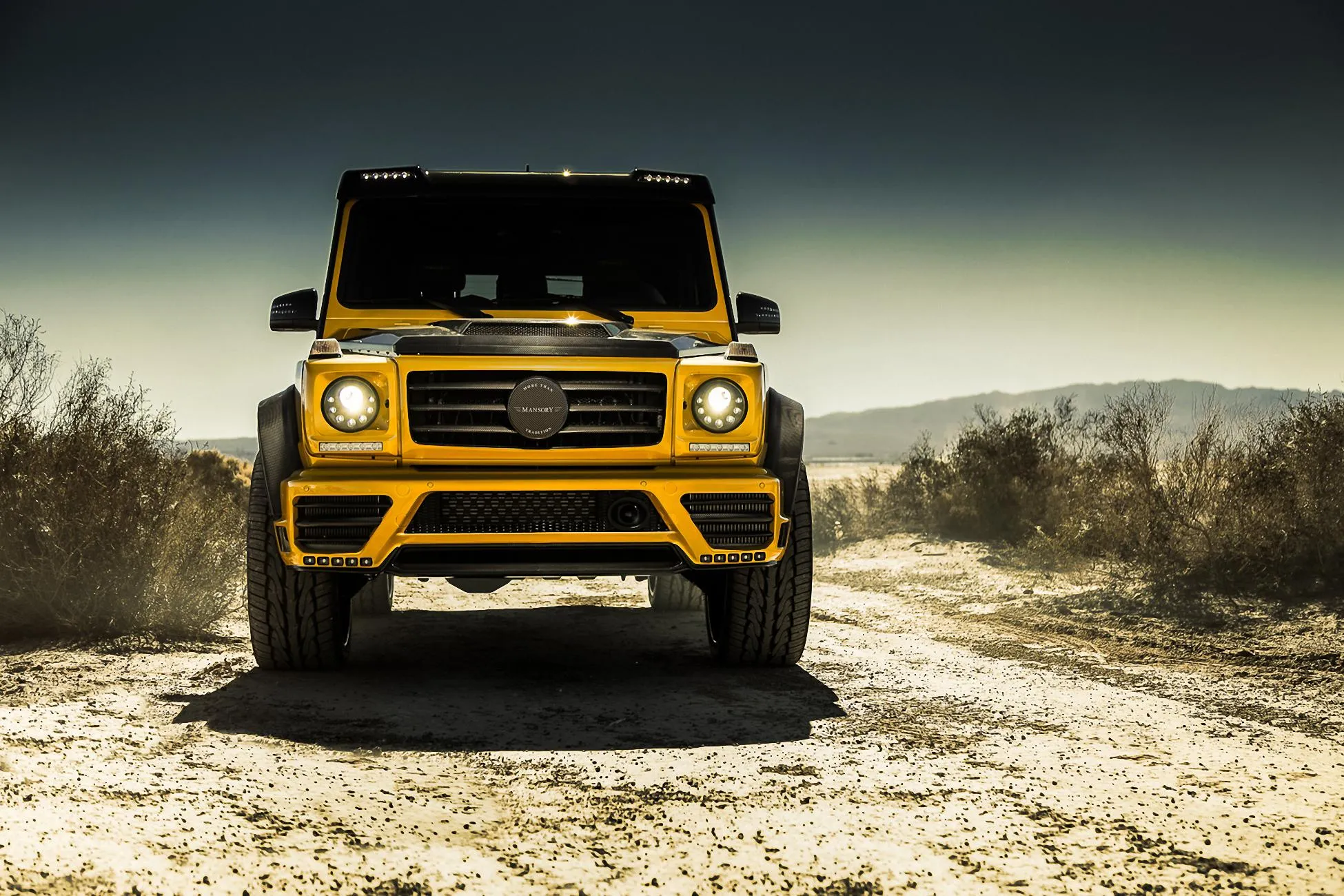

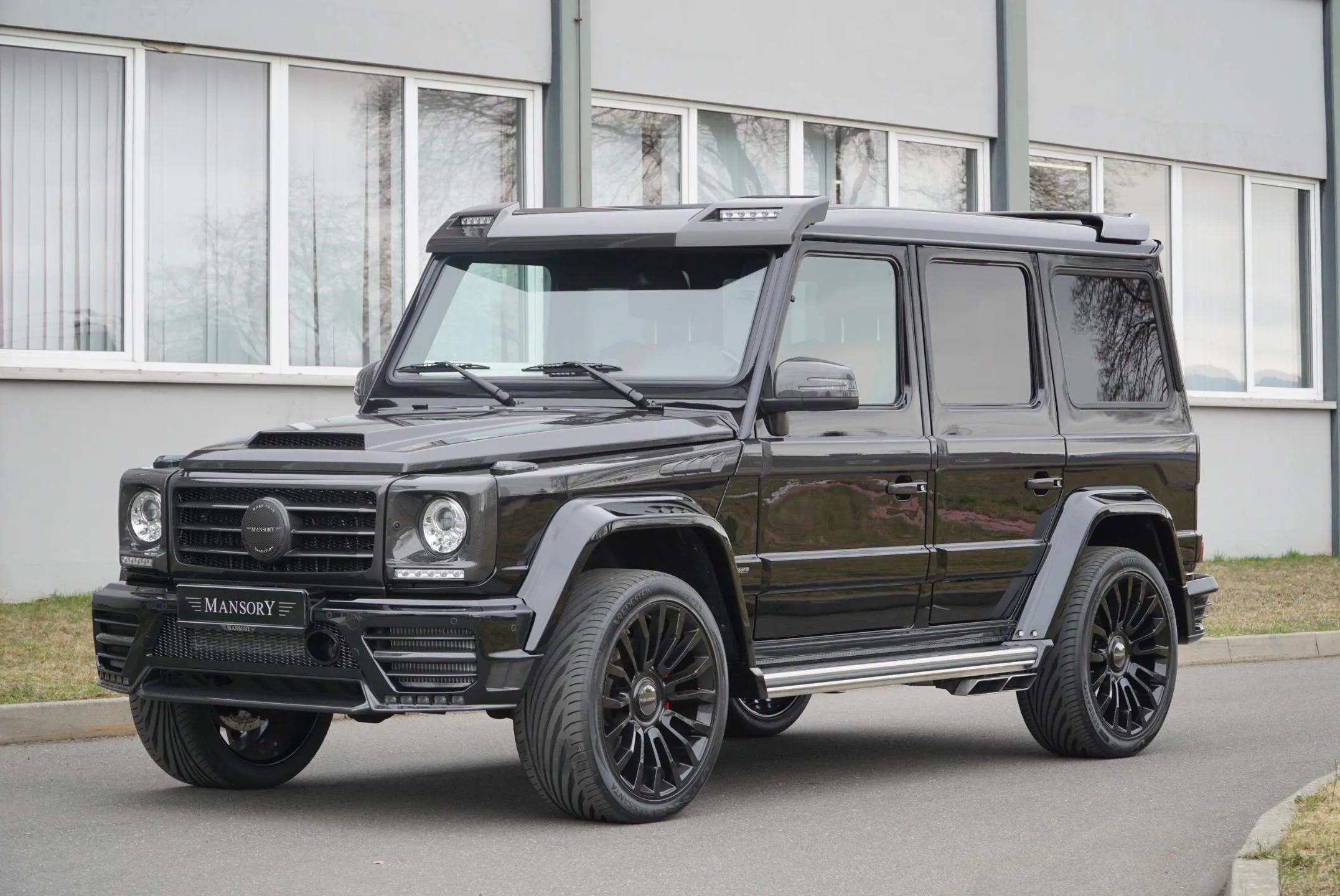

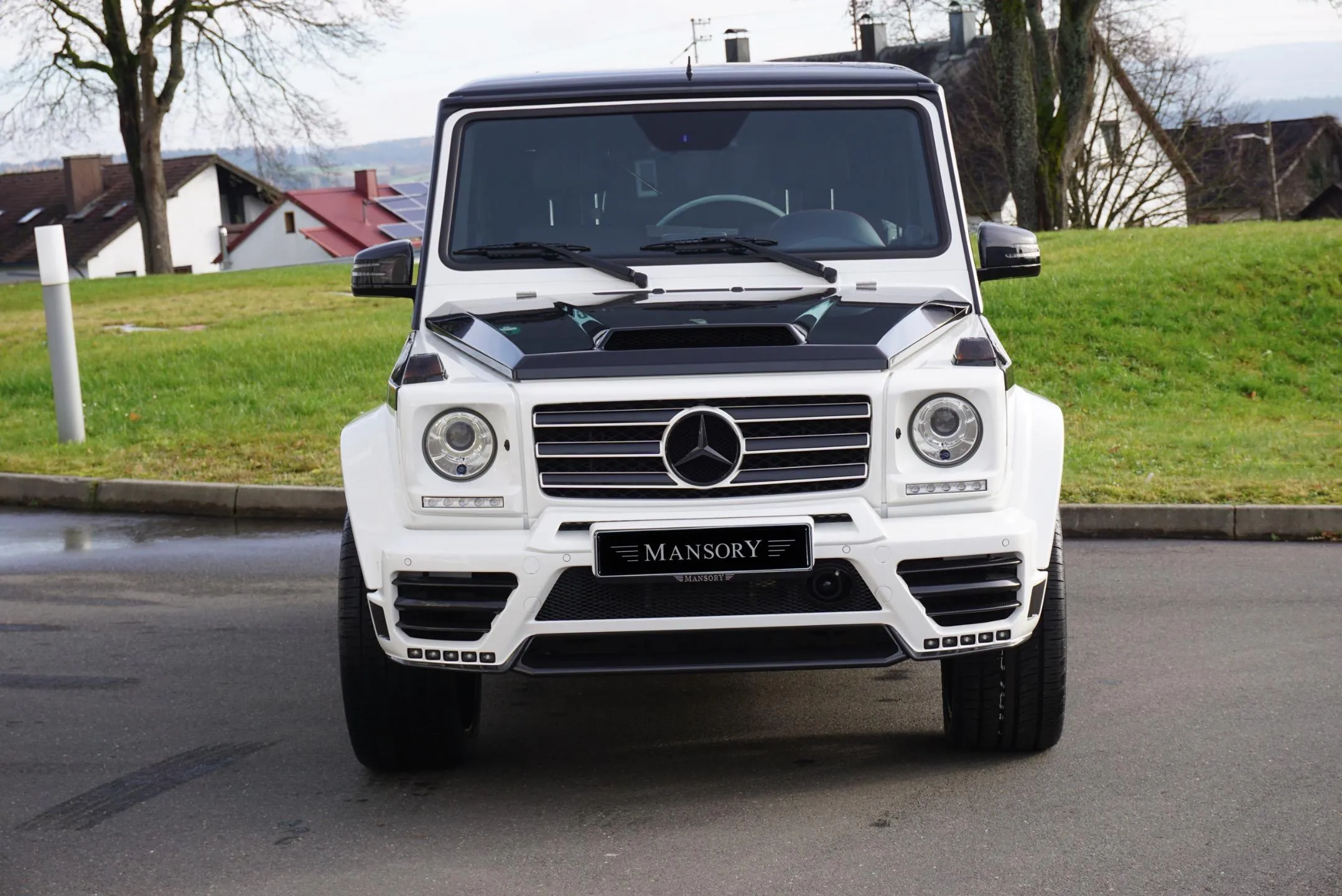

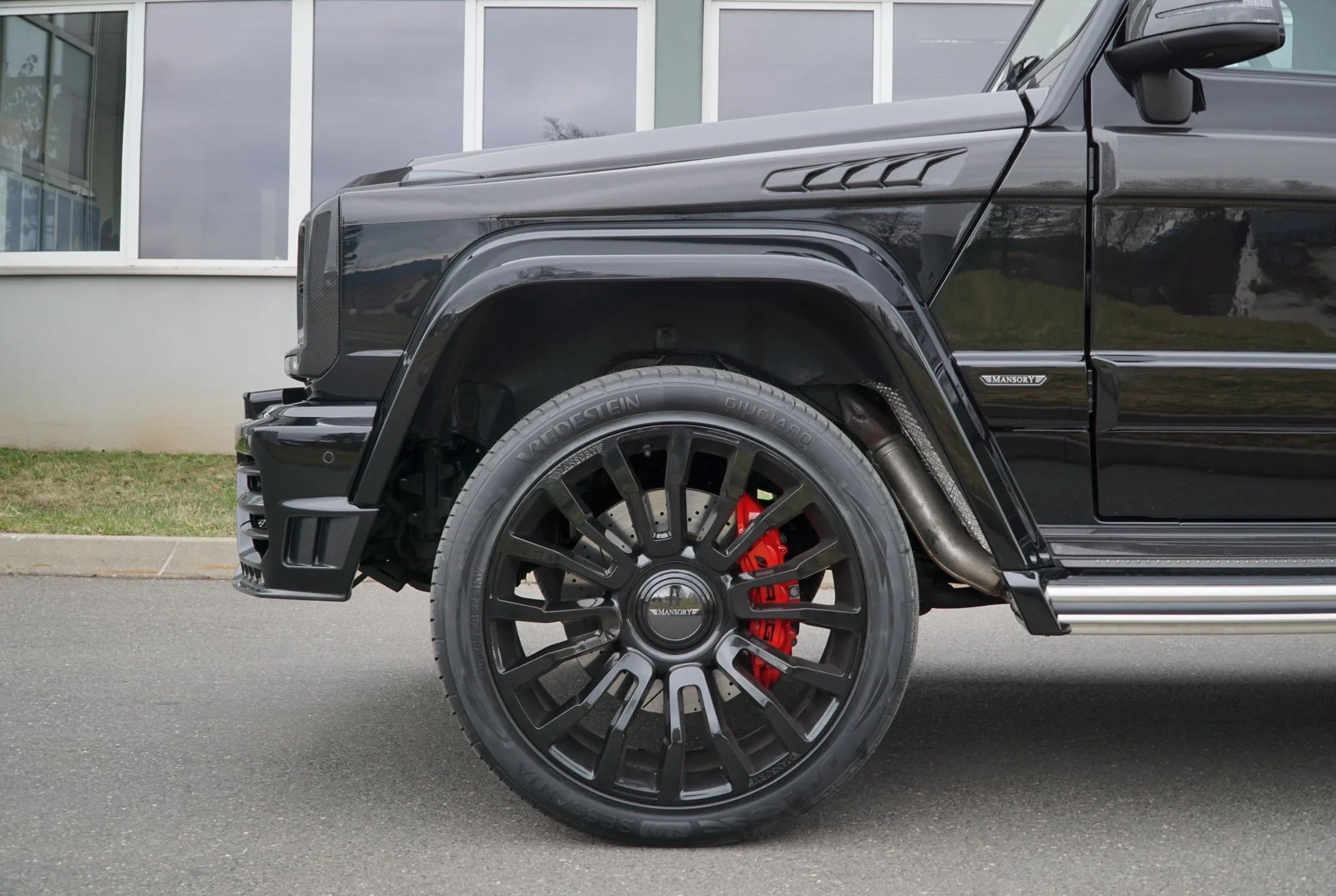

The visible difference is fender flares, but the structural delta runs deeper. Mansory's wide programme bonds carbon flare sections to the OEM steel fenders front and rear, with an overlap glue line of roughly 35 mm and a paint flange that body shops finish flush. The flares add +30 mm per side at the front axle and +40 mm per side at the rear, taking total body width from a factory 1,810 mm (mirrors folded) to approximately 1,950 mm at the rear haunches. The full front bumper is a one-piece carbon assembly that replaces the OEM AMG or G500 bumper outright — not a lip, not an add-on — with new intake geometry sized for an aftermarket intercooler if the build also takes the Mansory ECU map.

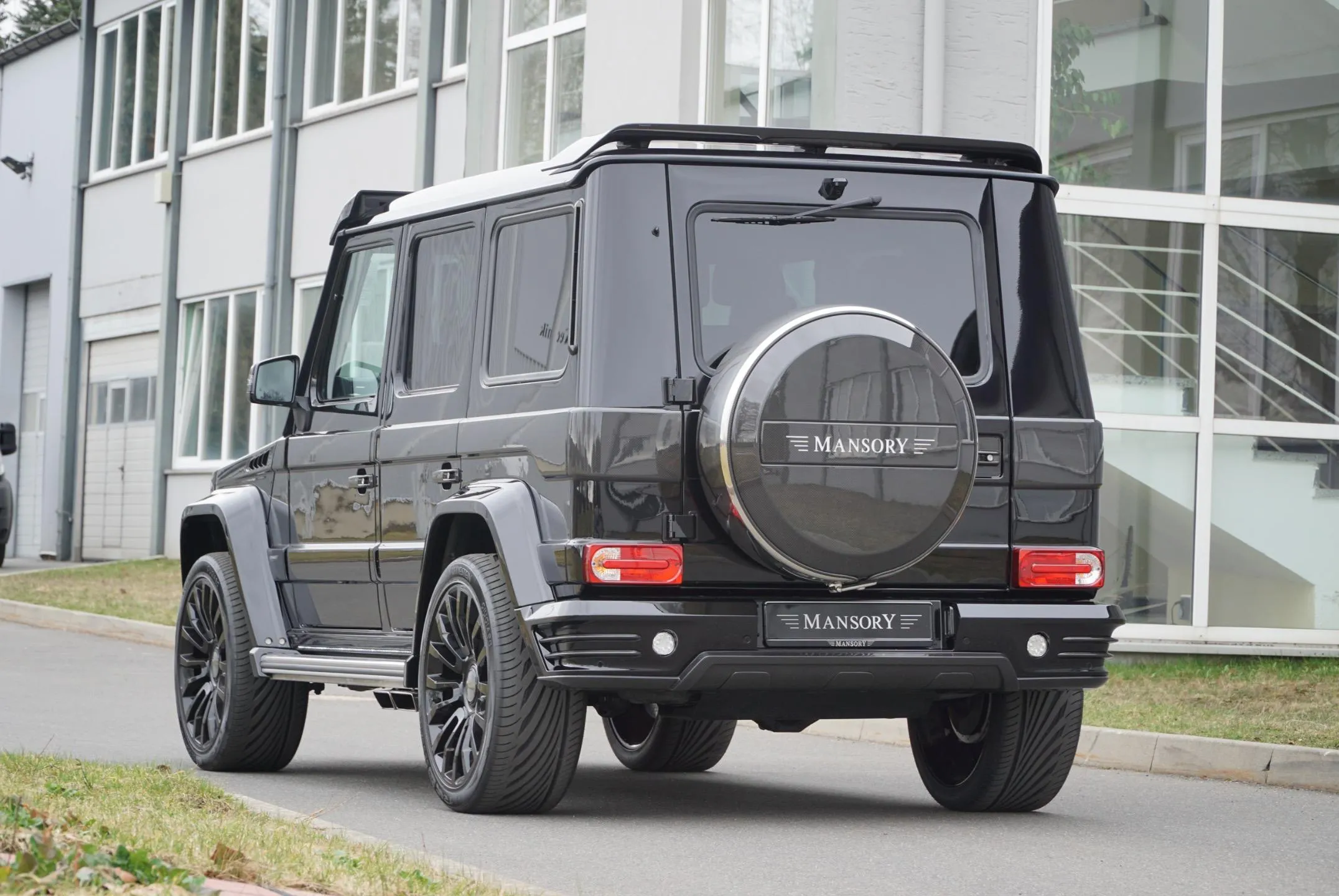

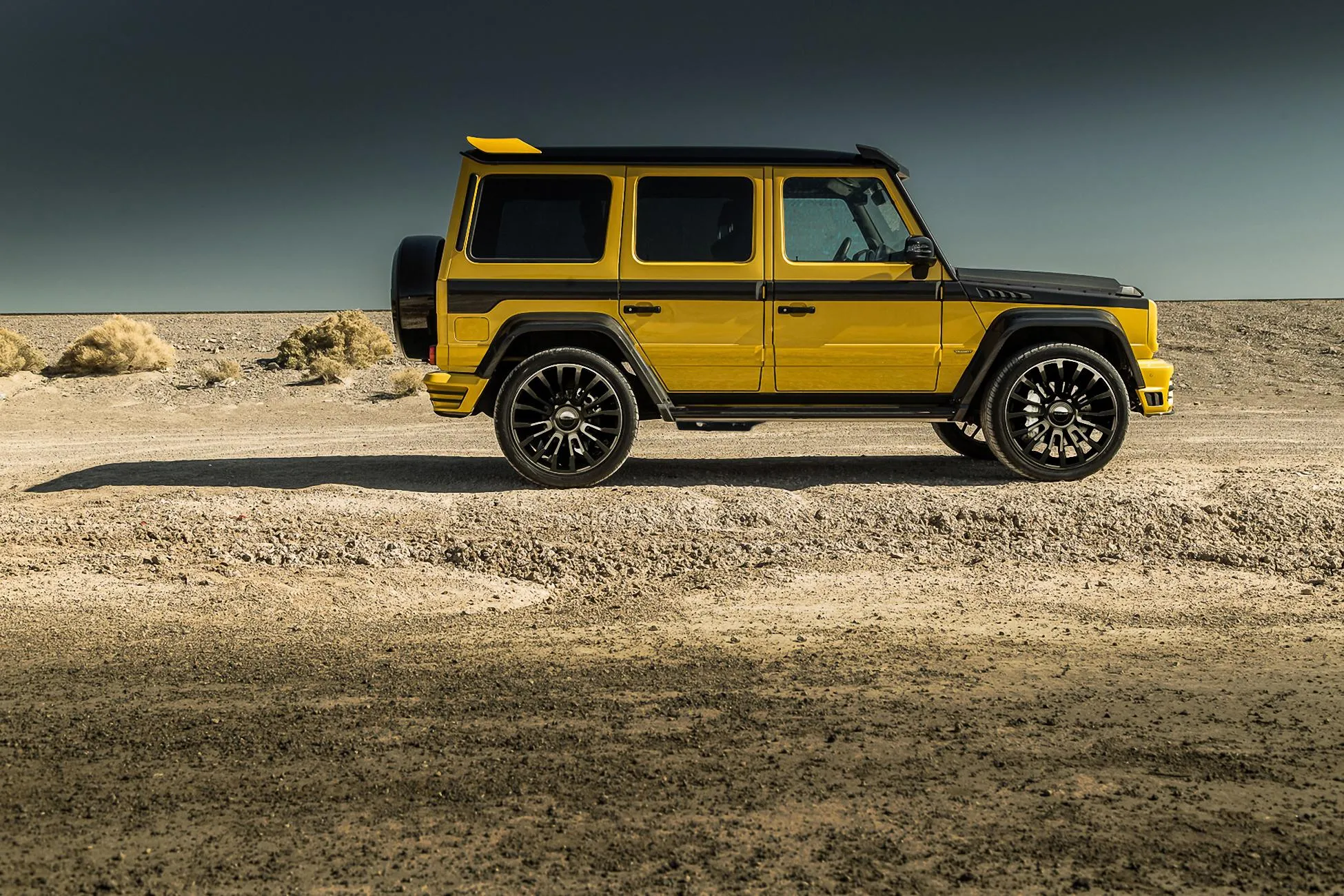

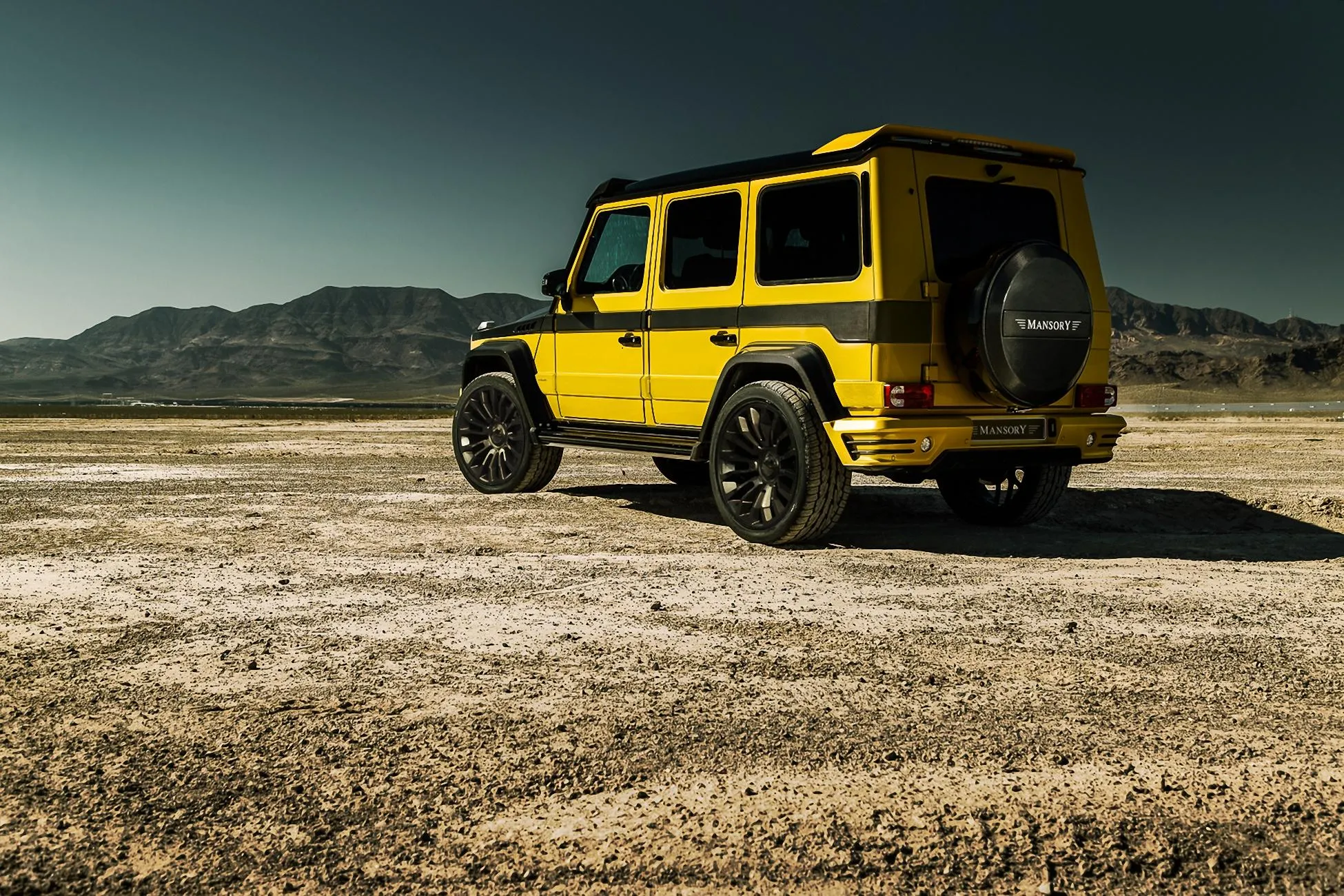

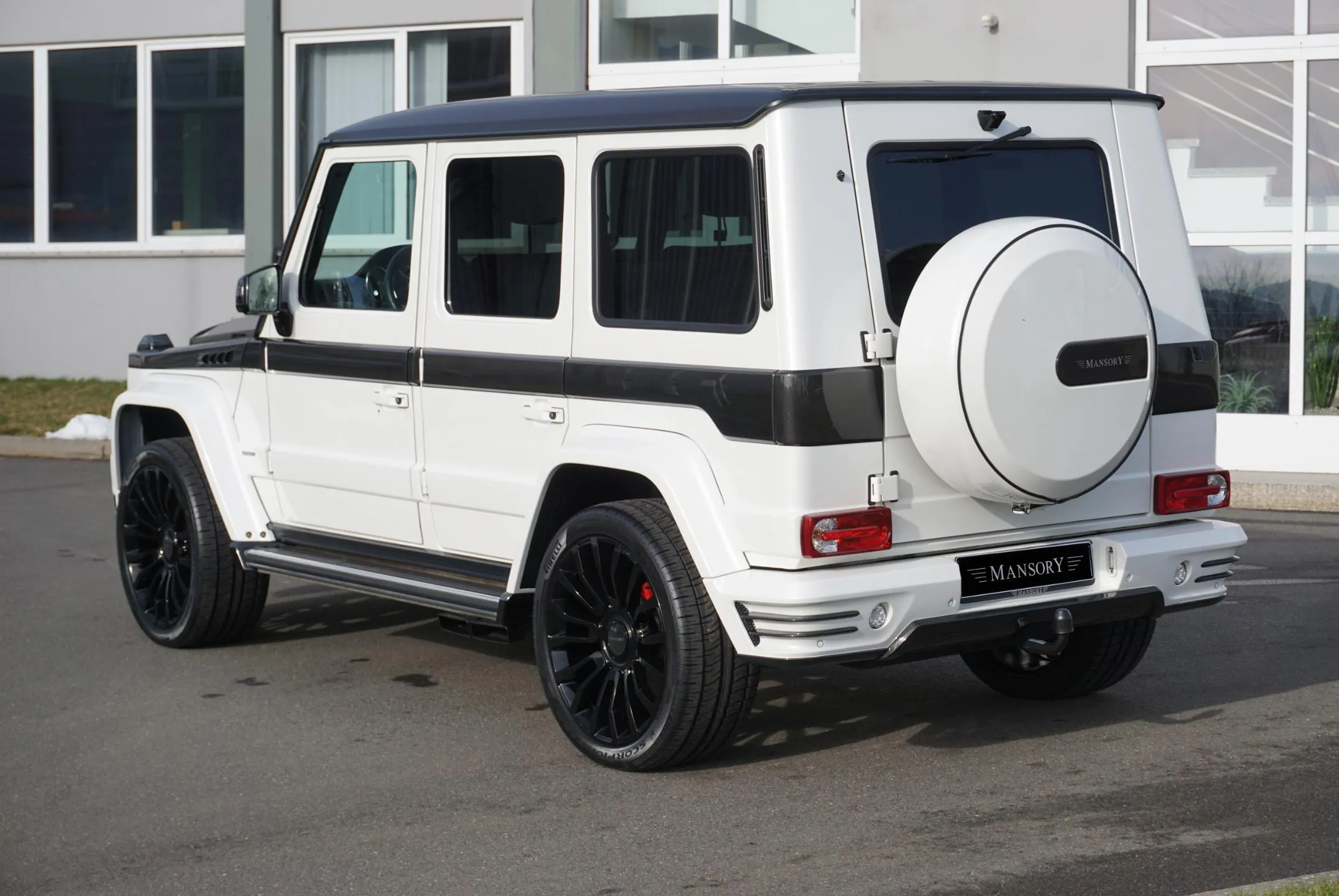

The rear is the same logic: full bumper assembly in carbon, integrated diffuser shape, and a re-cut spare-wheel cover that lines up with the wider rear track. Side strakes bridge the new front and rear flares with a continuous shoulder line, so the car reads as a single wide silhouette rather than as a stock G-Wagen with bolted-on arches. Because the OEM steel fenders are physically cut at the wheel-arch lip to receive the bond flange, this is a one-way conversion at the body — unlike the Soft Kit, you cannot peel it back to factory in an afternoon. That is the trade owners are buying into when they pick the wide programme.

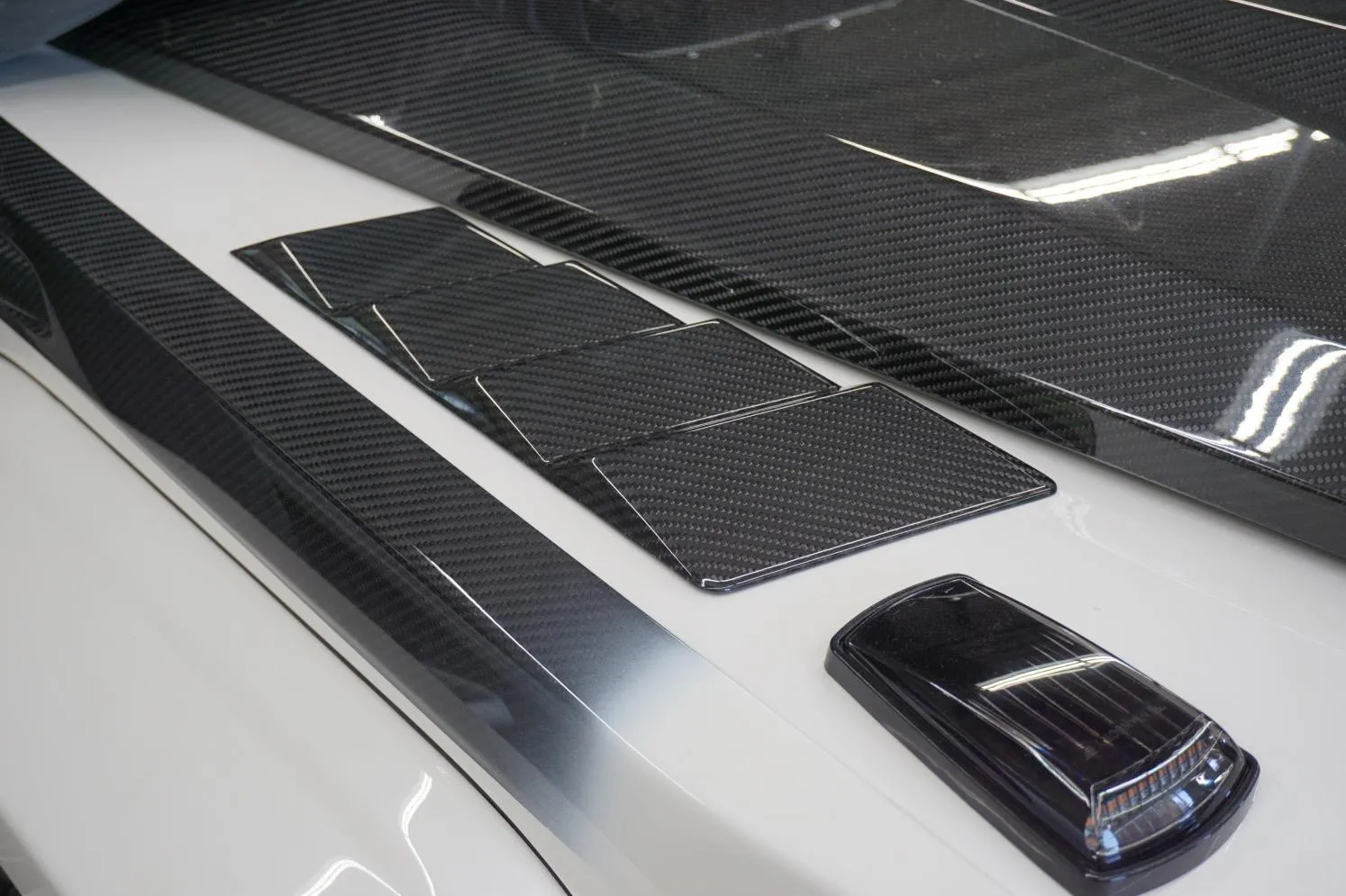

The other practical consequence of bonded flares is paint workload. Every new carbon panel is primed and shot to body colour at a body shop that knows Mansory — the build runs 10 to 14 days at the shop, not the two days a Soft Kit takes. Most owners spec the bonnet and roof spoiler in lacquered visible weave and paint everything else, which keeps the carbon language readable on a colour car without burying the build in clear-coat work.

Carbon parts schedule (full wide build)

Track and ride-height geometry

The wide build is engineered to place an OE-pattern wheel under the new arches without spacers. On a G63 AMG W463 the factory front offset is ET+25 on a 9.5J×20 wheel; the wide programme is built around 23″ forged at ET+30 to ET+38 (front) and ET+22 to ET+28 (rear) on a 10.5J face, sized per VIN against the brake caliper envelope. That places the tyre sidewall under the new flare with roughly 18–22 mm of static fender clearance at design ride height, enough headroom to retain the OEM coil-over-axle suspension without a lift kit and without inner-arch trimming. Owners who run the Mansory lowering springs (typically 25 mm down from stock) tighten the static clearance toward 12 mm, which is the practical floor before the tyre kisses the flare on full compression.

The track itself moves outward by the same numbers as the flares — +60 mm at the front axle, +80 mm at the rear axle measured wheel-centre to wheel-centre — which subtly improves cornering stance without changing the OEM steering geometry or scrub radius enough to feel different on the road. The rear live axle is unchanged; the wider rear is achieved by the wheel offset and the bonded flare, not by an axle swap. We confirm offsets, sizes and ride height against the VIN before any wheel order leaves Hodoor.

Forged wheel logic 23″

The wide programme is shown almost universally on Mansory's own forged wheel patterns at 23″. The two patterns that pair best with the W463 wide stance are the CM.5 (multi-spoke concave with a deep dish) and the FM.10 (split five-spoke with a stepped lip), both available in glossy black, two-tone with carbon spoke inserts, or the Mansory "chrome shadow" anodised finish that suits a colour-matched paint car. Tyre fitment is 295/40 R23 all four corners on the standard build — G-Wagens run square fitments by convention, not staggered — with 305/35 R23 available for owners who want a stiffer sidewall on the rear for a lower visible profile. Anything wider than 305 starts to fight the diffuser shape on the carbon rear bumper. The full wheel catalogue with offsets and centre-bore options is on the Hodoor forged wheels collection.

Where these go

• UAE — the wide build is the most-shipped Mansory G programme into Dubai and Abu Dhabi; sea freight runs roughly 22–26 days from the European hub and clears Jebel Ali on a TUV body certificate that local RTA registration accepts without re-homologation.
• Saudi Arabia — Riyadh and Jeddah have a dense fitter network for the W463 specifically because the chassis sat in the GCC market for almost three decades; full body-shop turnaround on a wide build runs around two weeks once the kit lands at port.
• Russia — W463 G-Wagens remain a recognisable Moscow and Sochi car despite the chassis age; we route shipments via permitted European corridors with full customs paperwork, and there are body shops in both cities that have done the wide bond work before, which matters for the flare overlap quality.
• Switzerland — owners in Zurich, Geneva and Lugano ask for the wide programme more than the Soft Kit, partly because the country's per-capita G-Wagen density is one of the highest in Europe; Swiss MFK approval is straightforward on a TUV-documented build.

To start a build, the fastest route is a VIN to [email protected] with the variant (G350, G500, G55, G63), the model year and any existing aftermarket on the car (especially exhaust and lowering, which affect the wheel offset call). For a same-day conversation about lead times or a body-shop referral in your country, WhatsApp +44 7488 818747 is the quickest channel.

Common questions

Is the W463 wide programme the same kit as the Soft Kit but more aggressive?
No. They share the donor and the Mansory visual language. They are different programmes with different scope: the Soft Kit bolts on, the wide build cuts and bonds. Choosing one over the other is a decision about reversibility and body-shop time more than about visual gain.

Will the wide build fit the new W464 (2018+) chassis?
No. This page is for the original W463 only — 1990 through 2018, the live front beam axle car. The 2018+ G-Wagen is the W464 internally and uses different bumper, fender and headlight geometry; that chassis takes the W464 Gronos programme on its own product page.

Can I keep the OEM AMG side pipes on a G55 or G63 wide build?
Yes. The wide programme is body-and-wheels only on the standard package; the OEM side-exit exhaust on the G55 (M113K 5.4 supercharged) and G63 (M157 5.5 biturbo) stays in place. Owners who want the Mansory side-exit quad system order it as a separate line item, and the wide bumpers are cut to accept either configuration.

How does the wide build affect off-road geometry?

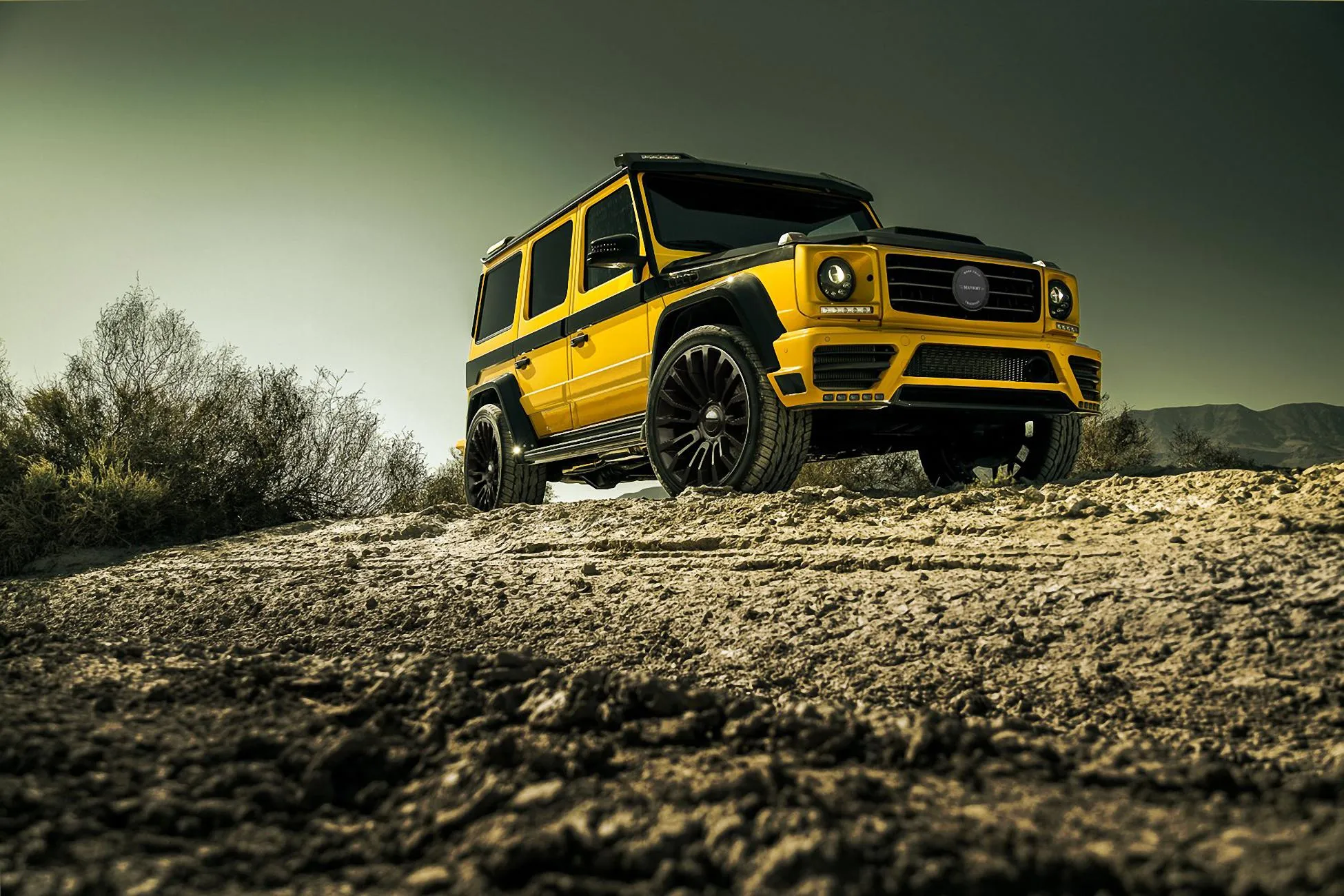

Approach and departure angles drop by roughly 1–2 degrees against the OEM bumpers because the carbon assemblies sit a touch lower at the corners. Ground clearance under the diffs is unchanged, the OEM transfer case and three locking diffs are untouched, and the build is still mechanically capable of everything the OEM W463 can do — most owners simply do not take wide-build cars off-road because the paint cost on a flare panel is substantial.

What is the realistic total time from order to keys?
Production of the carbon set runs four to six weeks at the workshop. Sea freight to GCC or East Asia is three to four weeks. Body shop turnaround for the cut, bond, primer, paint and assembly cycle is 10 to 14 working days. End to end, plan for around 12 to 14 weeks from VIN-confirmed quote to a finished car back in your hands.
