Airbag cover

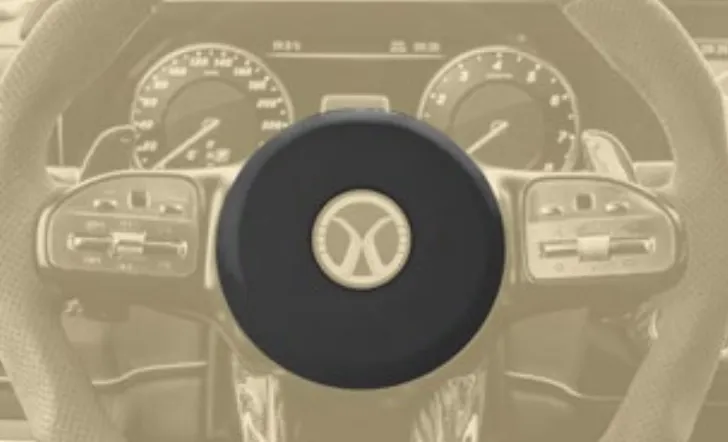

Mansory Airbag Cover — Carbon Hub Trim for the Mercedes-Benz G-Class W465 Gronos
The Mansory Airbag Cover is the smallest visible carbon part in the Gronos cabin family, but engineering-wise it is the most regulated. It sits at the centre of the steering wheel — directly over the driver airbag module — and its job is to look like the rest of the Mansory interior while doing nothing to interfere with airbag deployment. This is a part where finish quality and FMVSS / ECE compliance have to live in the same panel.
Hodoor supplies the cover finished, clipped, and ready to fit on a W465 already running the Gronos interior pack. No wiring loom is involved, no electrical splice work is required, and no factory horn or steering-wheel control is removed in the process.
Where the Cover Sits — Steering-Wheel Hub Geometry
On the W465 driver airbag module, the cover is the visible cap that closes the centre of the wheel. Behind it sits the folded airbag, the inflator, and a frangible plastic seam that splits along a moulded H-pattern when the pyrotechnic charge fires. The Mansory cover overlays the OEM plastic shell from the outside; it is not a structural replacement of the deployment cap. That distinction is critical, and it is why the part is engineered as an overlay rather than a substitution.
OEM Airbag Retention — FMVSS 208 / ECE R94 Compliance
Mercedes specifies the W465 driver airbag against FMVSS 208 (US) and ECE R94 (European frontal-impact regulation). Both standards require the deployment energy and timing window to remain inside a narrow envelope: the bag must clear the cover within roughly 30 milliseconds of trigger, and the cover must not generate fragments that could injure the occupant. The Mansory part is sized so that, at deployment, the OEM frangible seam splits unobstructed and the carbon overlay separates along the same line. No additional mass is added to the moving cap — the carbon shell is thin enough to ride within the original deployment energy budget.
The overlay is bonded only along zones that the OEM cap itself sheds during deployment. There is no continuous structural bond crossing the H-seam, and there is no fastener that holds the cover closed against the deployment line. From a regulator's point of view, the part behaves as a cosmetic skin on top of an OEM-spec deployment cap.
Materials and Layup — Thin, Compliant, Stable
The carbon stack is deliberately minimalist. Visible face is 2x2 twill prepreg at approximately 200 g/m², a single visible ply over a thin structural ply, with an elastomeric edge zone running around the entire perimeter. The elastomer is what allows the part to flex with the airbag cap during deployment instead of fracturing into shrapnel — it is the same family of compounds used on OEM trim parts that overlay airbag covers on factory carbon-package wheels.
Cure cycle is autoclave at 130°C, 6 bar absolute, full vacuum-bag consolidation. Residual moisture content is held below 0.4% by weight after post-cure conditioning, which keeps the visible weave dimensionally stable across cabin temperature swings from cold-soak winter starts to summer dashboard heat. An optional Mansory logo inlay is available in three finishes: silver-leaf foil under clearcoat, machined aluminium plate flush-set into the weave, or recessed forged-carbon medallion. The inlay sits inside the visible field and is co-cured with the outer ply so there is no glue line under the clearcoat.
Fitment — W465 with Gronos Interior Pack
The cover is built specifically for the Mercedes-Benz G-Class W465 carrying the Mansory Gronos interior package. The W465 driver airbag module geometry differs from the previous-generation W463 and W463A modules — the pyrotechnic vent pattern, clip spacing, and visible aperture are all unique to the new chassis. A W463A cover will not seat correctly on a W465 wheel, and vice versa; the parts are not interchangeable. Hodoor verifies fitment by VIN before the order ships so that the cover lands on a wheel it was designed for.
Installation — Factory Clips, Torx Retention, No Wiring
Installation is mechanical only. The OEM cover is released by removing two M5 torx screws accessed from the rear of the steering-wheel spoke (wheel position rotated to expose the access points), the OEM cap lifts away from its clip rail, and the Mansory overlay snaps onto the same clip rail using the carried-over OEM hardware. No horn wire is disconnected during normal install because the horn contact rides on the wheel hub, not on the cover itself. A trained technician completes the swap in 20–30 minutes including torque check and clip verification.
Hodoor does not recommend home installation on this part. Even though no wiring is touched, the airbag module is a pyrotechnic device, and best practice is to disconnect the battery, wait the manufacturer-specified discharge interval, and keep the module oriented away from the body during the swap. A qualified workshop will already have these procedures in their service routine.
Care — Isopropanol Wipe Only, No Solvents
Day-to-day cleaning is a soft microfibre with distilled water. For fingerprint or oil residue, a 70% isopropanol wipe is safe on the clearcoat. Avoid acetone, MEK, brake-cleaner, citrus-based cabin cleaners, and anything labelled "leather conditioner with silicone" — silicones migrate into the clearcoat edge and produce a hazy halo around the perimeter elastomer that does not buff out. The optional aluminium logo inlay is wiped with the same isopropanol cloth; it does not require separate metal polish.
Position Inside the Parent Kit
The airbag cover belongs to the cabin-trim tier of the Mansory Body Kit for Mercedes-Benz G-Class W465 Gronos, alongside the steering-wheel rim wrap, paddle shifters, dashboard fascia, and door-card carbon panels. Customers who specify the full interior pack typically take the cover as part of the bundle so the weave direction and clearcoat batch match across the cabin. Customers retrofitting one piece at a time can order the cover stand-alone — Hodoor records the weave batch reference so that follow-up trim purchases can be matched later.
Lead Time, Shipping, and How to Order
Lead time on the airbag cover specifically is 3–4 weeks from order confirmation, shorter than the larger exterior panels because the part is small and the autoclave cycle is efficient. Air-freight shipping is the default given the low weight; the cover travels in a foam-lined hard case with humidity sachets to keep moisture off the clearcoat in transit. Customers ordering the full cabin pack receive the cover bundled with the rest of the interior items in a single shipment to avoid mismatched batch references.
To start an order, send VIN + preferred logo-inlay finish to WhatsApp +44 7488 818 747 or [email protected]. Hodoor responds with fitment confirmation, an EUR-priced quote, and a freight estimate. The full Mansory G-Class catalogue is browsable at hodoor.world/collection/mansory-2, and the parent kit page sits at the W465 Gronos kit listing.
FAQ — Airbag Cover Specifics
Will this cover fit a W463A Gronos wheel I already own?
No. The W465 driver airbag module is a different geometry from the W463 and W463A modules. The clip rail, the visible aperture, and the pyrotechnic seam pattern are all chassis-specific. If you have a W463A wheel and want a Mansory carbon cover, ask Hodoor for the W463A-specific part — it is a separate SKU.
Does the carbon cover affect airbag deployment?
No, when correctly installed. The overlay is engineered to separate along the OEM frangible seam during deployment and the elastomeric edge zone is what permits that separation without fragmentation. The part has been built and validated against FMVSS 208 and ECE R94 deployment-energy expectations. Installation by a qualified workshop is required to maintain that compliance.
What is the realistic lead time on the airbag cover alone?
Three to four weeks from order confirmation, including autoclave cure, post-cure moisture conditioning, optional logo inlay co-cure, QA inspection, and outbound packing. If the cover is part of a wider Gronos cabin order, it ships with the rest of the interior items on the longer cabin lead time so weave batches stay matched.
Can I return the cover after installation?
Returns on installed safety-critical interior parts are not accepted, in line with airbag-component industry practice. Returns on uninstalled, unopened covers within 14 days of receipt are accepted on a restocking basis — Hodoor verifies the part is in the original sealed case with humidity sachet intact. Defects on arrival are replaced free of charge.
Is the Mansory logo inlay required?
No. The cover is available without inlay (plain visible 2x2 twill), with silver-leaf foil under clearcoat, with a flush machined aluminium logo plate, or with a recessed forged-carbon medallion. The inlay is selected at order time and co-cured into the part — it cannot be retrofitted later without replacing the cover.
