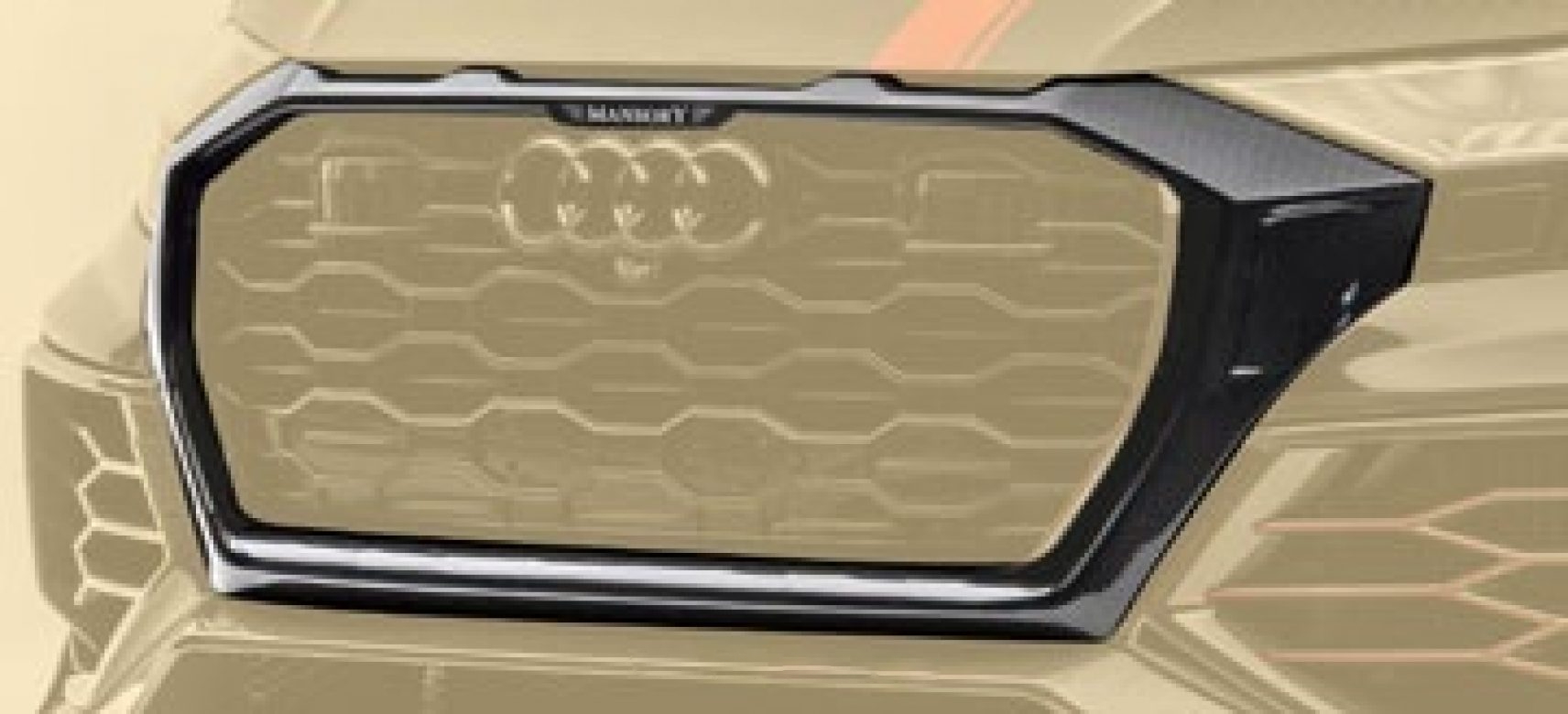

Front mask with silver logo Mansory style Carbon for Audi RS Q8

Front Mask with Silver Logo Mansory Style Carbon for Audi RS Q8

The front mask is the single most identity-defining panel on a Mansory-fettled Audi RS Q8, and this carbon Singleframe replacement carries the silver brushed-aluminium wing logo that has become synonymous with the German tuner's flagship SUV-coupe programme. Built as a Mansory-style replica to the same geometry as the genuine factory part, it slots into the broader Mansory Carbon Fiber Body kit set for Audi RS Q8 and gives the 4M chassis - 4.0 TFSI biturbo V8, 48V mild-hybrid, 600 hp in stock and well over 700 hp once tuned - the wide, hex-meshed visage owners want without the premium of the autoclave-cured Mansory original. The mask preserves every functional cutout the RS Q8 needs: ACC radar window, front camera aperture, headlight-washer jets and the central radiator throat that feeds the V8's main cooler at 305 km/h.

Construction & Materials

The mask is laid in full prepreg carbon-fibre cloth on a CNC-milled tool taken from a digitised genuine Mansory original, then vacuum-bagged and oven-cured. The hex-mesh inserts are pressed aluminium honeycomb finished in satin black, fitted into recesses moulded directly into the carbon shell rather than glued onto a flat surface, which is why the mesh sits flush with the surrounding weave instead of standing proud. The silver wing logo is machined from a solid block of 6082 aluminium and brushed in long unidirectional strokes, then clear-anodised so the brushed grain stays bright for the life of the part.

• Weave: 3K twill, mirror-matched along the centre line so the diamond pattern flows symmetrically into the bonnet shut line.
• Cure: vacuum-bag oven cure at 95 deg C, post-cured at 120 deg C for dimensional stability.
• Wall thickness: 2.0-2.4 mm across the visible faces, 3.0 mm at the OEM bracket bosses.
• Weight: approximately 4.6 kg complete with mesh and emblem - within 250 g of the genuine Mansory mask.
• Mounting hardware: OEM Audi M6 bolts and the original RS Q8 grille clip rail; no drilling, no irreversible modification.
• Finish: deep automotive clear lacquer, UV inhibitors, sanded back to 2000 grit and machine-polished before delivery.
• Emblem: brushed-aluminium silver Mansory wing, mechanically fixed from the rear, replaceable as a service part.
• Hex mesh: black satin aluminium honeycomb, 12 mm cell, recessed.

Design & Visual Function

Visually the mask transforms the RS Q8's nose from the relatively conservative Audi Singleframe into the wider, more horizontal Mansory face. The hex-mesh insert pattern breaks up what would otherwise be a vast slab of carbon and gives the eye somewhere to rest, while the recessed silver wing logo at the centre of the upper bar is angled slightly forward so it catches light from the leading edge of the bonnet and the headlight DRL signature in equal measure. The brushed silver finish reads as cooler and more architectural than the illuminated variant; owners specifying matt-grey, Daytona-grey or Nardo paintwork tend to prefer it because the finish stays restrained at night rather than glowing.

Functionally, the mask is engineered around the V8 biturbo's intake and cooling demands. The central radiator throat is identical in cross-section to the OEM mask, which matters: at full chat the 4.0 TFSI dumps a great deal of heat into its main cooler, and any restriction here would push intake-air temperatures and consequently knock-retard. The lower hex panel sits forward of the active bumper flap and does not interfere with its travel; on Performance MY24+ cars where Audi added an extra horizontal slat, the mask retains the equivalent geometry so the shutter-controlled cooling logic continues to behave as Audi's ECU expects.

Within the Mansory-style line the silver-logo mask is the most-specified front-end part because it gives most of the visual transformation for the smallest outlay. It pairs cleanly with the matched style splitter for visual cohesion and with the style front bonnet where the buyer wants to push the conversion further forward.

Compatibility & Fitment

Designed for the Audi RS Q8 (4M chassis), MY2020 onwards, covering the pre-facelift 2020-2023 cars and the 2024+ Performance facelift. Bumper geometry was tweaked subtly with the facelift; this mask is moulded to be specified for either generation - confirm your VIN and build month at order so the correct revision ships. The mask retains all OEM Audi front-bumper electronics: ACC radar housing, front-view camera, headlight washer jets, parking sensors are not housed in the mask itself but the mask does not foul them. The single-frame chrome trim is replaced rather than re-used; the kit ships with everything needed for a like-for-like swap.

Installation & Reversibility

Installation is a sub-three-hour job in a properly equipped body shop. The front bumper does not need to come off entirely - upper grille trim removal, headlight outer screws and the bumper top six fixings give enough clearance to slide the OEM mask out and the carbon mask in. Use the RS Q8's adaptive air suspension in lift mode so a low trolley jack and shop stool clear the front airdam without scraping. We recommend torquing the OEM Audi M6 fixings to 9 Nm and applying a tiny dab of medium-strength threadlocker to the emblem retention bolts at the rear. The change is fully reversible: the original Singleframe assembly stores flat in any garage corner and can be re-fitted in an afternoon if the car is going back to a leasing company or to auction. DIY is feasible for an experienced enthusiast with trim tools and a torque wrench; first-time owners are better served by a marque specialist who has worked an RS Q8 before.

Pairing within the Mansory RS Q8 programme

This mask is a Mansory-style replica, so it should only be cross-paired with other Mansory-style parts to keep the visual signature consistent. The natural sibling is the matched splitter for the front mask in Mansory-style carbon, which sits directly beneath the lower hex bar and finishes the mask off properly. Most owners specifying just the mask end up adding the splitter within a month - the lower edge of the mask asks for it visually. From there the next step is the front bonnet in Mansory-style carbon, which carries the wing-logo motif onto the upper surface of the car and continues the carbon flow back from the mask. If the goal is the full conversion, the umbrella SKU is the Mansory-style carbon body kit for the Audi RS Q8, in which this mask is the front-centrepiece.

Maintenance & Durability

Lacquered carbon is durable but not invincible. Wash with a pH-neutral shampoo, two-bucket method, fresh microfibre on every panel. Avoid alkaline wheel cleaners drifting onto the mask while the wheels are dressed; ammonia-based glass products and aggressive solvents will dull the lacquer over time. A ceramic coating rated 9H or above is the recommended long-term protection - applied once at delivery, topped with a SiO2 booster every six months, it pushes meaningful weave clarity past five years even on cars that live outside. The brushed-aluminium emblem is best cleaned with a damp microfibre only; polishes designed for chrome will erode the brushed grain. If a stone chip propagates - and on a 305 km/h SUV it eventually will - a marine-grade epoxy chip-fill kit followed by 2000-grit wet sanding and machine polishing brings the surface back without replacement.

Lead Time & Warranty

Standard lead time is 4-6 weeks from confirmed order, extending to 7-8 weeks during peak season and for cars where the silver emblem batch is being prepared concurrently with another part on the same VIN. The mask carries a 12-month manufacturer warranty against delamination, lacquer failure, weave defects and emblem-anodise failure under normal road use; track abuse, bird-strike damage and stone-chip propagation are excluded as they would be on any carbon panel.

FAQ

Q: Will it fit my pre-facelift 2021 RS Q8?
A: Yes. Confirm VIN at order and the correct pre-facelift revision will ship. The 2024+ Performance variant has a slightly different bumper top edge and uses its own revision.

Q: Is the silver logo really aluminium or is it painted plastic?
A: Solid 6082 aluminium, brushed and clear-anodised. It is mechanically fixed and replaceable as a service item; it is not a sticker or a painted ABS emblem.

Q: How does the Mansory-style mask differ from the genuine Mansory carbon mask?
A: Geometry is identical because the tool is taken from a digitised original. The genuine Mansory part is autoclave-cured in Mansory's own facility and carries Mansory part stamping; the style version is laid in full prepreg carbon in our production line and oven-cured under vacuum. Visually indistinguishable, fitment identical, price meaningfully lower.

Q: Does it interfere with adaptive cruise or front camera?
A: No. The radar housing and camera aperture are positioned exactly as on the OEM part. ACC, lane-keep camera and Audi pre-sense remain calibrated.

Q: What about the headlight washers?
A: Cutouts are present and the OEM telescopic washer jets pass through cleanly. No trimming, no relocation.

Q: Can I switch later to the illuminated logo if I change my mind?
A: The silver-emblem and illuminated-emblem variants share the same carbon shell tooling, so an emblem swap is feasible at a body-shop labour cost, though the wiring loom for the illuminated badge would need to be retrofitted by a qualified electrician.

Within the Mansory-style line, this mask pairs naturally with the matched splitter, the style front bonnet, and the umbrella style body kit referenced above. To configure your RS Q8 mask, confirm VIN and reserve a production slot, contact us on WhatsApp +44 7488 818 747 or [email protected].
