Mansory Carbon Fiber Body kit set for Rolls-Royce Phantom VI and VII

Mansory programme — Rolls-Royce Phantom VII (Goodwood RR1, 2003-2017)

In January 2003 the first BMW-era Rolls-Royce rolled out of Goodwood. The car was the Phantom VII, codename RR1 internally, the seventh generation of the Phantom name and the foundation product on which the modern Rolls-Royce sub-brand was built after BMW Group's 1998 acquisition of the marque. Production ran from 2003 through 2017 in three sub-variants: the standard-wheelbase saloon (RR1), the Extended Wheelbase EWB (RR2), and the Series II facelift introduced in 2012 with rectangular LED daytime running lamps and revised front-bumper graphics. The Coupe (RR3) and Drophead Coupe (RR4) were spun off from the same platform with different bodyshells; they sit on separate Mansory pages. This page documents the saloon programme — both wheelbases, both pre-2012 and Series II.

Naming note. The kit fits the Phantom VII (RR1) only. The 1968-1991 Phantom VI — Crewe-built coachbuilt limousine on the V8 6.75 R-Series chassis (~374 cars over 23 years, principally state and royal) — is a different car on a different ladder-frame; its panels do not align and the kit does not fit. Sister Goodwood programmes: Phantom VIII (RR12), Phantom Drophead Coupe, Cullinan, Ghost and Wraith.

RR1 chassis specifics — the BMW-era flagship in numbers

The Phantom VII platform was developed in-house at Goodwood from 2000 to 2003 on a steel spaceframe with aluminium body panels — the predecessor architecture to today's all-aluminium Architecture of Luxury, sharing engineering principles but not parts. Coach-doors at the rear, the Pantheon grille framing the Spirit of Ecstasy, a self-righting RR wheel-cap centre, a flat bonnet line.

Drivetrain is rear-wheel-drive throughout — the Phantom VII never adopted all-wheel drive (that arrived with the Phantom VIII in 2017). Suspension is a four-corner air spring with continuously variable damping, ride-height calibration running 50 mm of static range across low / normal / high. Brakes: 374 mm vented front, 370 mm vented rear, with the optional ceramic-composite upgrade arriving on Series II cars only. Tyre fitment from factory: 255/50 R21 on a Goodwood-fit 21" disc-pattern wheel intentionally drawn to mirror the original 1929 Phantom I disc wheel.

BMW N73B68 — the 6.75 V12 the platform was built around

The powertrain is the BMW N73B68, a 6.75-litre 48-valve naturally-aspirated V12 with Valvetronic variable-valve-lift on the intake side. Goodwood and Munich agreed at design phase that a Rolls-Royce should run a V12 with no forced induction — torque arrives smoothly across the rev range rather than in a turbocharged surge, accessible from ~1 000 rpm above idle. From 2003 to 2012 Goodwood paired the engine with the GM 6L80 six-speed automatic; at the 2012 facelift this was replaced with the ZF 8HP eight-speed. The Mansory rear apron fits both — the OEM exhaust-tip footprint is unchanged across the GM-to-ZF transition.

Carbon panels — what ships

The Phantom VII Mansory set is OEM-restraint by design. No fender flares, no widened track, no bonded panels. The carbon language is sized to a 1 990 mm saloon that already commands road space without help, painted to coachline by default with visible-weave finishes reserved for the bonnet pad and mirror caps.

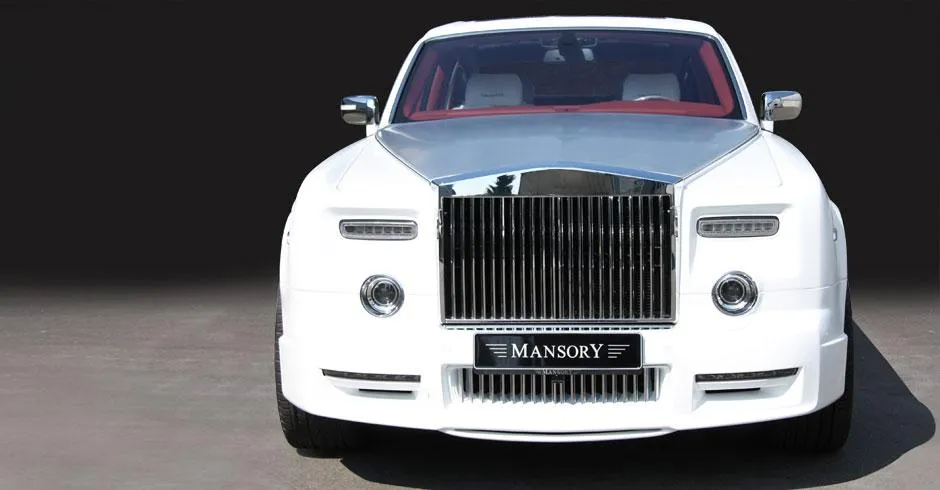

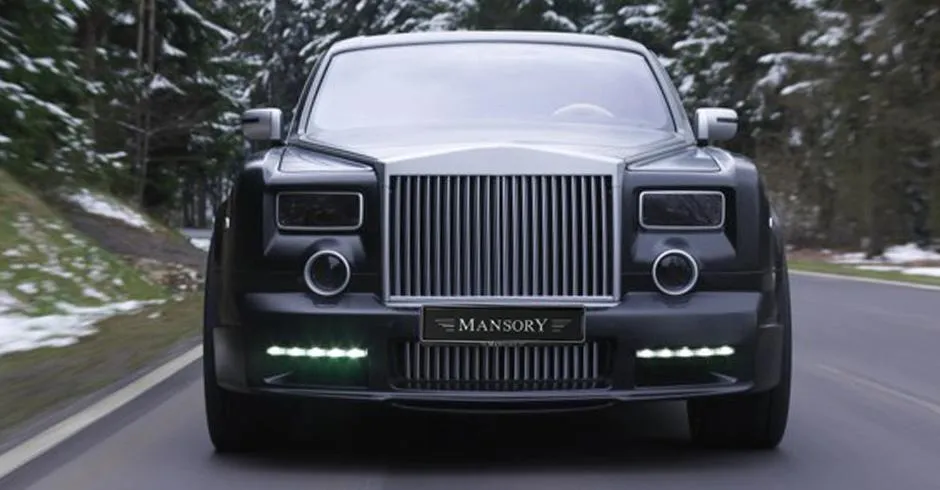

• Carbon front bumper — full replacement, two chassis-specific variants. Pre-2012 takes the round-headlight bumper with the original chrome lower-intake bar; post-2012 takes the rectangular-LED bumper with the redrawn lower mesh and the chrome side-blade graphic.
• Vented carbon bonnet pad — low-profile overlay with two functional NACA cuts above the V12 plenum; OEM Spirit of Ecstasy mounting and the OEM Pantheon grille frame both preserved at front centre.
• Pantheon grille frame in carbon — replaces the OEM chrome frame; the grille mesh and the Spirit of Ecstasy proportions remain factory.
• Side sills — separate-length items for SWB and EWB cars. EWB sills are 250 mm longer than the SWB set.

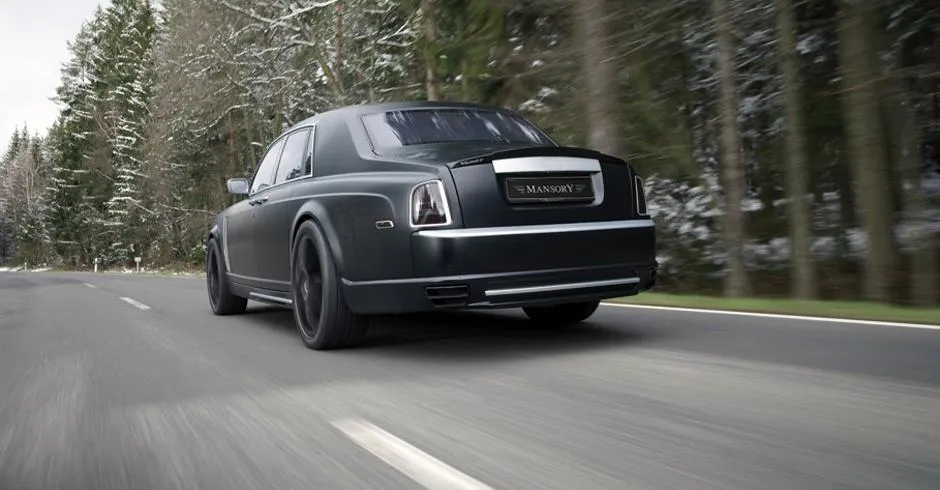

• Rear bumper apron — full replacement, dimensioned to the OEM twin-tip exhaust outlet on both pre-2012 and post-2012 cars.
• Fixed bootlid spoiler — discreet carbon kick on the boot edge; recut to clear the OEM RR badge mounting on the centre of the bootlid.
• Mirror caps in visible weave; OEM lane-change indicator and surround-camera apertures preserved.
• Spirit of Ecstasy surround — small detail piece around the retracting Spirit of Ecstasy mounting bezel.

22" forged on the 5x120 PCD

The Phantom VII saloon runs the BMW Group 5x120 mm bolt circle on a 74.1 mm centre bore. Mansory specifies the kit on a 22" forged set as the matched fitment, replacing the OEM 21" disc-pattern Goodwood wheel:

• 22x9.0J ET+38 front, 22x10.0J ET+30 rear, sized to clear the OEM 374 mm vented front disc on pre-2012 cars and the optional ceramic upgrade on Series II.
• Tyre fitment 265/40 R22 front, 295/35 R22 rear on a slight stagger for visible wheel-cap depth in the rear arch.
• Patterns: M.7 classic multi-spoke (the dominant Phantom VII fitment), FD.16 dual-spoke concave, YN.5 double-Y with the option of a closed disc-wheel-style centre cap for owners who want to preserve the Phantom disc-wheel signature.
• Finishes: paint-to-coachline (the dominant fitment), polished face, satin black, two-tone with diamond-cut shoulder.
• Catalogue at hodoor.world/collection/forgedwheels.

The set trims ~4 kg of unsprung mass per corner against the OEM 21" cast Goodwood disc wheel; on a 2 550 kg saloon the change is small in proportion but readable in tyre-roar suppression at autobahn speeds. Air-suspension calibration is unaffected.

Build, paint, lead time

Fitment runs 6 to 8 hours at a Rolls-Royce-experienced shop — bolt-on across the full panel schedule. Body-shop turnaround on a full painted finish is 9 to 12 working days, dominated by the panel paint cycle (front bumper, side sills, rear apron, Pantheon grille frame and bootlid spoiler all paint-to-coachline by default). Carbon set production runs 5 to 7 weeks at Brand-Erbisdorf. Sea freight to GCC, East Asia or the Caribbean is 22-26 days; air inside Europe is 3-5 working days. End-to-end timeline VIN-confirmed quote to keys: 10 to 13 weeks.

Country corridor — where Phantom VII commissions land in 2026

Goodwood shipped to ~80 markets between 2003 and 2017; the 2026 Mansory book is part historical reactivation and part active royal/corporate fleet replacement.

• UAE — Dubai and Abu Dhabi ship the largest commission share; royal households run Series II as a reliable secondary chauffeur platform alongside Phantom VIII primary fleet.
• Saudi Arabia Riyadh / Jeddah commissions favour the EWB body — the longer rear cabin is the dominant Saudi spec on Phantom VII.
• United Kingdom — Goodwood's domestic market; Mayfair and Surrey body shops handle most installs, with a Channel Islands extension via Jersey.
• Monaco orders paint-to-sample 22" forged at the highest rate of any market on this chassis.
• Isle of Man — small but consistent flow; Manx registration accepts the kit on a Mansory engineering-letter.
• Bermuda ships small-volume but high-spec EWB Series II commissions in OEM English White or Goodwood Black.

Order channel and inputs

Email [email protected] with the Phantom VII chassis VIN (we lock the bumper variant against build month and SWB-vs-EWB body length), current paint code and coachline detail, surface preference per panel, wheel pattern and finish, and destination country. WhatsApp +44 7488 818747 for fastest landed-quote turnaround.

FAQ

Is the page about the Phantom VI or the Phantom VII?
The kit fits the Phantom VII (RR1 saloon, 2003-2017) only. The Phantom VI title reference is a naming anomaly carried over from catalogue history; the 1968-1991 Crewe Phantom VI is a different car on a different chassis and surviving examples mostly sit in royal-household, museum or long-term-collector custody.

Will the kit fit a Phantom VIII (RR12)?
No. The VIII sits on Architecture of Luxury with the twin-turbo N74B68 V12 — different fender, bumper and powertrain geometry. Take the dedicated Phantom VIII programme.

Pre-2012 versus post-2012 Series II — which kit do I take?
The 2012 facelift redrew the front bumper around the new rectangular LED daytime running lamps. The Mansory front bumper ships in two chassis-specific variants; VIN match selects the correct one at order. All other panels are common across pre-2012 / Series II and SWB / EWB.

Will the kit fit the Phantom Coupe (RR3) or Drophead Coupe (RR4)?
No — the two-door bodyshells diverge from saloon datums. The Drophead has its own page: Phantom Drophead Coupe programme.
