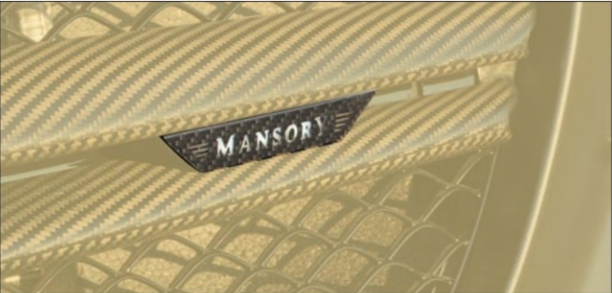

Illuminated logo for front grill mask Mansory Carbon for Mercedes-Benz AMG GT S Coupe

Illuminated Logo for Front Grill Mask, Mansory Carbon, for Mercedes-Benz AMG GT S Coupe (C190)

The illuminated Mansory logo sits at the apex of the four-part grille branding matrix offered for the Mercedes-AMG GT (C190) within the Mansory Carbon Fiber Body kit set for Mercedes-Benz AMG GT S Coupe. Where the bare front-grill-mask delivers a vertical-slat carbon canvas and the un-lit logo applies a flat wordmark, the illuminated variant adds a discreet LED-lit Mansory script that wakes with the car, threads itself between the Panamericana verticals and signals provenance the moment the M178 V8 BiTurbo turns over. It is a top-tier grille statement for the long-bonnet C190 coupe and roadster, conceived for owners who want the GT3-flavoured carbon programme to reach into the lighting signature itself.

Construction & Materials

The illuminated logo is built as a sealed carbon-fibre composite module. The visible face is autoclave-cured prepreg twill matched to the surrounding grille mask, the rear is a moulded ABS housing that carries the LED PCB, the gasket and the loom pigtail. The wordmark itself is a back-lit script: a laser-cut translucent inlay sits flush in the carbon face, edge-fed by surface-mount LEDs whose diffusion is tuned so the script glows evenly without a hot-spot at either end of the M, the A or the Y.

The module is potted and IP-rated against the spray, gravel and high-pressure-wash exposure that any front-fascia electrical assembly on a Panamericana grille will see across a typical AMG GT ownership cycle. Wall thickness, weave alignment and clear-coat depth are matched to the mask so a bystander reads one continuous carbon plane.

• Visible face: 3K twill prepreg, autoclave cure, deep-gloss UV-stable lacquer (raw-weave on request)
• Rear housing: glass-filled ABS carrier with integral mounting bosses
• Wordmark: laser-cut translucent acrylic inlay, edge-lit by surface-mount LEDs
• LED tone: warm-white default, cool-white available; nominal 5–6W draw at full brightness
• Loom: 2-pin pigtail, OEM-style connector for inline tap-in to DRL or marker-light feed
• Sealing: silicone-gasketed seam, IP67-rated PCB potting, drainage at lowest point of housing
• Module weight: ~140 g including loom; mounting hardware in the kit
• Finish parity: weave direction and lacquer specification matched to surrounding mask and emblem

Design & Visual Function

On the post-2017 facelift Panamericana grille the vertical chrome slats define the C190 face. The Mansory grille mask overlays those verticals in carbon; the illuminated logo then claims the centre of that field, replacing the visual weight that the AMG/Mercedes star occupied on the OEM car. Switched off, the script reads as a subtle gloss-over-gloss inlay — engraved presence rather than chrome shout. With ignition or DRL active, the wordmark resolves into a clean horizontal glow that sits exactly at the visual centre of mass of the front fascia, low enough to anchor the long bonnet and high enough to read at distance.

Compared to the un-lit logo-for-front-grill-mask, the illuminated module changes the entire after-dark signature of the car. The C190 silhouette is recognisable from its DRL strip and Panamericana grille; the Mansory script becomes a third light element in that composition, balanced in luminance against the OEM lamps so it does not dominate the family signature. Compared to the grill-mask-emblem-with-mansory-branding, which is a sculptural badge applied to the mask, the illuminated logo trades pure tactility for night presence — owners typically pick one path or run the lit script with a complementary emblem treatment elsewhere on the car.

The dimming logic is critical to the engineered impression. Brightness scales with the OEM marker-light or DRL channel rather than running at a fixed level, so at dusk and night the script reads in proportion to the surrounding lamps. The module does not pulse, sweep or animate — Mansory keeps the lighting language static, in keeping with a GT3-adjacent carbon programme rather than aftermarket light-show vocabulary.

Compatibility & Fitment

The illuminated logo is engineered for the Mercedes-AMG GT (C190) Coupe and Roadster — GT, GT S, GT C, GT R, GT R Pro and Black Series — fitted with the post-2017 facelift Panamericana grille and the Mansory carbon front-grill-mask. It is NOT compatible with the 4-door Mercedes-AMG GT 63 (X290) — that car runs a separate platform and a different fascia geometry, and the Mansory programme for it is catalogued under its own parent. Pre-facelift 2014–2017 cars carry the Diamond grille and require owner confirmation; the illuminated module is dimensioned for the Panamericana mask and will not register correctly on the older grille.

OEM systems are preserved. The module taps a low-current DRL or marker-light feed, draws roughly 5–6 W, and does not interfere with active grille shutters where fitted, AIRPANEL active underbody aero on the GT R, the AMG headlight-washer apertures, parking-sensor calibration, the M178 hot-V intercooler airflow path or the rear-mounted DCT transaxle clearance further back on the car. A market-specific note: in some jurisdictions an illuminated brand wordmark on the front fascia must not be active when the vehicle is parked unattended — owners should verify local type-approval rules. The wiring harness is built so the script extinguishes with ignition off; standstill behaviour follows the chosen feed.

Installation & Reversibility

Installation is mechanical plus a single low-current electrical splice. The host front-grill-mask is dropped from the bumper, the illuminated module locates into a routed pocket on the mask via integral bosses, the loom is fed back through the bumper structure and tapped inline to the DRL or marker-light feed using a sealed splice or factory-style T-tap. Allow about an hour for the electrical work over and above the mask installation itself; total time on a fully-trimmed mask-plus-illuminated-logo combination is typically a half-day in a competent body shop.

Recommended installer is an AMG-certified body shop or Mansory-trained workshop, especially because the splice is on a vehicle electrical loom with diagnostics that read marker-light current. The job is fully reversible: removing the module returns the mask to its un-lit state, and the splice can be returned to OEM with a connector-grade repair. Owners who already run the un-lit logo-for-front-grill-mask can upgrade — the carbon mask carries the same pocket profile, so the un-lit script is exchanged for the illuminated module without disturbing the rest of the front fascia.

Pairing within the Mansory AMG GT programme

The illuminated logo is the lit apex of the four-part grille branding matrix and is best specified together with its host frame and an emblem complement. Common pairings:

• Front grill mask — the carbon frame the illuminated module mounts into; specifying the mask first keeps the visual canvas and the wordmark co-engineered.
• Front grill mask emblem with Mansory branding — an un-lit sculptural badge that complements the lit script when an owner wants both tactile and luminous brand presence.
• Logo for front grill mask — the un-lit alternative to this illuminated module; relevant when local type-approval rules around lit branding tip the decision toward a static script.

Maintenance & Durability

The carbon face is treated as lacquered weave: pre-rinse, two-bucket method with pH-neutral shampoo, soft microfibre, no alkaline degreaser, no ammonia-based glass cleaner anywhere near the lacquered face, no abrasive sponges. A ceramic coating applied to the mask and the illuminated module together yields a single optical plane and protects the front-fascia carbon against the gravel, tar and bug-protein chemistry that any C190 sees across road-and-occasional-track use. Carnauba is acceptable but loses its job sooner on a panel that lives in front-bumper airflow.

The LEDs are conservatively rated and run at part-load via the dimming circuit, which is the dominant factor in real-world longevity — expect a service life on the order of tens of thousands of hours of normal use. Standstill draw is negligible because the script extinguishes with the chosen feed; there is no parasitic battery load when the car is locked. PPF over the carbon face in the high-impact stone-chip zone above the splitter is sensible for owners who track their car or commute on motorways. If a panel chip reaches the lacquer, repair workflow is conventional: localised flat, isolate the wordmark inlay, re-lacquer, polish back to the surrounding mask. The module is replaceable as a unit if the LED PCB ever fails outside warranty.

Lead Time & Warranty

Lead time is typically 4–8 weeks under Mansory's bespoke production cadence, occasionally longer when the order is paired with a wide-body-kit specification that backs into the same mould slots. The carbon module carries a 12-month warranty against manufacturing defects of the laminate, the lacquer and the LED assembly under normal use; the warranty covers the integrated electronics, not third-party splices made off-spec.

FAQ

Q: Will the illuminated logo fit my pre-facelift 2015 AMG GT S?
A: No. The illuminated module is dimensioned for the post-2017 Panamericana facelift grille mask. Pre-facelift 2014–2017 cars carry the Diamond grille; the Mansory carbon mask does not target that geometry, so the illuminated logo cannot be specified on those cars without owner confirmation and a custom approach.

Q: Is this compatible with the 4-door Mercedes-AMG GT 63 (X290)?
A: No. The X290 is a separate platform with its own front fascia and its own Mansory programme. This illuminated logo is engineered for the 2-door C190 only.

Q: Does the script stay lit when the car is parked?
A: Behaviour follows the OEM feed it is wired to. With a DRL/marker-light tap, the script extinguishes with ignition off and follows the OEM lamp logic when the car is running. Some markets restrict lit brand wordmarks on stationary unattended vehicles — owners should verify local type-approval rules and instruct the installer accordingly.

Q: How does this differ from the un-lit logo-for-front-grill-mask?
A: Both deliver the Mansory wordmark in the same position on the carbon mask. The un-lit version is a static inlay; the illuminated module adds an edge-lit translucent script with a tap-in to OEM lighting and a dimming circuit. Owners commute-led tend to specify the lit version; owners who run a strict no-add-electronics philosophy pick the un-lit logo.

Q: Can I run the illuminated logo together with the grille-mask emblem?
A: Yes. The grill-mask-emblem-with-mansory-branding is a separate sculptural badge and can co-exist with the lit script when the front-fascia composition is planned for both elements; a Mansory-trained installer will balance the two so the front face does not over-read.

Q: What is the power draw and is it safe on the OEM circuit?
A: Nominal 5–6 W at full brightness, less under dimming. Tapped to a DRL or marker-light feed via a sealed splice, the load is well within the headroom of the OEM circuit and does not trigger lamp-out diagnostics.

Specify the illuminated logo with the host front-grill-mask and an emblem complement to lock in the full Panamericana branding language on your AMG GT C190. Reach the team on WhatsApp +44 7488 818 747 or [email protected] for a build sheet, lead time and finish-matching details.
