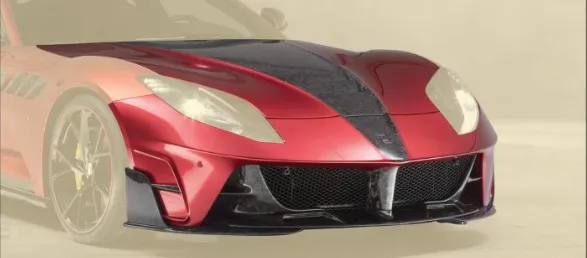

Front kit Mansory Carbon for Ferrari 812 Superfast Stallone

Front Kit Mansory Carbon for Ferrari 812 Superfast Stallone

When Mansory engineers conceived the Stallone programme for the Ferrari 812 Superfast, the front end demanded the most comprehensive architectural intervention of any element in the kit. The production fascia — already dramatic by grand touring standards — gains an entirely new identity through this complete carbon fibre front kit, which serves as the structural and visual cornerstone of the Mansory Body Kit for Ferrari 812 Superfast Stallone. Where Ferrari's OEM assembly was shaped by pedestrian-impact regulations, crash homologation requirements, and the compromises of a shared-platform design brief, Mansory's front kit widens the wheel-arch aperture by 42 mm per side to clear the Stallone's extended track without tyre contact at full steering lock, deepens the lower chin plane to generate measurable front-axle aerodynamic loading at motorway speeds, and restructures the lateral air curtains so that recirculating hot underbody air never contaminates the front tyre contact patch. For owners pursuing the full Stallone transformation in a single order rather than piece by piece, this front kit is the most impactful individual purchase in the programme.

Construction & Materials

Mansory fabricates the front kit from aerospace pre-preg carbon fibre laid up in an autoclave at 125 °C and 3 bar pressure over a two-hour cure cycle. The controlled thermal environment drives void content below 1 % and fibre-volume fractions above 55 %, producing a laminate that exceeds the mechanical properties achievable through vacuum-bag or room-temperature epoxy methods by a significant margin. All exterior skin panels use 3K twill weave in a symmetric ±45° orientation — the diagonal interlace pattern that has become the hallmark of Mansory's carbon components — while unidirectional tows are incorporated at the wheel-arch flanges and lower splitter perimeter, where localised debris impact and tyre spray impose the greatest concentrated loads. Wall thickness ranges from 2.0 mm at the central intake panels to 3.5 mm at the structural flanges, a graduated schedule that concentrates material precisely where stress dictates without over-engineering the lower-load areas.

Interior mating surfaces are laminated with 2K plain-weave carbon for reduced void-nucleation sites, then sealed with an epoxy moisture barrier before final assembly. Mounting flanges are machined flat to within 0.2 mm so the M6 stainless fasteners engaging the original Ferrari chassis points can be torqued to specification without panel distortion. The complete front kit assembly weighs approximately 7.2 kg — a saving of roughly 3.8 kg versus the production plastic-composite bumper and valance. Removing this mass from directly ahead of the front axle reduces the 812 Superfast's polar moment of inertia slightly, with a measurable effect on steering precision at corner entry on a fast road.

• Weave: 3K twill on all exterior faces; 2K plain on inner structural ribs
• Cure: autoclave 125 °C / 3 bar, 120-minute dwell — void content <1 %
• Wall thickness: 2.0 mm centre intake panels → 3.5 mm wheel-arch flanges
• Complete kit weight: approx. 7.2 kg vs. ~11 kg OEM plastic-composite fascia
• Primary fastening: M6 stainless bolts to existing OEM chassis points — no new drilling required
• Secondary bond: 3M VHB 5952 tape on inner fender mating flanges
• Finish: UV-stable gloss clear lacquer standard; matte and satin lacquer available on request

Design & Visual Function

The front kit's geometry is organised around three interdependent priorities: wheel clearance, thermal airflow management, and front-axle aerodynamic load. At the wheel arch, the 42 mm extension per side is shaped with a tangential leading-edge radius that follows the natural arc of the front tyre's steering envelope, ensuring airflow remains attached to the outer panel surface rather than separating prematurely into the wheel well as drag-generating turbulence. The arch extension merges into the central bumper bay through a flowing curve that eliminates the visual discontinuity at panel seams, giving the Stallone its characteristically muscular shoulder without looking grafted-on from an aftermarket catalogue.

The lower fascia architecture redesigns the 812 Superfast's stock airflow management into three segregated channels that operate simultaneously at speed. The central primary duct feeds cold ambient air to the front-mounted radiator through a large-area inlet that is significantly wider than the OEM opening, reducing charge restriction and improving cooling margin at sustained high-speed running. The outer air curtains carry a separated stream that forms a pressure curtain between the warm underbody air and the front tyre contact zone, preventing cross-contamination that would raise tyre surface temperatures unevenly across the tread width. The inner brake-cooling ports route a directed stream through the arch liner and onto the 398 mm front carbon-ceramic rotors, maintaining optimal operating temperatures during prolonged heavy-braking sequences on a winding mountain road or a dedicated circuit session.

The visual statement of the front kit is one of the Stallone programme's most immediate transformations. In three-quarter profile, the 812 Superfast shifts from long-bonnet grand tourer to something read unmistakably as a purpose-evolved GT machine, the lowered chin plane creating a pronounced wedge silhouette that makes the car appear both lower and wider than its stock dimensions. The exposed 3K twill weave plays against Ferrari's factory lacquer with particular drama against Rosso Corsa (code 6), where the dark carbon lattice reads as carved shadow geometry, and against Bianco Avus (code 11), where the weave texture introduces a complex visual contrast against the minimal white bodywork.

Compatibility & Fitment

This front kit is designed for the Ferrari 812 Superfast on the front-engine F140 platform across the entire 2017–2022 production span. Ferrari made no structural changes to the 812 Superfast's front body mounting architecture during this period, confirming uniform fitment across all chassis numbers without year-specific variation. The kit does not fit the 812 GTS convertible without bonnet-sealing modifications, and it is distinct from Mansory's 812 Softkit, which supplements rather than replaces the OEM front bumper. Because the front kit is fully laterally symmetric, LHD and RHD chassis are accommodated equally with no side-specific components required. Owners running the optional factory four-wheel-steering system should note that 4WS is a rear-axle-only sub-system entirely independent of front-end body fitment. Ferrari paint codes 6, 11, 17, 21, 24, and 30 all pair well with raw exposed carbon exterior panels; inner-duct surfaces can be colour-matched to OEM codes on special order.

Installation & Reversibility

Installing the complete front kit is a 3–4 hour professional bodyshop operation for a technician experienced with Ferrari front-end architecture. Begin by disconnecting the foglight harness and parking-sensor cable looms, then remove the eight M6 retaining bolts along the bonnet-line seam and disengage the four snap clips at the wheel-arch liners before sliding the OEM assembly forward off the front frame. Mansory supplies a precision alignment jig with each full front kit order: this bridge tool clamps to the bonnet-latch tower and establishes the correct splitter-to-ground datum before any mounting bolts are torqued, ensuring symmetric wheel-arch gaps and the factory-specified ride height at the lower fascia. After primary bolts are tightened to 8 Nm, the 3M VHB 5952 flanges are pressed to the inner fender surfaces and left undisturbed for 24 hours to reach full bond strength before the car returns to service. The installation is reversible — all original chassis mounting points are preserved intact — but releasing the VHB bond requires a heat gun and plastic trim spudgers applied carefully to avoid marking the painted inner panels. A Mansory-trained bodyshop or Ferrari-authorised carbon installer is recommended to preserve any outstanding factory warranty obligations.

Pairing within the Mansory 812 Superfast Stallone Programme

The front kit provides the structural framework into which the programme's individual front components seat and seal. For owners building the Stallone nose progressively, the natural first addition is the Mansory Carbon Front Bumper, whose sculpted lower intake geometry locks into the kit's central bay and whose 3K twill surface finish is matched to the front kit panels. Below the bumper, the Mansory Splitter for Front Bumper extends the horizontal lower plane and serves as the programme's primary front-axle aerodynamic load element. Owners who bring their 812 Superfast to circuit days should also specify the Race Flaps for Front Bumper, which protect the outer lower corners of the front kit from kerb and debris contact, preserving the kit's appearance through intensive driving seasons without any aero compromise.

Maintenance & Durability

The front kit's UV-stable clear lacquer layer is its primary defence against environmental degradation and requires periodic attention to maintain depth and integrity. Wash with a pH-neutral automotive shampoo applied with a clean microfibre wash mitt; avoid abrasive sponges, brushes, or alkaline degreasers that attack the lacquer chemistry over repeated applications. Rinse at low pressure, keeping the nozzle at least 30 cm from the carbon surface to prevent lifting the clear coat at panel edges or around the mounting apertures.

Lead Time & Warranty

Full front kit lead time is 4–6 weeks from confirmed order, reflecting the multi-piece autoclave production schedule and Mansory's pre-shipment dimensional inspection protocol. Expedited production slots may be available depending on current order volume — contact us at time of purchase to check availability. The front kit carries Mansory's standard 12-month manufacturing warranty against delamination, void formation, and dimensional non-conformance to specification. Damage resulting from installation error, impact events, or improper chemical contact falls outside the warranty scope.

FAQ

Q: Does this front kit fit all Ferrari 812 Superfast production years without modification?
A: Yes. Ferrari did not alter the 812 Superfast's front body mounting architecture

Q: How significant is the mass saving versus the factory bumper assembly?
A: The Mansory carbon front kit weighs approximately 7.2 kg complete versus around

Q: Are finish options other than gloss available, and do they age differently?
A: The standard delivery is UV-stable gloss clear lacquer, which provides the deepest visual contrast with the 3K twill and the most

Q: Does the Mansory front kit retain the factory parking sensors and front camera positions?
A: Yes. The front kit replicates all OEM parking-sensor and front-camera aperture

Q: How long is the car off the road during installation?
A: In the hands of an experienced Ferrari bodyshop technician, the full front-kit swap requires 3–4 working hours for the physical fitment, plus

Explore the complete Stallone package at the Mansory Body Kit for Ferrari 812 Superfast Stallone page. For pricing, finish selection, and lead time, reach us directly via WhatsApp +44 7488 818 747 or [email protected].
