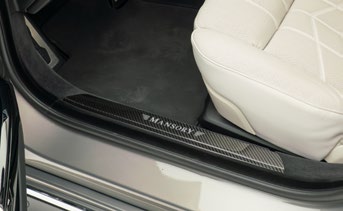

The Mansory entrance panels with illuminated logo occupy the threshold step at all four door openings of the BMW XM G09, providing an illuminated Mansory logotype display at the sill face that activates as part of the welcome lighting sequence and transitions the door logo ground projection below into the interior programme above. As the entry component of the Mansory Carbon Fiber Body kit set for BMW XM interior programme, these panels sit at the critical transition zone between exterior and interior — the point where a foot crosses from the car park surface into the BMW XM's cabin, and the first interior surface every occupant contacts during entry. The BMW XM's threshold step is defined by the G09's substantial body floor height from ground (approximately 500 mm without step assist, with the available deployable running board adding an intermediate step), making the sill entrance panel one of the most visually prominent interior components in the entry sequence. Mansory's illuminated version replaces the factory OEM sill panel with a high-gloss CFRP body carrying a backlit Mansory logotype display that draws 12 V from the OEM door-sill lighting circuit via the body control module's welcome lighting CAN-bus channel.
Construction & Materials
The entrance panel body is formed from 3K twill carbon fiber in a closed-section aluminium tool that replicates the OEM sill panel's stepped tread face, front-face vertical panel, and rear mounting flange. The outer tread face uses a 200 g/m² twill drape cured at 120 °C in autoclave — the same laminate specification as the exterior aero panels, chosen to ensure long-term surface durability under the repetitive foot-sole contact and boot-edge scuffing that the sill panel's tread face experiences. Below the tread face's carbon surface, a 3 mm aluminium substrate plate is bonded between the CFRP skins across the full tread width, providing the resistance to deflection needed to prevent the panel from flexing under occupant foot loading — a flex that would fracture the lacquer coat over time if the substrate were pure CFRP without this reinforcement.
The illuminated Mansory logo insert is a separately manufactured LED-lit acrylic element inset into the vertical front face of the entrance panel. The acrylic logo insert is laser-cut to the Mansory logotype geometry from 8 mm optical-grade PMMA stock, edge-lit by a strip of warm-white 3,000 K SMD LEDs along the insert's lower edge. The LED strip is driven by a regulated 12 V PWM driver module housed in the panel's rear cavity, taking 12 V from the OEM door-sill lighting connector. The driver module ensures constant luminance across all four panels regardless of the OEM circuit's supply voltage variation during alternator charge cycling.
- Panel body: 3K twill carbon fiber outer, 200 g/m² — closed-section autoclave cure at 120 °C
- Tread substrate: 3 mm aluminium plate bonded between CFRP skins — prevents tread deflection under foot load
- Logo insert: 8 mm optical-grade PMMA acrylic, laser-cut Mansory logotype, edge-lit
- LED source: warm-white SMD 3,000 K strip along logo insert lower edge
- Driver: 12 V PWM regulated driver module in panel rear cavity — constant luminance output
- Supply: OEM door-sill lighting 12 V connector, plug-in — no additional wiring
- Weather seal: 3 mm EPDM gasket on all four panel perimeter edges — seals against splash ingress at threshold
- Hardware: OEM-position clip-nut fasteners + 2× M6 stainless studs per panel at front face edge
Design & Visual Function
The illuminated logo activates in synchrony with the door logo ground projections and the ambient interior lighting during the welcome sequence: as the door opens and the body control module sends the welcome lighting enable signal, the sill illuminated logo transitions from off to full illuminance in approximately 800 ms, matching the fade-in timing of the BMW XM's factory ambient lighting choreography. The 3,000 K colour temperature of the sill LED illumination matches the door logo projectors below and the factory ambient lighting's warm-amber register, creating a vertically consistent lighting environment from ground level (logo projectors) to threshold level (entrance panel logo) to cabin level (ambient lighting).
During daytime entry with the panel unilluminated, the carbon tread face's 3K twill weave presents a premium surface texture that communicates the programme's material specification before the illuminated elements activate. The contrast between the dark carbon tread and the chrome-finished Mansory logotype recess (the PMMA insert area is set 1.5 mm below the tread surface when unlit) creates a readable brand display even in daylight without LED activation. The front-face vertical panel surface also displays the full-carbon weave in the same 3K twill diagonal as the door mirror housings and exterior aero elements, maintaining the programme's material vocabulary at the interior entry threshold.
The EPDM perimeter gasket addresses a practical durability challenge specific to entrance panels: the threshold strip is the only interior component directly exposed to water, mud, and de-icing road chemicals tracked in on occupant footwear. The gasket creates a water barrier between the panel edge and the OEM sill structure, preventing splash ingress into the LED driver cavity during wet-weather entry events. The driver module is additionally conformally coated as a secondary moisture barrier at the PCB level.
Compatibility & Fitment
Confirmed fitment: BMW XM G09 2023-onwards, all trim variants — base XM (M Hybrid 644 hp / 800 Nm) and XM Label Red / 50 Jahre M (748 hp / 1000 Nm). A set of four panels covers all door openings. The OEM door-sill lighting connector is standardised across all G09 production variants and matches the Mansory panel's plug-in harness. LHD and RHD variants use the same sill panel geometry — the XM's door-sill structure is symmetric on both drive configurations. The panels are compatible with the factory deployable running boards where fitted; the running board's retracted-state geometry clears the Mansory panel's rear flange on the OEM sill structure. Where the factory M illuminated door sills are already fitted, the Mansory illuminated panels replace them entirely at the same mounting positions.
Installation & Reversibility
Installation time is 2–3 hours for all four panels. Procedure for each panel: open the door fully; remove the OEM sill panel by releasing the clip nuts (typically 4–6 per panel) using a flat trim pry tool; disconnect the OEM sill lighting connector if present; route the Mansory panel's LED driver harness lead to the OEM connector position; connect the Mansory connector plug; seat the Mansory panel on the OEM mounting clip positions and engage the panel's M6 studs; test illumination before closing the door. The CAN-bus welcome lighting sequence confirms correct operation by illuminating the panel logo during the post-installation door-open cycle. Full reversibility: the OEM panels and connectors reinstall without modification.
Pairing within the Mansory BMW XM programme
The illuminated entrance panels are the interior threshold anchor of the welcome sequence, pairing naturally with the Door logo lights for front door Mansory for BMW XM below the sill and the Door logo lights for rear door Mansory for BMW XM for the complete four-door entry experience. For the interior material programme above the threshold, the Sport pedals Mansory for BMW XM carry the aluminium-and-carbon material language from the sill face into the driver's footwell, completing the entry-to-pedal transition for the driver's side in a single design arc.
Maintenance & Durability
The carbon tread face will accumulate boot-sole abrasion marks from repeated entry and exit cycles. The 2K polyurethane clear coat over the 3K twill tread is the same system as the exterior aero panels, but the tread's exposure to abrasive boot sole contact means clear-coat thickness will deplete faster than any exterior panel. Refresh the tread clear coat with a single application of SiO₂ liquid ceramic coating after installation and re-apply every 6 months; this significantly reduces the abrasion rate on the lacquer. Clean the tread face with a damp cloth only — avoid stiff brushes across the weave diagonal direction. The PMMA acrylic logo insert is scratch-resistant (Vickers hardness ≈ 200 HV) but not scratch-proof; scuff marks can be polished out with a PMMA-specific headlight polish product applied with a foam pad. The EPDM gasket should be wiped clean of mud and road salt at each wash cycle to prevent the gasket compound degrading from prolonged chemical exposure.
Lead Time & Warranty
Lead time for the full four-panel set is 3–4 weeks from confirmed order — the LED driver module programming, PMMA insert edge-light alignment, and panel-set illuminance matching across all four units require sequential quality steps. Single-pair orders (front pair only or rear pair only) carry the same 3–4 week schedule as the full set. The 12-month warranty covers LED source failure, driver module failure, PMMA insert delamination from the panel body, CFRP tread-face delamination, and EPDM gasket adhesion failure. Tread-face clear-coat wear from normal boot-sole contact is a maintenance consumable and is not covered under the manufacturing warranty.
FAQ
Q: Does the illuminated entrance panel logo stay on when the door is closed?
A: The LED logo activates on the OEM door-sill lighting enable signal, which is typically active only when the relevant door is open or during the welcome/departure sequence. When all doors are closed and the welcome sequence completes, the sill circuit de-activates and the logo returns to its unlit state. This matches the factory BMW XM illuminated door sill behaviour.
Q: Can I specify just two panels (front doors only) rather than the full set of four?
A: Yes — front-door-only pairs are available as a subset. The rear-door panels are independently specifiable. However, for aesthetic consistency Mansory recommends the full four-panel set, as mismatched sill panel specifications between front and rear are visible to rear-seat passengers during every entry cycle.
Q: Is the PWM driver compatible with the XM's 48 V mild-hybrid electrical system?
A: The BMW XM G09 uses a 12 V conventional auxiliary power system for body electrical functions including door sill lighting — the 25.7 kWh high-voltage battery and M xDrive motor operate on a separate high-voltage circuit that does not interact with the 12 V sill-lighting supply. The Mansory PWM driver operates on the 12 V OEM circuit exclusively.
Q: How bright is the illuminated logo relative to the factory BMW M illuminated sill?
A: The Mansory SMD LED strip edge-lights the PMMA insert to approximately 180 lux at the PMMA front face, which is broadly comparable to the factory BMW M illuminated sill panel brightness. The warm 3,000 K colour produces a visually softer illumination than the factory's cool-white tone, integrating more harmoniously with the XM's amber ambient lighting palette.
Transform the threshold entry experience in your BMW XM with Mansory illuminated carbon sill panels. Contact our team: WhatsApp +44 7488 818 747 or [email protected].
