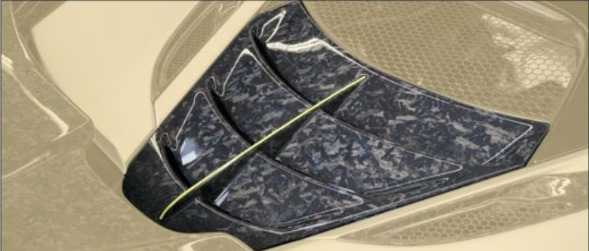

Engine cover Mansory Carbon for McLaren 720S

Mansory Carbon Engine Cover for McLaren 720S

The Mansory carbon engine cover for the McLaren 720S sits where the factory glass panel sits — directly above the M840T 4.0-litre V8 BiTurbo, in the rear engine bay between the buttress shoulders and the deployable Active Wing. It is part of the broader Mansory Carbon Fiber Body kit set for McLaren 720S and is one of the most polarising single panels Mansory builds for the car. The OEM glass cover is a McLaren signature — engine theatre, low-density information made visible. Replacing it with autoclave-cured carbon trades that transparency for mass reduction, an uninterrupted carbon line from buttress to wing, and a cohesive bay finish that ties into the Monocage II tub language. Owners specify it for two reasons: weight off the highest point of the rear deck, and visual coherence with the rest of the carbon programme.

Construction & Materials

Engine-bay carbon lives in the hottest aerodynamic zone of the 720S. The cover sits directly above the turbochargers and exhaust manifolds — radiated heat, convective heat from the cooling fans, and direct conducted load from the bay structure all meet at this panel. Mansory builds the cover from prepreg twill carbon laid up over a positive male tool, then autoclave-cured at temperature and pressure to drive resin into a uniform laminate. The result is a panel rigid enough to retain the OEM mounting line and dimensionally stable across the V8's full thermal range.

• Material: aerospace-grade prepreg carbon, 3K twill outer ply with structural intermediate plies
• Cure: autoclave at controlled temperature and pressure for full resin distribution
• Wall thickness: typically 2.0–3.0 mm depending on rib geometry and venting cut-outs
• Weight: notably lighter than the OEM glass-and-frame assembly (mass off the highest point of the rear deck)
• Underside: matte heat-resistant finish, optional Mansory-applied ceramic thermal coating to manage radiated load from the turbo housings
• Topside finish: deep-gloss UV-stable lacquer over visible weave, satin lacquer, or raw-look exposed weave with matte clear
• Mounting: factory hinge points, factory latch geometry, factory gas-strut anchors retained — bolt-on swap with the OEM panel
• Hardware: stainless fasteners, OEM gaskets and seals reused; optional Mansory-branded bay plate

Design & Visual Function

The 720S engine bay is one of the most deliberately styled mid-engine compartments on the road. McLaren chose glass to make the V8 visible — a piece of marketing as much as engineering. Mansory's carbon cover takes the opposite stance: it closes the bay, lets the eye travel uninterrupted from the carbon buttresses, across the cover, into the wing root, and out to the rear deck. With the rest of the Mansory bay programme installed — primed engine bonnet, air-outtake bonnet — the rear quarter reads as a single sculpted carbon shell rather than a carbon-and-glass collage.

The visual trade is real. You lose the engine-as-jewellery moment that defines the 720S. You gain a cleaner shutline, a continuous weave field, and a panel that responds to light the way the rest of Mansory's carbon does — deep, directional, and consistent. For owners who already specify the carbon mirror housings, fender intakes, and side set, the glass cover starts to look like the only non-carbon surface in a mostly-carbon car. The Mansory cover resolves that.

Functionally the panel behaves like the OEM cover: it sits inside the same aperture, opens on the same hinges, and clears the same engine-bay louvres. There is no aerodynamic claim attached to it — this is an aesthetic and mass-reduction part, not an aero device. The Active Aero rear wing operates entirely independently of the cover and is unaffected.

Compatibility & Fitment

Designed for the McLaren 720S Coupé and 720S Spider produced 2017–2023. The panel is dimensionally specific to the standard 720S engine-bay aperture. It is not compatible with the McLaren 765LT — the Long Tail uses a different rear-deck and engine-cover geometry, and a 720S panel will not seat correctly on that car. The Mansory carbon cover preserves all OEM hinge and latch hardware, retains the factory bay seals, and clears the deployable Active Aero rear wing through its full hydraulic travel. Front Active Lift, Proactive Chassis Control II, parking sensors, rear camera, and the dihedral door geometry are entirely outside this panel and remain untouched. The Monocage II carbon tub is the chassis — this cover is a bolt-on body panel, not a structural element.

Installation & Reversibility

Realistic install time is four to six hours including alignment, gas-strut transfer, gasket reseating, and a slow first heat-cycle to confirm clearances under thermal load. Mansory ships the panel finish-cured; the installer transfers OEM hardware (hinges, latch, struts, seals) from the glass cover to the carbon cover. Alignment is set against the buttress shutlines and the wing-root edge — both reference faces on the rear deck. After torque-down, run the V8 through a normal warm-up cycle and re-check shutlines once the bay has reached operating temperature, since the carbon panel and surrounding aluminium expand at slightly different rates.

Reversibility is the single most important point on this part. Keep the OEM glass cover. Box it, label it, store it climate-controlled. The glass cover is a documented, photographed, factory-original component — for resale, for concours eligibility, for the next owner's preference — it has long-term value. The Mansory carbon cover is a preference choice; the glass cover is a permanent record. Reverting to OEM is a straightforward bolt-off, bolt-on with the same hardware. We strongly advise an installer with McLaren-bay experience for the original removal, both to protect the glass during dismount and to ensure the carbon panel is mounted without stressing the seals.

Pairing within the Mansory 720S programme

The engine cover is the centrepiece of Mansory's engine-bay carbon trio. It pairs naturally with the primed engine bonnet, which provides the carbon substrate over the bay's forward edge, and the air-outtake engine bonnet variant, which adds the louvred extraction face for owners who want the venting graphic over a closed bonnet skin. Run the trio together and the rear deck reads as one continuous carbon surface from windscreen-to-wing. For owners pushing further into a full carbon exterior, the rear fender air intakes and rear air outtake grill cover close the loop on the rear quarters.

Maintenance & Durability

Engine-bay carbon lives a different life from exterior carbon. Topside it sees normal exterior exposure — UV, road grit, occasional bird-strike, the wash-cycle. Underside it sees the V8's thermal field. Both faces need consideration. On the topside, treat the lacquered weave the way you'd treat any high-spec carbon: pH-neutral shampoo, two-bucket wash, soft microfibre, no abrasive sponges, no alkaline traffic-film removers, no ammonia-based cleaners. Lacquer hates strong alkali — it dulls the clearcoat and can lift the resin edge over time. A ceramic coating on the topside extends UV life and makes wash-induced micro-marring much more forgiving.

On the underside, the conversation is thermal. Carbon's resin matrix has an upper service temperature; in stock 720S form, the bay temperatures sit comfortably below that limit, but heat-soak after a hard track session is the worst case. Mansory's optional ceramic thermal coating on the underside reflects radiated heat from the turbo housings and protects the resin envelope. Any factory heat shields between the turbos and the cover stay in place — they are part of the OEM thermal package and are not optional. Inspect the underside annually for any colour shift in the matte finish, which is the first visible sign of localised heat-soak. After repeated track use, factor in a more frequent inspection cadence.

Stone chips on the topside happen — flying gravel from a chase car, an ill-aimed pressure-washer wand. Small chips on lacquered carbon are a specialist re-lacquer job, not a respray. PPF over the topside is unusual on a panel like this (it changes the visual depth of the weave) but is a valid choice if the car sees regular high-speed road use behind other cars.

Lead Time & Warranty

Lead time on the Mansory engine cover is typically four to eight weeks from order confirmation, reflecting Mansory's bespoke laminate-and-cure schedule. Each panel ships with a Mansory authentication marking. Twelve-month warranty against manufacturing defects (laminate voids, delamination, finish failure under normal use). Heat-related damage from non-OEM exhaust modifications, removal of factory heat shields, or sustained track use without inspection is outside warranty scope. We can advise on installer selection and supply the OEM-equivalent gasket kit alongside the cover at request.

FAQ

Q: Does the Mansory engine cover fit the McLaren 765LT?
A: No. This cover is dimensioned for the standard 720S Coupé and Spider engine-bay aperture (2017–2023). The 765LT has a different rear-deck and engine-cover geometry. We do not recommend cross-fitting.

Q: Will I lose the glass-engine view?
A: Yes — that is the headline trade-off. The carbon cover is opaque. You gain a continuous carbon surface and weight reduction; you lose the visible-engine theatre. Owners who specify it usually run the full carbon bay (primed bonnet, air-outtake bonnet) and treat the bay as closed sculpture rather than a visible engine compartment.

Q: Can I switch back to the OEM glass cover?
A: Yes. The Mansory cover uses the same hinge and latch hardware as the glass cover. Keep the OEM glass cover stored — boxed, labelled, climate-controlled — and the swap back is a bolt-off / bolt-on. For resale and concours, retaining the OEM cover is strongly advised.

Q: How does the cover handle heat from the turbos?
A: The autoclave laminate is dimensionally stable across the bay's normal operating range. Mansory offers an optional ceramic thermal coating on the underside that reflects radiated heat from the turbo housings. All factory heat shields between the turbos and the cover must remain in place — they are part of the OEM thermal package and are not removed during install.

Q: Does it interfere with the deployable Active Wing?
A: No. The Active Aero rear wing operates entirely independently of the engine cover and clears the cover through its full hydraulic travel. The cover sits ahead of the wing's pivot line; the deployable surface and its hydraulics are untouched.

Q: What finishes are available?
A: Standard is deep-gloss UV-stable lacquer over 3K twill weave. Satin lacquer is available for a flatter visual that pairs well with matte body paint. Raw exposed weave with matte UV clear is offered for owners specifying a stripped-track aesthetic. Weave alignment is set with the bay's longitudinal centreline.

Pair the cover with the primed engine bonnet and air-outtake engine bonnet to complete the carbon bay trio, and the rear deck reads as one continuous Mansory surface from windscreen to wing. To configure finish, weave choice, and the optional ceramic thermal coating, contact us via WhatsApp +44 7488 818 747 or [email protected].
