Side skirts with logo Mansory for Rolls-Royce Spectre

Side Skirts with Logo Mansory for Rolls-Royce Spectre

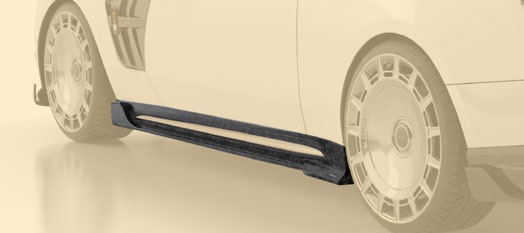

The side skirts are the longest single carbon-fibre panel on the Mansory Spectre programme, and that length is not an accident — the Rolls-Royce Spectre is just over 5.45 metres tip-to-tail, riding on the coach-door silhouette with the longest passenger doors Goodwood has ever produced. Anything bolted along the rocker has to keep the proportions calm, sweep stone-chip spray away from the lower door cut-line, and avoid touching the rear-hinged door arc as it swings open. These Mansory skirts answer all three jobs in one continuous moulded piece per side, finished with an embossed Mansory wordmark on the lower trailing edge. They live inside the wider Mansory Carbon Fiber Body kit set for Rolls-Royce Spectre and tie the front lip and rear diffuser into one visual line.

Construction & Materials

Each skirt is laid up as a single autoclaved shell rather than a clip-on cosmetic shroud. The substrate is a pre-preg carbon weave bonded over an internal closed-cell foam core that gives the panel its torsional stiffness over a 2.4-metre run — important, because a long skirt with no internal rib will drum at motorway speeds and a Spectre owner will hear it through the cabin silence. The logo is not a stick-on badge; it is a recessed cavity in the outer skin, filled with a contrasting thread (silver, gold or matte black depending on spec) and over-laminated under the same clear-coat as the surrounding weave so it sits flush, never proud.

• Outer skin: 3K twill carbon (3-3.7 mm finished wall) or optional 2K plain weave for a tighter, calmer chequer pattern that suits Spectre two-tone cars.
• Forged-look spec available for the lower 60 mm strake — randomised flake pattern that reads well under low side-lighting and hides micro chips from gravel.
• Cure: full autoclave at 120 C with vacuum-bag de-bulk between plies for void-free lamination along the 2.4 m length.
• Total panel weight per side: ~3.6 kg vs ~6.1 kg for the OEM rocker trim — small, but symmetrical and welcome on a 2,975 kg curb car.
• Mounting: factory M6 threaded inserts plus 3M VHB 5952 modified-acrylic tape along the upper bond line, matched to the Architecture of Luxury aluminium spaceframe rather than steel chemistries.
• Embedded logo: woven silver-thread or matte-black pigmented gel-coat in a routed cavity, lacquer-flooded so it never lifts at the edges.
• Finish options: high-gloss UV-stable clear, satin matte, soft-sheen velvet, or the raw "Mansory raw" textured weave for owners who specify a Black Badge-adjacent look.
• Edges chamfered and flame-polished — no exposed cut fibres along the lower lip where the panel can take a kerb-strike.

Design & Visual Function

Visually, the skirt has one main job on the Spectre: manage the long flank. With the coach door spanning roughly 1.45 m on its own, the eye needs a horizontal anchor underneath that breaks the body side without fighting the door. Mansory tackles this with a soft kick-up at the leading edge, a flat mid-section that runs parallel to the rocker shut-line, and a gentle trailing flare that resolves into the rear-arch lip. The embossed logo sits on the trailing third, just ahead of the rear wheel, where it reads from the side without intruding on the door swept-arc.

On two-tone Spectres — and a large share of bespoke cars are specified with a horizontal paint break — the skirt becomes the lower half of the lower colour, so the geometry is drawn so the upper edge of the skirt either matches the OEM paint break exactly or sits 12-15 mm below it, never above. That detail kills the "stuck-on aftermarket" look that tall skirts inflict on long-flanked coupes. Owners who keep the car single-tone get an understated weave-on-paint contrast: clear-coated 3K twill against a deep solid hue reads like jewellery rather than bodykit.

Underneath, there is a quiet aero argument too. The Spectre is electric, so highway range is a real currency: a cleaner side-flow path along the rocker, with a gentle longitudinal channel that sweeps spray and turbulent air away from the lower door cut-line, trims the wake the rear axle has to deal with at sustained 130-160 km/h cruising speeds. No one buys a Mansory skirt for the range gain — but the geometry was drawn so the visual choice does not cost anything in airflow either.

Coach-Door Geometry & Battery-Rocker Alignment

This is the Spectre detail that catches every aftermarket maker out. The Spectre uses rear-hinged "coach" doors, swung from a hinge near the B-pillar so the leading edge of the door arcs outward and forward as it opens. A stock-shape side skirt with a tall leading kick can foul that arc, and a low-clearance lip can snag the door bottom seal as the seal compresses on closing. Mansory have moulded a 7-9 mm relief along the leading 220 mm of the skirt so the door clears the panel through the full opening sweep, including with the air-suspension lowered to entry mode.

Equally important: the rocker line on a Spectre is structural. The traction battery sits between the wheelbase along the floor pan, with cooling and venting hardware tucked behind the OEM rocker trim. Mansory keeps every OEM cooling vent and pressure-release path open. The skirt is shaped to overlay the OEM rocker, not to seal it shut. Heat rejection from the pack and the high-voltage harness routing both stay exactly as the factory drew them.

Compatibility & Fitment

Designed for the Rolls-Royce Spectre, MY2024 onward, both LHD and RHD. The Spectre rocker is symmetrical between drive sides, so the same left/right pair fits either market — only the door-bottom seal-strip handing differs and is OEM. Adhesive system and bolt locations are matched to the Architecture of Luxury aluminium spaceframe, using modified-acrylic VHB rather than urethane. The skirts pair with both the standard 23-inch forged wheel option and the 24-inch glossy-black option without any inner-arch interference. Coach-door swing arc verified against air-suspension entry/exit modes and standard ride height. No interference with self-closing door motors or with the OEM puddle-light projector.

Installation & Reversibility

Plan on 4-6 hours per pair at a Mansory-trained body shop, including paint prep on any colour-matched portion. Workflow: protect the lower door edges and rear-arch lips with PPF cut-strips first; remove the OEM lower rocker garnish (clip-and-screw, OEM service pack); degrease the bond line with isopropyl wipe and primer the spaceframe contact patch with 3M 94 primer; dry-fit the skirt against the door closed and through a full coach-door swing test before any adhesive contact. Once the dry fit is clean, the upper bond line gets 3M VHB 5952 along its full run, and the M6 threaded inserts are torqued to spec — never over-torqued, the panel is composite, not metal. Allow 24 hours undisturbed before the first wash. Reversibility is good: the skirts come off with patient heat-gun work on the VHB plus the M6 hardware backed out. The OEM rocker garnish goes back on without trace, which matters for residuals.

Stone Chip, PPF and Paint-Edge Protection

The lower 50 mm of any side skirt on a 5.5-metre coupe is a chip magnet. Mansory ships the skirts with a chamfered, flame-polished lower lip and a rolled trailing edge so PPF wraps cleanly without lifting. A self-healing 8-mil PPF along the lower 80 mm strip and around the leading kick is the recommended approach, and on lacquered carbon it does not change the visual depth of the weave. For matte raw finish use matte-grade PPF; gloss PPF on matte carbon will chrome the surface and ruin the look. A discreet 25 mm clear strip along the upper bond line protects the colour break.

Maintenance & Durability

Wash with pH-neutral shampoo and a soft mitt. Avoid alkaline wheel cleaners drifting onto the lacquered weave at the trailing arch — they etch the clear in days. Skip dishwasher detergent, ammonia and any solvent-bearing degreaser on the carbon. A high-grade ceramic coat over the lacquer extends UV stability and gives the weave a cooler, glassier read. Inspect the lower lip for chips every 5,000 km and touch in with the matched lacquer kit before water reaches the substrate. With reasonable care, the skirts hold their depth and gloss for 8-10 years before any cosmetic refresh is worth considering.

Pairing within the Mansory Spectre Programme

The skirts read best when the lower aero set is consistent. Most owners pair them with the Mansory front lip and the rear diffuser so the entire lower band of the car is finished in matched weave and lacquer. Inside the cabin, the natural companion is the entrance panels with illuminated logo, because the rocker line outside and the door-sill plate inside meet at exactly the same coach-door geometry — finishing both in matched carbon and matching the embossed logo treatment is the cleanest visual brief for the lower flank as a whole. Owners chasing a more dramatic profile sometimes add the C-pillar panel to carry the carbon up the rear quarter.

Lead Time & Warranty

Lead time runs 4-8 weeks on standard 3K twill or 2K plain weave with the silver-thread embossed logo. Bespoke threads (gold, custom Pantone-matched stitching, or carbon-leather inlay on the logo cavity) push the timeline to 8-10 weeks because the cavity is laid up and pigmented before the outer skin is closed. A 12-month manufacturing-defect warranty covers delamination, voids, fitment misalignment and lacquer pinholes. Stone-chip damage is not warrantable — that is what the recommended PPF is for — but Mansory ships a colour-matched lacquer touch-in pack with each pair so chips never become substrate exposure.

FAQ

Q: Do these skirts foul the coach doors at any point in the swing arc?
A: No. The leading 220 mm has a moulded relief profile drawn against the rear-hinged door arc with the air-suspension in entry mode. Verified clearance through the full opening sweep on both LHD and RHD cars.

Q: Will the skirts cover any battery cooling vents along the rocker?
A: No. The skirt overlays the OEM rocker garnish but leaves every factory cooling slot, vent and pressure path completely open. Pack thermal behaviour and high-voltage harness routing are unchanged.

Q: Can the embedded logo be a custom colour or omitted?
A: Yes. Standard threads are silver, matte black and gold; Pantone-matched threads add 2-3 weeks. A logo-less variant is available for owners who want the silhouette only.

Q: How does the skirt sit against a two-tone Spectre paint break?
A: Geometry is drawn so the upper edge of the skirt either lines up with the OEM paint break exactly or sits 12-15 mm below it. Never above. This avoids the visual "step" that ruins long-flanked coupes when bolt-on skirts cross a paint line.

Q: What about kerb strikes — is the lower lip vulnerable?
A: The lip is chamfered and flame-polished so it absorbs minor scuffs without delaminating. Severe hits mark the lacquer; the supplied colour-matched touch-in pack covers most cases. Panels are also available individually.

Q: Compatible with the optional 24-inch forged wheels?
A: Yes. Clearance is verified for both 23-inch and 24-inch wheel options across full air-suspension travel.

Specify these skirts together with your front and rear aero, and your Spectre walks the line between brand-correct restraint and bespoke Mansory aggression that the long-flank silhouette deserves. To configure a pair, talk through finish options or check coach-door clearance on a non-standard ride-height car, reach us on WhatsApp +44 7488 818 747 or [email protected].
