Mercedes-AMG A 35 4Matic (W177) Tuning Guide 2026 — Body Kits, Wheels & Performance
The Mercedes-AMG A 35 4Matic (chassis code W177) is the entry point into Affalterbach's 4th-generation A-Class AMG range — a 306 hp, 400 Nm hot hatch that bridges the gap between a warm-hatch A 250 and the ballistic 421 hp A 45 S. Beneath the aggressive bodywork sits the M260 E20 DEH LA 2.0-litre single-turbo inline-four, a 7-speed AMG SPEEDSHIFT DCT dual-clutch gearbox, and AMG Performance 4Matic with a rear-axle multi-plate clutch capable of shuffling up to 50% of drive rearward. 0–100 km/h arrives in 4.7 seconds and the optional AMG Driver's Package lifts top speed to 250 km/h. This guide covers every meaningful upgrade for the W177 A 35 — Brabus and RevoZport body programmes, forged 19-inch wheels, Stage 1/2 engine work, interior upgrades, and — critically — an honest ownership-cost breakdown that confronts the question every A 35 buyer eventually asks: at what price point does tuning an A 35 stop making sense versus simply buying an A 45 S?
Mercedes-AMG A 35 4Matic (W177) — Key Specifications
Platform Overview — MFA2, Transverse I4, FWD-Based 4Matic
The W177 A 35 4Matic is built on Mercedes's MFA2 (Modular Front Architecture, 2nd generation), a transverse-engine front-wheel-drive-based platform shared with the CLA C118 saloon and shooting brake, GLA H247 compact crossover, GLB X247 seven-seat crossover and B-Class W247 MPV. MFA2 is emphatically not the BMW CLAR cluster architecture (which is longitudinal, RWD-based and used on the 5, 7 and 8 Series — an entirely different vehicle class). The A 35's engine — the M260 E20 DEH LA — is a 2.0-litre single-turbo inline-four sourced from the Untertürkheim engine plant, distinct from the M139 in the A 45 and A 45 S which is a hand-built "one man, one engine" unit assembled at Affalterbach with a 2.0-litre displacement but with Garrett twin-scroll turbo, flat-spray injectors and a cylinder head that can flow roughly 80 hp more than the M260. The 4Matic system in the A 35 uses an electronically-controlled multi-plate clutch on the rear axle that can route up to 50% of torque rearward; the A 45 S adds a rear-axle torque-vectoring twin-clutch that can send 100% of rear torque to a single wheel (the famous "Drift Mode" hardware). Tuners treat these two cars as related but distinct platforms: M260 Stage 1/2 maps do not cross-flash to the M139, and most bolt-on hard parts (downpipes, intercoolers) are specific to one engine or the other. The MFA2 platform hot-hatch aftermarket is dominated by Brabus, RevoZport, Posaidon, Mcchip-DKR, RaceChip, MTM and Carbonteam — all of whom run dedicated A 35 / A 45 programmes.
Body Kits — Brabus B25, RevoZport RZA-35, Carbonteam, Prior Design
Brabus B25 / B45 programme. Brabus offers two closely-related packages for the W177 A-Class: the B25 for A 35 4Matic and the B45 for A 45 S. The B25 cosmetic spec adds a carbon-fibre front lip that extends the factory AMG splitter, carbon flics on the bumper corners, carbon side-skirt extensions, a small carbon Gurney-flap roof spoiler, carbon mirror caps and a carbon rear diffuser insert surrounding the quad exhaust tips. The kit is TÜV-certified in Germany and is designed to overlay — not replace — the factory AMG-Line body. Full B25 carbon aesthetic package typically runs £5,800–8,500 installed at an authorised Brabus workshop, with matching 19" / 20" Brabus Monoblock wheels from £3,200 per set. Brabus offers a separate ECU PowerXtra calibration adding approximately 55 hp — see the Performance section for details.
RevoZport RZA-35 / RZA-45 Razor. Hong Kong–based RevoZport, best known for its C-Class and AMG GT carbon work, produces a dedicated RZA-35 Razor programme for the W177. Autoclaved pre-preg carbon front splitter with functional dive planes, vented carbon bonnet to help extract heat from the M260's top-mount intercooler piping, carbon side-skirt blades, a raised carbon ducktail spoiler and a race-profile carbon diffuser. Aero is genuinely functional at speed rather than purely cosmetic. £4,500–7,000 for the full carbon kit; the RZA-45 variant for the A 45 S is visually near-identical and shares most parts. Strong reputation among European and UK track-day A-Class owners.
Carbonteam (Germany). Carbonteam — a Berlin-based carbon specialist — produces a comprehensive bolt-on carbon trim range for the W177 A 35: carbon mirror caps, carbon roof spoiler, carbon splitter lip, carbon canards, carbon side-skirt extensions, carbon engine-bay trim and carbon interior inserts. All pre-preg autoclaved construction. Entry point is approximately £450 for mirror caps; a full exterior-only package lands around £2,800–4,200. The most cost-effective route to a coherent carbon aesthetic without going to Brabus-level money.
Prior Design PD-Black Edition. Germany-based Prior Design offers a more aggressive W177 programme using moulded composite (FRP) rather than pre-preg carbon. Includes reshaped front apron with enlarged intakes, side-skirt extensions, a raised ducktail, and a reshaped diffuser. Approximately £3,500–5,500 in primer, ready for paint. Well-known in Eastern European and UK tuner-scene circles and compatible with both A 35 and A 45 S front bumpers (verify facelift vs pre-facelift).
Wald International Black Bison. The Japanese tuner's subtle chrome-accented front lip, rear apron and side skirts are popular in the Asian market. £3,800–5,800 depending on finish. Less aggressive than Brabus or RevoZport, but well-built and widely compatible with factory AMG-Line bodywork.
Wheels — HRE FlowForm, Brabus Monoblock, OZ Superturismo, Vossen

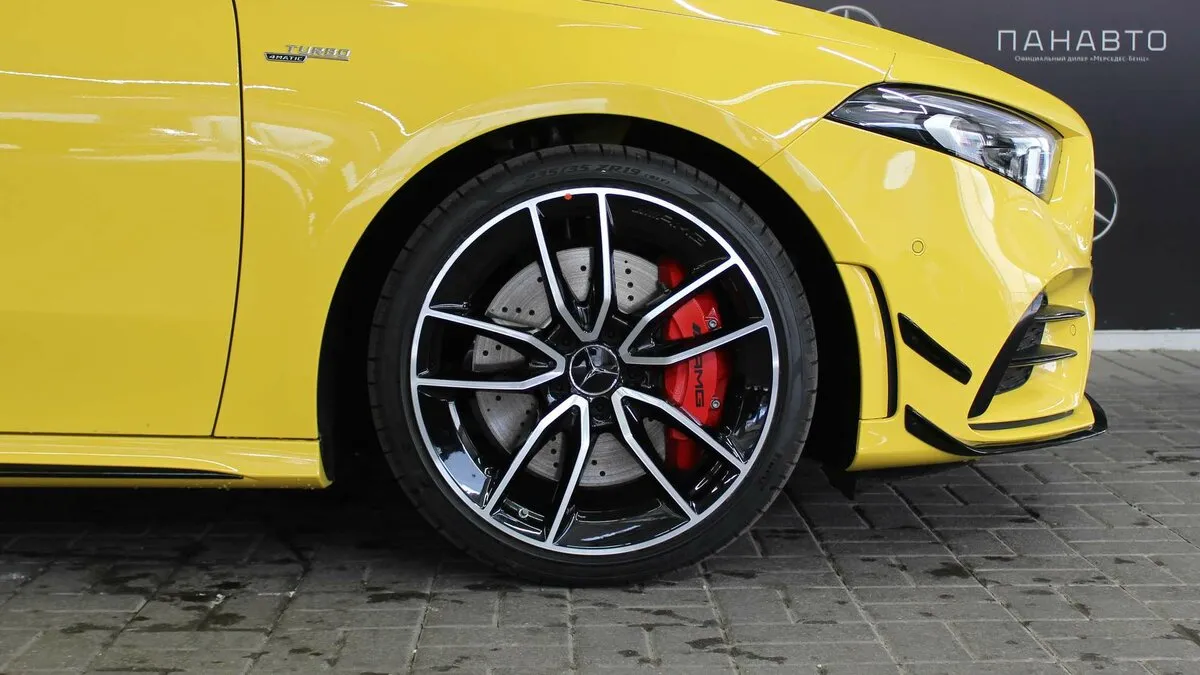

Factory A 35 wheels are 18" or 19" AMG cast alloys — 19 × 8.0J front and rear with 235/35 R19 Michelin Pilot Sport 4 tyres. Stepping up to 19" or a carefully-chosen 20" is the single most transformative aesthetic change. On a 306 hp AWD hot hatch with 400 Nm through a transverse gearbox, forged or flow-formed construction is strongly recommended — cheap cast replicas are prone to cracking on UK / European road joints.
HRE FlowForm FF04 / FF21. Flow-formed hybrid construction gives genuine strength at roughly half the cost of true billet-forged wheels. Recommended spec: 19 × 8.5J ET40 with 235/35 R19, or stretched 20 × 8.5J ET42 with 235/30 R20 for an aggressive stance on lowering springs. Approximately £2,200–3,200 per set depending on finish. The sensible upgrade for the vast majority of A 35 owners who aren't doing track days.
Brabus Monoblock Y / Monoblock R. Brabus's forged W177 wheels in 19 × 8.5J ET45 and 20 × 8.5J ET48 with matching staggered tyre sizes. Platinum, satin-black and liquid-titanium finishes. Approximately £3,200–5,500 per set — pricey but visually the defining A 35 wheel and the OEM-level fitment quality is unmatched in the aftermarket.
OZ Racing Superturismo GT / Ultraleggera HLT. The lightweight Italian track-focused option. Ultraleggera HLT in 19 × 8.0J is the single lightest mass-market wheel available for the W177 at roughly 9.2 kg per corner — a meaningful rotational-inertia reduction noticeable on 306 hp AWD acceleration. £1,100–1,800 per set. The value-for-money lightweight choice.
Vossen HF Series / VWS-4. American hybrid-forged option popular on the social-media A 35 scene. 19" and 20" fitments with a wide colour and finish catalogue. £1,800–2,800 per set. Visually excellent for street-focused builds; not our first recommendation for genuine track-day loads.
Performance — Posaidon, Mcchip-DKR, RaceChip, Brabus PowerXtra, MTM
Posaidon RS A 35. Germany-based Posaidon is best known for its RS455 calibration on the A 45 S (455 hp from 421 hp factory), but also offers a lighter Stage 1 flash for the A 35's M260. The Posaidon A 35 Stage 1 programme lifts peak output to approximately 360–375 hp and 480 Nm — a meaningful 54–69 hp gain on a good pump-fuel calibration. Approximately £650–900 turnkey. Reversible on dealer visits. Posaidon's reputation on the M260/M139 family is top-tier, and their calibrations are widely regarded as the safest high-power route.
Mcchip-DKR Stage 1 / Stage 2. Mcchip-DKR's A 35 programme runs Stage 1 at approximately 355 hp / 470 Nm (£500–700) and Stage 2 at approximately 380 hp / 500 Nm with a sports-cat downpipe and high-flow intake (£1,800–2,600). Stage 2 brings the A 35 uncomfortably close to the factory A 45 (387 hp) — at which point the ownership-cost question becomes acute (see the dedicated section below).
RaceChip GTS / RaceChip Ultimate. Plug-and-play tuning box that intercepts the factory ECU signals rather than reflashing. GTS adds roughly 30–50 hp; Ultimate pushes 55–70 hp with higher boost and fuel-trim adjustments. £300–650. Easily removable before dealer service. Less powerful and slightly less refined than a proper ECU flash, but genuinely reversible — popular with leased / PCP-financed A 35 owners who cannot accept the warranty risk of a proper remap.
Brabus PowerXtra B25 S. Brabus's own ECU calibration adds approximately 55 hp for a total of ~361 hp / 460 Nm. Includes a two-year Brabus driveline warranty — a genuinely valuable proposition on a car still within its Mercedes factory warranty. Approximately £2,800–3,600 installed at a Brabus dealer. The premium-warranty route.
MTM Stage 1. German long-standing tuner MTM offers an A 35 map at roughly 380 hp / 500 Nm. £900–1,200. Well-respected in the German market and available through dealer partners across Europe.
Exhausts. The factory AMG quad-tip exhaust is already acoustically tuned. Upgrades: Akrapovic Evolution (titanium with carbon tips, £2,800–3,800 installed, approximately 4 kg weight saving), Armytrix Valvetronic (valved stainless with remote-control volume, £2,200–3,200), iPE Innotech (valved, £1,500–2,200) and Remus (stainless, fixed valving, £1,100–1,600). All four retain factory quad-tip apertures and are cleanly reversible.
Suspension. AMG RIDE CONTROL adaptive dampers are excellent on the factory car. For cars without RIDE CONTROL, Eibach Pro-Kit lowering springs (~25 mm drop, £250–350) or KW V3 coilovers (£1,800–2,400) are the standard upgrades. KW's V3 damper-adjust kit is well-regarded for W177 track use.
Interior — Brabus, Carbonteam, Performance Seats

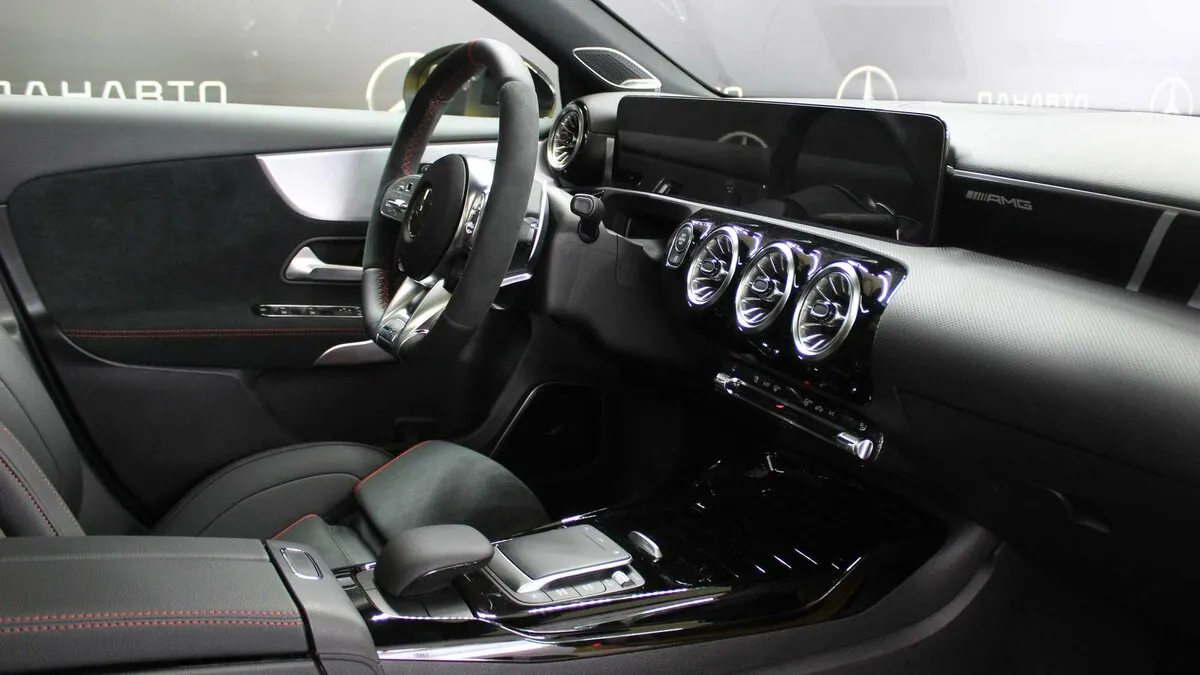

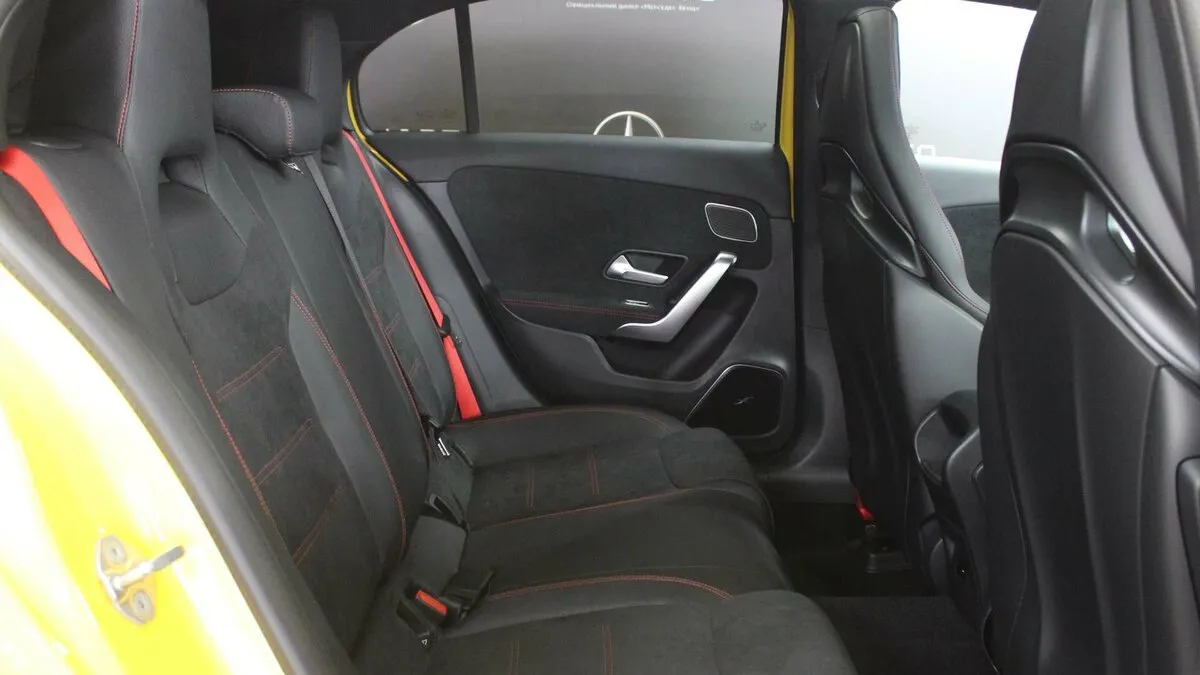

The A 35's factory interior is already strong — AMG sport seats in microfibre with red contrast stitching, flat-bottom AMG Performance steering wheel, 10.25" MBUX twin-display dashboard. Worthwhile upgrades: Brabus fine-leather re-trim (£4,500–8,500 at Bottrop with bespoke hide and stitching), Carbonteam carbon interior trim inserts replacing the factory brushed aluminium (£850–1,800 depending on coverage), and aftermarket Alcantara-retrimmed steering wheels from the Autoart or Carlex catalogue (£650–1,100). For track-focused owners, Recaro Podium CF or Sparco QRT-R buckets with Mercedes-specific side mounts are the standard route, though they are not a common upgrade on street-driven A 35s.
What Does It Cost? — Realistic W177 A 35 Build Budget
Ownership-cost honesty is essential on an A 35 4Matic because the model sits in an unusual pricing corridor: the factory 306 hp base car is not cheap, and the A 45 S (421 hp) above it is not catastrophically more expensive. A realistic modern-market starting point for a used low-mile A 35 hatch with AMG Aerodynamics Pack and AMG Driver's Package is £42,000–48,000 in the UK market as of early 2026. Now consider a typical "enthusiast build" stacked on top: Posaidon or Mcchip-DKR Stage 1 ECU flash at £450–700; a full Brabus B25 or RevoZport RZA-35 carbon body kit at £3,000–5,000 installed (Carbonteam-only route is cheaper at ~£1,500); a set of 19" or 20" forged wheels at £2,000–3,200 with fresh Pilot Sport 4S rubber at another £900–1,200; a valved Armytrix or Akrapovic exhaust at £1,500–2,500; and an interior carbon/alcantara refresh at £1,000–3,000. Sub-totalling honestly: the tuning spend is roughly £8,850–15,600 on top of the donor car. A carefully-built A 35 therefore lands at £51,000–63,000 all-in — and here the uncomfortable truth: a factory A 45 S with 421 hp, 500 Nm, the hand-built M139, the 8-speed DCT and the torque-vectoring rear-axle twin-clutch starts at approximately £55,000–58,000 used in 2026. In other words, a fully-tuned A 35 hits A 45 S money without the A 45 S's factory warranty, collector-desirability or genuine 4-second hot-hatch performance. The rational tuning envelope for an A 35 is therefore: Stage 1 map, tasteful wheels, valved exhaust and carbon trim — roughly £5,000–7,500 of modifications that leave the all-in below £55,000 and preserve the A 35's position as the value-for-money AMG hatch. Beyond that budget, buying an A 45 S is almost always the better decision.
Frequently Asked Questions
A 35 vs A 45 vs A 45 S — which W177 should I actually buy?
The three AMG W177 variants are genuinely different cars despite superficially similar aesthetics. The A 35 (306 hp, 400 Nm, M260 engine, 7-speed DCT) is the value-focused entry point — comfortable as a daily driver, capable on B-roads, factory-warranty-friendly, and typically the lowest-running-cost AMG hatch. The A 45 (387 hp, 480 Nm, M139 hand-built engine, 8-speed DCT, standard 4Matic+ with torque-vectoring rear) was the non-S A 45 available in some markets and slots between the other two. The A 45 S (421 hp, 500 Nm, same M139 as A 45 but higher boost and additional cooling, with Drift Mode and rear LSD) is the ultimate expression and a genuine hypermile hatch — its 3.9-second 0–100 is quicker than many six-figure supercars. If your primary use is commuting with occasional enthusiastic driving, the A 35 is the correct choice. If your budget stretches to £55,000+ and you want the serious AMG engineering, the A 45 S is worth the premium.
Will A 45 S body kits and parts fit my A 35?
Partially. Both cars share the W177 shell, bonnet, doors and roof — so parts like the Brabus carbon front splitter, carbon diffuser, roof spoiler, mirror caps and side-skirt extensions will fit either variant. However the front bumper on A 35 and A 45 S is visually similar but subtly different — the A 45 S uses an A 45-specific apron with enlarged lower intakes to feed its higher-capacity cooling pack, and many A 45 S-specific front lips will not sit flush on the A 35's factory bumper. Rear bumper is generally shared. The A 45 S exhaust system cannot fit the A 35 without turbo-back replacement because the downpipe, flex section and cat positions differ. Always confirm W177 A 35 vs A 45 S fitment explicitly with the supplier before ordering. The 2023 facelift further complicates fitment — pre-facelift vs facelift body kits are not cross-compatible at the bumper.
Will a Stage 1 remap void my Mercedes warranty?
Technically yes, practically complicated. A traditional ECU flash (Mcchip-DKR, Posaidon, MTM) leaves digital fingerprints in the M260 ECU that Mercedes dealers can detect, and a dealer who identifies a non-factory calibration can reject warranty claims on engine, turbo, gearbox or 4Matic drivetrain. The safer routes in order: (1) Brabus PowerXtra with its two-year Brabus warranty is the lowest-risk performance option because Brabus themselves underwrite failures. (2) A RaceChip tuning box is fully removable and leaves no trace in the ECU — plug out before any dealer visit and warranty is unaffected. (3) A reflashable Stage 1 (Posaidon, Mcchip-DKR) can be reverted to factory before dealer service, but expect nuisance friction. For PCP/leased cars within factory warranty we routinely recommend RaceChip Ultimate or Brabus PowerXtra; for owned-outright cars beyond the three-year warranty window, the full reflash options become sensible.
How far can you safely push the M260 without internals?
The M260 E20 DEH LA is not the hand-built M139 of the A 45 S and does not tolerate the same boost levels. On factory forged internals with stock turbo (Mitsubishi TD04-style) and the factory intercooler, approximately 380–400 hp is the prudent ceiling — achievable with a Mcchip-DKR Stage 2 or Posaidon programme on high-quality 98/99 RON fuel. Pushing beyond that requires either a larger-frame turbo (rare on A 35 — most tuners instead recommend stepping up to an A 45 / A 45 S donor), a front-mount intercooler upgrade, upgraded fuel-pump internals and regular oil-analysis monitoring. Because the factory DCT and 4Matic system are shared with the A 45 (and rated for the A 45's 480 Nm), driveline is not the limiting factor at Stage 2 — the engine is. For serious power (450 hp+) the sensible platform is the A 45 S with its M139, not a stretched A 35 M260.
