Spare wheel cover frame

Mansory Spare Wheel Cover Frame for Mercedes-Benz G-Class W465 Gronos

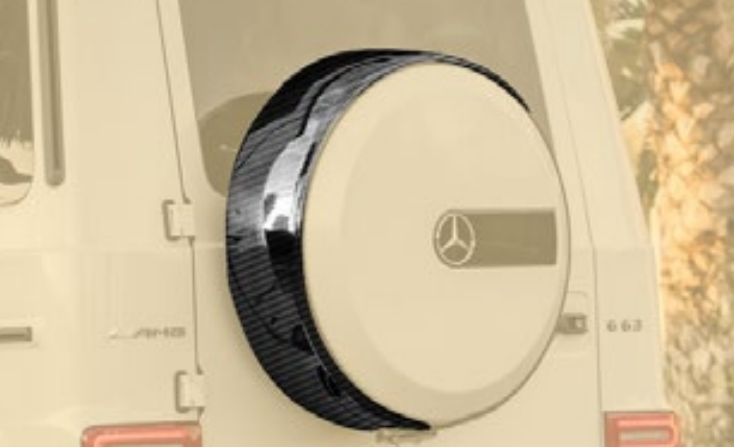

The Mansory Spare Wheel Cover Frame is a precision-shaped carbon ring that mounts on the rear door of the Mercedes-Benz G-Class W465 Gronos, framing the spare wheel cover and visually delineating the spare-wheel assembly from the surrounding door panel. It is the structural complement to the spare wheel cover itself: where the cover hides the wheel face, the frame draws a clean carbon perimeter around it, finishing the rear fascia in a single coordinated gesture. As part of the wider Mansory Body Kit for Mercedes Benz G-class W465 Gronos programme, this component aligns the rear elevation of the truck with the carbon already running across the bonnet, A-pillar, D-pillar, and roof wing.

Framing the rear signature element of the G-Class

The spare wheel on the rear door is one of the most recognised silhouettes in automotive design. On a stock W465 the wheel cover floats on the painted door surface, with the body-coloured pressing reading as background. Mansory’s Gronos programme rethinks that relationship: by inserting a carbon frame between cover and door, the wheel becomes a deliberately framed object, no longer accidental geometry. The frame edge runs in a continuous loop, with the inner radius matching the cover’s outer rim and the outer profile flowing into the rear-door pressing without seams or shadow gaps. The result reads at a glance: the spare wheel is no longer a utility item, it is a centerpiece.

Visually, the frame also rebalances the rear elevation. Owners who specify only the cover sometimes find the carbon patch sits as an isolated dot on a large painted door. The frame extends the carbon footprint outward to the swept edges of the door pressing, so the eye reads a single unified panel of carbon rather than a spot detail. Combined with the matching rear door panel, it transforms the back of the truck into an integrated wide-body composition that finally matches the front mask and roof in visual weight.

Companion-piece logic with the spare wheel cover

The frame and the spare wheel cover are explicitly designed as a pair. They share the same 2x2 twill weave direction, the same clear-coat depth, and the same edge-radius geometry, so when the two parts sit together on the door they read as a single carbon assembly rather than two adjacent parts. We strongly recommend ordering the frame together with the Mansory spare wheel cover in a single layup batch — that way, the prepreg roll and the curing cycle are shared, and the visible carbon pattern flows continuously across the seam between cover and frame.

If only one of the two has been installed previously, fitting its companion later is still possible, but the colour match of the clear coat depends on the age of the existing piece. UV exposure shifts the resin tint over years; we will always ask for photographs of the installed piece before producing the second part to dial the lacquer formulation accordingly. For customers planning the full Gronos rear, ordering frame and cover at once removes that variable entirely.

Hand-laid compound curvature and the layup process

A flat ring would be trivial to manufacture in carbon. The W465 frame is anything but flat: it inherits the rear-door pressing geometry, which curves outward at the perimeter, dishes inward toward the spare-wheel mounting boss, and rolls across multiple radii in both axes. This compound curvature cannot be produced from pre-shaped sheet stock; it requires a hand-laid layup over a CNC-machined mould.

Each frame is built up ply by ply in autoclave-grade prepreg. Layup technicians orient the visible 2x2 twill on the A-side so the weave reads symmetrically around the ring, with the diagonals flowing into the rear-door panel pressing rather than terminating awkwardly at the perimeter. Beneath the cosmetic ply, structural unidirectional layers carry the bending loads. The whole part is debulked, bagged, and cured in autoclave under controlled temperature and pressure, which delivers a void-free laminate and the deep optical clarity that defines Mansory’s carbon work. Primed specification follows the same layup but uses a glass surface ply ready for body-colour paint.

Rear-door swing clearance and W465 geometry

The G-Class rear door swings sideways on a single hinge axis, and at full open angle the inner edge of the door sweeps remarkably close to the rear quarter panel of the body. Any component bolted to the outer face of the door must be designed inside that swept envelope — if it protrudes too far, it will contact the body when the door opens fully, leaving witness marks or, in the worst case, dimpling the rear quarter.

The Mansory frame is engineered specifically for the W465 swept envelope, which is not identical to the W463A. The pressing radii on the W465 rear door changed slightly, the spare-wheel boss sits a few millimetres differently, and the stop angle on the hinge differs subtly between markets. For that reason this frame is not interchangeable with W463 or W463A — even though it looks visually similar, the inner geometry will not seat correctly and the swept clearance will be wrong. Always specify the chassis code when placing the order.

Mounting: 3M VHB bonded plus bolt-through reinforcement

The frame uses a hybrid mounting scheme combining structural bonding and mechanical reinforcement:

• Primary bond: 3M VHB high-strength acrylic foam tape applied to the back face of the frame, against the pre-prepared rear-door pressing. The bond develops handling strength immediately and full strength over 72 hours.
• Mechanical reinforcement: at the upper and lower load points the frame is additionally bolt-through to the rear door substructure. M5 stainless fasteners run through pre-located holes in the frame and into threaded inserts set into the door panel, taking ultimate shear load off the adhesive over years of door-slam cycles.
• Surface preparation: isopropyl-alcohol degrease, 3M Primer 94 application, masking, and tack-time control are mandatory; we supply written instructions and the primer with every shipment.

The bolt-through reinforcement is what allows the frame to live with the cyclic vibration of off-road or rough-road use without delamination. It is a meaningful difference compared to fully-bonded body-shop replicas.

Frame versus cover-only versus rear-door-panel solutions

Owners often ask which combination of rear parts to specify. The honest comparison:

• Cover only: minimum-spend route, the carbon appears as a single circle on a painted door — effective as a hint but not a complete look.
• Cover plus frame: recommended pairing — the carbon footprint expands to a coordinated carbon assembly around the spare wheel, and the rear visually balances against the front mask.
• Cover plus frame plus rear door panel: full Gronos rear — the entire rear door surface becomes carbon, finally matching the visual weight of the wide front mask, the roof wing, and the D-pillar cover.

For owners running the carbon mirror housings already, adding the frame brings the carbon visual line all the way from the A-pillar through the side glass and around to the rear, completing the wraparound logic of the Gronos kit.

Specification and finish options

• Material: autoclave-cured carbon fibre prepreg, 2x2 twill A-side
• Finish: visible carbon under high-build clear coat, OR primed-ready-to-paint glass-veil surface
• Mounting: 3M VHB primary, M5 bolt-through upper/lower
• Compatibility: Mercedes-Benz G-Class W465 (Gronos kit) only — not W463 / W463A
• Production lead time: 10–14 weeks made-to-order
• Companion part: spare wheel cover, recommended joint order

Ordering and lead time

The frame is produced to order on confirmation. Standard lead time is 10–14 weeks from deposit, covering mould slot allocation, prepreg layup, autoclave cure, demould, trim, fastener-insert prep, and cosmetic clear-coat. Pricing is in EUR and we ship worldwide door-to-door under DAP terms; duties and import VAT settle locally on arrival. To place an order, send the chassis code (W465), preferred finish (visible carbon or primed), and confirmation whether the spare wheel cover is being ordered together. We reply with a formal quote, payment instructions, and an estimated production slot. Reach out by WhatsApp or email [email protected]. The full Mansory programme is browsable in our Mansory collection.

FAQ

Q: Can the frame be installed without the matching spare wheel cover?
A: Yes — mechanically the frame mounts to the door independently of the cover. Visually, however, the pairing is what makes the design work: a carbon frame around a body-colour cover reads as an unfinished installation. We recommend ordering both together.

Q: Will it fit my W463A G-Class?
A: No. The W465 rear door pressing geometry differs from the W463A — mounting hole positions, swept clearance envelope, and the spare-wheel boss radius are all subtly different. A W463A-specific frame is available separately.

Q: What happens at full rear-door open angle — will the frame contact the body?
A: No. The frame thickness and outer profile are designed inside the W465 swept envelope at the factory hinge stop. Provided the door hinge stop is not modified, there is no risk of body contact.

Q: Can I have it primed instead of clear-coated to match my wrap or paint?
A: Yes. Specify the primed option at order time; the part is finished with a glass-veil surface ready for body-shop paint or vinyl wrap. Visible-carbon spec uses a 2x2 twill prepreg A-side under high-build clear.

Q: Is there any maintenance after installation?
A: Hand wash with pH-neutral shampoo, avoid high-pressure spray directly at the frame edges for 30 days post-install so the VHB bond reaches full cure, and apply ceramic coating or a polymer sealant once a year to protect the clear coat from UV.

For specification confirmation or production-slot inquiries, contact us via WhatsApp or [email protected]. The complete Gronos build is referenced on the parent listing: Mansory Body Kit for Mercedes Benz G-class W465 Gronos.
