Spare wheel cover

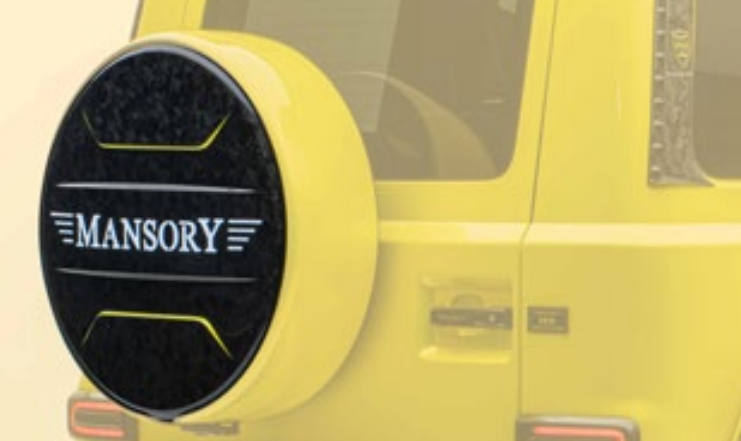

Mansory Spare Wheel Cover for Mercedes-Benz G-Class W465 Gronos — Carbon Rear-Mounted Cover

The rear of a G-Class is defined by one component: the door-hung spare wheel. Whatever covers that wheel is, by definition, the largest single piece of trim on the rear face of the vehicle — visible from a hundred metres, photographed from every angle, and the first thing the eye lands on when the tailgate swings open. On the new W465 generation Mercedes have refined the spare-wheel hub geometry — slightly different bolt-circle, slightly different overall diameter — but kept the silhouette intact. The Mansory Spare Wheel Cover for the W465 Gronos answers that silhouette with a tooled-from-scratch carbon piece that fits the new mount points exactly and behaves, visually and structurally, like a Mansory part rather than a dressed-up OEM cover.

Why the Spare-Wheel Cover Is the Most Important Rear Piece

On a finished Gronos build the rear face reads as a stack: bumper, tailgate sheet metal, spare-wheel zone, roof spoiler. Of those layers, the spare wheel zone occupies roughly the centre third of the visual field. A standard plastic OEM cover with a debossed star reads as functional but unfinished — it is the single element that betrays the build as factory rather than coachbuilt. Replace it with a sculpted carbon cover, and the entire rear composition resolves: the bumper diffuser, the rear-light covers, the door-handle inserts, and the spoiler all read as parts of one design language rather than carbon details bolted onto a stock car. The Spare Wheel Cover is, in practical terms, the single highest-impact carbon part on the back of the vehicle.

Material — Visible Carbon or Primed Composite

The cover is offered in two construction variants, chosen at order time according to the build aesthetic:

• Visible carbon (autoclave-cured): 2x2 twill 200 g/m² book-matched outer layer over a structural 245 g/m² 0/90° inner laminate, vacuum-bagged into a polished mould and cured at 130 °C / 6 bar for six hours in autoclave. Surface protected by a UV-stable two-pack clear coat (LV-352 class), available in high gloss or full matte. Finished mass approximately 1.9-2.2 kg. The weave reads cleanly from any viewing angle thanks to the book-matched cosmetic ply.
• Primed composite (paint-ready): RTM-moulded glass-fibre laminate with 15% chopped carbon strand reinforcement for stiffness, delivered in factory primer ready for body-shop colour. Painted at the installer to the customer's body code. Finished mass approximately 2.7-3.0 kg in primer, around 2.9-3.2 kg painted.

Both versions share the same outer mould — geometry is identical — so the choice is purely a finish decision. Carbon for buyers who want the cover to read as a material statement; primed for buyers who want a single-colour, integrated rear face where the cover disappears into the body shape.

Mansory Branding — Cast Plinth and Centre Emblem

The cover face carries a moulded plinth at the geometric centre, sized for the standard Mansory winged emblem (110 mm × 75 mm). The plinth is recessed approximately 2 mm below the surrounding cover surface, with M5 stainless studs bonded into the laminate during cure. The badge fits flush, sealed against moisture ingress with a thin EPDM gasket. An illuminated emblem variant is available on request: a low-current LED ring lights the badge perimeter at night, drawing power from the OEM tailgate harness through a sealed grommet at the carrier centre. Buyers who prefer a clean carbon face can order the cover without the plinth — a fully smooth surface — at no charge, specified on the order.

Mounting — Replaces OEM Cover, OEM Mount Points

The W465 spare-wheel carrier retains the same general architecture as the previous generation but with revised hardware: a centre threaded stud, four outer locating clips, and a redesigned retaining ring. The Mansory cover is engineered to those new dimensions exactly:

• Replaces the OEM injection-moulded cover entirely (the OEM cover is unbolted and stored).
• Engages the four outer OEM locating clips for primary retention.
• Centre stud passes through a brass-ferruled hole in the laminate; tightened to 12 Nm torque.
• Bonded VHB ring at the cover-to-spare-wheel interface acts as a vibration damper and weather seal.
• No drilling, no carrier modification, no adapter — a fully reversible install that returns to OEM in twenty minutes if needed.

An alternative mounting variant — clip-fit over the OEM cover — is available for buyers who do not want to remove the OEM piece. This adds approximately 8 mm of standoff to the rear face but preserves the OEM cover underneath, useful for warranty-period installations.

Weather Sealing and UV Resistance

The spare-wheel cover sits at the rear of the vehicle, fully exposed to road spray, UV, and the high-pressure water of routine washing. Long-term durability comes from three layers of attention:

• Laminate-level seal: the carbon plies are fully wetted-out in autoclave, no porosity at the surface, no path for moisture into the structural core.
• Clear-coat UV system: the LV-352 class two-pack clear contains hindered-amine light stabilisers that block 95%+ of UV-A. Real-world weave-yellowing horizon is in the 8-10 year range under heavy sun exposure, longer under garaged use.
• Edge sealing: the cover perimeter and any cut-outs (badge plinth, mounting-ring aperture) are sealed with a flexible polyurethane bead during installation, preventing capillary water entry behind the cover.

Routine maintenance is the same as any visible-carbon panel: pH-neutral shampoo wash, soft microfibre dry, quarterly ceramic-spray top-up, and an annual visual inspection of the clear coat.

The Cover and the Frame — How They Pair

The cover is one of two products that together resolve the rear spare-wheel zone. The companion piece is the Mansory Spare Wheel Frame for the W465 Gronos — a sculpted ring that wraps the perimeter of the spare-wheel mounting zone, hides the OEM tailgate-to-carrier transition, and frames the cover visually. Three pairing logics work well on a finished build:

• Carbon cover + carbon frame: a unified carbon expression at the rear centre, dramatic visual mass, photographs intensely under direct light.
• Carbon cover + body-colour frame: the cover sits as a focused centrepiece inside a painted ring — the eye lands on the centre badge, then radiates outward.
• Body-colour cover + body-colour frame: a fully integrated executive look, the spare-wheel zone reads as a sculpted body element rather than a separate component, appropriate for restrained dark-paint builds.

The cover and frame are independent products — neither requires the other — but the visual completeness of a build that has both is materially different from a build that has only the cover.

Compatibility — W465 Specific

This cover is engineered for the 2024+ W465 generation only. The spare-wheel hub geometry differs from the outgoing W463A in several measurable ways: the bolt circle is approximately 6 mm wider, the spare wheel diameter is unchanged for standard-fitment but the carrier mounting plate is offset 4 mm rearward, and the OEM locating clips are repositioned to match. Fitting a W463A-spec cover onto a W465 carrier results in poor seating, uneven gap, and incomplete clip engagement. Verify VIN at order time. The Mansory cover is compatible with all factory wheel options on the W465, including standard-width and full-size spare configurations, and works with both narrow-body and Wide Kit Gronos builds.

Coordinating Carbon Across the Vehicle

Buyers fitting the spare-wheel cover commonly coordinate it with adjacent rear-fascia carbon parts so the rear face reads as a single composition rather than scattered details:

• Rear Door Panel — the tailgate face sculpting that surrounds the spare-wheel zone.
• Rear Light Cover — carbon trim for the tail-light housings, completing the rear corner reading.
• Mirror Housing — visible-carbon mirror caps that establish the carbon language at the front of the vehicle.

The full Gronos kit and the rest of the catalogue are available at the parent Mansory Gronos kit page and the Mansory collection.

Ordering and Lead Time

The cover is built to order. Standard build window is 10-14 weeks from confirmed order to dispatch, including autoclave cycle time, clear-coat cure, and quality inspection. Worldwide freight is arranged at ex-works or DAP terms; the part travels in a foam-fitted hard case to protect the clear coat in transit. Order specification at quote time:

• Vehicle VIN (W465 verification).
• Material — visible carbon (gloss or matte) or primed composite.
• Mansory winged emblem — yes (standard / illuminated) / no.
• Mounting — replaces OEM cover (default) or clip-fit over OEM cover.
• Pairing — alone, with frame (specify carbon or painted), with full rear-fascia kit.

Contact us to start a build:

WhatsApp +44 7488 818 747 — specification, finish, fitment by VIN
[email protected] — quote, lead-time, freight

FAQ — Mansory Spare Wheel Cover for the W465 Gronos

Q: Will a Mansory cover from the previous-generation W463A fit my new W465?
A: No. The W465 carrier uses a wider bolt circle and a 4 mm rearward-offset mounting plate, plus repositioned outer locating clips. A W463A-spec cover will seat poorly and the clips will not engage cleanly. The W465 cover is tooled specifically to the new mount geometry — confirm generation by VIN at order.

Q: Does the cover affect the rear-view camera or the swing-out clearance of the tailgate?
A: No. The OEM rear camera is mounted in the tailgate trim above the spare-wheel zone, not on the cover itself. The cover adds approximately 8-10 mm of forward depth at the centre versus the OEM cover, well within the swing-out clearance envelope; tailgate operation, camera angle, and parking-sensor function are unchanged.

Q: Can the cover be repainted later if I change body colour?
A: The primed composite version can be repainted by any competent body shop with no special preparation. The visible-carbon version can be over-painted in body colour, but doing so erases the carbon weave permanently — most buyers who want a body-colour finish later simply order a fresh primed-composite cover instead.

Q: Is the cover impact-resistant if I scrape it loading luggage onto the rear?
A: The autoclave-cured carbon laminate is markedly more impact-resistant than the OEM injection-moulded plastic cover; light scrapes typically only mark the clear coat and can be polished out. Significant impact (rear collision, dropped object) requires replacement, the same as any composite body panel.

Q: How long does the install take, and does it need a body shop?
A: The mechanical install is a 25-30 minute job at a workshop bench — remove OEM cover, position Mansory cover, torque the centre stud to 12 Nm, engage outer clips, apply the perimeter PU bead. No body-shop work is needed for the visible-carbon variant. The primed-composite variant requires paint at a body shop before mounting (typically a 2-3 day turn including colour-match and clear).
