Mansory Logo for Grill Mask — Grille-Aperture Badge for the Mercedes-Benz G-Class W465 Gronos

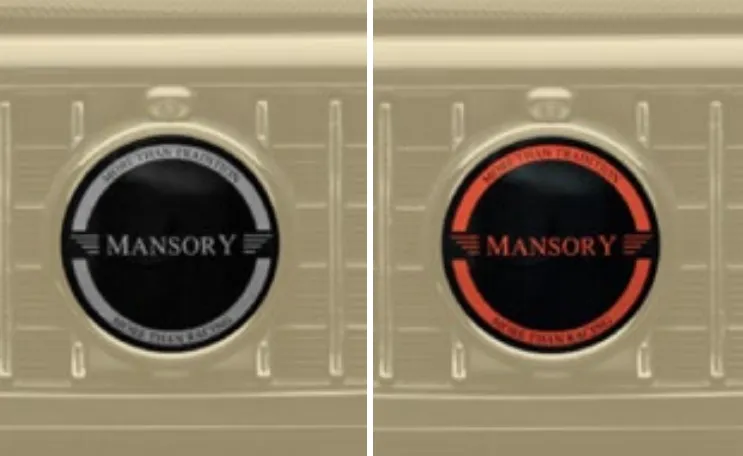

The Mansory logo for grill mask is one of two badges that carry the atelier signature on the W465 Gronos front fascia. The other one — see the logo emblem for the engine bonnet — is the calm one, sitting on a painted surface, sheltered from airflow, photographed at handshake distance. This one is the working badge. It mounts inside the grille aperture of the W465 wide front mask, between the grille bars, where the airflow is full-velocity, where stone-strike is most concentrated on the entire vehicle, and where pressure-wash detergents arrive directly. Different brief, different engineering, different finish chemistry, and a different mount system. This page covers the logic of all four.

Read this card alongside the wide front mask with vertical performance grill and the wide front mask with diagonal grill and side air intakes to see how the badge sits within the broader mask programme.

Why the Grille Badge Is a Different Part from the Bonnet Emblem

From a styling distance, the two badges look like the same Mansory wordmark in two different sizes. They are not the same part, and they are not interchangeable. The bonnet emblem is mounted to a flat painted carbon surface with structural acrylic foam; the grille badge mounts through the grille — either as a clip-fit between two adjacent bars or as a threaded-post fitting through a single bar with a captive nut behind. The bonnet emblem can be 130 mm wide because the bonnet centre-line carries it visually; the grille badge has to read as a focal jewel rather than a banner, so it is sized smaller and rendered in a higher-contrast finish. The bonnet emblem can be forged carbon and never see a stone in its life; the grille badge is statistically the most stone-struck part of the entire kit. Specifying the right finish here matters more than on any other carbon-or-metal accessory you can buy from us.

Material Grades — Forged Carbon, Machined Aluminium, Chrome, Gold-Plated Brass

Four production finishes are offered for the grille badge, each with a different durability profile and a different optical signature.

• Forged carbon (Mansory house finish): chopped-strand visible composite under a high-build clearcoat. The marbled pattern reads dark and dense at distance, picks up bright streaks under direct sun. Lighter than every metal option, and the only finish that visually echoes the forged-carbon trim elsewhere on the kit (mirror caps, door pulls). The clearcoat is the durability layer here — it is the part that takes the stone-strike before the carbon does, and it is the part that is field-replaceable if a chip ever cracks through.
• Machined aluminium, Type II anodised: CNC billet aluminium with hard-anodised surface in matte black, dark grey or natural metal. The anodised layer is grown into the aluminium rather than coated onto it, so chip resistance is exceptional — a stone strike that would crack a painted finish leaves a faint witness mark on anodise but does not expose bare metal. Diamond-cut perimeter edges give a bright contrast line under street lighting.
• Chrome (triple-plated): copper-strike, nickel underlayer, chromium top layer over machined brass core. The brightest finish in the catalogue and the one that most consistently photographs as a focal point on the front fascia. Vulnerable to road-salt pitting if neglected through a winter season — recommended for warm-climate cars or for owners who follow a winter-storage protocol.
• Gold-plated brass (special order, premium tier): 24k gold electroplated over a nickel-strike base on machined brass. The deepest visual contrast against a dark grille and the most distinctive finish at conversation distance. Heaviest of the variants. Requires a dedicated cleaning routine — soft microfibre only, never automatic-wash brushes, never alkaline detergents. Special order with extended lead time.

The Exposure Environment — Stone Strikes, Road Salt, Pressure-Wash Chemistry

No other accessory on a W465 Gronos build sees what this badge sees. Three load cases dominate its specification:

• Stone strike at motorway speeds. The grille aperture is the first opening between the road surface ahead and the engine bay. A stone lifted by a leading vehicle's tyre arrives at the grille at the relative airspeed plus the muzzle-velocity of the throw — typically 30–40 m/s on a motorway. The grille badge is right at the centre of that envelope. Anodised aluminium and forged carbon under a high-build clearcoat tolerate this best; chrome dents on direct hits but the chrome layer typically stays intact; gold-plate is the most cosmetically sensitive and is recommended for cars that do not see motorway gravel.
• Road-salt mist. In any climate where roads are salted, an unplated brass badge would be unwearable within a single winter. The chrome triple-plate is engineered for this — copper provides corrosion isolation, nickel provides barrier, chrome provides the visible finish. Gold-plate over nickel-strike is also robust against salt. Aluminium is intrinsically self-passivating; the anodised layer adds a second barrier. Forged carbon is unaffected by salt at the substrate, only at the clearcoat.
• Pressure-wash chemistry. Modern touchless car washes apply alkaline pre-soak, mild acidic post-rinse, and high-pressure water at 80–120 bar. The badge is hit by all three, often at close-range nozzle distance. Anodised aluminium and chrome are immune; forged carbon clearcoat is rated for repeated exposure if the surface is rinsed clean within a few minutes; gold-plate prefers hand wash and avoids the alkaline pre-soak entirely. We supply a finish-care card with each badge order.

Mounting Hardware — Clip-Fit vs. Threaded Post

The W465 grille matrix is a regular vertical-bar pattern (on the wide-front-mask vertical-grill variant) or diagonal-bar pattern (on the air-intakes diagonal-grill variant). The badge is supplied with two mounting options, selected at order time:

• Clip-fit (default for forged carbon and aluminium): the badge has two integrated rear clips that engage adjacent grille bars from behind. Installation is reversible — the badge can be removed and re-fitted by hand with no tools. Pull-load before release is approximately 60 N, well above any wash or wind force the badge will see in service but easy to defeat with deliberate hand pressure. Suitable for owners who want the option of removing the badge for storage or for show-clean sessions.
• Threaded post (default for chrome and gold-plated brass): the badge has a single M5 stainless rear post that passes through a designated hole in one grille bar and is captured by an acorn nut behind. Pull-load before release is approximately 280 N — the badge is not coming off accidentally. Removal is a workshop procedure: the grille mask comes partially out of the front fascia for rear access, the nut releases the post, and the badge is replaced or refurbished. Recommended for jurisdictions where badge theft is a known concern, and for premium-tier finishes whose security is non-trivial.

Both options are supplied with the corresponding hardware kit, a centre-line jig for placement, and a torque card for the threaded version. Mixing options across the badge family is supported — a forged-carbon badge can be specified with the threaded post, a chrome badge can be specified with clip-fit, on customer request.

W465 Grille Geometry vs. W463A — Why the W463A Badge Does Not Fit

The W463A predecessor used a different grille matrix density and a different bar profile. Owners moving from a W463A Gronos build to the W465 generation sometimes ask whether their existing grille badge can be reused; the answer is a structural no. The W463A clip-fit version uses a wider clip span that does not register cleanly on W465 vertical bars, and the W463A threaded-post version was sized for a different bar thickness and would loose-fit in the W465 hole pattern. The W465 grille badge is engineered as a new part, not a refresh of the W463A item, with new clip geometry, new post diameter and a revised perimeter that follows the geometry of the W465 wide-front-mask aperture rather than the W463A grille shell. We do not recommend cross-fitting; we do recommend ordering the correct W465 badge and retiring the W463A unit as a workshop keepsake.

Compatibility Across W465 Mask Variants

The grille badge is engineered to fit all three production W465 wide-mask variants without modification:

• Wide front mask with vertical performance grill — the badge mounts between the two centre vertical bars, exact centre-line of the aperture.
• Wide front mask with diagonal performance grill and side air intakes — the badge mounts at the intersection of the two centre diagonals, slightly higher than the geometric centre, where the diagonal pattern visually anchors a focal point.
• Ambiente illumination wide front mask — the badge mounts in the same location as the vertical-grill variant; the ambient backlight runs around the perimeter of the aperture rather than behind the badge, so badge illumination is by reflected light rather than direct backlight.

The supplied centre-line jig identifies the correct location for each variant. The badge body is identical across variants — only the placement jig differs.

Finish-Matching with the Bonnet Emblem

Buyers who specify both badges — the bonnet logo emblem and the grille badge — usually want the two to read as a coherent material story. Three pairing strategies dominate orders:

• Matched forged carbon on both. The most coherent statement at distance and in photography. The forged-carbon pattern on each badge is unique to its piece (chopped-strand layups never repeat exactly), so the two badges are visually related rather than identical — which most owners prefer to a paired-twin look.
• Anodised matte aluminium on both. The cleanest, most architectural specification. Reads dark and rectilinear at distance, and matches naturally with anodised mirror-cap inserts and the aluminium tips of the exhaust system.
• Forged carbon bonnet emblem, chrome or gold-plated grille badge. A deliberately layered specification — the bonnet badge sits quietly on the painted hood, the grille badge sits as the bright focal point of the front fascia. Reads as Mansory's two-tier identity: substance on the bonnet, jewellery in the grille.

We do not recommend mixing chrome on one badge with anodised matte on the other — the optical mismatch reads as inconsistent rather than layered. If in doubt, order both badges in the same finish family.

Ordering Process

The grille badge is a made-to-order item. The order flow is straightforward:

• Confirm the W465 mask variant on the build (vertical-grill, diagonal-grill, ambiente).
• Select the finish family (forged carbon, anodised aluminium, chrome, gold-plated brass).
• Select the mount option (clip-fit or threaded post).
• Confirm any pairing with the bonnet emblem so the production batch can be matched on clearcoat run.
• Production lead time is 10–14 weeks; gold-plated brass adds two weeks for the plating sub-process.
• Worldwide freight is included; the badge ships in a fitted foam case with the hardware kit and the centre-line jig.

Order via WhatsApp +44 7488 818 747 or [email protected] — quote VIN at order time so the correct mask-variant jig is supplied. The full kit context is on the Mansory body kit for Mercedes-Benz G-Class W465 Gronos parent page; the wider Mansory programme catalogue is on the Mansory collection.

FAQ — Grille Badge for the W465 Gronos

Q: Will the grille badge survive a UK winter on a daily-driven car?
A: Forged carbon and anodised aluminium will survive without fuss. Chrome will survive if washed regularly through the salting season — alkaline pre-soak rinsed off within a few minutes of application. Gold-plated brass is not recommended for daily winter use; it will not corrode but the cleaning regime required to maintain finish depth is not realistic for a daily car. Specify gold-plate for fair-weather and event-only use.

Q: Can the badge be replaced after a stone strike without replacing the grille?
A: Yes — that is exactly the design intent. The badge is the sacrificial element; the grille mask is the long-life component. A clip-fit badge swaps in five minutes by hand. A threaded-post badge swaps in a workshop visit, partial mask removal included. We hold replacement badges on accelerated lead time for owners who specify it at the original order.

Q: Is the badge available in a smaller size for a more discreet look?
A: The current W465 grille badge is sized to the geometry of the wide-front-mask aperture; a smaller badge would read as undersized in the same opening and would lose its function as a focal jewel. If a more discreet front-fascia is the goal, we recommend specifying anodised matte black on the production-size badge rather than reducing the badge dimension.

Q: Can the threaded post be retrofitted to a badge that was originally ordered as clip-fit?
A: Not in the field. The two mount versions are machined differently at the rear face — the post version has a single threaded boss, the clip version has two integrated clip arms. A retrofit means specifying a new badge in the desired mount configuration. Most owners who switch do it during a wider front-fascia refresh rather than as a standalone change.

Q: Does the badge interfere with the front radar or the parking-assist sensors?
A: No. The W465 forward radar is mounted in the lower bumper zone, well below the grille aperture. The parking-assist ultrasonic sensors are also bumper-mounted. The grille badge sits in clear airspace forward of the cooling pack and behind the grille bars; it is invisible to the OEM driver-assist sensor suite.
